CN211357896U

CN211357896U - Anti-blocking type is contaminated water recovery unit for gardens

Info

Publication number: CN211357896U
Application number: CN201921716982.9U
Authority: CN
Inventors: 元少东; 其他发明人请求不公开姓名
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-10-14
Filing date: 2019-10-14
Publication date: 2020-08-28
Anticipated expiration: 2029-10-14

Abstract

The utility model discloses a prevent stifled type gardens with contaminated water recovery unit, including retrieving the box, the top fixed mounting who retrieves the box has the connecting pipe, the top fixed mounting of connecting pipe has the recovery square bucket, the inner wall fixed mounting who retrieves the square bucket has the filtration to separate the rack, it has the filtering and collecting fill to strain one side activity grafting that separates the rack, the top fixed mounting who strains the collecting bucket has handheld piece, the top fixed mounting who retrieves the box has hydraulic cylinder, the top fixed mounting of hydraulic cylinder has first waterproof shield. The piston push rod in the hydraulic cylinder is pushed out or contracted to drive the first connecting rod to move, the limiting slide block slides in the limiting slide groove, and therefore the second connecting rod and the supporting bar are driven to move, impurities accumulated on the surface of the filtering and separating net rack are scraped and moved to the filtering and collecting hopper, the through of the filtering and separating net rack surface filtering holes is guaranteed, the effect of avoiding impurity blockage is achieved, and the aims of improving the recovery efficiency and reducing the maintenance cost are achieved.

Description

Anti-blocking type is contaminated water recovery unit for gardens

Technical Field

The utility model relates to a garden equipment technical field, in particular to prevent stifled type gardens and use contaminated water recovery unit.

Background

Gardens, which refer to a specially-cultivated natural environment and a recreation region, are created by modifying the terrain, planting trees, flowers and plants, building buildings, arranging garden roads and other ways in a certain region by applying engineering technology and artistic means, and are called gardens; gardens need to be watered during the construction and maintenance of scenery.

In the prior patent (publication number: CN208493375U), a garden sewage recovery treatment device, the upper end of a cleaning tank body is provided with a filtering cavity, most impurities in the sewage can be removed by the filtering cavity, and a filtering sponge is convenient to replace and operate; the motor drives the gear to rotate, so as to drive the rotating disc to rotate, and finally drive the rotating ring to rotate, so as to provide power for the cleaning roller to rotate in the cleaning tank body to clean impurities in the sewage; the two ends of the cleaning frame are respectively movably provided with a movable clamping block, the movable clamping block is pushed, one end of the movable clamping block is clamped in the clamping groove, the cleaning frame is pushed downwards at the moment, the movable clamping block is clamped at the bottom of the clamping groove, and then the position of the cleaning frame is fixed, so that the cleaning frame is convenient to replace and clean.

In the process of implementing the invention, the inventor finds that at least the following problems in the prior art are not solved: carry out the in-process of recovery processing with the watering to sewage, block up recovery unit because of the impurity in the sewage easily to make recovery efficiency reduce, and consume the manpower maintenance cost.

SUMMERY OF THE UTILITY MODEL

A primary object of the utility model is to provide a prevent stifled type polluted water recovery unit for gardens, can effectively solve and carry out recovery processing with the in-process of watering to sewage at present, block up recovery unit because of the impurity in the sewage easily to make recovery efficiency reduce, and consume the problem of manpower maintenance cost.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the anti-blocking type polluted water recovery device for the gardens comprises a recovery box body, wherein a connecting pipe is fixedly installed at the top of the recovery box body, a recovery square hopper is fixedly installed at the top end of the connecting pipe, a filtering net rack is fixedly installed on the inner wall of the recovery square hopper, a filtering hopper is movably inserted into one side of the filtering net rack, a handheld piece is fixedly installed at the top of the filtering hopper, a hydraulic cylinder is fixedly installed at the top of the recovery box body, a first waterproof baffle cover is fixedly installed at the top of the hydraulic cylinder, a piston push rod is arranged in the hydraulic cylinder, a first connecting rod is fixedly installed at one end, away from the hydraulic cylinder, of the piston push rod, a second waterproof baffle cover is fixedly installed at one side of the first connecting rod, a limiting sliding groove is formed in the surface of the recovery square hopper, a limiting sliding block is connected to the inside of the limiting sliding groove in a sliding mode, and the bottom, located at one end outside the, the top fixed mounting that spacing slider is located the outside one end of spacing spout has the second connecting rod, the top fixed mounting of second connecting rod has the support bar, the bottom surface fixed mounting of support bar has clean silver.

Furthermore, a liquid pump is fixedly installed at the bottom of one side of the recovery box body, and a liquid drawing end of the liquid pump is communicated with the interior of the recovery box body.

Furthermore, the clean silver adopts nanometer sponge material to make, and the bottom of clean silver and the top surface looks overlap joint of filtering and separating the rack.

Furthermore, the bottom surface of the second waterproof shield is connected with the top surface of the first waterproof shield in a sliding manner.

Furthermore, the first waterproof shield cover and the second waterproof shield cover are arc-shaped shield plates with upward bulges at the middle parts.

Compared with the prior art, the utility model discloses following beneficial effect has:

1. this prevent stifled type gardens with contaminated water recovery unit, separate the rack and strain the collection fill through setting up, sewage that the top of fighting into is retrieved filters, it can drive the head rod removal to release or shrink through piston push rod in the hydraulic cylinder, make spacing slider slide in spacing spout, thereby drive second connecting rod and support bar removal, make clean silver to strain separate the impurity that the net rack surface strained the volume and scrape and move to strain the collection fill in, thereby guaranteed to strain and separate the link up of net rack surface filtration hole, reached the effect of avoiding impurity to block up, the efficiency of recovery has been improved, the target of maintenance cost is reduced.

2. This prevent stifled type contaminated water recovery unit for gardens through setting up first waterproof fender cover and the waterproof fender cover of second, makes the head rod drive the waterproof fender cover of second and removes when removing, makes it slide at first waterproof fender cover top surface to separate the fender to the top of hydraulic cylinder and piston push rod, reached waterproof effect.

Drawings

FIG. 1 is a front view of the present invention;

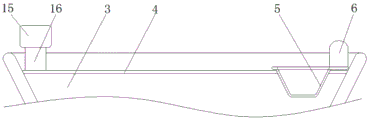

fig. 2 is a front sectional view of the filtering net frame structure of the present invention.

In the figure: 1. a recovery box body; 2. a connecting pipe; 3. a square hopper is recovered; 4. a filtering net rack; 5. a filtering and collecting hopper; 6. a hand-held piece; 7. a hydraulic cylinder; 8. a first waterproof shield; 9. A piston push rod; 10. a first connecting rod; 11. a second waterproof shield; 12. a limiting chute; 13. a limiting slide block; 14. a second connecting rod; 15. a supporting strip; 16. cleaning the cotton sliver; 17. and (4) a liquid pump.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in figure 1-2, an anti-blocking type polluted water recycling device for gardens comprises a recycling box body 1, a connecting pipe 2 is fixedly installed at the top of the recycling box body 1, a recycling square hopper 3 is fixedly installed at the top end of the connecting pipe 2, a filtering net rack 4 is fixedly installed on the inner wall of the recycling square hopper 3, a filtering and collecting hopper 5 is movably inserted into one side of the filtering and separating net rack 4, a handheld piece 6 is fixedly installed at the top of the filtering and collecting hopper 5, a hydraulic cylinder 7 is fixedly installed at the top of the recycling box body 1, a first waterproof shield 8 is fixedly installed at the top of the hydraulic cylinder 7, a piston push rod 9 is arranged inside the hydraulic cylinder 7, a first connecting rod 10 is fixedly installed at one end, far away from the hydraulic cylinder 7, of the piston push rod 9, a second waterproof shield 11 is fixedly installed at one side of the first connecting rod 10, the bottom surface of the second waterproof shield 11 is in sliding connection with the top surface of the first waterproof shield 8, the first waterproof shield 8 and the second waterproof, the surface of the recovery square bucket 3 is provided with a limit sliding groove 12, the inside of the limit sliding groove 12 is connected with a limit slider 13 in a sliding manner, the bottom of one end of the limit slider 13, which is positioned outside the limit sliding groove 12, is fixedly connected with the top end of the first connecting rod 10, the top of one end of the limit slider 13, which is positioned outside the limit sliding groove 12, is fixedly provided with a second connecting rod 14, the top end of the second connecting rod 14 is fixedly provided with a support strip 15, the bottom surface of the support strip 15 is fixedly provided with a clean cotton sliver 16, the clean cotton sliver 16 is made of nano sponge material, the bottom of the clean cotton sliver 16 is overlapped with the top surface of the filter screen frame 4, by arranging the filter screen frame 4 and the filter collecting bucket 5, sewage discharged from the top of the recovery square bucket 3 is filtered, the first connecting rod 10 can be driven to move by pushing or contracting of, thereby drive second connecting rod 14 and support bar 15 and remove, make clean silver 16 to filter and separate the impurity that the net rack 4 surface filter is long-pending and scrape and move to filtering collection fill 5 in, thereby guaranteed to filter and separate the link up of net rack 4 surface filtration pore, reached the effect of avoiding impurity jam, realized improving recovery efficiency, reduce the target of maintenance cost, through setting up first waterproof shield 8 and second waterproof shield 11, make first connecting rod 10 drive second waterproof shield 11 and remove when removing, make it slide at first waterproof shield 8 top surface, thereby separate the fender to the top of hydraulic cylinder 7 and piston push rod 9, waterproof effect has been reached, the bottom fixed mounting of recovery box 1 one side has drawing liquid pump 17, and the drawing liquid end of drawing liquid pump 17 is linked together with the inside of recovery box 1.

To sum up, the anti-blocking type polluted water recycling device for gardens is characterized in that the filtering screen frame 4 and the filtering collecting hopper 5 are arranged to filter the sewage discharged from the top of the recycling square hopper 3, the first connecting rod 10 can be driven to move by pushing or contracting the piston push rod 9 in the hydraulic cylinder 7, the limiting slide block 13 slides in the limiting slide groove 12, so as to drive the second connecting rod 14 and the supporting strip 15 to move, so that the impurities filtered and accumulated on the surface of the filtering screen frame 4 by the cleaning cotton sliver 16 are scraped and moved into the filtering collecting hopper 5, so as to ensure the penetration of the filtering holes on the surface of the filtering screen frame 4, achieve the effect of avoiding the impurity blockage, realize the aims of improving the recycling efficiency and reducing the maintenance cost, and the first waterproof shield 8 and the second waterproof shield 11 are arranged, so that the first connecting rod 10 drives the second waterproof shield 11 to move when moving, so as to slide on the top surface of the first waterproof shield 8, thereby separate the fender to hydraulic cylinder 7 and piston push rod 9's top, reached waterproof effect, solved at present carrying out the in-process of recovery processing with the watering to sewage, jam recovery unit because of the impurity in the sewage easily to make recovery efficiency reduce, and consume the problem of manpower maintenance cost.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a prevent stifled type gardens with contaminated water recovery unit, includes recovery box (1), its characterized in that: the top of the recovery box body (1) is fixedly provided with a connecting pipe (2), the top end of the connecting pipe (2) is fixedly provided with a recovery square hopper (3), the inner wall of the recovery square hopper (3) is fixedly provided with a filter screen frame (4), one side of the filter screen frame (4) is movably inserted with a filter screen (5), the top of the filter screen (5) is fixedly provided with a handheld piece (6), the top of the recovery box body (1) is fixedly provided with a hydraulic cylinder barrel (7), the top of the hydraulic cylinder barrel (7) is fixedly provided with a first waterproof shield cover (8), the interior of the hydraulic cylinder barrel (7) is provided with a piston push rod (9), one end of the piston push rod (9) far away from the hydraulic cylinder barrel (7) is fixedly provided with a first connecting rod (10), one side of the first connecting rod (10) is fixedly provided with a second waterproof shield cover (11), spacing spout (12) have been seted up on the surface of recovery square bucket (3), the inside sliding connection of spacing spout (12) has limiting slide block (13), and limiting slide block (13) are located the bottom of the outside one end of spacing spout (12) and the top fixed connection of head rod (10), top fixed mounting that limiting slide block (13) are located the outside one end of spacing spout (12) has second connecting rod (14), the top fixed mounting of second connecting rod (14) has support bar (15), the bottom surface fixed mounting of support bar (15) has clean silver (16).

2. The anti-blocking type is contaminated water recovery unit for gardens of claim 1, characterized in that: and a liquid pump (17) is fixedly installed at the bottom of one side of the recovery box body (1), and the liquid drawing end of the liquid pump (17) is communicated with the interior of the recovery box body (1).

3. The anti-blocking type is contaminated water recovery unit for gardens of claim 1, characterized in that: the cleaning cotton sliver (16) is made of a nano sponge material, and the bottom of the cleaning cotton sliver (16) is in lap joint with the top surface of the filtering net rack (4).

4. The anti-blocking type is contaminated water recovery unit for gardens of claim 1, characterized in that: the bottom surface of the second waterproof shield cover (11) is in sliding connection with the top surface of the first waterproof shield cover (8).

5. The anti-blocking type is contaminated water recovery unit for gardens of claim 1, characterized in that: the first waterproof shield cover (8) and the second waterproof shield cover (11) are arc-shaped shield plates with the middle parts protruding upwards.
