CN211356876U - A liquid food supply device for gastroenterology nursing

Info

Publication number: CN211356876U
Application number: CN201922433362.0U
Authority: CN
Inventors: 陈欣雨; 黄伟霞; 陈梅
Original assignee: People's Hospital of Bishan District
Current assignee: People's Hospital of Bishan District
Priority date: 2019-12-30
Filing date: 2019-12-30
Publication date: 2020-08-28
Anticipated expiration: 2029-12-30

Abstract

The utility model provides a liquid food supply device for digestive medicine nursing. , the lower part of the telescopic hose is connected with a bellows, the lower end of the bellows is connected with a connecting hose, a switch is arranged between the bellows and the connecting hose, the lower end of the connecting hose is connected with the left end of the connecting elbow, and the right end of the connecting elbow is connected. A holder is arranged between the connecting elbow and the joint. The utility model has a reasonable design and is convenient to use, and can perform enteral nutrition support at a constant constant temperature according to the needs of the patient, and can accurately observe and record the enteral nutrition supply speed and quantity of the patient; It is convenient for clinical nurses to use, reduces their workload and improves work efficiency.

Description

A liquid food supply device for gastroenterology nursing

技术领域technical field

本实用新型涉及医疗器械领域，具体涉及一种消化内科护理用流食供给装置。The utility model relates to the field of medical devices, in particular to a liquid food supply device for nursing in gastroenterology.

背景技术Background technique

重症医学科大多数患者都需要流食来补充患者的营养，流食包括专门配备的营养液或者患者家属自制的营养汤等。由于患者的活动能力极为有限，导致患者无法自行进食，必须依靠护理人员喂食；护理人员一手持盛装流食的器皿，一手用勺子逐勺给患者喂食，这大大加重了护理人员的工作量，而且由于患者处在依赖护理人员才能进食的情况，对于患者的早期活动康复也会产生影响，十分不利于患者的早日康复。而对于一些昏迷患者，常规的管饲流质也较为麻烦，通常通过注射器进行管饲，占用时间长，也不易被患者家属接收。Most patients in the intensive care unit need liquid food to supplement the patient's nutrition. Liquid food includes specially prepared nutrient solution or nutrient soup made by the patient's family. Due to the extremely limited mobility of the patient, the patient cannot eat by himself and must be fed by the nursing staff; the nursing staff holds a container containing liquid food in one hand and uses a spoon to feed the patient spoon-by-spoon, which greatly increases the workload of the nursing staff. The patient is in the situation of relying on the nursing staff to eat, which will also affect the patient's early activity and recovery, which is very unfavorable for the patient's early recovery. For some comatose patients, conventional tube feeding with fluids is also more troublesome. Tube feeding is usually performed through a syringe, which takes a long time and is not easily accepted by the patient's family.

实用新型内容Utility model content

本实用新型的目的是为解决上述不足，提供一种消化内科护理用流食供给装置。The purpose of this utility model is to solve the above-mentioned deficiencies, and provide a liquid food supply device for nursing care in gastroenterology.

本实用新型的目的是通过以下技术方案实现的：The purpose of this utility model is to realize through the following technical solutions:

一种消化内科护理用流食供给装置，包括罐体、伸缩软管、接头、开关器、波纹管、连接软管、连接弯头和夹持器，罐体下部连接有伸缩软管，伸缩软管下部连接有波纹管，波纹管下端连接有连接软管，波纹管和连接软管之间设置有开关器，连接软管下端连接有连接弯头左端，连接弯头右端连接接头，连接弯头和接头之间设置有夹持器。A liquid food supply device for gastroenterology nursing, comprising a tank body, a telescopic hose, a joint, a switch, a bellows, a connecting hose, a connecting elbow and a holder; The lower part is connected with a corrugated pipe, the lower end of the corrugated pipe is connected with a connecting hose, a switch is arranged between the corrugated pipe and the connecting hose, the lower end of the connecting hose is connected with the left end of the connecting elbow, the right end of the connecting elbow is connected with a joint, and the connecting elbow and A holder is provided between the joints.

罐体上设置有盒盖，盒盖上设置有吊环。A box cover is arranged on the tank body, and a lifting ring is arranged on the box cover.

罐体外部设置有加热单元。A heating unit is provided outside the tank.

罐体上还设置有刻度线。A scale line is also provided on the tank body.

本实用新型具有如下有益的效果：The utility model has the following beneficial effects:

本实用新型设计合理，使用方便，可根据患者需要进行持续恒温的肠内营养支持；能准确观察并记录患者的肠内营养供给速度与量；方便临床护理人员使用，减轻了其工作量，提高了工作效率。The utility model has a reasonable design and is convenient to use, and can provide continuous constant temperature enteral nutrition support according to the needs of patients; it can accurately observe and record the enteral nutrition supply speed and quantity of patients; it is convenient for clinical nursing staff to use, reduces their workload, and improves the work efficiency.

附图说明Description of drawings

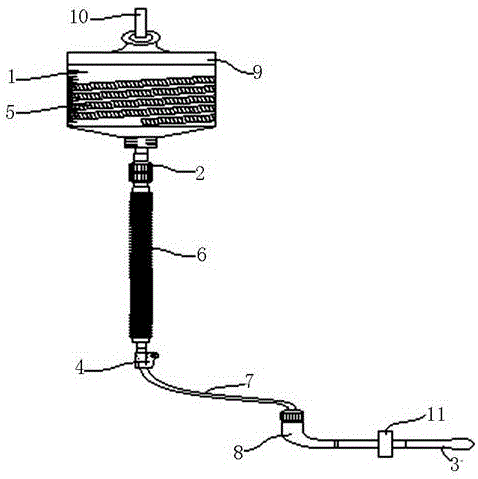

图1为本实用新型的整体结构示意图。FIG. 1 is a schematic diagram of the overall structure of the present invention.

具体实施方式Detailed ways

下面结合附图对本实用新型作进一步的说明：Below in conjunction with accompanying drawing, the utility model is further described:

如图1所示，一种消化内科护理用流食供给装置，包括罐体1、伸缩软管2、接头3、开关器4、波纹管6、连接软管7、连接弯头8和夹持器11，罐体1下部连接有伸缩软管7，伸缩软管7下部连接有波纹管6，波纹管6下端连接有连接软管7，波纹管6和连接软管7之间设置有开关器4，连接软管7下端连接有连接弯头8左端，连接弯头8右端连接接头3，连接弯头8和接头3之间设置有夹持器11。As shown in Figure 1, a liquid food supply device for gastroenterology nursing includes a tank body 1, a telescopic hose 2, a joint 3, a switch 4, a corrugated pipe 6, a connecting hose 7, a connecting elbow 8 and a holder 11. The lower part of the tank body 1 is connected with a telescopic hose 7, the lower part of the telescopic hose 7 is connected with a bellows 6, the lower end of the bellows 6 is connected with a connecting hose 7, and a switch 4 is provided between the bellows 6 and the connecting hose 7 The lower end of the connecting hose 7 is connected with the left end of the connecting elbow 8 , the right end of the connecting elbow 8 is connected with the joint 3 , and a clamp 11 is arranged between the connecting elbow 8 and the joint 3 .

罐体1上设置有盒盖9，盒盖上设置有吊环10。A box cover 9 is arranged on the tank body 1, and a suspension ring 10 is arranged on the box cover.

罐体1外部设置有加热单元5。A heating unit 5 is provided outside the tank body 1 .

罐体1上还设置有刻度线。A scale line is also provided on the tank body 1 .

使用方法：将医用流食供给器悬挂指定区域，根据需要选择营养液放入流食供给器罐体内，调节好营养液的进食速度，打开流食加热单元，连接胃管或鼻肠管进行肠内营养支持，对于清醒卧床患者，也可直接从接头进食。How to use: Hang the medical liquid food feeder in the designated area, select the nutrient solution into the liquid food feeder tank as needed, adjust the feeding speed of the nutrient solution, turn on the liquid food heating unit, connect the gastric tube or nasoenteric tube for enteral nutrition support, For awake bedridden patients, it is also possible to eat directly from the joint.

Claims

1. A liquid food supply device for gastroenterology nursing, comprising a tank body, a telescopic hose, a joint, a switch, a bellows, a connecting hose, a connecting elbow and a holder, it is characterized in that: the tank bottom is connected with a telescopic The hose, the lower part of the telescopic hose is connected with a corrugated pipe, the lower end of the corrugated pipe is connected with a connecting hose, a switch is arranged between the corrugated pipe and the connecting hose, the lower end of the connecting hose is connected with the left end of the connecting elbow, and the right end of the connecting elbow is connected The joint, a clamp is arranged between the connecting elbow and the joint.

2 . The liquid food supply device for gastroenterology nursing according to claim 1 , wherein the tank body is provided with a box cover, and the box cover is provided with a suspension ring. 3 .

3 . The liquid food supply device for gastroenterology nursing according to claim 1 , wherein a heating unit is provided outside the tank. 4 .

4 . The liquid food supply device for gastroenterology nursing according to claim 1 , wherein the tank body is further provided with scale lines. 5 .
