CN211356613U - Lower limb warming device for improving blood circulation - Google Patents

Abstract

The utility model discloses a lower extremity warming device for improving blood circulation, which comprises legs and feet. The legs and feet are integrally formed. The legs include a thigh, a knee and a calf, and the knee is arranged between the thigh and the calf. , the thigh, knee and calf are arranged in order from top to bottom, the left side of the leg is provided with a player, the player is detachably connected to the leg, the front side of the leg is provided with a first adhesive tape, a second adhesive tape belt and the first elastic band, the first elastic band is arranged between the first adhesive tape and the second adhesive tape, and the elastic band is provided with a first window, a second window, a third window, a first temperature sensor and a second temperature sensor , the foot includes a sole and an ankle, a third adhesive band, a fourth adhesive band and a second elastic band are arranged above the sole of the foot, the second elastic band is arranged between the third adhesive band and the fourth adhesive band, and a second elastic band is arranged on the second elastic band. Four windows and a third temperature sensor; the utility model has a good heat preservation effect, is convenient for checking the condition of the lower limbs and avoids the occurrence of pressure ulcers.

Description

A lower limb warming device for improving blood circulation

technical field

The utility model relates to a lower limb warming device, in particular to a lower limb warming device for improving blood circulation.

Background technique

Patients with lower extremity vascular disease usually have symptoms of lower extremity chills, swelling, pain and low skin temperature. For patients with lower extremity vascular disease, keeping warm is very important, but usually in the hospital, quilts are used to keep warm. The quilts must be removed when medical staff are making rounds, changing shifts, checking the condition and curative effect, exposing lower limbs to cold air in winter, relatively low temperature air-conditioning in summer, or dare not open the quilt in hot summer. Air conditioning, or covering with towels, quilt covers and other items in summer is easy to slip off when turning over. Putting on socks will make it inconvenient to take off socks, and it is inconvenient to treat and check the circulation of local limbs. A pressure sore occurs. The knee is often uncomfortable when using the lower extremity leg lift pad. The existing technology has insufficient warmth retention, is not conducive to local blood circulation, does not have an observation window, cannot visually check the temperature of the lower limbs, and is not conducive to medical staff judging the patient's condition. Therefore, a lower extremity warming device that has good thermal effect, is beneficial to blood circulation, and is convenient for checking the patient's lower extremity condition and lower extremity temperature has become an urgent problem to be solved.

Utility model content

The technical problem to be solved by the utility model is that the existing technology has problems such as insufficient warmth retention, unfavorable local blood circulation, no observation window, and inability to visually check the temperature of the lower limbs.

In order to solve the above technical problems, the technical solution provided by the present invention is as follows: a lower extremity warming device for improving blood circulation, including legs and feet, the legs and feet are integrally formed, and the legs include thighs , knee and calf, the knee is arranged between the thigh and the calf, the thigh, the knee and the calf are arranged in sequence from top to bottom, the left side of the leg is provided with a player, the player and the The legs are detachably connected, the front side of the leg is provided with a first adhesive tape, a second adhesive tape and a first elastic tape, and the first elastic tape is arranged between the first adhesive tape and the second adhesive tape, so The elastic band is provided with a first window, a second window, a third window, a first temperature sensor and a second temperature sensor, the foot includes a sole and an ankle, and a third adhesive tape, a third Four adhesive tapes and a second elastic tape, the second elastic tape is arranged between the third adhesive tape and the fourth adhesive tape, and the second elastic tape is provided with a fourth window and a third temperature sensor.

Further, soft support is provided under the knee, under the lower leg and at the ankle to ensure that the lower limbs of the patient are more comfortable when the patient is in bed, and the occurrence of pressure ulcers is avoided.

Further, the legs and feet are sequentially provided with a massage layer, a cotton layer and an outer cover layer from the inside to the outside, the massage layer and the outer cover layer are fixedly connected, and the cotton layer and the massage layer and the outer cover layer are detachable. Connection, easy to remove and wash.

Further, the player includes a switch button, a previous button, a next button, a sound plus button, a sound minus button and a speaker to guide the patient to exercise, and playing soothing music can make the patient feel happy and reduce pain.

Further, the first elastic band and the second elastic band are both connected to the massage layer, the first adhesive band is fixedly connected to the outer cover layer, and a zipper is provided between the connection between the first adhesive tape and the outer cover layer and the massage layer. , it is convenient to take out the cotton layer.

Further, the cotton layer is formed in one piece, which is convenient for disassembly and assembly, and the cotton layer is divided into a thin cotton layer and a thick cotton layer, which are replaced according to different seasons throughout the year.

Further, both the massage layer and the outer cover layer are made of breathable fabrics, which are not stuffy and are beneficial to the recovery of the patient's condition.

Compared with the prior art, the advantages of the present utility model are as follows: the utility model adopts the matching structure of the massage layer, the cotton layer and the outer cover layer, which increases the effect of keeping the local limbs warm and effectively improves the local blood circulation; Treat and observe the condition of the lower limbs; the structure of the temperature sensor is used to facilitate the medical staff to check the temperature of the lower limbs of the patient more intuitively, which is helpful for the medical staff to judge the condition of the patient; the structure of the elastic band is used for the patient to put the lower limbs into the warmer device. , no matter whether the patient is fat or thin, there will be no sense of restraint; using the player structure, you can know that the patient is exercising, which is conducive to blood circulation, and the soothing music is helpful for the recovery of the patient's condition; the soft support structure ensures that the patient Lower extremities are more comfortable when in bed and avoid pressure ulcers.

Description of drawings

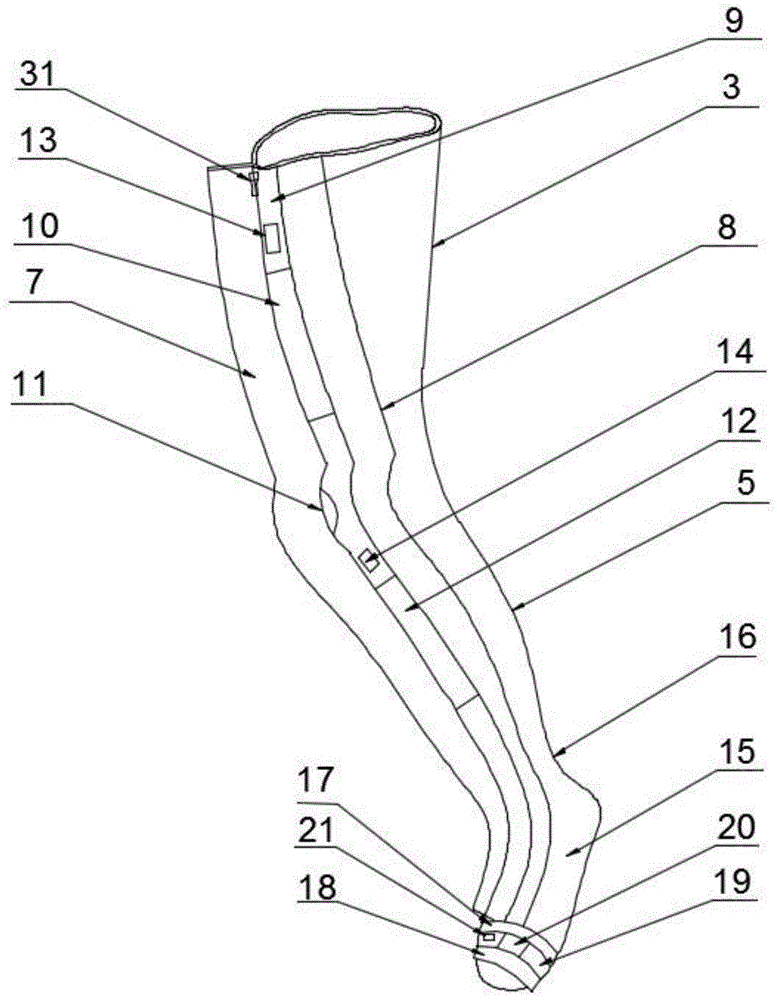

Fig. 1 is a kind of structural schematic diagram that the lower limb warm-up device for improving blood circulation is opened with adhesive tape;

Fig. 2 is a left side schematic diagram of a lower extremity warming device for improving blood circulation;

Figure 3 is a schematic diagram of the fabric structure of a lower extremity warming device for improving blood circulation;

As shown: 1, leg, 2, foot, 3, thigh, 4, knee, 5, calf, 6, player, 7, first adhesive tape, 8, second adhesive tape, 9, first Elastic band, 10, first window, 11, second window, 12, third window, 13, first temperature sensor, 14, second temperature sensor, 15, sole of foot, 16, ankle, 17, third adhesive tape , 18, the fourth adhesive tape, 19, the second elastic band, 20, the fourth window, 21, the third temperature sensor, 22, the massage layer, 23, the cotton layer, 24, the outer cover layer, 25, the switch button, 26, Previous button, 27, next button, 28, sound plus button, 29, sound minus button, 30, speaker, 31 zipper, 32, soft support.

Detailed ways

The present utility model will be further described in detail below in conjunction with the accompanying drawings.

In conjunction with the accompanying drawings, the present utility model is introduced in detail.

The utility model provides a lower extremity warm-up device for improving blood circulation during specific implementation, comprising a leg 1 and a foot 2, characterized in that: the leg 1 and the foot 2 are integrally formed, and the leg 1 and the foot 2 are integrally formed. 1 includes thigh 3, knee 4 and calf 5, described knee 4 is arranged between thigh 3 and calf 5, described thigh 3, knee 4 and calf 5 are arranged successively from top to bottom, the left side of described leg 1 A player 6 is provided on the side, and the player 6 is detachably connected to the leg 1. The front side of the leg 1 is provided with a first adhesive tape 7, a second adhesive tape 8 and a first elastic band 9, The first elastic band 9 is arranged between the first adhesive tape 7 and the second adhesive tape 8, and the first elastic band 9 is provided with a first window 10, a second window 11, a third window 12, a first temperature sensor 13 and a second temperature sensor 14, the foot 2 includes a sole 15 and an ankle 16, a third adhesive tape 17, a fourth adhesive tape 18 and a second elastic band 19 are arranged above the sole of the foot 15, the second The elastic band 19 is arranged between the third adhesive tape 17 and the fourth adhesive tape 18 , and the second elastic band 19 is provided with a fourth window 20 and a third temperature sensor 21 .

The lower part of the knee 4, the lower part of the lower leg 5 and the ankle 16 are provided with soft support; the leg part 1 and the foot part 2 are sequentially provided with a massage layer 22, a cotton layer 23 and an outer cover layer 24 from the inside to the outside. The layer 22 is fixedly connected with the outer cover layer 24, and the cotton layer 23 is detachably connected with the massage layer 22 and the outer cover layer 24; the player 6 includes a switch button 25, a previous button 26, a next button 27, The sound plus button 28, the sound reduction button 29 and the speaker 30; the first elastic band 9 and the second elastic band 19 are connected with the massage layer 22, the first adhesive tape 7 is fixedly connected with the outer cover layer 24, and the first A zipper 31 is provided between the connection between the belt 7 and the cover layer 24 and the massage layer 22; the cotton layer 23 is integrally formed; the massage layer 22 and the cover layer 24 are made of breathable fabrics.

The specific implementation process of the lower limb warming device for improving blood circulation of the present utility model is as follows: when the utility model is in use, the user's local temperature is used to select whether to use a thin cotton layer or a thick cotton layer, and now put the cotton layer 23 into the Between the outer cover layer 24 and the massage layer 22, the cotton layer 23 is spread evenly, and the zipper 31 is pulled up and it is ready for use; the first adhesive tape 7 and the second adhesive tape 8 are unfolded, and the patient puts the lower limbs into the warming device , stick the first adhesive tape 7 and the second adhesive tape 8 together, and the width of the first adhesive tape 7 and the second adhesive tape 8 can be adjusted according to the weight of the patient; if the medical staff wants to check the condition of the patient's lower limbs, they can The first adhesive tape 7 and the second adhesive tape 8 are unfolded, and the first window 10, the second window 11 and the third window 12 are used to check whether there is edema of the lower extremity. The position of the catheter; the temperature of the lower limbs can be checked through the first temperature sensor 13, the second temperature sensor 14 and the third temperature sensor 21, which is helpful for medical and nursing to judge the patient's condition; the present utility model adopts the massage layer 22, The matching structure of the cotton layer 23 and the outer cover layer 24 increases the effect of keeping the local limbs warm, and effectively improves the local blood circulation; the structure of the window is used to facilitate the treatment and observation of the condition of the lower limbs; the structure of the temperature sensor is used to facilitate the medical staff to change Intuitively check the temperature of the patient's lower extremities, which is helpful for medical staff to judge the patient's condition; the elastic band structure is adopted to facilitate the patient to put the lower extremity into the warming device, no matter whether the patient is fat or thin, there will be no sense of restraint; using the player 6 Structure, you can know that the patient is exercising, which is conducive to blood circulation, and the soothing music is helpful for the recovery of the patient's condition; the soft support 32 structure ensures that the patient's lower limbs are more comfortable when used in bed and avoids the occurrence of pressure ulcers.

The present invention and its embodiments have been described above, and the description is not restrictive, and the actual structure is not limited thereto. All in all, if those of ordinary skill in the art are inspired by it, without departing from the purpose of the present invention, and without creatively designing the structural modes and embodiments similar to the technical scheme, all should belong to the protection of the present invention. scope.

Claims (7)

1. A lower limb warming device for improving blood circulation comprises a leg part (1) and a foot part (2), and is characterized in that: the leg part (1) and the foot part (2) are integrally formed, the leg part (1) comprises a thigh (3), a knee (4) and a shank (5), the knee (4) is arranged between the thigh (3) and the shank (5), the thigh (3), the knee (4) and the shank (5) are sequentially arranged from top to bottom, a player (6) is arranged on the left side face of the leg part (1), the player (6) is detachably connected with the leg part (1), a first sticky tape (7), a second sticky tape (8) and a first elastic tape (9) are arranged on the front side face of the leg part (1), the first elastic tape (9) is arranged between the first sticky tape (7) and the second sticky tape (8), a first window (10), a second window (11), a third window (12), a first temperature sensor (13) and a second temperature sensor (14) are arranged on the first elastic tape (9), foot (2) are including sole (15) and ankle (16), sole (15) top is equipped with third sticky tape (17), fourth sticky tape (18) and second elastic cord (19), second elastic cord (19) set up between third sticky tape (17) and fourth sticky tape (18), be equipped with fourth window (20) and third thalposis ware (21) on second elastic cord (19).

2. The lower limb warming device for improving blood circulation according to claim 1, wherein: soft supports (32) are arranged below the knee (4), the lower leg (5) and the ankle (16).

3. The lower limb warming device for improving blood circulation according to claim 1, wherein: the leg part (1) and the foot part (2) are sequentially provided with a massage layer (22), a cotton layer (23) and an outer cover layer (24) from inside to outside, the massage layer (22) is fixedly connected with the outer cover layer (24), and the cotton layer (23) is detachably connected with the massage layer (22) and the outer cover layer (24).

4. The lower limb warming device for improving blood circulation according to claim 1, wherein: the player (6) comprises a switch key (25), a previous key (26), a next key (27), a sound adding key (28), a sound subtracting key (29) and a loudspeaker (30).

5. The lower limb warming device for improving blood circulation according to claim 1, wherein: the first elastic band (9) and the second elastic band (19) are both connected with the massage layer (22), the first adhesive band (7) is fixedly connected with the outer cover layer (24), and a zipper (31) is arranged between the connection part of the first adhesive band (7) and the outer cover layer (24) and the massage layer (22).

6. The lower limb warming device for improving blood circulation according to claim 1, wherein: the cotton layer (23) is integrally formed.

7. The lower limb warming device for improving blood circulation according to claim 1, wherein: the massage layer (22) and the outer cover layer (24) are both made of breathable fabrics.
