CN211356277U - Paper diaper easy to put on and take off - Google Patents

Abstract

The utility model discloses an easy-to-wear and take-off paper diaper, which belongs to the field of paper diapers. Paste b, a water-absorbing pad is arranged at the center of the diaper body, a bottom pad is installed between the diaper body and the outer film, a rubber band is arranged inside the diaper body, and one end of the diaper body is provided with a perforation, so The inside of the diaper body is provided with a water-absorbing cotton layer, and one side of the water-absorbing cotton layer is provided with an elastic material layer; the utility model is provided with double Velcro, when wearing the diaper, only two Velcros need to be opened or bonded The unwinding and closing of the diaper can be completed, which is convenient for putting on and taking off, saving time and effort, and an additional bottom pad is provided at the bottom, and the bottom pad can assist the water-absorbing pad to play an additional water-absorbing effect, which greatly improves the water-absorbing effect of the diaper. its use effect.

Description

An easy to put on and take off diaper

technical field

The utility model belongs to the technical field of diapers, in particular to an easy-to-wear and take-off diaper.

Background technique

Diapers are commonly used daily necessities for babies, and are a general term for diapers, diapers, and pull-up pants. Dry diapers can keep babies sleeping all night. Because of their strong water absorption, they are commonly known as "diapers", and diapers are also called diapers.

Nowadays, diapers do not have an additional bottom pad at the bottom, but the absorbent pad absorbs the baby's urine. The absorbent effect of a single absorbent pad is limited and cannot improve the water absorption effect of diapers, and some diapers need to be worn through buckles , is more troublesome, difficult to put on and take off, and needs to be improved.

Utility model content

The purpose of the present invention is to provide an easy-to-wear and take-off diaper to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: an easy to put on and take off diaper, comprising a diaper body, the bottom surface of the diaper body is bonded and fixed with an outer film, and the outer surfaces of both sides of the diaper body are respectively provided with magic Paste a and Velcro b, a water-absorbing pad is arranged at the center of the diaper body, a bottom pad is installed between the diaper body and the outer film, a rubber band is arranged inside the diaper body, and one end of the diaper body is opened There are perforations, the inside of the diaper body is provided with a water-absorbing cotton layer, and one side of the water-absorbing cotton layer is provided with an elastic material layer.

Using the above solution, the diaper is worn on the baby, and the Velcro a and the Velcro b are attached to complete the wearing and fixing of the diaper, which is convenient for putting on and taking off, saving time and effort. After wearing, the elastic band can effectively change the diaper's The tightness improves the comfort of the baby's wearing. When the baby urinates, the absorbent pad first absorbs the baby's urine. After the water absorption saturation in the absorbent pad is reached, it will be absorbed by the bottom pad for a second time, which greatly improves the The water absorption effect of the diaper improves its use effect, and the breathable layer effectively improves the air permeability of the diaper.

In the above solution, it should be noted that the outer film may be made of polyvinyl chloride material, the breathable layer may be made of natural fiber material, and the elastic material layer may be made of polyurethane elastomer material.

As a preferred embodiment, the position of the bottom pad corresponds to the position of the water-absorbing pad.

With the above solution, when absorbing water, after the water absorption saturation in the absorbent pad reaches, secondary adsorption will be carried out through the bottom pad to increase the water absorption capacity.

As a preferred embodiment, one end of the rubber band passes through the perforation.

With the above scheme, the perforation is used to limit the position of the rubber band.

As a preferred embodiment, the hole diameter of the perforation is smaller than the outer diameter of the ball installed at one end of the elastic band.

With the above solution, the perforation can limit the movement of the rubber band so that the rubber band will not be separated from the perforation.

As a preferred embodiment, a breathable layer is provided on one side of the elastic material layer.

By adopting the above solution, the air permeability of the diaper is effectively improved by providing a breathable layer.

As a preferred embodiment, the size of the Velcro a and the Velcro b are the same.

With the above solution, when the wearing diaper is fixed, the Velcro a and the Velcro b are attached, and the Velcro a and the Velcro b have the same size to improve the fit.

Compared with the prior art, the beneficial effects of the present utility model are:

The easy to put on and take off diaper is provided with double Velcro, when wearing the diaper, only need to open or glue the two Velcro to complete the unwinding and closing of the diaper, which is convenient to put on and take off, saves time and effort;

The easy-to-wear diaper is additionally provided with a bottom pad at the bottom, and the bottom pad can assist the water-absorbing pad to play an additional water-absorbing effect, thereby greatly improving the water-absorbing effect of the diaper and improving its use effect;

The easy to put on and take off diaper is installed with a rubber band, and the rubber band can effectively change the tightness of the diaper and improve the comfort of the baby to wear.

Description of drawings

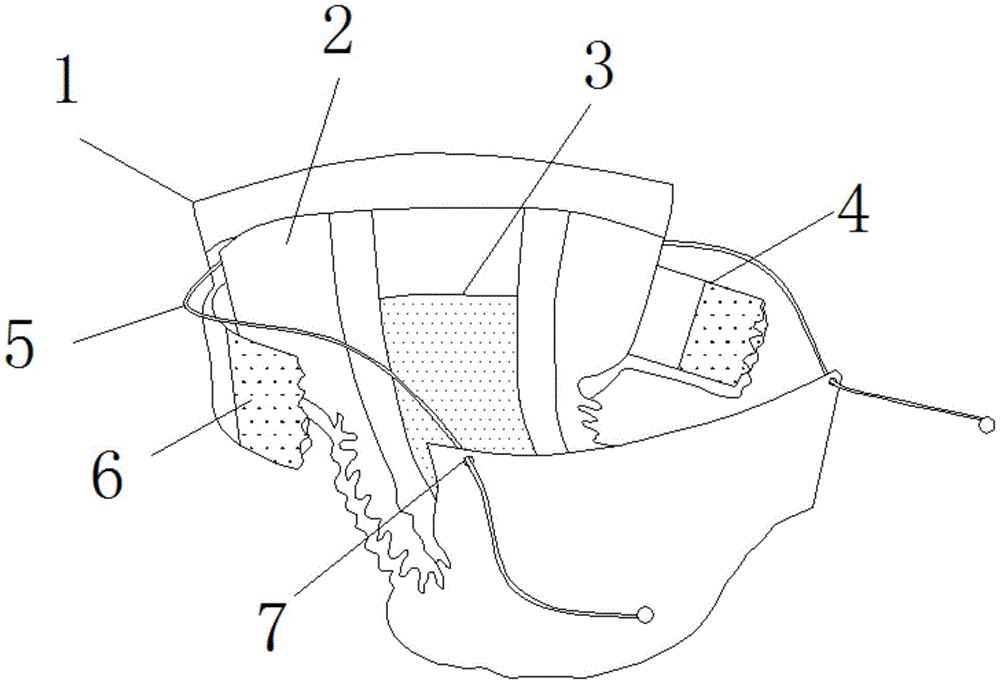

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the bottom surface structure schematic diagram of the utility model;

3 is a schematic diagram of the cross-sectional material structure of the diaper body of the present invention.

In the picture: 1. Outer film; 2. Diaper body; 3. Absorbent pad; 4. Velcro a; 5. Rubber band; 6. Velcro b; 7. Perforation; 8. Bottom pad; 9. Breathable layer; 10. Elastic material layer; 11. Water-absorbing cotton layer.

Detailed ways

The present utility model will be further described below in conjunction with the embodiments.

The following examples are used to illustrate the present utility model, but cannot be used to limit the protection scope of the present utility model. Conditions in the examples can be further adjusted according to specific conditions, and simple improvements to the method of the present invention under the concept of the present invention all belong to the scope of protection of the present invention.

The utility model provides an easy to put on and take off diaper, please refer to FIGS. 1-3 , including a diaper body 2, the bottom surface of the diaper body 2 is bonded and fixed with an outer film 1, and the outer surfaces of both sides of the diaper body 2 are respectively provided with Velcro a4 The size of the Velcro a4 and the Velcro b6 is the same as that of the Velcro b6 (see Figure 1); when fixing the diapers, the Velcro a4 and the Velcro b6 are attached, and the Velcro a4 and the Velcro b6 are the same size. Consistently improved fit.

A water-absorbing pad 3 is arranged at the center of the diaper body 2, and a bottom pad 8 is installed between the diaper body 2 and the outer film 1, and the position of the bottom pad 8 corresponds to the position of the water-absorbing pad 3 (see Figures 1 and 2); When the water absorption saturation in the water absorbing pad 3 reaches, secondary adsorption will be carried out through the bottom pad 8 to increase the water absorption capacity.

The inside of the diaper body 2 is provided with a rubber band 5 , and one end of the rubber band 5 passes through the perforation 7 (see FIG. 1 ); the perforation 7 limits the position of the rubber band 5 .

One end of the diaper body 2 is provided with a perforation 7, and the hole diameter of the perforation 7 is smaller than the outer diameter of the ball installed at one end of the rubber band 5 (see FIG. 1);

The inside of the diaper body 2 is provided with a water-absorbent cotton layer 11, one side of the water-absorbent cotton layer 11 is provided with an elastic material layer 10, and one side of the elastic material layer 10 is provided with a breathable layer 9 (see Figures 1 and 3); 9. Effectively improve the air permeability of the diaper.

When in use, put the diaper on the baby, and fit the Velcro a4 and the Velcro b6 to complete the wearing and fixing of the diaper. After wearing, the elastic band 5 can effectively change the tightness of the diaper. When the baby urinates The absorbent pad 3 first absorbs the baby's urine, and after the water absorption saturation in the absorbent pad 3 reaches, it will be absorbed by the bottom pad 8 for a second time, and the breathable layer 9 effectively improves the air permeability of the diaper.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. An easy to put on and take off diaper, comprising a diaper body (2), characterized in that: the bottom surface of the diaper body (2) is bonded and fixed with an outer film (1), and both sides of the diaper body (2) are outside. Velcro a (4) and Velcro b (6) are respectively arranged on the surface, a water absorbing pad (3) is arranged at the center of the diaper body (2), the diaper body (2) and the outer film (1) A bottom pad (8) is installed therebetween, a rubber band (5) is arranged inside the diaper body (2), a perforation (7) is opened at one end of the diaper body (2), and the inside of the diaper body (2) A water-absorbent cotton layer (11) is provided, and an elastic material layer (10) is provided on one side of the water-absorbent cotton layer (11). 2 . The easy-to-wear and take-off diaper according to claim 1 , wherein the position of the bottom pad ( 8 ) corresponds to the position of the water-absorbing pad ( 3 ). 3 . 3. An easy to put on and take off diaper according to claim 1, characterized in that: one end of the elastic band (5) passes through the perforation (7). 4 . The easy-to-wear and take-off diaper according to claim 1 , wherein the aperture of the perforation ( 7 ) is smaller than the outer diameter of the rubber ball installed at one end of the elastic band ( 5 ). 5 . 5. An easy-to-wear and take-off diaper according to claim 1, wherein a breathable layer (9) is provided on one side of the elastic material layer (10). 6. An easy-to-wear and take-off diaper according to claim 1, wherein the size of the Velcro a (4) and the Velcro b (6) are the same.
