Abstract

The utility model discloses a toothbrush type toothbrush, comprising: a handle, a toothbrush and a driving device assembled together, the driving device drives the toothbrush to vibrate; it is characterized in that a toothbrush body is detachably arranged in the toothbrush, The toothbrush body includes an adhesive strip and bristles planted on the adhesive strip. The toothbrush body is detachably installed in the toothbrush body, which is convenient for replacement and reduces the use cost; the toothbrush body can be flattened and then bent and inserted into the toothbrush body, so as to reduce the production difficulty and production cost of the toothbrush body; the bristles are implanted in the toothbrush body On, the cleaning effect is good.

Description

a toothbrush

technical field

The utility model relates to the technical field of oral hygiene cleaning appliances, in particular to a toothbrush with a brace type.

Background technique

With the improvement of people's living standards, teeth whitening and health issues have attracted more and more attention. Cleaning teeth is not only beneficial to dental health, but also to teeth whitening. People now mainly use toothbrushes to clean their teeth. It has a certain cleaning effect, but when cleaning the toothbrush, it is necessary to clean the inside and outside of the teeth, including the upper and lower surfaces, in order to completely clean it. The action is cumbersome, the brushing time is long and it is easy to puncture the gums; at the same time, the existing toothbrush is difficult to clean the teeth at one time. of each side.

There is an existing utility model patent with the application number of 201721687065.3 and the title of a dental brace-type silicone toothbrush, which discloses a dental brace-type silicone toothbrush, which includes a brace with bristles, a vibration frame embedded in the brace, a water tank, and a connection to the water tank. The water pump, the motor and the casing for accommodating the motor; the vibration shaft of the motor is fixedly connected with the vibration frame, so that the vibration frame drives the mouthpiece to vibrate; the water tank is arranged on the side wall of the casing, the water pump is fixed in the casing, the vibration shaft is a hollow shaft, and the The water outlet end is connected with the water inlet of the vibrating shaft, and the mouthpiece and the vibrating frame are respectively penetrated with water outlet holes which are communicated with the water outlet of the vibrating shaft. The brace-type silicone toothbrush can be cleaned without dead ends, but the bristles of the brace-type silicone toothbrush are integrally arranged with the braces, and the entire braces must be replaced to replace them, and the bristles are not hair-implanted products, so the cleaning effect is not good.

SUMMARY OF THE INVENTION

In view of the problems existing in the prior art, the purpose of the present invention is to provide a toothbrush with convenient use and good cleaning effect.

In order to achieve the above purpose, the utility model adopts the following technical solutions:

A toothbrush type toothbrush, comprising: an assembled handle, a toothbrush and a driving device, the driving device drives the toothbrush to vibrate; it is characterized in that a toothbrush body is detachably arranged in the toothbrush, and the toothbrush body Including adhesive strips and bristles planted on the adhesive strips.

As a further description of the above solution, the diameter of the bristles is 0.05-1 mm.

As a further illustration of the above scheme, the bristles are doped with graphene.

As a further description of the above solution, several fixing seats are provided on the rubber strip, and the bristles are planted on the fixing seats.

As a further description of the above solution, an inverted T-shaped groove is provided on the inner wall surface of the mouthpiece, and the rubber strip is embedded in the inverted T-shaped groove.

As a further description of the above solution, a vibration frame is embedded in the mouthpiece, and the vibration frame is connected to the drive shaft of the drive device.

As a further description of the above solution, the driving device is a motor arranged in the handle.

As a further description of the above solution, the adhesive strip is a silicone piece.

The beneficial effects of the present utility model are:

1. The toothbrush body is detachably installed in the toothbrush, which is convenient for replacement and reduces the cost of use; the toothbrush body can be flattened and bent into the toothbrush after production, which reduces the production difficulty and production cost of the toothbrush body; the bristles are implanted on the toothbrush body, Cleans well.

Second, the bristles are doped with graphene, which is antibacterial, antibacterial and can release infrared rays, further improving the cleaning effect of teeth.

Description of drawings

FIG. 1 is a schematic structural diagram of a toothbrush type toothbrush provided by the present invention.

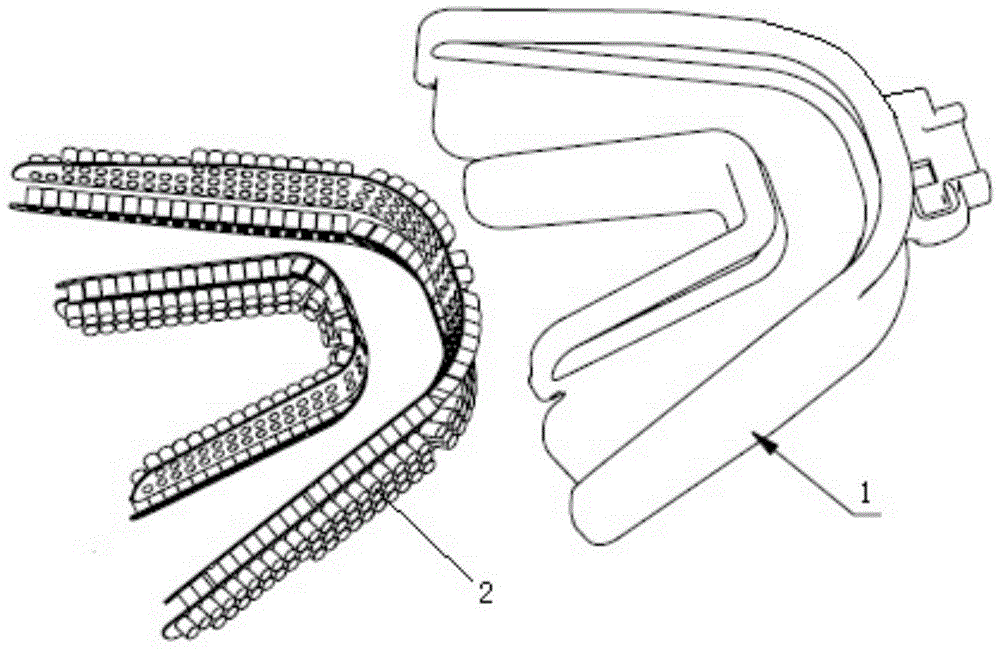

FIG. 2 is an exploded view of the structure of the toothbrush provided by the present invention.

FIG. 3 is a schematic structural diagram of the toothbrush body of the brace-type toothbrush provided by the present invention.

Description of reference numbers:

1: Braces, 2: Toothbrush body.

Detailed ways

In the description of the present utility model, it should be noted that for orientation words, such as the terms "center", "horizontal", "longitudinal", "length", "width", "thickness", "upper", "lower" ", "Front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inside", "Outside", "Clockwise", "Reverse" The indicated orientation and positional relationship such as "hour hand" are based on the orientation or positional relationship shown in the accompanying drawings, which are only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, so as to simplify the description. The specific orientation structure and operation should not be construed as limiting the specific protection scope of the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or indicating the number of technical features. Thus, the features defined as "first" and "second" may expressly or implicitly include one or more of the features, and in the description of the present invention, "at least" means one or more than one, unless otherwise expressly stated specific restrictions.

In the present utility model, unless otherwise expressly specified and limited, the terms "assembled", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection, or It can be connected integrally; it can also be a mechanical connection; it can be directly connected, or it can be connected through an intermediate medium, and two components can be connected internally. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In the utility model, unless otherwise specified and limited, the first feature "on" or "under" the second feature may include that the first and second features are in direct contact, or that the first feature and the second feature are not Direct contact but through another feature between them. Also, the first feature being "above", "below" and "above" the second feature includes that the first feature is directly above and obliquely above the second feature, or simply means that the first feature is at a higher level than the second feature the height of. The first feature being "above", "below" and "below" the second feature includes that the first feature is directly below or diagonally below the second feature, or simply means that the first feature is level below the second feature.

The specific embodiments of the present utility model will be further described below in conjunction with the accompanying drawings in the specification, so as to make the technical solutions of the present utility model and its beneficial effects more clear and definite. The embodiments described below by referring to the accompanying drawings are exemplary, and are intended to explain the present invention, but should not be construed as a limitation of the present invention.

As shown in FIGS. 1 to 3 , a toothbrush with a mouthpiece includes: a handle, a mouthpiece 1 and a driving device assembled together, and the driving device drives the mouthpiece 1 to vibrate; it is characterized in that, in the mouthpiece 1 A toothbrush body 2 is detachably provided, and the toothbrush body 2 includes an adhesive strip and bristles planted on the adhesive strip.

Wherein, the diameter of the bristles is 0.05-1 mm.

The bristles are doped with graphene, which can be antibacterial and antibacterial and can release infrared rays, thereby further improving the tooth cleaning effect.

A plurality of fixing seats are formed on the rubber strip, and a plurality of bristles are planted on the fixing seats. The toothbrush body 2 is bent and inserted into the mouthpiece after being flattened for production, thereby reducing the production difficulty and production cost of the toothbrush body.

Preferably, an inverted T-shaped groove for accommodating the rubber strip is provided on the inner wall surface of the mouth guard 1 . Because of its elasticity, the rubber strip can be inserted into the groove so as to be fixed in the mouthpiece.

A vibrating frame is embedded in the mouthpiece 1 , and the drive shaft of the driving device is connected with the vibrating frame, so that the vibrating frame drives the mouthpiece to vibrate.

Further preferably, the mouthpiece 1 is a silicone piece.

The rubber strip is a silica gel strip, and the fixing seat is a hard rubber piece.

The driving device is a motor arranged in the handle.

An installation head is protruded on the handle, and the corresponding mouthpiece is provided with a accommodating cavity adapted to the installation head, and the installation head can be clamped in the accommodating cavity.

Compared with the prior art, a toothbrush type toothbrush provided by this embodiment has the following characteristics: 1) the toothbrush body is detachably installed in the toothbrush, which is convenient for replacement and reduces the use cost; the toothbrush body can be flattened and bent after production The toothbrush body is embedded in the mouthpiece to reduce the production difficulty and production cost of the toothbrush body; bristles are planted on the toothbrush body, and the cleaning effect is good. 2) The planted hair is doped with graphene, which is antibacterial, antibacterial and can release infrared rays.

Through the description of the above-mentioned structure and principle, those skilled in the art should understand that the present invention is not limited to the above-mentioned specific embodiments. The protection scope of the new model, the protection scope of the present utility model shall be defined by the claims and their equivalents. The parts not described in the detailed description are the prior art or common knowledge.

Claims (8)

1. A mouthpiece-style toothbrush comprising: the tooth socket comprises a handle, a tooth socket and a driving device which are assembled together, wherein the driving device drives the tooth socket to vibrate; the toothbrush is characterized in that a toothbrush body is detachably arranged in the tooth socket and comprises an adhesive tape and bristles implanted on the adhesive tape.

2. The shell toothbrush of claim 1, wherein the bristles have a diameter of 0.05 to 1 mm.

3. The shell toothbrush of claim 1, wherein the bristles are doped with graphene.

4. The mouthpiece-type toothbrush according to claim 1, wherein the rubber strip has a plurality of holders, and the bristles are planted in the holders.

5. The mouthpiece-type toothbrush according to claim 1, wherein an inverted T-shaped groove is provided on an inner wall surface of the mouthpiece, and the rubber strip is fitted in the inverted T-shaped groove.

6. The mouthpiece-type toothbrush according to claim 1, wherein a vibration mount is embedded in the mouthpiece, and the vibration mount is connected to a drive shaft of the drive device.

7. The mouthpiece toothbrush of claim 1, wherein the drive means is a motor disposed within the handle.

8. The mouthpiece toothbrush of claim 1, wherein the gel strip is a silicone element.
