Abstract

The utility model disclosed by the utility model belongs to the technical field of display devices, in particular to a display board for environmental art design, comprising a display board, a rotating motor and a cleaning device. Two rectangular protrusions opened in the middle of one side of the display board are fixed by adjusting bolts The rotary motor is connected, and the cleaning device is fixedly installed on the display board. The cleaning device includes a linear motor, a support rod, a cleaning sponge, a spray nozzle, a water delivery pipe, a pressurized water pump, a water outlet pipe and a sewage storage tank. The linear motors are fixedly installed in the rectangular notches opened on both sides of the display board, the output ends of the two linear motors are fixedly connected to the support rods, and the cleaning sponges are fixedly installed on the support rods. The display board for environmental art design can not only rotate the display board, adjust the elevation angle of the display board, but also automatically complete the cleaning work and reduce the work burden of personnel.

Description

A kind of exhibition board for environmental art design

technical field

The utility model relates to the technical field of display devices, in particular to a display board for environmental art design.

Background technique

Environmental art design refers to a practical art that integrates the design of indoor and outdoor spaces of buildings through artistic design. Environmental art design carries out artistic processing (shape, color, texture, etc.) on the space interface (indoor and outdoor wall cylinders, ground, ceiling, doors and windows, etc.) through certain organization and enclosure methods, and uses natural light, artificial lighting, furniture, and accessories. The layout, shape and other design languages, as well as the configuration of plants and flowers, water bodies, sketches, sculptures, etc., make the indoor and outdoor space environment of the building reflect a specific atmosphere and a certain style to meet people's functional use and visual aesthetics. need. The display boards are needed for the display of environmental art design, but the existing display boards often cannot be rotated and the elevation angle can be adjusted, which is inconvenient to use, and requires the staff to clean up regularly, which is time-consuming and labor-intensive, and increases the burden on the staff.

Therefore, in view of this situation, it is urgent to design and produce a display board for environmental art design to meet the needs of practical use.

Utility model content

The purpose of this utility model is to provide a display board for environmental art design, in order to solve the problem that the existing display board proposed in the above-mentioned background technology often cannot rotate and adjust the elevation angle, which is inconvenient to use, and requires staff to clean up regularly, which is time-consuming and labor-intensive. the burden of the staff.

In order to achieve the above purpose, the present invention provides the following technical solutions: a display board for environmental art design, comprising a display board, a rotating motor and a cleaning device, and two rectangular protrusions opened in the middle of one side of the display board are fixed by adjusting bolts. The rotating motor is connected, and the cleaning device is fixedly installed on the display board. The cleaning device includes a linear motor, a support rod, a cleaning sponge, a spray nozzle, a water delivery pipe, a pressurized water pump, a water outlet pipe and a sewage storage tank. The linear motors are fixedly installed in the rectangular notches opened on both sides of the display board, the output ends of the two linear motors are fixedly connected to the support rods, the cleaning sponges are fixedly installed on the support rods, and the display board A plurality of the spray nozzles are fixedly installed at the top of the spray nozzle, and the tops of the plurality of the spray nozzles are all connected to the water delivery pipe, one end of the water delivery pipe is connected to the pressurized water pump, and one side of the pressurized water pump is fixed Connect the display board, the bottom end of the display board is connected to the water outlet pipe, the bottom end of the water outlet pipe is connected to the sewage storage tank, and a water outlet is opened on one side of the sewage storage tank. A valve is fixedly installed in the water outlet.

Preferably, the bottom end of the rotating electrical machine is fixedly connected with a bottom plate, one side of the bottom plate is provided with a rectangular groove, both sides of the rectangular groove are fixedly connected with a rotating shaft, and a telescopic handrail is fixedly installed on the rotating shaft .

Preferably, a moving device is fixedly installed at the bottom end of the bottom plate, the moving device includes a bracket and a wheel, the top ends of the plurality of brackets are fixedly connected to the bottom plate, and the bottom ends of the plurality of brackets are respectively fixedly connected to the base plate. wheel.

Preferably, a plurality of lighting lamps are respectively fixedly installed in the rectangular recesses opened on both sides of the display board, and transparent waterproof plates are fixedly installed on both sides of the display board.

Preferably, a dustproof cloth is fixedly installed on the top end of the display board.

Compared with the prior art, the beneficial effects of the present utility model are: the rotating motor drives the display board to rotate, the elevation angle of the display board can be adjusted by adjusting bolts, the water flow is conveyed by the pressurized water pump, and the water flow flows out from the spray nozzle through the water delivery pipe. The display board is cleaned, the cleaned sewage flows down the display board, the sewage flows into the sewage storage tank through the water outlet pipe, the valve is opened, and the sewage is discharged from the water outlet. After cleaning, the linear motor is turned on, and the linear motor drives the support rod and the support rod. Drive the cleaning sponge to move up and down to clean the display board. The environmental art design display board can not only rotate the display board, adjust the elevation angle of the display board, but also automatically complete the cleaning work and reduce the workload of personnel.

Description of drawings

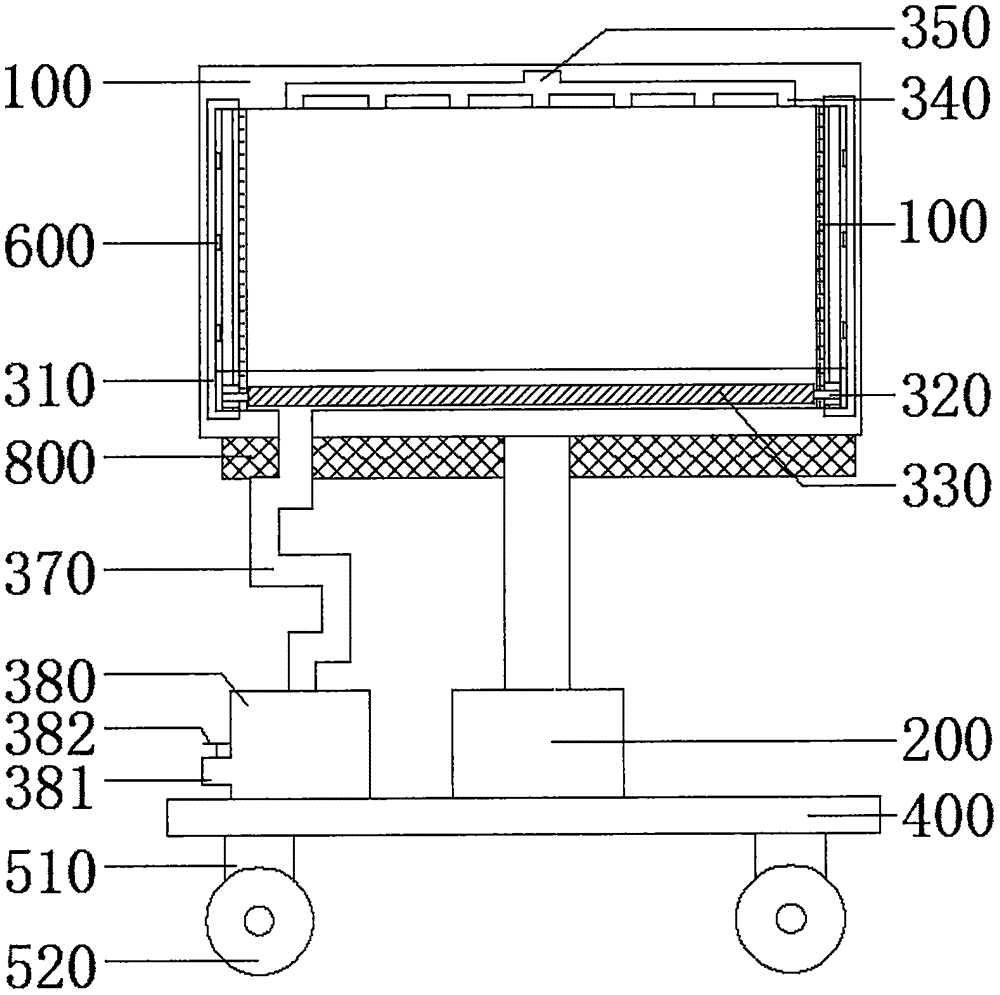

1 is a front cross-sectional view of the present utility model;

Fig. 2 is the front view of the front of the utility model;

Fig. 3 is the front view of the back of the utility model;

FIG. 4 is a top view of the bottom plate of the present invention.

In the picture: 100 display boards, 200 rotating motors, 210 adjusting bolts, 300 cleaning devices, 310 linear motors, 320 support rods, 330 cleaning sponges, 340 spray heads, 350 water pipes, 360 pressurized water pumps, 370 water outlet pipes, 380 Sewage storage tank, 381 water outlet, 382 valve, 400 bottom plate, 410 rectangular groove, 411 shaft, 412 telescopic handrail, 500 mobile device, 510 bracket, 520 wheel, 600 lamp, 700 transparent waterproof plate, 800 dust cloth.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The present utility model provides a display board for environmental art design, which can not only rotate the display board 100, adjust the elevation angle of the display board 100, but also automatically complete the cleaning work and reduce the workload of personnel. Please refer to FIG. 1, FIG. 2 and FIG. 3 , including the display board 100, the rotating motor 200 and the cleaning device 300;

Please refer to FIG. 1, FIG. 2 and FIG. 3 again, the display board 100 is used to record the display information and provide the exhibition effect;

Please refer to FIG. 1 , FIG. 2 and FIG. 3 again. The two rectangular protrusions opened in the middle of one side of the display board 100 are fixedly connected to the rotary motor 200 by adjusting bolts 210 . Specifically, the two rectangular protrusions opened in the middle of one side of the display board 100 A first threaded hole is formed in the middle of the rectangular protrusion, and a second threaded hole with the same inner diameter is formed on the top of the rotating motor 200 at a position corresponding to the first threaded hole. The display board 100 is fixedly connected to the rotating motor 200 in cooperation, the rotating motor 200 is used to drive the display board 100 to rotate, and the adjusting bolt 210 is used to adjust the elevation angle of the rotating motor 200;

1 , 2 and 3 again, the cleaning device 300 includes a linear motor 310 , a support rod 320 , a cleaning sponge 330 , a spray nozzle 340 , a water delivery pipe 350 , a pressurized water pump 360 , a water outlet pipe 370 and a sewage storage tank 380 , the cleaning device 300 is fixedly installed on the display board 100 , the linear motors 310 are fixedly installed in the rectangular notches opened on both sides of the display board 100 , the output ends of the two linear motors 310 are fixedly connected to the support rod 320 , and the support rod 320 is fixedly installed with a cleaning sponge 330 , a plurality of spray nozzles 340 are fixedly installed on the top of the display board 100, the tops of the plurality of spray nozzles 340 are all connected to the water delivery pipe 350, one end of the water delivery pipe 350 is connected to the pressurized water pump 360, and one side of the pressurized water pump 360 is fixedly connected to the display Board 100, one side of the bottom end of the display board 100 is connected to a water outlet pipe 370, and the bottom end of the water outlet pipe 370 is connected to a sewage storage tank 380, one side of the sewage storage tank 380 is provided with a water outlet 381, and a valve 382 is fixedly installed in the water outlet 381 Specifically, the top and bottom ends of the rectangular recesses on both sides of the display board 100 are respectively provided with two third threaded holes, and the top and bottom ends of the linear motor 310 are provided with two identical threaded holes at the positions corresponding to the third threaded holes. The inner diameter of the fourth threaded hole is used to install the linear motor 310 on the display board 100 through the cooperation of the third threaded hole, the fourth threaded hole and the fastening bolt. The output ends of the two linear motors 310 are welded with support rods 320. The upper sleeve is connected to the cleaning sponge 330, the top of the display board 100 is embedded and connected to seven spray nozzles 340, the tops of the seven spray nozzles 340 are all connected to the water pipe 350, and four fifth Threaded holes, the display board 100 is provided with four sixth threaded holes with the same inner diameter at the positions corresponding to the fifth threaded holes, and the pressurized water pump 360 is fixedly installed in the On the display board 100, a valve 382 is embedded in the water outlet 381, the linear motor 310 is used to drive the support rod 320 to move, the support rod 320 is used to drive the cleaning sponge 330 to move, and the cleaning sponge 330 is used to clean the water flow on the display board 100. The spray nozzle 340 is used to spray water to clean the display board 100 , the water delivery pipe 350 is used to provide a channel for the water flow to output the shower nozzle 340 , the pressurized water pump 360 is used to transport the water flow out, and the water outlet pipe 370 is used to discharge the sewage to the sewage In the storage tank 380, the sewage storage tank 380 is used to store sewage, the water outlet 381 is used to discharge the sewage in the sewage storage tank 380, and the valve 382 is used to control the communication of the water outlet 381;

In specific use, the staff turns on the rotary motor 200 to drive the display board 100 to rotate, and the staff can adjust the elevation angle of the display board 100 by twisting the adjustment bolts 210. When cleaning is required, the pressurized water pump 360 is turned on to deliver water flow, and the water flow passes through the water delivery pipe 350. The display board 100 is cleaned by flowing out from the shower nozzle 340 , the cleaned sewage flows down the display board 100 , the sewage flows into the sewage storage tank 380 through the water outlet pipe 370 , and then the valve 382 is opened, and the sewage is discharged from the water outlet 381 After cleaning, turn on the linear motor 310, the linear motor 310 drives the support rod 320, and the support rod 320 drives the cleaning sponge 330 to move up and down to clean the display board 100.

Please refer to FIGS. 1 , 2 , 3 and 4 again. In order to facilitate the user to push the device, the bottom end of the rotary motor 200 is fixedly connected with a bottom plate 400 . One side of the bottom plate 400 is provided with a rectangular groove 410 . The rectangular groove 410 A rotating shaft 411 is fixedly connected to both sides of the rotating shaft 411, and a telescopic armrest 412 is fixedly installed on the rotating shaft 411. Specifically, four seventh threaded holes are respectively provided at the bottom end of the rotating motor 200, and the top of the bottom plate 400 corresponds to the seventh threaded hole. There are four eighth threaded holes with the same inner diameter at the position of 200, and the rotating motor 200 is fixedly connected to the bottom plate 400 through the cooperation of the seventh threaded hole, the eighth threaded hole and the fastening bolt, and both sides of the rectangular groove 410 are embedded A rotating shaft 411 is connected, a telescopic armrest 412 is welded on the rotating shaft 411, the bottom plate 400 is used to fix the mobile device 500 and the rotating motor 200, the rectangular groove 410 is used to fix the rotating shaft 411 and accommodate the telescopic armrest 412, and the rotating shaft 411 is used to make the telescopic armrest 412 It can rotate around the rotating shaft 411, and the telescopic armrest 412 is used to facilitate the user to grasp the pushing device.

Please refer to FIGS. 1 , 2 and 3 again. In order to facilitate the movement of the device, a mobile device 500 is fixedly installed at the bottom end of the base plate 400 . The mobile device 500 includes a bracket 510 and a wheel 520 , and the tops of the four brackets 510 are fixedly connected to the base plate. 400, the bottom ends of the four brackets 510 are respectively fixedly connected to the wheels 520. Specifically, the top ends of the four brackets 510 are welded to the bottom plate 400, and the bottom ends of the four brackets 510 are respectively welded with wheels 520 through shafts, and the brackets 510 are used for connecting the bottom plate. 400 and wheels 520, the wheels 520 are used to facilitate the movement of the device.

Please refer to FIG. 1 again, in order to provide illumination for the display board 100 in a dark environment and to protect the linear motor 310 from entering water, three lighting lamps 600 are respectively fixedly installed in the rectangular notches opened on both sides of the display board 100 . The transparent waterproof plates 700 are fixedly installed on both sides. Specifically, three lighting lamps 600 are embedded and connected in the rectangular notches opened on both sides of the display plate 100. The transparent waterproof plates 700 and the lighting lamps 600 are glued and connected on both sides of the display plate 100. For providing lighting effects, the transparent waterproof plate 700 is used to prevent water from entering the lighting lamp 600 and the linear motor 310 .

Please refer to FIGS. 1 , 2 and 3 again. In order to prevent dust from falling onto the display board 100 when not in use, a dustproof cloth 800 is fixedly installed on the top of the display board 100 . The dust cloth 800 is used to prevent dust from falling on the display board 100 .

The above-mentioned first threaded hole, second threaded hole, third threaded hole, fourth threaded hole, fifth threaded hole, sixth threaded hole, seventh threaded hole, eighth threaded hole, shower head 340, bracket 510, The wheels 520 and the lighting lamps 600 are not limited to the specific numbers described in this embodiment, and those skilled in the art can increase or decrease their numbers as needed on the premise that the device can perform its display board function.

Although the present invention has been described above with reference to the embodiments, various modifications may be made and equivalents may be substituted for parts thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features in the disclosed embodiments of the present invention can be combined with each other in any way, and the description of these combinations is not exhaustive in this specification. For the sake of omitting space and saving resources. Therefore, the present invention is not limited to the specific embodiments disclosed herein, but includes all technical solutions falling within the scope of the claims.

Claims (5)

1. A display board for environmental art design, characterized in that: it comprises a display board (100), a rotary motor (200) and a cleaning device (300), and two rectangular protrusions are opened in the middle of one side of the display board (100). The rotating motor (200) is fixedly connected to the display board (100) by means of adjustment bolts (210), the cleaning device (300) is fixedly installed on the display board (100), and the cleaning device (300) includes a linear motor (310), a support rod (320), a cleaning sponge (330), a spray nozzle (340), a water delivery pipe (350), a pressurized water pump (360), a water outlet pipe (370) and a sewage storage tank (380), the display board (100) The linear motors (310) are fixedly installed in the rectangular notches opened on both sides, the output ends of the two linear motors (310) are fixedly connected to the support rods (320), and the support rods (320) are fixedly installed on the support rods (320). In the cleaning sponge (330), a plurality of the shower nozzles (340) are fixedly installed on the top of the display board (100), and the tops of the plurality of the shower nozzles (340) are all connected to the water delivery pipe (350). ), one end of the water delivery pipe (350) is connected to the pressurized water pump (360), and one side of the pressurized water pump (360) is fixedly connected to the display board (100). One side of the bottom end is connected to the water outlet pipe (370), the bottom end of the water outlet pipe (370) is connected to the sewage storage tank (380), and one side of the sewage storage tank (380) is provided with a water outlet (381). ), a valve (382) is fixedly installed in the water outlet (381). 2. A display board for environmental art design according to claim 1, characterized in that: the bottom end of the rotating motor (200) is fixedly connected with a bottom plate (400), and one side of the bottom plate (400) is provided with A rectangular groove (410), two sides of the rectangular groove (410) are fixedly connected with a rotating shaft (411), and a telescopic handrail (412) is fixedly installed on the rotating shaft (411). 3. A display board for environmental art design according to claim 2, characterized in that: a mobile device (500) is fixedly installed at the bottom end of the bottom plate (400), and the mobile device (500) comprises a bracket (510) ) and wheels (520), the top ends of the plurality of brackets (510) are fixedly connected to the bottom plate (400), and the bottom ends of the plurality of brackets (510) are respectively fixedly connected to the wheels (520). 4. A display board for environmental art design according to claim 1, characterized in that: a plurality of lighting lamps (600) are respectively fixedly installed in the rectangular notches opened on both sides of the display board (100), and the display board Transparent waterproof plates (700) are fixedly installed on both sides of (100). 5 . The display board for environmental art design according to claim 1 , wherein a dustproof cloth ( 800 ) is fixedly installed on the top of the display board ( 100 ). 6 .
