Abstract

The utility model relates to a water storage tank installation structure of a milk machine, which comprises a milk machine casing, a water tank installation base extending outward is arranged on one side of the milk machine casing, and a water tank installation base is placed on the water tank installation base. The water storage tank is disassembled after being lifted. One side of the milk machine casing is symmetrically provided with L-shaped hooks. The water storage tank includes a water storage bin, and one side of the water storage bin is provided with a limit slot that cooperates with the corresponding hook to limit the position. , the upper part of the water storage bin is provided with an opening that doubles as a water inlet of the water storage bin, a handle is hinged in the opening, a sealing cover is covered above the water inlet, and the sealing cover is detachably connected to the water inlet, below the water storage bin A water outlet is provided, a valve assembly for closing the water outlet is arranged in the water outlet, and a valve switch for opening the valve assembly is arranged on the installation base of the water tank. The structure is convenient to disassemble and install the water storage tank.

Description

A water storage tank installation structure for a milk machine

technical field

The utility model relates to the technical field of accessories of a milk machine, and more particularly relates to a water storage tank installation structure of a milk machine.

Background technique

The traditional milk powder brewing generally adopts manual brewing, which is to pour the milk powder into the milk bottle, and then manually pour hot water into the milk bottle to fill the milk with the appropriate amount of milk powder and water. This method exists. The problem is: first, the water temperature is not easy to control, if the temperature is too high, the baby will be scalded; if the temperature is too low, the milk in the bottle will be cold before drinking; Because some parts of the milk powder are not washed out, it will agglomerate, which will affect the baby's consumption; in addition, the ratio of milk powder and water is not easy to control, and the concentration of the formulated milk may be too thin or too thick, which will cause the baby to be difficult to digest or eat after eating. Get hungry easily.

As a result, various milk powder machines have appeared on the market, but the current milk powder machine has a problem, that is, the water tank of the current milk machine is either directly installed in the milk machine case and cannot be disassembled, and needs to be filled with water. When the water tank is installed, directly open the water inlet above the water tank to enter the water, or dig an open installation hole on the side of the milk machine casing, and then insert the water storage tank into the installation hole from the side. It is inconvenient to disassemble the water tank if it is tilted and taken out again. In addition, once the water tank is filled with water and then installed, the installation is inconvenient. Moreover, because the current water inlet of the water storage tank is relatively small, it is inconvenient to clean the interior of the water storage tank later.

Utility model content

In view of this, the purpose of the present invention is to provide a water storage tank installation structure of a milk maker which is convenient to disassemble, install and clean in the later stage.

In order to solve the above technical problems, the technical scheme of the present invention is: a water storage tank installation structure of a milk machine, comprising a milk machine casing, and a water tank installation base extending outward is provided on one side of the milk machine casing , a water storage tank that can be lifted up and removed is placed on the water tank installation base, an L-shaped hook is symmetrically arranged on one side of the milk machine casing, the water storage tank includes a water storage bin, and one side of the water storage bin is provided with A limit groove that cooperates with a corresponding hook to limit the position, the upper part of the water storage bin is provided with an opening that doubles as a water inlet of the water storage bin, a handle is hinged in the opening, and a sealing cover is covered above the water inlet, and the sealing cover is detachable. Connected to the water inlet, a water outlet is arranged below the water storage bin, a valve assembly for closing the water outlet is arranged in the water outlet, and a valve switch for opening the valve assembly is arranged on the installation base of the water tank.

Further, in order to avoid improper installation during installation, a guide post is respectively provided on both sides of the bottom of the water storage bin, and a guide hole matched with the guide post is provided on the installation base of the water tank.

Further, in order to facilitate installation, a guide channel extending downward along the water storage bin is provided below each limiting groove, and below the guide channel is a gap located on the bottom surface of the water storage bin, and the gap is not communicated with the interior of the water storage bin.

Further, in order to facilitate the observation of the internal water level, transparent observation windows are provided on both sides of the water storage bin.

Further, in order to detect the internal water level, a liquid level sensor for detecting the liquid level of the water tank is provided in the water storage bin.

Further, in order to facilitate the water outlet, the valve assembly includes an ejector rod, a compression spring and a first filter cover, a cross-shaped limit block is arranged below the ejector rod, and a sealing ring that cooperates with the inner wall of the water outlet is sleeved above the ejector rod. The compression spring is sleeved in the top rod, and the lower end of the compression spring is against the limit block, and the sealing ring is located outside the compression spring. The first filter cover is fixed above the water outlet, and the first filter cover will The lower top rod and compression spring cover it.

Further, in order to facilitate the water outlet, the valve switch includes a thimble that cooperates with the bottom of the limit block to push the limit block upward. When the limit block is pushed upward, the sealing ring is separated from the inner wall of the water inlet.

Compared with the prior art, the beneficial technical effect of the present utility model is mainly reflected in: when disassembly in the later stage is required, the entire water tank can be directly lifted from the installation base of the water tank by holding the water storage tank and lifting it up, so that the disassembly in the later stage is very convenient, and then To pour water into the water storage tank, you need to open the sealing cover first, and then directly perform rapid water filling. After filling with water, turn the handle hidden in the water inlet to expose part of the water inlet and expose it to the outside, which is convenient for your hands to grasp. When you grab the handle, you can lift the water tank with one hand and align the notch on the side with the hook, and align the guide column with the guide hole, and then move the water storage tank down until the guide column and the guide hole With the card position, the hook can be installed in the limit groove, and then the handle can be turned to hide in the water inlet, and the sealing cover can be covered to realize quick installation. It can be installed by plugging in. In addition, the full opening at the top of the water storage tank makes the water intake more efficient, and it is also convenient to clean the interior of the water storage tank in the later stage. Therefore, the structural design is very convenient for disassembly and installation, as well as later cleaning. .

Description of drawings

Fig. 1 is the structural perspective view of the milk maker casing in the present embodiment 1;

Fig. 2 is the structural perspective view of the milk maker casing in the present embodiment 1 when viewed from top to bottom;

Fig. 3 is a partial enlarged view at A in Fig. 2;

Fig. 4 is the structural perspective view of the water storage tank in the present embodiment 1;

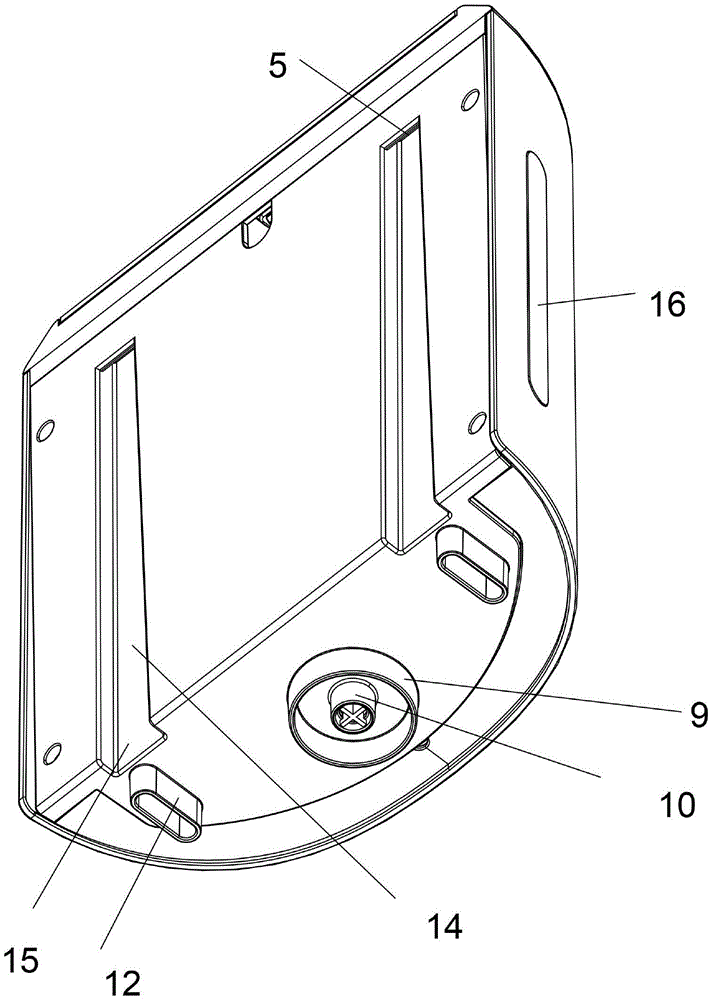

Fig. 5 is the structural perspective view of the water storage tank in the present embodiment 1 when viewed from the back;

6 is a schematic diagram of the internal structure of the water storage tank in the present embodiment 1;

FIG. 7 is a perspective view of the structure of the valve assembly in Embodiment 1. FIG.

Among them: milk machine casing 1; water tank mounting base 2; hook 3; water storage bin 4; limit groove 5; water inlet 6; handle 7; sealing cover 8; water outlet 9; valve assembly 10; valve switch 11; guide column 12; guide hole 13; guide channel 14; notch 15; transparent observation window 16; liquid level sensor 17; ejector rod 18; compression spring 19;

Detailed ways

The specific embodiments of the present invention will be described in further detail below in conjunction with the accompanying drawings, so as to make the technical solutions of the present invention easier to understand and grasp.

Example 1:

As shown in FIGS. 1 to 7 , a water storage tank installation structure of a milk machine disclosed in this embodiment includes a milk machine casing 1 , and a water tank extending outward is provided on one side of the milk machine casing 1 Mounting base 2, a water storage tank that can be lifted up and removed is placed on the water tank mounting base 2, L-shaped hooks 3 are symmetrically arranged on one side of the milk maker casing 1, and the water storage tank includes a water storage bin 4, One side of the water storage bin 4 is provided with a limit groove 5 that cooperates with the corresponding hook 3 to limit the position. The upper part of the water storage bin 4 is provided with an opening that doubles as the water inlet 6 of the water storage bin 4, and a handle 7 is hinged in the opening. The upper cover of 6 is covered with a sealing cover 8, and the sealing cover 8 is detachably connected to the water inlet 6, a water outlet 9 is arranged below the water storage bin 4, and a valve assembly for closing the water outlet 9 is arranged in the water outlet 9. 10. A valve switch 11 for opening the valve assembly 10 is provided on the water tank installation base 2 .

In this embodiment, there are two L-shaped hooks 3, but there may be more, for example, 3 or 4 or more in specific settings, and the handle 7 can be exposed to the inside after being rotated. The outside of the nozzle 6 is convenient for users to grab.

Further, in order to avoid improper installation during installation, a guide post 12 is respectively provided on both sides of the bottom of the water storage bin 4 , and a guide hole 13 is provided on the water tank installation base 2 for matching with the guide post 12 .

Further, in order to facilitate the installation, a guide channel 14 extending downward along the water storage bin 4 is provided below each limiting groove 5 . There is no communication with the interior of the water storage tank 4. In the hinged connection between the handle 7 and the water inlet 6 described in this embodiment, by providing the rotating shafts 24 on both sides of the handle, the rotating shafts 24 can rotate on both sides of the water inlet 6, and when the sealing cover 8 needs to be installed , the handle 7 is hidden in the water inlet 6.

Through the above structural design, when disassembly is required later, the entire water tank can be directly lifted from the water tank installation base 2 by holding the water storage tank 4 up and up, which makes the later disassembly very convenient, and then pouring water into the water storage tank 4 requires first Open the sealing cover 8, and then directly perform rapid water filling. After filling with water, turn the handle 7 hidden in the water inlet 6 to expose part of the water inlet and expose it to the outside, which is convenient for hands to grasp. At this time, grab the handle It is possible to lift the water tank with one hand and align the notch 15 on the side with the hook 3, and align the guide column 12 with the guide hole 13, and then move the water storage bin 4 downward until the guide column 12 is aligned with the guide hole 13. The guide hole 13 cooperates with the locking position, and the hook 3 is limited in the limit groove 5 to realize the installation, and then the handle 7 is turned to hide in the water inlet 6, and the sealing cover is covered to realize rapid installation. Therefore, through the above structural design, the realization of It can be disassembled with one lift, and can be installed with one plug. In addition, due to the fully open top of the water storage bin 4, the water intake efficiency is higher, and the cleaning of the interior of the water storage bin 4 is also convenient in the later stage. It is very convenient. By setting the valve assembly 10 and the valve switch 11, when the water storage tank is detached from the water tank mounting base 2, there will be no water flow from below, and when the water tank mounting base 2 is installed with the water storage tank, water will be discharged.

Further, in order to facilitate the observation of the internal water level, transparent observation windows 16 are provided on both sides of the water storage bin 4, and the internal water level can be easily checked by setting the transparent observation windows 16.

Further, in order to detect the internal water level, a liquid level sensor 17 for detecting the liquid level of the water tank is provided in the water storage bin 4, and real-time automatic detection of the water tank is realized by setting the liquid level sensor 17.

Further, in order to facilitate water discharge, the valve assembly 10 includes a top rod 18, a compression spring 19 and a first filter cover 20, a cross-shaped limit block 22 is provided below the top rod 18, and a top rod 18 is sleeved with an outlet The sealing ring 21 is matched with the inner wall of the nozzle 9. The compression spring 19 is sheathed in the ejector rod 18, and the lower end of the compression spring 19 is held against the limit block 22, and the sealing ring 21 is located outside the compression spring 19. The first filter The cover 20 is fixed above the water outlet 9 , and the first filter cover 20 covers the lower top rod 18 and the compression spring 19 .

Further, in order to facilitate the water outlet, the valve switch 11 includes a thimble 23 that cooperates with the bottom of the limit block 22 to push the limit block 22 upward. When the limit block 22 is lifted upward, the sealing ring 21 and the inner wall of the water inlet 6 separation.

The specific valve assembly 10 and the valve switch 11 are provided above, so that when the water storage bin 4 filled with water is put into the water tank installation base 2, at this time, the stand 23 will extend into the water outlet 9, and the limit block 22 will be pushed upward. At the same time, the sealing ring 21 is separated from the water outlet 9, and the internal water flows into the water tank installation base 2. When the water storage tank 4 is disassembled, under the action of the compression spring 19, the ejector rod 18 is pushed down to ensure the sealing ring. 21 is sealed with the water outlet 9 to ensure that the water outlet 9 does not produce water under the action of no external force.

Of course, the above are only specific application examples of the present invention, and do not constitute any limitation to the protection scope of the present invention. All technical solutions formed by equivalent transformation or equivalent replacement fall within the protection scope of the present invention.

Claims (7)

1. The utility model provides a dash storage water tank mounting structure of milk machine, includes dash milk machine casing (1), its characterized in that: one side of a milk machine casing (1) is provided with a water tank installation base (2) which extends outwards, a water storage tank which can be lifted upwards and disassembled is placed on the water tank installation base (2), one side surface of the milk machine casing (1) is symmetrically provided with L-shaped hooks (3), the water storage tank comprises a water storage bin (4), one side surface of the water storage bin (4) is provided with a limiting groove (5) which is matched and limited with the corresponding hook (3), the upper part of the water storage bin (4) is provided with an opening which is also used as a water inlet (6) of the water storage bin (4), a handle (7) is hinged in the opening, a sealing cover (8) is covered above the water inlet (6), the sealing cover (8) is detachably connected on the water inlet (6), a water outlet (9) is arranged below the water storage bin (4), a valve component (10) which closes the water outlet (9) is arranged in the water outlet (9, a valve switch (11) for opening the valve assembly (10) is provided on the tank mounting base (2).

2. The water storage tank mounting structure of the milk preparing machine according to claim 1, wherein: two sides of the bottom of the water storage bin (4) are respectively provided with a guide post (12), and a guide hole (13) matched with the guide post (12) is arranged on the water tank mounting base (2).

3. The water storage tank mounting structure of the milk preparing machine according to claim 2, wherein: a guide channel (14) extending downwards along the water storage bin (4) is arranged below each limiting groove (5), a notch (15) is arranged on the bottom surface of the water storage bin (4) below the guide channel (14), and the notch (15) is not communicated with the inside of the water storage bin (4).

4. The water storage tank mounting structure of the milk preparing machine according to claim 3, wherein: transparent observation windows (16) are arranged on two sides of the water storage bin (4).

5. The water storage tank mounting structure of the milk preparing machine as claimed in claim 4, wherein: a liquid level sensor (17) for detecting the liquid level of the water tank is arranged in the water storage bin (4).

6. The water storage tank mounting structure of the milk preparing machine as claimed in claim 5, wherein: valve module (10) include ejector pin (18), compression spring (19) and first filter mantle (20), are equipped with criss-cross stopper (22) below ejector pin (18), and the cover has and delivery port (9) inner wall complex sealing washer (21) above ejector pin (18), compression spring (19) cover in ejector pin (18), and the lower extreme and stopper (22) of compression spring (19) withstand, and outside sealing washer (21) are located compression spring (19), the top at delivery port (9) is fixed in first filter mantle (20), ejector pin (18) and compression spring (19) cover below first filter mantle (20).

7. The water storage tank mounting structure of the milk preparing machine as claimed in claim 6, wherein: valve switch (11) include with stopper (22) bottom cooperation with stopper (22) thimble (23) of jack-up stopper (22) upwards, when stopper (22) upwards jack-up, sealing washer (21) and water inlet (6) inner wall separation.
