Abstract

The utility model discloses a power environment monitoring device, which comprises a base, a casing is movably connected to the top of the base, a fixed shell is movably connected to the outer surface of the casing, and a monitoring casing is fixedly connected to the top of the fixed casing. A circuit seat is fixedly connected in the middle of the inside of the monitoring shell, and a control panel is installed inside the circuit seat, and the utility model relates to the technical field of monitoring devices. The power environment monitoring device, by setting the first motor, uses the rotation of the rotating shaft to drive the cylindrical seat to rotate, so as to realize the free rotation of the monitoring shell from 0 to 360°, which greatly reduces the blind area of the field of vision, effectively increases the monitoring range, and improves the monitoring effect. Setting the circuit seat, the control panel, the first camera seat and the second camera seat can realize the switching between the two cameras when one camera is damaged without affecting the monitoring use. It is convenient to clean up the debris.

Description

A dynamic environment monitoring device

technical field

The utility model relates to the technical field of monitoring devices, in particular to a power environment monitoring device.

Background technique

The power environment monitoring system system is aimed at the equipment characteristics and working environment of various communication bureau stations (including communication equipment rooms, base stations, branch offices, module bureaus, etc.) Non-smart devices and environmental variables such as temperature and humidity, smoke, ground water, and access control realize functions such as "telemetry, remote signaling, remote control, and remote adjustment". This monitoring system makes full use of the various transmission channel resources that the communication transmission equipment can provide. It can not only successfully realize multi-level network management and make the station unattended become a reality, but also use the channel resources efficiently, saving a lot of money for users. Channel resource investment and operation and maintenance investment reduce user operating costs.

The existing power environment monitoring device has a simple structure and a single function, which cannot meet the use requirements of special environments, and the monitoring angle of the camera is mostly fixed, and there is a certain blind area of vision. When the camera is damaged, it will affect the monitoring of the power environment. It is inconvenient to clean up when there are sundries on the surface of the camera.

Utility model content

In view of the deficiencies of the prior art, the utility model provides a dynamic environment monitoring device, which solves the problem of the existing dynamic environment monitoring device. The monitoring angle of the camera is mostly fixed. When the camera is damaged, the monitoring of the dynamic environment is affected. When there are debris on the surface, it is inconvenient to clean up.

In order to achieve the above purpose, the present utility model is realized by the following technical solutions: a power environment monitoring device, comprising a base, the top of the base is movably connected with a chassis, and the outer surface of the chassis is movably connected with a fixed shell, the The top of the fixed shell is fixedly connected with a monitoring shell, the middle of the inside of the monitoring shell is fixedly connected with a circuit seat, and a control panel is installed inside the circuit seat, and the left side of the circuit seat is electrically connected with a first camera seat, so The right side of the circuit seat is electrically connected with a second camera seat, a camera is fixedly connected to the side of the first camera seat and the second camera seat away from each other, and both ends of the two cameras penetrate through the monitoring shell and are connected to each other. Extending to the outside of the monitoring shell, the top of the inner cavity of the fixed shell is fixedly connected with an air pump, both sides of the air pump are connected with folded tubes, and one end of the two folded tubes is located directly below the camera. The bottom of the base is fixedly connected with a cylindrical seat, the outer surface of the cylindrical seat is rotatably connected with the inner surface of the base, the bottom of the base is fixedly connected with a first motor, and one end of the output shaft of the first motor is connected through a coupling The device is fixedly connected with a rotating shaft, and the top of the rotating shaft is fixedly connected with the bottom of the cylindrical seat.

Preferably, both sides of the bottom of the monitoring shell are fixedly connected with fixing blocks, and the bottoms of the two fixing blocks are fixedly connected to the upper part of the outer surface of the folded tube.

Preferably, a dust cover is fixedly connected to the top of the monitoring housing, and a nameplate is fixedly connected to the surface of the monitoring housing.

Preferably, balls are installed on the bottom of the cylindrical seat, the balls are rotatably connected to the bottom of the inner cavity of the base, and the balls are symmetrically installed on the bottom of the cylindrical seat.

Preferably, a second motor is fixedly connected below the inside of the case, one end of the output shaft of the second motor is fixedly connected with a rotating rod through a coupling, and a surface of the rotating rod is fixedly connected with a first gear.

Preferably, a rotating column is rotatably connected above the inside of the casing, both ends of the rotating column penetrate through the casing and extend to the outside of the casing, and both ends of the rotating column are rotatably connected to the inner wall of the fixed shell.

Preferably, a second gear is fixedly connected to the outer surface of the rotating column, and one side of the second gear meshes with one side of the first gear.

beneficial effect

The utility model provides a dynamic environment monitoring device. Compared with the prior art, it has the following beneficial effects:

(1) In the power environment monitoring device, a circuit seat is fixedly connected in the middle of the monitoring shell, and a control panel is installed inside the circuit seat, and the left side of the circuit seat is electrically connected with a first camera seat. The right side is electrically connected with a second camera seat, and a camera is fixedly connected to the side of the first camera seat and the second camera seat away from each other. Both ends of the two cameras penetrate through the monitoring housing and extend to the outside of the monitoring housing, and are fixed The top of the inner cavity of the casing is fixedly connected with an air pump, and the two sides of the air pump are connected with folded tubes. The inner surface of the base is rotatably connected, the bottom of the base is fixedly connected with a first motor, one end of the output shaft of the first motor is fixedly connected with a rotating shaft through a coupling, and the top of the rotating shaft is fixedly connected with the bottom of the cylindrical seat. The motor uses the rotation of the rotating shaft to drive the cylinder base to rotate, and realizes the free rotation of the monitoring shell from 0 to 360°, which greatly reduces the blind area of the field of view, effectively increases the monitoring range, and improves the monitoring effect. The seat and the second camera seat can be used for switching between two cameras without affecting the monitoring use when one camera is damaged. With the air pump and folding tube, it can be easily cleaned when there are sundries on the surface of the camera.

(2) In the power environment monitoring device, a second motor is fixedly connected below the inside of the chassis, one end of the output shaft of the second motor is fixedly connected with a rotating rod through a coupling, and the surface of the rotating rod is fixedly connected with a first gear The upper part of the inside of the chassis is rotatably connected with a rotating column. Both ends of the rotating column penetrate through the chassis and extend to the outside of the chassis. Both ends of the rotating column are rotatably connected with the inner wall of the fixed shell. The outer surface of the rotating column is fixedly connected with a second gear, and one side of the second gear meshes with one side of the first gear, the second motor drives the rotating rod to rotate, and the meshing transmission between the first gear and the second gear can drive the rotating column to rotate to realize the monitoring shell. The adjustment of the upper and lower angle ranges increases the monitoring range and improves the monitoring effect.

Description of drawings

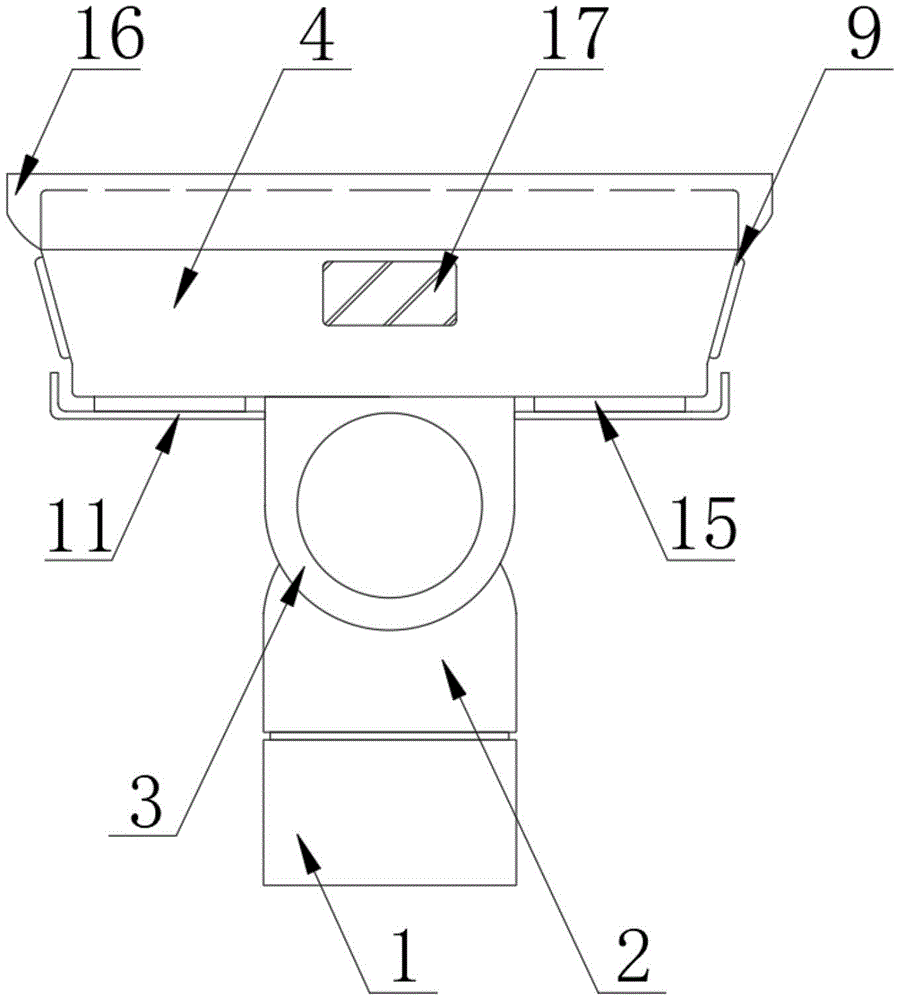

Fig. 1 is the front view of the external structure of the utility model;

2 is a cross-sectional view of the internal structure of the monitoring housing of the present invention;

Fig. 3 is the partial structure side view of the utility model;

4 is a top view of the internal structure of the base of the present invention;

FIG. 5 is a perspective view of the internal structure of the utility model.

In the picture: 1-base, 2-chassis, 3-fixed shell, 4-monitoring shell, 5-circuit seat, 6-control panel, 7-first camera seat, 8-second camera seat, 9-camera, 10-air pump, 11-folding tube, 12-cylindrical seat, 13-first motor, 14-rotating shaft, 15-fixing block, 16-dustproof shell, 17-nameplate, 18-ball, 19-second motor, 20 - Rod, 21 - first gear, 22 - column, 23 - second gear.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-5, the present utility model provides a technical solution: a power environment monitoring device, comprising a base 1, a chassis 2 is movably connected to the top of the base 1, and a rotating column 22 is rotatably connected to the upper part of the interior of the chassis 2 The outer surface of the rotating column 22 is fixedly connected with a second gear 23, and one side of the second gear 23 meshes with one side of the first gear 21. Both ends of the rotating column 22 penetrate through the case 2 and extend to the outside of the case 2 , both ends of the rotating column 22 are rotatably connected with the inner wall of the fixed shell 3, and a second motor 19 is fixedly connected to the lower part of the inside of the chassis 2. The second motor 19 is electrically connected to the external power supply, and one end of the output shaft of the second motor 19 passes through The coupling is fixedly connected with a rotating rod 20, the surface of the rotating rod 20 is fixedly connected with a first gear 21, and the outer surface of the chassis 2 is movably connected with a fixed shell 3, and the top of the fixed shell 3 is fixedly connected with a monitoring shell 4, and the monitoring shell The top of 4 is fixedly connected with a dustproof shell 16, which can play a dustproof effect on the monitoring shell 4, the surface of the monitoring shell 4 is fixedly connected with a nameplate 17, and the two sides of the bottom of the monitoring shell 4 are fixedly connected with fixed blocks. 15. The fixing block 15 plays a role in fixing the folded tube 11. The bottoms of the two fixing blocks 15 are fixedly connected to the upper part of the outer surface of the folded tube 11. The middle of the inside of the monitoring shell 4 is fixedly connected with the circuit seat 5, and the circuit seat 5 is the current In the prior art, power is provided for the first camera seat 7 and the second camera seat 8, and a control panel 6 is installed inside the circuit seat 5, and the control panel 6 controls the switching of the first camera seat 7 and the second camera seat 8, and the circuit seat A first camera seat 7 is electrically connected to the left side of the circuit seat 5 , a second camera seat 8 is electrically connected to the right side of the circuit seat 5 , and the sides of the first camera seat 7 and the second camera seat 8 that are far away from each other are fixedly connected with a second camera seat 8 . Camera 9, both ends of the two cameras 9 penetrate through the monitoring shell 4 and extend to the outside of the monitoring shell 4, the top of the inner cavity of the fixed shell 3 is fixedly connected with an air pump 10, and the air pump 10 is electrically connected with the external power supply. The sides are connected with a folded tube 11, one end of the two folded tubes 11 is located directly below the camera 9, the bottom of the chassis 2 is fixedly connected with a cylindrical seat 12, and the bottom of the cylindrical seat 12 is installed with a ball 18, which is connected with the ball 18, The friction force between the base 1 and the cylindrical seat 12 is reduced, and the ball 18 is rotatably connected to the bottom of the inner cavity of the base 1. The ball 18 is symmetrically installed at the bottom of the cylindrical seat 12, and the outer surface of the cylindrical seat 12 is connected to the base 1. The inner surface of the base 1 is rotatably connected, the bottom of the base 1 is fixedly connected with a first motor 13, the first motor 13 is electrically connected with an external power supply, and one end of the output shaft of the first motor 13 is fixedly connected with a rotating shaft 14 through a coupling, and The top of the rotating shaft 14 is fixedly connected with the bottom of the cylindrical seat 12. By setting the first motor 13, the rotating shaft 14 is used to drive the cylindrical seat 12 to rotate, so as to realize the 0-360° free rotation of the monitoring shell 4, which greatly reduces the blind area of vision. The monitoring range is effectively increased, the monitoring effect is improved, and the circuit seat 5, the control panel 6, the first camera seat 7 and the second camera seat 8 are arranged, so that when one camera 9 is damaged, it will not affect the monitoring use, and achieve two. The switching between the cameras 9, in conjunction with the air pump 10 and the folded tube 11, can facilitate cleaning when there are sundries on the surface of the cameras 9. Meanwhile, the contents not described in detail in this specification belong to the existing technologies known to those skilled in the art. technology.

When working, the switching between the first camera seat 7 and the second camera seat 8 is controlled by the control panel 6, so that the first camera seat 7 or the second camera seat 8 works, and then the camera 9 is used to take pictures, and the first motor 13 is started at the same time, Then, the rotating shaft 14 is driven to rotate, and the rotation of the rotating shaft 14 further drives the rotation of the cylindrical seat 12, so that the chassis 2 rotates, and the chassis 2 rotates to drive the fixed shell 3 and the monitoring shell 4 to rotate, so as to realize the free rotation of the monitoring shell 4 from 0 to 360°. The blind area of vision is reduced, the monitoring range is effectively increased, and the monitoring effect is improved. At the same time, the second motor 19 is activated, thereby driving the rotating rod 20 to rotate, and the rotation of the rotating rod 20 further drives the first gear 21 to rotate, and then drives the meshing second The rotation of the gear 23 makes the rotating column 22 rotate, thereby driving the fixed shell 3 and the monitoring shell 4 to rotate, realizing the adjustment of the upper and lower angular range of the monitoring shell 4, increasing the monitoring range, and improving the monitoring effect. Start the air pump 10, and then blow air on the surface of the camera 9 through a plurality of folded pipes 11, so that the sundries appearing on the surface of the camera 9 can be cleaned.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A power environment monitoring device, comprising a base (1), the top of the base (1) is movably connected with a case (2), and the outer surface of the case (2) is movably connected with a fixed shell (3), A monitoring shell (4) is fixedly connected to the top of the fixed shell (3), and is characterized in that: a circuit seat (5) is fixedly connected in the middle of the inside of the monitoring shell (4), and the inside of the circuit seat (5) is installed There is a control panel (6), a first camera seat (7) is electrically connected to the left side of the circuit seat (5), and a second camera seat (8) is electrically connected to the right side of the circuit seat (5). A camera (9) is fixedly connected to one side of the first camera seat (7) and the second camera seat (8) away from each other, and both ends of the two cameras (9) penetrate through the monitoring housing (4) and extends to the outside of the monitoring shell (4), the top of the inner cavity of the fixed shell (3) is fixedly connected with an air pump (10), and both sides of the air pump (10) are connected with folded tubes (11), two One end of the folded tube (11) is located directly below the camera head (9), the bottom of the chassis (2) is fixedly connected with a cylindrical seat (12), and the outer surface of the cylindrical seat (12) is connected to the base (12). 1) is rotatably connected to the inner surface of the base (1), a first motor (13) is fixedly connected to the bottom of the base (1), and one end of the output shaft of the first motor (13) is fixedly connected to a rotating shaft (14) through a coupling ), and the top of the rotating shaft (14) is fixedly connected with the bottom of the cylindrical seat (12). 2. A power environment monitoring device according to claim 1, characterized in that: both sides of the bottom of the monitoring shell (4) are fixedly connected with fixing blocks (15), and two fixing blocks (15) The bottom of the folded tube (11) is fixedly connected with the upper part of the outer surface. 3. A power environment monitoring device according to claim 1, characterized in that: the top of the monitoring shell (4) is fixedly connected with a dustproof shell (16), and the surface of the monitoring shell (4) is fixedly connected With nameplate (17). 4. A dynamic environment monitoring device according to claim 1, characterized in that: a ball (18) is installed on the bottom of the cylindrical seat (12), and the ball (18) is connected to the inner cavity of the base (1) The bottom is rotatably connected, and the balls (18) are symmetrically installed at the bottom of the cylindrical seat (12). 5. A power environment monitoring device according to claim 1, characterized in that: a second motor (19) is fixedly connected to the lower part of the inside of the casing (2), and the output shaft of the second motor (19) is A rotating rod (20) is fixedly connected to one end through a coupling, and a first gear (21) is fixedly connected to the surface of the rotating rod (20). 6. A power environment monitoring device according to claim 1, characterized in that: a rotating column (22) is rotatably connected to the upper part of the inside of the casing (2), and both ends of the rotating column (22) penetrate through The case (2) extends to the outside of the case (2), and both ends of the rotating column (22) are rotatably connected to the inner wall of the fixed shell (3). 7 . The power environment monitoring device according to claim 6 , wherein a second gear ( 23 ) is fixedly connected to the outer surface of the rotating column ( 22 ), and one side of the second gear ( 23 ) is fixed. 8 . Engage with one side of the first gear (21).
