Abstract

The utility model relates to the technical field of air-conditioning brackets, and discloses an energy-saving air-conditioning installation bracket, comprising a bracket, a support rod is movably sleeved in the middle of a bottom rod of the bracket, and a limit block is fixedly installed at the bottom end of the support rod, The top end of the support rod is fixedly installed with a fixed plate, the outer surface of the support rod is movably sleeved with a telescopic spring, the top end of the telescopic spring is fixedly connected with the bottom of the fixed plate, and the bottom end of the telescopic spring is connected with the lower bottom The top of the rod is fixedly attached. The installation bracket of the energy-saving air conditioner adopts a fixing plate installed at the bottom of the outer unit of the air conditioner, and a spring is installed between the fixing plate and the bottom rod of the bracket. When the outer unit of the air conditioner shakes under the action of itself or an external force, the spring can pass the The expansion and contraction absorb the kinetic energy generated by the shaking of the outdoor unit of the air conditioner, reduce the amplitude of the shaking of the outdoor unit of the air conditioner, prevent the loosening of the bolts caused by the shaking of the outdoor unit of the air conditioner for a long time, and avoid casualties caused by the fall of the outdoor unit of the air conditioner.

Description

An energy-saving air conditioner mounting bracket

technical field

The utility model relates to the technical field of air-conditioning brackets, in particular to an energy-saving air-conditioning installation bracket.

Background technique

An air conditioner, also known as an air conditioner, refers to a device that adjusts and controls the temperature, humidity, cleanliness, flow rate and other parameters of the ambient air in the building by artificial means. With the rapid development of the economy and the improvement of people's living standards, people have The reliance on air conditioners is also increasing. Whether it is hot summer or cold winter, the use of air conditioners has become everyone's daily life.

Due to the limitation of the structure of the air conditioner, after installing the wall-mounted air conditioner or the vertical cabinet air conditioner indoors, it is necessary to install the outdoor unit of the air conditioner outdoors. During the operation of the outdoor unit of the air conditioner, due to the action of the fan, the outdoor unit of the air conditioner will shake, not only In this way, since the outdoor unit of the air conditioner is often installed outdoors, it will also affect the stability of the outdoor unit of the air conditioner when encountering extreme weather such as strong winds. The traditional outdoor unit of the air conditioner is installed by fixing the bracket to the wall, and then attaching it to the wall. The outer unit of the air conditioner is fixed to the bracket. In the absence of shock absorption, the long-term shaking of the outer unit of the air conditioner will cause the bolts to loosen. If the outer unit of the air conditioner falls, it may even cause casualties.

The traditional air conditioner outdoor unit brackets are divided into left and right brackets. During installation, one of the brackets is usually installed first, and then placed at the bottom of the bracket with the help of a pole. After keeping it horizontal, the other bracket is installed, which is not only inconvenient to operate, but also causes problems. The error is caused, so that the air conditioner outdoor unit is in an oblique state. Under the action of gravity, the air conditioner outer unit will have a sliding force to one side, which will cause the bolts fixing the air conditioner outdoor unit to loosen for a long time, which also has great risks. .

When installing the outdoor unit of the air conditioner, due to the different distances between the positions of the fixing bolts at the bottom of the outdoor unit of the air conditioner, the distance between the two brackets needs to be adjusted. Since the installation of the outdoor unit of the air conditioner is often done in the air, the traditional soft ruler is in the air. It is difficult to maintain stability during operation. In this case, the installation distance of the two brackets will cause errors and need to be re-adjusted, which reduces the work efficiency of the installer.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides an energy-saving air conditioner mounting bracket, which has the advantages of no shaking of the outer unit of the air conditioner, stable placement of the outer unit of the air conditioner, and accurate installation, and solves the problems mentioned in the above background technology.

The utility model provides the following technical solutions: an energy-saving air conditioner installation bracket, comprising a bracket, a support rod is movably sleeved in the middle of a bottom rod of the bracket, a limit block is fixedly installed at the bottom end of the support rod, and the support rod A fixed plate is fixedly installed at the top of the support rod, a telescopic spring is movably sleeved on the outer surface of the support rod, the top of the telescopic spring is fixedly connected with the bottom of the fixed plate, and the bottom end of the telescopic spring is fixed with the top of the lower bottom rod. The top of the fixing plate is movably connected with a connecting rod, the top of the connecting rod is fixedly installed with an air conditioner external unit, the left and right ends of the connecting rod are movably sleeved with screws, and the bottom ends of the two screws Passing through the lower bottom rod of the bracket, the upper and lower ends of the two screws are threadedly sleeved with nuts, the front of the lower bottom rod of the bracket is provided with a limit hole located on the right side of the right end screw, and the inside of the limit hole is The movable sleeve is connected with a fixed rod.

Preferably, the bracket is in an "L" shape, and is divided into a left pole and a lower bottom pole.

Preferably, the left and right ends of the lower bottom rod of the support are provided with screw holes, and the shape and size of the two screw holes are the same. The outer surface of the rod is movably socketed, the number of the fixing holes is three, and the shapes and sizes of the three fixing holes are the same.

Preferably, the diameter of the screw hole is larger than the diameter of the screw, and the diameter of the fixing hole is larger than the diameter of the support rod.

Preferably, the fixing hole is located just below the support rod.

Preferably, the outer surface of the fixing rod has a scale.

Compared with the prior art, the utility model has the following beneficial effects:

1. The installation bracket of the energy-saving air conditioner is installed by installing a fixing plate at the bottom of the outer unit of the air conditioner, and a spring is installed between the fixing plate and the lower bottom rod of the bracket. When the outer unit of the air conditioner shakes under the action of itself or external force, the spring can pass through. Its own expansion and contraction absorbs the kinetic energy generated by the shaking of the outdoor unit of the air conditioner, reduces the amplitude of the shaking of the outer unit of the air conditioner, prevents the loosening of the bolts caused by the shaking of the outer unit of the air conditioner for a long time, and avoids casualties caused by the fall of the outdoor unit of the air conditioner.

2. The energy-saving air-conditioning installation bracket is provided with a limit hole at the right end of the lower bottom rod of the bracket, and the fixing rod is passed through the limit holes of the two brackets, so that the two brackets are in a horizontal position to prevent the external air conditioner from tilting. The extra pressure avoids the serious impact of loose bolts.

3. The energy-saving air conditioner mounting bracket is provided with a scale on the outer surface of the fixing rod. After passing the fixing rod through the limit hole between the two brackets, the two brackets can be directly adjusted according to the distance between the bolts at the bottom of the air conditioner outdoor unit. The distance between the two brackets ensures the installation accuracy of the distance between the two brackets and improves the work efficiency of the installer.

Description of drawings

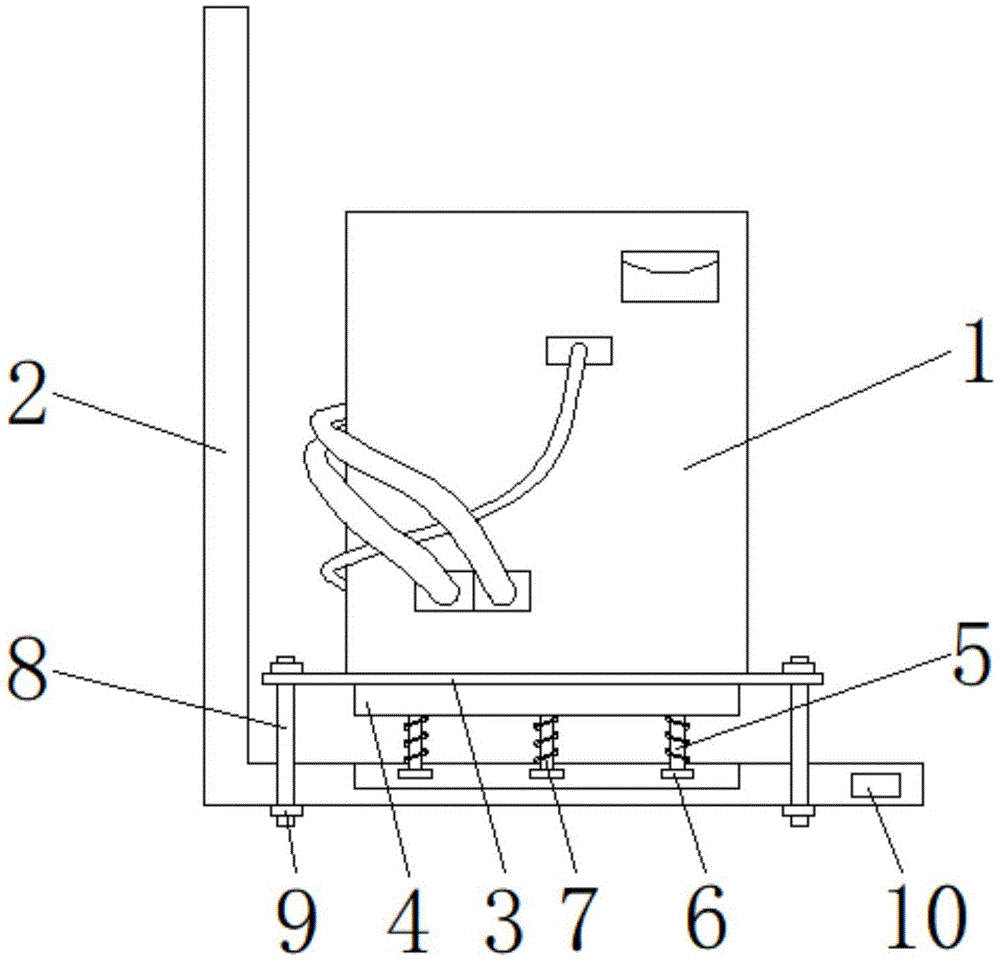

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the connection diagram of the utility model structural support and the fixing rod;

FIG. 3 is a top view of the lower bottom rod of the structural support of the present invention.

In the picture: 1. Air conditioner outdoor unit; 2. Bracket; 3. Connecting rod; 4. Fixed plate; 5. Support rod; 6. Limit block; 7. Telescopic spring; 8. Screw; 9. Nut; 10. Limit Position hole; 11. Fixing rod; 12. Screw hole; 13. Fixing hole.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-3, an energy-saving air conditioner installation bracket, including a bracket 2, a support rod 5 is movably sleeved in the middle of the bottom rod of the support rod 2, and a limit block 6 is fixedly installed at the bottom end of the support rod 5. A fixed plate 4 is fixedly installed at the top, a telescopic spring 7 is movably sleeved on the outer surface of the support rod 5, the top of the telescopic spring 7 is fixedly connected with the bottom of the fixed plate 4, and the bottom end of the telescopic spring 7 is fixedly connected with the top of the lower bottom rod. , when the outdoor unit 1 of the air conditioner shakes under the action of itself or an external force, the spring can absorb the kinetic energy generated by the shaking of the outdoor unit 1 through its own expansion and contraction, reduce the amplitude of the shaking of the outdoor unit 1, and prevent the outdoor unit 1 from shaking for a long time. The shaking leads to the loosening of the bolts. The top of the fixing plate 4 is movably connected with a connecting rod 3, and the top of the connecting rod 3 is fixedly installed with the air conditioner outdoor unit 1. The left and right ends of the connecting rod 3 are movably sleeved with a screw 8, and two screws 8 The bottom end of the bracket 2 penetrates the lower bottom rod of the bracket 2, the upper and lower ends of the two screws 8 are threadedly sleeved with nuts 9, and the front of the lower bottom rod of the bracket 2 is provided with a limit hole 10 on the right side of the right end screw 8. A fixing rod 11 is movably sleeved inside the hole 10. By opening a limiting hole 10 at the right end of the lower bottom rod of the bracket 2, the fixing rod 11 is passed through the limiting hole 10 of the two brackets, so that the two brackets 2 are in a horizontal position. , to prevent the external unit 1 of the air conditioner from tilting and causing extra stress on the bolts.

Among them, the shape of the bracket 2 is "L" shape, and is divided into a left pole and a lower bottom pole, the left pole is used for fixing with the wall, and the lower bottom pole is used for fixing with the air conditioner outdoor unit.

Wherein, the left and right ends of the lower bottom rod of the bracket 2 are provided with screw holes 12, and the shape and size of the two screw holes 12 are the same. The middle of the lower bottom rod of the bracket 2 is provided with a fixing hole 13. The outer surface is movably socketed, the number of the fixing holes 13 is three, and the shapes and sizes of the three fixing holes 13 are the same.

The diameter of the screw hole 12 is larger than that of the screw 8 so that the screw 8 can be inserted into the screw hole 12 to facilitate the fixing of the air conditioner external unit.

The fixing hole 13 is located just below the support rod 5 .

The outer surface of the fixing rod 11 has scales. After passing the fixing rod through the limit hole between the two brackets, the distance between the two brackets can be directly adjusted according to the distance between the bolts at the bottom of the outdoor unit of the air conditioner.

Working principle: first measure the distance of the fixing bolts at the bottom of the outdoor unit 1 of the air conditioner, fix the left pole of one bracket 2 to the wall with bolts, pass the fixing pole 11 through the limit hole 10 of the bracket 2, and attach the left pole of the other bracket 2. The limit hole 10 is sleeved on the outer surface of the fixing rod 11, and the two brackets 2 are in a horizontal position by passing the fixing rod 11 through the limit holes of the two brackets 2, so as to prevent the outside air conditioner 1 from tilting and causing additional bolts. Adjust the distance between the two brackets 2 according to the scale on the outer surface of the fixing rod 11. After adjustment, fix the other bracket 2 to the wall with bolts, and place the air conditioner outdoor unit 1 on the lower bottom rod of the two brackets 2. Insert the left and right ends of the connecting rod 3 into the screw 8, and insert the screw 8 through the lower bottom rod of the bracket, tighten the upper and lower ends of the screw 8 through the nut 9, and install the fixing plate 4 at the bottom of the air conditioner outdoor unit 1. The fixing plate 4 A spring is installed between it and the lower bottom rod of the bracket 2. When the air conditioner outdoor unit 1 shakes under the action of itself or an external force, the spring can absorb the kinetic energy generated by the shaking of the air conditioner outdoor unit 1 through its own expansion and contraction, and reduce the shaking of the air conditioner outdoor unit 1. range, to prevent the loosening of the bolts caused by the long-term shaking of the outdoor unit 1 of the air conditioner.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to cover non-exclusive inclusion, such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides an energy-conserving air conditioner installing support, includes support (2), its characterized in that: the middle part of the lower bottom rod of the bracket (2) is movably sleeved with a support rod (5), the bottom of the support rod (5) is fixedly provided with a limit block (6), the top of the support rod (5) is fixedly provided with a fixed plate (4), the outer surface of the support rod (5) is movably sleeved with a telescopic spring (7), the top of the telescopic spring (7) is fixedly connected with the bottom of the fixed plate (4), the bottom of the telescopic spring (7) is fixedly connected with the top of the lower bottom rod, the top of the fixed plate (4) is movably connected with a connecting rod (3), the top of the connecting rod (3) is fixedly provided with an air conditioner external unit (1), the left end and the right end of the connecting rod (3) are movably sleeved with screw rods (8), the bottom ends of the two screw rods (8) penetrate through the rods of the lower bottom bracket (2), and the upper end and the lower end of the two, the front of the lower bottom rod of the support (2) is provided with a limiting hole (10) located on the right side of the right end screw rod (8), and a fixing rod (11) is movably sleeved in the limiting hole (10).

2. An energy saving air conditioner mounting bracket as set forth in claim 1, wherein: the bracket (2) is L-shaped and is divided into a left side rod and a lower bottom rod.

3. An energy saving air conditioner mounting bracket as set forth in claim 1, wherein: screw rod hole (12), two have all been seted up at both ends about the sill bar under support (2) the shape size homogeneous phase of screw rod hole (12), fixed orifices (13) have been seted up to the centre of sill bar under support (2), fixed orifices (13) cup joint with the surface activity of bracing piece (5), the quantity of fixed orifices (13) is three, three the shape size homogeneous phase of fixed orifices (13).

4. An energy saving air conditioner mounting bracket as set forth in claim 3, wherein: the diameter of the screw hole (12) is larger than that of the screw (8), and the diameter of the fixing hole (13) is larger than that of the support rod (5).

5. An energy saving air conditioner mounting bracket as set forth in claim 3, wherein: the fixing hole (13) is positioned right below the supporting rod (5).

6. An energy saving air conditioner mounting bracket as set forth in claim 1, wherein: the outer surface of the fixing rod (11) is provided with scales.
