Abstract

The utility model discloses a general mold for producing sapphire crystal by a guided mode method, comprising a base body, a bottom plate, a disassembly and assembly mechanism, a clamping mechanism and a mold. The edge positions are all provided with a base body, and the interior of the base body is provided with a mold, a limit mechanism is fixed on the outer walls on both sides of the mold, and an upper hook, a fixed stud and a lower hook are sequentially arranged inside the limit mechanism. The interior of the upper hook is provided with a lower hook, and the lower hook and the upper hook cooperate with each other. The interior of the base body on the side away from the mold is provided with a clamping mechanism. The utility model not only realizes the function of easy disassembly of the base and the mold when the universal mold is in use, but also realizes the limit function of the universal mold, and enhances the stability of the universal mold when it is used.

Description

A universal mold for the production of sapphire crystals by the guided mode method

technical field

The utility model relates to the technical field of sapphire crystals, in particular to a general mold for producing sapphire crystals by a guided mode method.

Background technique

With the continuous development of society, the technology of gem crystal production has also been continuously improved. Among them, the existing gem crystal can be in the process of its growth, and the mold is its essential equipment. There are such general mold types on the market today. It can basically meet people's needs, but there are still some problems. The specific problems are as follows:

(1) Due to the inconvenience of disassembly between the base and the mold of such a traditional general mold in use, it is extremely inconvenient to use;

(2) The traditional general molds of this type have low practicability during use due to their poor limiting effect;

(3) Due to the low stability of such conventional general molds in use, crystal damage may occur during use.

Utility model content

The purpose of the present invention is to provide a general mold for producing sapphire crystal by the guided mode method, so as to solve the problems of inconvenient use, low practicability and crystal damage in the above-mentioned background art.

In order to achieve the above-mentioned purpose, the utility model provides the following technical scheme: a general mold for producing sapphire crystal by the guided mode method, comprising a base body, a bottom plate, a disassembly and assembly mechanism, a clamping mechanism and a mold, and the bottom end of the bottom plate is fixed with a A disassembly and assembly mechanism, the interior of the disassembly and assembly mechanism is sequentially provided with a first spring, a side plate, an inner cavity, a clamping plate, a sliding block, a groove and a sliding groove, and both ends of the bottom plate on both sides of the inner cavity are fixed with A sliding block, and a sliding groove is arranged inside the base body under the sliding block, a groove is arranged inside the base body on one side of the sliding groove, and a clamping plate is arranged inside the groove, and the clamping plate is far away from the concave One end of the slot extends to the interior of the inner cavity, side plates are provided on both sides of the inner cavity, and a first spring is fixed between the adjacent side plates, and the top ends of the side plates are all fixedly connected with the clamping plate, The edge positions of the bottom plate are all provided with a base body, and the interior of the base body is provided with a mold, the outer walls on both sides of the mold are fixed with limiting mechanisms, and the interior of the base body on the side of the limiting mechanism away from the mold is provided with clips. receiving agency.

Preferably, the lateral length of the inner diameter of the sliding groove is greater than the lateral length of the outer diameter of the sliding block, and the sliding groove and the sliding block form a sliding structure.

Preferably, a clamping plate, a second spring, a horizontal plate, a vertical plate, a fixing block and a through slot are arranged in the interior of the clipping mechanism in sequence, the vertical plate is fixed with a horizontal plate at the top of the vertical plate, and the vertical plate is close to the base. The second springs with equal spacing are installed on the outer wall of one side, and the ends of the second springs away from the vertical plate are fixedly connected with the inner wall of the base body, and the side walls of the vertical plate below the second springs are installed with equal spacing. In the card board, fixed blocks are fixed on the outer wall of the base on one side of the card board, and the interior of the fixed blocks are all provided with through grooves with equal spacing, and the through grooves are all matched with the card board.

Preferably, the inner diameter of the through groove is larger than the outer diameter of the clamping plate, and the clamping plate and the through groove form a clamping structure.

Preferably, an upper hook, a fixing stud and a lower hook are arranged in the interior of the limiting mechanism in sequence, and lower hooks are arranged inside the upper hooks, and the lower hooks cooperate with the upper hooks, and the upper hooks and the lower hooks are respectively It is fixedly connected with the side wall of the clamping mechanism and the outer wall of the mold through the fixing stud.

Compared with the prior art, the beneficial effect of the present utility model is: the general mold for producing sapphire crystal by the guided mode method not only realizes the function of easy disassembly of the base and the mold when the general mold is used, but also realizes the limitation of the general mold. Bit function, and strengthen the stability of the general mold in use;

(1) The sliding block and the sliding groove are fixed at both ends of the bottom plate on both sides of the inner cavity, so that the sliding block and the sliding groove can realize the function of sliding and clamping. The function of easy disassembly of the base body and the mold when the universal mold is used, thereby improving the convenience of the universal mold in use;

(2) The lower hook is arranged inside the upper hook, and the lower hook and the upper hook are mutually clamped, and the upper hook and the lower hook are fixedly connected to the side wall of the clamping mechanism and the outer wall of the mold respectively through the fixing stud, so as to realize the universal The limit function of the mold improves the practicability of the general mold when it is used;

(3) A second spring is installed on the outer wall of the side close to the base through the vertical plate, a clamping plate is installed on the side wall of the vertical plate below the second spring, a fixing block is fixed on the outer wall of the base on one side of the clamping plate, and the interior of the fixing block is set The groove enhances the stability of the universal mold when it is used, thereby avoiding the phenomenon of crystal damage occurring when the universal mold is used.

Description of drawings

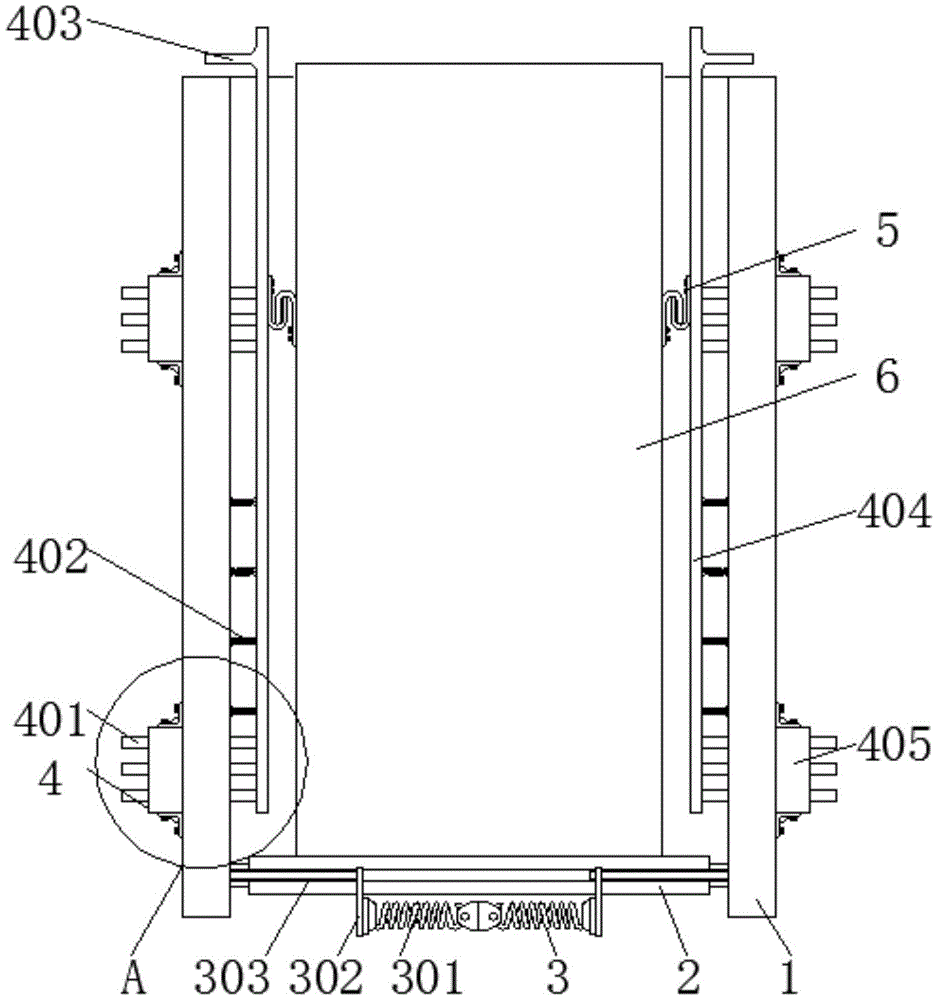

Fig. 1 is the front sectional structure schematic diagram of the utility model;

Fig. 2 is the partial cutaway enlarged structural schematic diagram of the limiting mechanism of the utility model;

FIG. 3 is a schematic diagram of an enlarged cross-sectional structure of the disassembly and assembly mechanism of the present utility model;

FIG. 4 is a schematic diagram of a partially enlarged structure at A in FIG. 1 of the present invention.

In the figure: 1, base body; 2, bottom plate; 3, disassembly and assembly mechanism; 301, first spring; 302, side plate; 303, inner cavity; 304, snap plate; 305, sliding block; 306, groove; 307 , sliding slot; 4, clamping mechanism; 401, clamping plate; 402, second spring; 403, horizontal plate; 404, vertical plate; 405, fixing block; 406, through slot; 5, limit mechanism; 501, upper Hook; 502, fixed stud; 503, lower hook; 6, mold.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-4 , an embodiment provided by the present invention: a general mold for producing sapphire crystals by the guided mode method, comprising a base body 1, a bottom plate 2, a disassembly and assembly mechanism 3, a clamping mechanism 4 and a mold 6 , the bottom end of the bottom plate 2 is fixed with a disassembly and assembly mechanism 3, and the interior of the disassembly and assembly mechanism 3 is sequentially provided with a first spring 301, a side plate 302, an inner cavity 303, a clamping plate 304, a sliding block 305, a groove 306 and a sliding groove 307, sliding blocks 305 are fixed at both ends of the bottom plate 2 on both sides of the inner cavity 303, and the base body 1 under the sliding block 305 is provided with sliding grooves 307 inside, and the base body 1 on one side of the sliding groove 307 is provided with grooves 306 in the interior , the interior of the groove 306 is provided with a clamping plate 304, and the end of the clamping plate 304 away from the groove 306 extends to the interior of the inner cavity 303, and both sides of the inner cavity 303 are provided with side plates 302, and adjacent sides A first spring 301 is fixed between the plates 302 , the top ends of the side plates 302 are fixedly connected to the clamping plate 304 , the lateral length of the inner diameter of the sliding groove 307 is greater than the lateral length of the outer diameter of the sliding block 305 , and the sliding groove 307 is connected to the sliding block 305 form a sliding structure;

When using this mechanism, firstly, the side plate 302 is relatively pulled, and the clip plate 304 inside the groove 306 will move to the inside of the inner cavity 303 under the action of the side plate 302, and then the bottom plate 2 is pulled, and the two ends slide The block 305 will slide out from the inside of the sliding groove 307. At this time, the mold 6 can be pushed up to separate it from the base body 1, thereby realizing the function of the universal mold being easy to disassemble and assemble;

The edge positions of the bottom plate 2 are provided with the base body 1, and the interior of the base body 1 is provided with a mold 6, the outer walls on both sides of the mold 6 are fixed with a limiting mechanism 5, and the interior of the limiting mechanism 5 is sequentially provided with upper hooks 501, fixed The stud 502 and the lower hook 503 are provided with the lower hook 503 inside the upper hook 501, and the lower hook 503 and the upper hook 501 cooperate with each other. The side wall is fixedly connected with the outer wall of the mold 6;

When using this mechanism, first, the mold 6 is placed inside the base body 1. At this time, the lower hooks 503 on both sides of the mold 6 and the upper hooks 501 inside the base body 1 are mutually clamped, and then the mold 6 is limited. The phenomenon of offset of the mold 6 when the universal mold is used is avoided;

The interior of the base body 1 on the side of the limiting mechanism 5 away from the mold 6 is provided with a clamping mechanism 4. The interior of the clamping mechanism 4 is sequentially provided with a clamping plate 401, a second spring 402, a horizontal plate 403, a vertical plate 404, and a fixing block 405. and the through groove 406, the top of the vertical plate 404 is fixed with a horizontal plate 403, the outer wall of the vertical plate 404 close to the base 1 is installed with second springs 402 at equal intervals, and the second spring 402 is away from the end of the vertical plate 404 All of them are fixedly connected to the inner wall of the base body 1 , the side walls of the vertical plate 404 under the second spring 402 are all installed with equally spaced clamping plates 401 , and the outer wall of the base body 1 on one side of the clamping plate 401 is fixed with fixing blocks 405 . The interior of 405 is provided with through grooves 406 at equal intervals, and the through grooves 406 are all matched with the card board 401. The inner diameter of the through grooves 406 is larger than the outer diameter of the card plate 401, and the card plate 401 and the through groove 406 form a snap connection structure;

When using this mechanism, first, push the upright plate 404, pull the clamping plate 401 to the position of the through groove 406 inside the upright plate 404, and then place the base body 1 in a suitable position, after releasing the clamping plate 401, it will Under the elastic force of the second spring 402, the base body 1 is locked with the fixture, thereby enhancing the stability of the universal mold in use.

Working principle: When using the universal mold, firstly push the vertical plate 404, pull the card plate 401 to the position of the through groove 406 inside the vertical plate 404, and then place the base 1 in a suitable position, after releasing the card plate 401, its Under the elastic force of the second spring 402, the base body 1 and the fixture are locked, thereby enhancing the stability of the universal mold in use, and then the mold 6 is placed inside the base body 1. At this time, the two sides of the mold 6 are The lower hook 503 will be mutually snapped with the upper hook 501 inside the base body 1, and then the mold 6 will be limited to avoid the offset phenomenon of the mold 6 when the universal mold is used, and finally the side plate 302 will be relatively pulled. The inner snap plate 304 will move to the inside of the inner cavity 303 under the action of the side plate 302, and then the bottom plate 2 is pulled, and the sliding blocks 305 at both ends will slide out from the inside of the sliding groove 307. At this time, the mold is pushed upward. 6. It can be separated from the base body 1, thereby realizing the function of easy disassembly and assembly of the universal mold, and finally completing the work of the universal mold.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (5)

1. a general mold for the production of sapphire crystal by guided mode method, comprising base (1), bottom plate (2), disassembly mechanism (3), clamping mechanism (4) and mold (6), it is characterized in that: A disassembly mechanism (3) is fixed at the bottom end of the bottom plate (2), and a first spring (301), a side plate (302), an inner cavity (303), a first spring (301), a side plate (302), an inner cavity (303), A snap plate (304), a sliding block (305), a groove (306) and a sliding groove (307), the bottom plate (2) on both sides of the inner cavity (303) are fixed with sliding blocks (305) at both ends, The base body (1) below the sliding block (305) is provided with a sliding groove (307) inside, and the base body (1) on one side of the sliding groove (307) is provided with a groove (306), the groove The interior of the (306) is provided with a clamping plate (304), and the end of the clamping plate (304) away from the groove (306) extends to the interior of the inner cavity (303), the two sides of the inner cavity (303) Both are provided with side plates (302), and a first spring (301) is fixed between the adjacent side plates (302). A base body (1) is provided at the edge positions of the bottom plate (2), and a mold (6) is arranged inside the base body (1), and a limiting mechanism (5) is fixed on the outer walls on both sides of the mold (6), A clamping mechanism (4) is provided inside the base body (1) on the side of the limiting mechanism (5) away from the mold (6). 2. A kind of general mold for producing sapphire crystal by guided mode method according to claim 1, characterized in that: the lateral length of the inner diameter of the sliding groove (307) is greater than the lateral length of the outer diameter of the sliding block (305), And the sliding groove (307) and the sliding block (305) constitute a sliding structure. 3. A kind of general mold for producing sapphire crystal by guided mode method according to claim 1, characterized in that: the interior of the clamping mechanism (4) is sequentially provided with a clamping plate (401), a second spring ( 402), a horizontal plate (403), a vertical plate (404), a fixing block (405) and a through groove (406), the top of the vertical plate (404) is fixed with a horizontal plate (403), the vertical plate ( 404) Second springs (402) at equal intervals are installed on the outer wall of the side close to the base body (1), and one end of the second springs (402) away from the vertical plate (404) is fixedly connected to the inner wall of the base body (1) , the side walls of the vertical plate (404) below the second spring (402) are all installed with equally spaced clamping plates (401), and the outer wall of the base (1) on one side of the clamping plate (401) is fixed with A fixing block (405), the interior of the fixing block (405) are all provided with through grooves (406) at equal intervals, and the through grooves (406) are all matched with the clamping plate (401). 4. A general mold for producing sapphire crystals by a guided mode method according to claim 3, wherein the inner diameter of the through groove (406) is larger than the outer diameter of the clamping plate (401), and the clamping plate (401) and the through groove (406) form a clamping structure. 5. A general mold for producing sapphire crystals by guided mode method according to claim 1, characterized in that: the interior of the limiting mechanism (5) is sequentially provided with an upper hook (501), a fixing stud ( 502) and a lower hook (503), the inside of the upper hook (501) is provided with a lower hook (503), and the lower hook (503) and the upper hook (501) cooperate with each other, and the upper hook (501) and the lower hook (503) are respectively fixedly connected to the side wall of the clamping mechanism (4) and the outer wall of the mold (6) through the fixing studs (502).
