Abstract

The utility model discloses an art drawing board, which comprises a drawing board body, a drawer is arranged at one end of the drawing board body, first fixing buckles are fixedly arranged on both sides of the front end of the drawer, and drawing paper is placed on the placing board through a baffle plate and a spring clip. At the same time, the top of the drawing paper is held by the spring clip, so as to ensure that the drawing paper will not fall or tilt when it is placed, which will affect the painting. Several groups of storage compartments of different sizes are set in the drawer, which can store different tools. Through the palette set inside the drawer, it is convenient to use when painting, and the gaps set on the palette are convenient to place or take. The collection grid set at the top of the main body can be stored when the painting is not completed, which is convenient for subsequent painting, and avoids the traditional failure to collect the painting, which will cause the painting to be damaged. to facilitate painting.

Description

an art board

technical field

The utility model belongs to the technical field of teaching tools, in particular to an art drawing board.

Background technique

The art drawing board is a teaching tool used in the field of art creation and engineering drawing. It is simple to operate, fast and convenient, and has been widely used. The existing art drawing boards have certain drawbacks in use. First, the uneven placement of the art drawings during use will cause the drawings to fall, which has a certain adverse effect. Second, most of the art drawing boards are a completed drawing board. It is convenient to store tools such as paintbrushes and paints, so it is necessary to carry additional materials such as paintbrushes, paper and other materials when using, and the existing ordinary drawing boards are not convenient to carry, and at the same time, it is inconvenient to store unfinished or completed paintings, so the paintings are often damaged. It is not conducive to people's use, and has a certain impact on people's use process, so it is necessary to improve the existing technology to solve the above problems.

Utility model content

The purpose of the present invention is to provide an art drawing board to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: an art drawing board, including a drawing board body, one end of the drawing board body is provided with a drawer, a first fixing buckle is fixedly arranged on both sides of the front end of the drawer, and several groups of partitions are fixed inside the drawer. The panel divides the drawer into several sets of collection boxes, and a palette is placed inside the drawer and located above the partition. One of the right angles of the palette is provided with an arc-shaped gap, and the top side of the drawing board body passes through. The hinge is connected with the placing plate, the top side of the placing plate is fixed with a spring clip, the bottom side of the placing plate is provided with a baffle through the rotating shaft, and the other side of the placing plate is provided with folding grooves at both ends, and the two sets of folding grooves pass through. A support rod is installed on the rotating shaft, adjustment grooves are provided at the edges of the top two ends of the drawing board body, a collection box is arranged on the top of the drawing board body, and a second fixing buckle is fixedly arranged on one side of the top end of the drawing board body. One end of the adjustment slot is fixedly provided with a handle.

Further, a base is fixed around the bottom of the drawing board body, and the base is made of a rubber material.

Further, a groove handle is provided on the top side of the drawer and the placing board, which is convenient for opening the drawer and the placing board, and the groove shape of the handle can make the overall flatness of the drawing board body.

Further, the collection box is integrated with the drawing board body, and the collection box is recessed downward at the top of the drawing board body to form a collection box, which is convenient for collecting unfinished paintings, ensuring that the paintings will not be damaged, and can also be used as a collection box. A place to store paintings.

Further, the positions of the two groups of the support rods correspond to the positions of the two groups of adjustment grooves, which is convenient for adjusting the angle of the placing plate for better painting.

Further, the partitions are divided into storage compartments of different sizes, which are convenient for placing painting tools of different types and sizes.

Further, the adjusting grooves are provided with five groups, and the adjusting grooves are provided in a triangular shape.

Compared with the prior art, the beneficial effect of the present utility model is: in the art drawing board, when the drawing paper is placed on the placing board through the provided baffle plate and the spring clip, the bottom of the drawing paper presses against the baffle plate, so as to ensure that the drawing paper can be drawn. The paper can be placed horizontally, and at the same time, the top of the drawing paper is clamped by the spring clip, so as to ensure that the drawing paper will not fall or tilt when placed, which will affect the painting. Place different tools, through the palette set inside the drawer, it is convenient to use when painting, the gap set on the palette is convenient to place or take, and the collection grid set at the top of the drawing board body is used when the painting is not completed. Storage, convenient for subsequent painting, to avoid the traditional inability to store, resulting in damage to the painting, two sets of support rods and adjustment slots can be set to adjust the angle of the placement board to facilitate painting.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

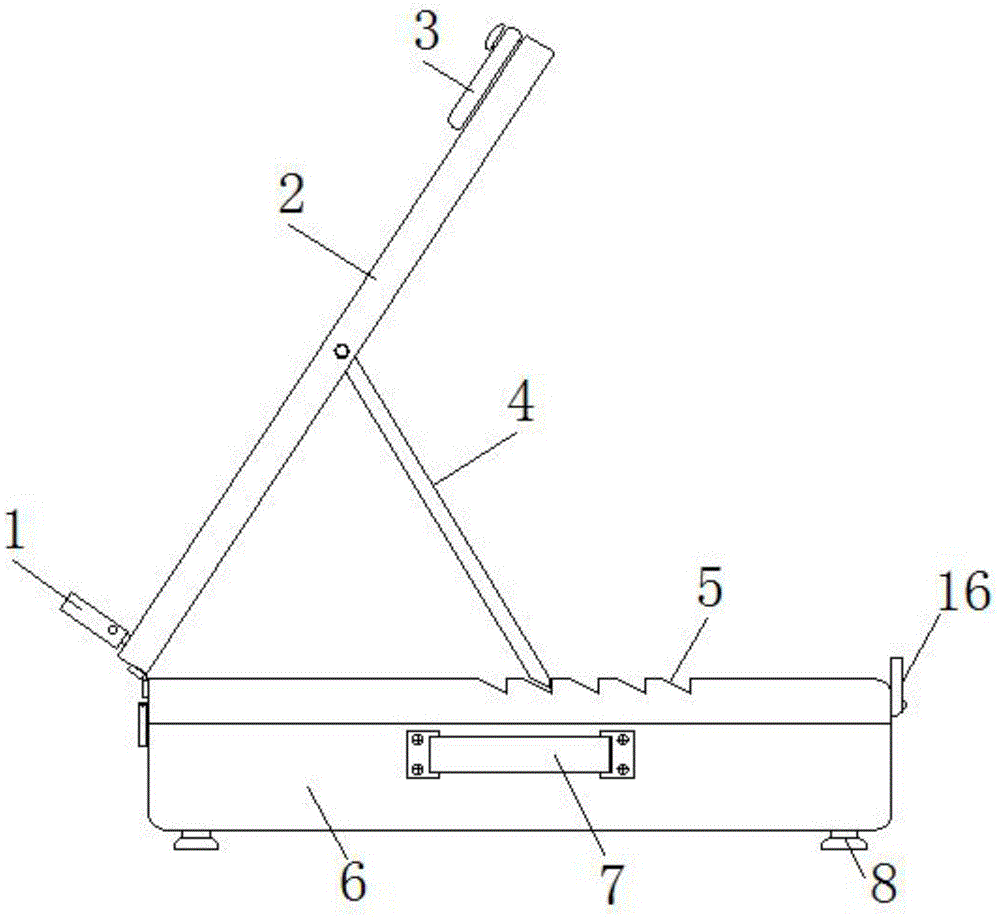

Fig. 1 is the overall front view of the utility model;

Fig. 2 is the overall left side view of the utility model;

Fig. 3 is the right side view of the placing plate of the present invention;

Fig. 4 is the top view of the drawer of the utility model;

Fig. 5 is the palette view of the utility model;

6 is a top view of the drawing board body of the present invention.

In the figure: 1. Baffle plate; 2. Placing plate; 3. Spring clip; 4. Support rod; 5. Adjustment slot; 6. Drawing board body; 7. Handle; 8. Base; 9. Collection box; 10. Adjustment Color plate; 11. The first fixing button; 12. The drawer; 13. The groove handle; 14. The partition plate; 15. The storage compartment; 16. The second fixing button;

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-6, the present utility model provides a technical solution: an art drawing board, comprising a drawing board body 6, one end of the drawing board body 6 is provided with a drawer 12, and a first fixing buckle 11 is fixedly arranged on both sides of the front end of the drawer 12, Several groups of partitions 14 are fixedly arranged inside the drawer 12 , and the partitions 14 divide the drawer 12 into several groups of storage boxes 9 . A palette 10 is placed inside the drawer 12 and above the partitions 14 . A right angle is provided with an arc-shaped gap 18, the top side of the drawing board body 6 is connected with the placing plate 2 through a hinge, the top side of the placing plate 2 is fixedly provided with a spring clip 3, and the bottom side of the placing plate 2 is set through the rotating shaft. There is a baffle plate 1, a folding groove 17 is opened on the other side of the placing plate 2, and a support rod 4 is installed on the two sets of folding grooves 17 through the rotating shaft. The top of the main body 6 is provided with a storage box 9 , the top side of the drawing board body 6 is fixedly provided with a second fixing buckle 16 , and one end of the drawing board body 6 and located in one of the adjustment grooves 5 is fixedly provided with a handle 7 .

As shown in FIG. 1 , a base 8 is fixed around the bottom of the drawing board body 6 , and the base 8 is made of a rubber material.

As shown in FIGS. 2 and 3 , a groove handle 13 is provided on the top side of the drawer 12 and the placing plate 2 to facilitate the opening of the drawer 12 and the placing plate 2 . At the same time, the groove shape of the handle can make the drawing board body 6 as a whole flat. sex.

As shown in FIG. 6 , the collection box 9 and the drawing board body 6 have an integral structure, and the collection box 9 is recessed downward at the top of the drawing board body 6, and a collection box 9 is formed, which is convenient for collecting unfinished paintings and ensures that the paintings will not be damaged. It can also be used as a storage place for paintings.

As shown in FIG. 1 , the positions of the two sets of support rods 4 correspond to the positions of the two sets of adjustment grooves 5 , which is convenient for adjusting the angle of the placing plate 2 for better painting.

As shown in FIG. 4 , the storage compartments 15 are divided into storage compartments 15 of different sizes by the partitions 14 , which are convenient for placing painting tools of different types and sizes.

As shown in FIG. 1 , there are five groups of adjustment slots 5 , and the adjustment slots 5 are arranged in a triangular shape.

The working principle and use process of the utility model: this kind of art drawing board, when in use, first open the second fixing buckle 16, rotate the placing plate 2 up around the hinge, and after rotating to a suitable position, place the two groups on the back of the placing plate 2. One end of the support rod 4 is placed inside the adjustment slot 5 to form a support for the placing plate 2, and then the baffle 1 at the bottom of the placing plate 2 is turned to one side and opened, and the drawing paper is placed on the baffle 1, while the drawing paper is placed on the baffle 1. The top end is fixed on the placing plate 2 by the spring clip 3, then the first fixing buckle 11 is opened, the drawer 12 is removed, and the palette 10 is taken out through the gap 18 for use. For different drawing tools, when the drawing is not completed, the drawing paper can be placed in the collection box 9 at the top of the drawing board body 6, the two sets of support rods 4 are folded and placed inside the folding groove 17, and then the placing plate 2 is covered and placed in the folding groove 17. The second fixing buckle 16 is fastened, the drawer 12 is closed, and the first fixing buckle 11 is fastened. The handle 7 provided can facilitate the carrying of the drawing board body 6 .

It should be noted that in this document, the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", etc. The orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation or be constructed in a specific orientation. and operation, so it should not be construed as a limitation of the present invention.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an art drawing board, includes drawing board body (6), its characterized in that: the drawing board comprises a drawing board body (6), a drawer (12) is arranged at one end of the drawing board body (6), first fixing buckles (11) are fixedly arranged on two sides of the front end of the drawer (12), a plurality of groups of partition plates (14) are fixedly arranged inside the drawer (12), the partition plates (14) divide the drawer (12) into a plurality of groups of storage boxes (9), a palette (10) is placed inside the drawer (12) and above the partition plates (14), one right angle of the palette (10) is provided with a circular arc-shaped notch (18), one side of the top end of the drawing board body (6) is connected with a placing board (2) through a hinge, a spring clamp (3) is fixedly arranged on one side of the top end of the placing board (2), a baffle (1) is arranged on one side of the bottom of the placing board (2) through a rotating shaft, and folding grooves (17), two sets of bracing piece (4) are installed through the pivot to folding groove (17), adjustment tank (5) have been seted up to the top both ends edge of drawing board body (6), the top of drawing board body (6) is provided with collection box (9), the fixed second that is provided with in top one side of drawing board body (6) is fixed detains (16), the fixed handle (7) that is provided with of one end that just is located one of them a set of adjustment tank (5) on drawing board body (6).

2. An art drawing board according to claim 1, wherein: the drawing board is characterized in that bases (8) are fixedly arranged on the periphery of the bottom of the drawing board body (6), and the bases (8) are members made of rubber materials.

3. An art drawing board according to claim 1, wherein: one side of the top ends of the drawer (12) and the placing plate (2) is provided with a groove handle (13).

4. An art drawing board according to claim 1, wherein: the collection box (9) and the drawing board body (6) are of an integral structure, and the collection box (9) is sunken downwards at the top end of the drawing board body (6) to form the collection box (9).

5. An art drawing board according to claim 1, wherein: the positions of the two groups of support rods (4) correspond to the positions of the two groups of adjusting grooves (5).

6. An art drawing board according to claim 1, wherein: the partition plate (14) is divided into storage grids (15) with different sizes.

7. An art drawing board according to claim 1, wherein: five groups of adjusting grooves (5) are arranged, and the adjusting grooves (5) are arranged in a triangular shape.
