CN211294188U - Tool table for music politics auxiliary teaching

Info

Publication number: CN211294188U
Application number: CN201921937958.8U
Authority: CN
Inventors: 吴小敏; 柯亚杰
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-11-12
Filing date: 2019-11-12
Publication date: 2020-08-18
Anticipated expiration: 2029-11-12

Abstract

The utility model relates to a saddletree of supplementary teaching of music politics, it includes device main part and computer, the camera with mr's performance gesture with suitable angle shoot and transmit the LED display screen through computer data processing and watch for the student with the video mode live, the another side-mounting of main part has the magnetism suction disc, so can be so that fix the music book on the magnetism suction disc through using magnet. When political lessons are taught, the side, provided with the magnetic suction plate, of the tool table is turned to the students, the magnetic model cards can be adhered to the magnetic plates to demonstrate models of political teachers, and the students can deepen understanding of political contents through manual swinging of the model cards. Meanwhile, a glass showcase which can be used for placing political propaganda materials is installed in the exhibition counter, so that students can read current affairs and policy social hotspots after class, and political ideness of the students is influenced in the process of potential diemerization.

Description

Tool table for music politics auxiliary teaching

Technical Field

The utility model relates to a teaching show stand field, in particular to supplementary teaching's of music politics instrument platform.

Background

Music education is a special talent with good music literacy and teaching capacity required for professional culture and creation of social meaning market economic construction and education reform development, in teaching, a teacher demonstrates and plays for students as an essential link for music teaching, however, the conventional teaching is generally that the teacher plays on a platform, a plurality of student desks watch and listen, but due to the fact that the number of students is large, only students near the platform can clearly see the gesture of the piano played by the teacher, and learning of other students is not facilitated. Meanwhile, political education in student education is significant, however, as many abstract concepts, figures and even histories are involved in political teaching, students inevitably feel boring and tasteless and think that politics is obscure and unintelligible simply by oral explanation of teachers, and positions where vivid and interesting political publicity materials can be placed are rarely arranged in classrooms in the prior art.

To solve the above problems, it is highly desirable to provide a student with political publicity material placement that enables the student to clearly see the teacher's gesture of playing the musical instrument

Tool table for music and politics auxiliary teaching

SUMMERY OF THE UTILITY MODEL

The utility model discloses a main aim at provides a teaching aid tool post of music politics, can effectively solve the problem in the background art.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a tool table for music and politics auxiliary teaching comprises a main body and a computer, wherein an LED display screen is arranged on one side face of the main body, the input end of the LED display screen is in electric signal connection with a miniature image signal output end through a cable, the main body is provided with a musical instrument table capable of placing musical instruments, cameras are arranged above and on two sides of the musical instrument table, and the output ends of the cameras are in electric signal connection with the computer; one side fixed mounting of main part has the exhibition sales counter, install the glass showcase that can be used to place political propaganda data in the exhibition sales counter, the below fixed mounting of musical instrument platform main part has the shock attenuation acoustical panel, the inside fixed mounting of shock attenuation acoustical panel has amortization pad and spring, the lower extreme of shock attenuation acoustical panel is equipped with the universal wheel.

Preferably, a sound box is fixedly mounted above the table and is in electrical signal connection with the computer through an electric wire.

Preferably, a magnetic attraction plate is mounted on the other side surface of the main body, and a magnetic model card can be adhered to the magnetic attraction plate.

Preferably, a heat dissipation plate is fixedly mounted below the LED display screen.

Preferably, the outer surface of the body is coated with a polyurethane paint anticorrosive material.

Preferably, the number of the glass showcases and the number of the universal wheels are four.

Preferably, the number of the springs is three, and the springs are respectively arranged in parallel.

Preferably, the main body is provided with a cabinet for housing a computer.

The utility model has the advantages that:

the utility model discloses a tool post of supplementary teaching of music politics includes main part and computer, and the top and the both sides of musical instrument platform are provided with the camera, and the output and the computer electrical signal of camera are connected, and the camera is shot with mr's performance gesture with suitable angle and is transmitted the LED display screen through computer data processing and watch for the student with the video mode live, and as required, the camera also can be provided with a plurality ofly so that the student watches the different angles of mr's gesture when playing simultaneously. Meanwhile, the other side surface of the main body is provided with a magnetic attraction plate, so that the music score can be fixed on the magnetic attraction plate by using a magnet. When politics is taught, the side, provided with the magnetic suction plate, of the tool table is turned to the student, the student can also be adhered to the magnetic plate through a magnetic model card for model demonstration, the shape of the model card is set according to actual conditions and can be a portrait, a currency symbol, an arrow, an animal, a building and the like, and a political teacher can deepen the understanding of the political content of the student through manually swinging the model card. Meanwhile, a glass showcase which can be used for placing political propaganda materials is installed in the exhibition counter, so that students can read current affairs and policy social hotspots after class, and political ideness of the students is influenced in the process of potential diemerization.

Drawings

Fig. 1 is the utility model relates to a tool table's of supplementary teaching of music politics overall structure schematic diagram.

Fig. 2 is the utility model relates to a supplementary teaching's of music politics instrument stand rear view structure schematic diagram.

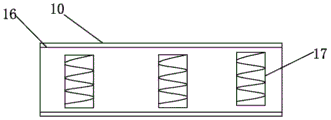

Fig. 3 is the utility model relates to a tool rest shock attenuation acoustical panel's of supplementary teaching of music politics structural schematic.

In the figure: 1. a main body; 2. a musical instrument table; 3. a camera; 4. a magnetic attraction plate; 5. sounding; 6. a USB interface; 7. a control panel; 8. a placing cabinet; 9. a cabinet; 10. a damping and silencing plate; 11. a universal wheel; 12. a show counter; 13. a glass showcase; 14. an LED display screen; 15; a heat dissipation plate; 16. a sound-deadening pad; 17. a spring.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in fig. 1-3, the tool table for music politics auxiliary teaching comprises a main body 1 and a computer (not shown in the figures), wherein the main body is provided with a cabinet chamber 9 for placing the computer, an LED display screen 14 is arranged on one side surface of the main body 1, and the input end of the LED display screen 14 is in electric signal connection with a miniature video signal output end through a cable. The main part 1 is equipped with the musical instrument platform 2 that can place the musical instrument, and the musical instrument can be electronic piano, zither and guqin etc. and this musical instrument platform still can strut or receive and fold through folding the arm, when playing guitar, harp or other musical instruments that are not suitable for putting and play on the musical instrument platform, can receive and fold the musical instrument platform and be close to main part one side.

The top and the both sides of musical instrument platform 2 are provided with camera 3, camera 3's output and computer electrical signal connection, camera 3 of this embodiment can 360 rotatory convenient regulation suitable angles with mr's the gesture of playing shoot and transmit LED display screen live for the student with video mode through computer data processing and watch with suitable angle, as required, camera 3 also can be provided with a plurality ofly so that the student watches the different angles of mr gesture when playing simultaneously.

The other side of the main body of this embodiment is mounted with a magnetic attraction plate 4 so that the music score is fixed on the magnetic attraction plate by using a magnet. The model card with magnetism can be adhered to the magnetic plate for model demonstration during political teaching, the shapes of the model cards are set according to actual conditions and can be figures, currency symbols, arrows, animals, buildings and the like, political teachers can deepen understanding of political contents by manually swinging the model cards, and one side of the tool table with the magnetic suction plate needs to be turned to students during use. Meanwhile, one side of the main body 1 of the embodiment is fixedly provided with a show counter 12, and a glass show shelf 13 which can be used for placing political propaganda materials is arranged in the show counter 12 so as to facilitate the students to read the social focus of current affairs and policies after class and influence the political ideology and ideology of the students in the immigration.

The damping and silencing plate 10 is fixedly mounted below the table of the embodiment, a silencing pad 16 and a spring 17 are fixedly mounted inside the damping and silencing plate 10, and a universal wheel 11 is arranged at the lower end of the damping and silencing plate 10. Through shock attenuation abatvoix 10, can let the stability of this supplementary teaching of music politics increase when removing, and shock attenuation abatvoix 10 is inside to have amortization pad 16 and spring 17, and amortization pad 16 can reduce the produced noise of this supplementary teaching of music politics instrument when removing, and spring 17 can further increase the shock attenuation effect of the supplementary teaching's of this music politics instrument. Through the setting of universal wheel 11, can let this supplementary teaching tool post of music politics remove more conveniently.

It is required to explain, the utility model relates to a supplementary teaching's of music politics instrument platform, when using, through main part 1's setting, can let mr more convenient when using, and main part 1's surface scribbles anticorrosive paint, anticorrosive paint can further strengthen this display device's corrosion resisting property, prolongs the live time of this supplementary teaching's of music politics instrument platform. Can let students through watching the projected mode of LED screen through musical instrument platform 2, let students more audio-visual use of seeing mr's musical instrument platform teaching process to increase this display device's result of use, through camera 3, direct observation when can show mr playing the musical instrument platform, and have magnetism to inhale board 4 on the show board 3, through magnetism inhale board 4, can conveniently change music score or model card. Through placing cabinet 8, make things convenient for the mr to place teaching material.

Example 2

The difference between the present embodiment and embodiment 1 is that a sound box 5 is fixedly installed above the table 2 of the present embodiment, and the sound box 5 is electrically and electrically connected with a computer through a wire for a music teacher or a political teacher to play music at an appropriate time.

Example 3

The present embodiment is different from embodiment 1 in that a heat dissipation plate 15 is fixedly mounted below the LED display panel 14.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the above embodiments and descriptions are only illustrative of the principles of the present invention, and the present invention can be modified without departing from the spirit and scope of the present invention, and these modifications and changes fall into the scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a supplementary teaching's of music politics instrument platform which characterized in that: the multifunctional musical instrument comprises a main body (1) and a computer, wherein an LED display screen (14) is arranged on one side face of the main body (1), the input end of the LED display screen (14) is in electric signal connection with a miniature image signal output end through a cable, a musical instrument table (2) capable of placing musical instruments is arranged on the main body (1), cameras (3) are arranged above and at two sides of the musical instrument table (2), and the output end of each camera (3) is in electric signal connection with the computer; one side fixed mounting of main part (1) has exhibition stand (12), install glass showcase (13) that can be used to place political propaganda material in exhibition stand (12), the below fixed mounting of musical instrument platform has shock attenuation abatvoix (10), the inside fixed mounting of shock attenuation abatvoix (10) has amortization pad (16) and spring (17), the lower extreme of shock attenuation abatvoix (10) is equipped with universal wheel (11).

2. A tool rest for music political assistance teaching according to claim 1, wherein: and a sound box (5) is fixedly arranged above the musical instrument table (2), and the sound box (5) is in electrical signal connection with a computer through an electric wire.

3. A tool rest for music political assistance teaching according to claim 1, wherein: the other side-mounting of main part has magnetism suction disc (4), magnetism suction disc (4) can adhere to the model card that has magnetism.

4. A tool rest for music political assistance teaching according to claim 1, wherein: and a heat dissipation plate (15) is fixedly arranged below the LED display screen (14).

5. A tool rest for music political assistance teaching according to claim 1, wherein: the outer surface of the main body (1) is coated with a polyurethane paint anticorrosive material.

6. A tool rest for music political assistance teaching according to claim 1, wherein: the number of the glass showcases (13) and the number of the universal wheels (11) are four.

7. A tool rest for music political assistance teaching according to claim 1, wherein: the number of the springs (17) is three, and the springs are respectively arranged in parallel.

8. A tool rest for music political assistance teaching according to claim 1, wherein: the main body (1) is provided with a cabinet chamber (9) for placing a computer.
