Abstract

The utility model belongs to the technical field of software detection, in particular to an automatic testing device for mobile phone software, comprising a detection box, two sides of the detection box are respectively provided with a host connecting line and a mobile phone connecting line, and one end of the mobile phone connecting line is provided with a mobile phone connector , one side of the detection box is fixedly connected with an extension rod for holding the mobile phone connection line, and one end of the installation frame away from the extension rod is an open structure; due to the setting of the extension rod, the installation frame and the detection box are fixed At this time, the mobile phone and the detection box are always in a relatively static state, thus completely avoiding the cable damage caused by the relative displacement of the mobile phone and the detection box. The connector cannot be displaced relative to the wiring, which once again avoids the cable stretching and damage caused by the mobile phone wiring after the mobile phone is pulled out. The overall structure is simple, the use is stable, and the utility model is more practical.

Description

A mobile phone software automatic testing device

technical field

The utility model belongs to the technical field of software detection, in particular to an automatic testing device for mobile phone software.

Background technique

Software testing pursues the quality of the product itself. However, with the development of software technology, it is more important to ensure the quality of the product and at the same time it is necessary to improve the efficiency of product testing.

The Chinese patent discloses an automatic testing device for mobile phone software, the publication number of which is (CN107526680A). The patented technology is provided with a wire clamping device. The pressing action of the spring clip improves the tightness of the wire body, prevents external factors from tearing off the transmission wire, avoids damage to the wire body and improves data transmission efficiency. It is connected to the host, and the connection between the mobile phone and the mobile phone needs to be continuously pulled and inserted through the connector according to the detected mobile phone. When the mobile phone is displaced and the mobile phone connecting line is stressed, the mobile phone will be separated from the connector, and the actual force on the mobile phone wiring is not large. , so the probability of damage to the mobile phone wiring is not high, and the practicability of setting the wire body fastening structure is not high at this time.

Therefore, those skilled in the art provide an automatic testing device for mobile phone software to solve the problems raised in the above background art.

Utility model content

In order to solve the problems raised in the above background art. The utility model provides an automatic testing device for mobile phone software, which is characterized by a simple structure and strong practicability to avoid stress on a wire body by means of a mobile phone position limit.

In order to achieve the above purpose, the present utility model provides the following technical solutions: an automatic testing device for mobile phone software, comprising a detection box, two sides of the detection box are respectively provided with a host connection line and a mobile phone connection line, and one end of the mobile phone connection line is provided with a Mobile phone connector, one side of the detection box is fixedly connected with an extension rod for holding the mobile phone connection wire, the upper end surface of the extension rod is provided with a mounting groove for matching with the mobile phone connection wire, and one end of the extension rod is fixedly connected There is an installation frame for holding a mobile phone, one end of the installation frame away from the extension rod is an open structure, the bottom surface of the installation frame is fixedly connected with a bottom plate, the mobile phone connector is fixedly connected to one side of the installation frame, and the The open end of the installation frame is slidably connected with a clamping plate, the side of the clamping plate is fixedly connected with two symmetrically distributed sliding rods, and one end of the installation frame close to the clamping plate is provided with two sliding rods that cooperate with the sliding rods. A sliding groove, the sliding rod is slidably connected inside the sliding groove, a tension spring is arranged inside the sliding groove, and the sliding groove and the sliding rod are elastically connected through the tension spring.

Preferably, a plurality of limit blocks are fixedly connected to the upper end surface of the extension rod, and the limit blocks are evenly distributed on both sides of the installation slot and located above the mobile phone connection line.

Preferably, two sides of the mobile phone connector are fixedly connected with bumps, and two sides of the inner wall of the mounting frame are provided with snap-fit grooves for snap-fit with the bumps.

Preferably, the length of the sliding rod is less than the depth of the sliding groove.

Preferably, the sliding groove has a constricting portion, and one end of the sliding rod is fixedly connected with a limiting plate matched with the constricting portion.

Preferably, the width of the limiting plate is greater than the width of the sliding rod.

Compared with the prior art, the beneficial effect of the present utility model is: during installation, the mobile phone is placed in the installation frame to connect with the mobile phone connector, and due to the setting of the extension rod, the installation frame and the detection box are fixedly connected. The detection box is always in a relatively static state, thus completely avoiding the cable damage caused by the relative displacement of the mobile phone and the detection box. The mobile phone is more stable, and because the connector is fixedly connected to the mounting frame, when the mobile phone is disassembled from the connector, the connector is affected by the fixing of the mounting frame, so that the connector cannot be displaced relative to the wiring, which once again avoids the wiring of the mobile phone caused by the removal of the mobile phone. When the cable is stretched and damaged, the overall structure is simple and the use is stable, so it is more practical.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

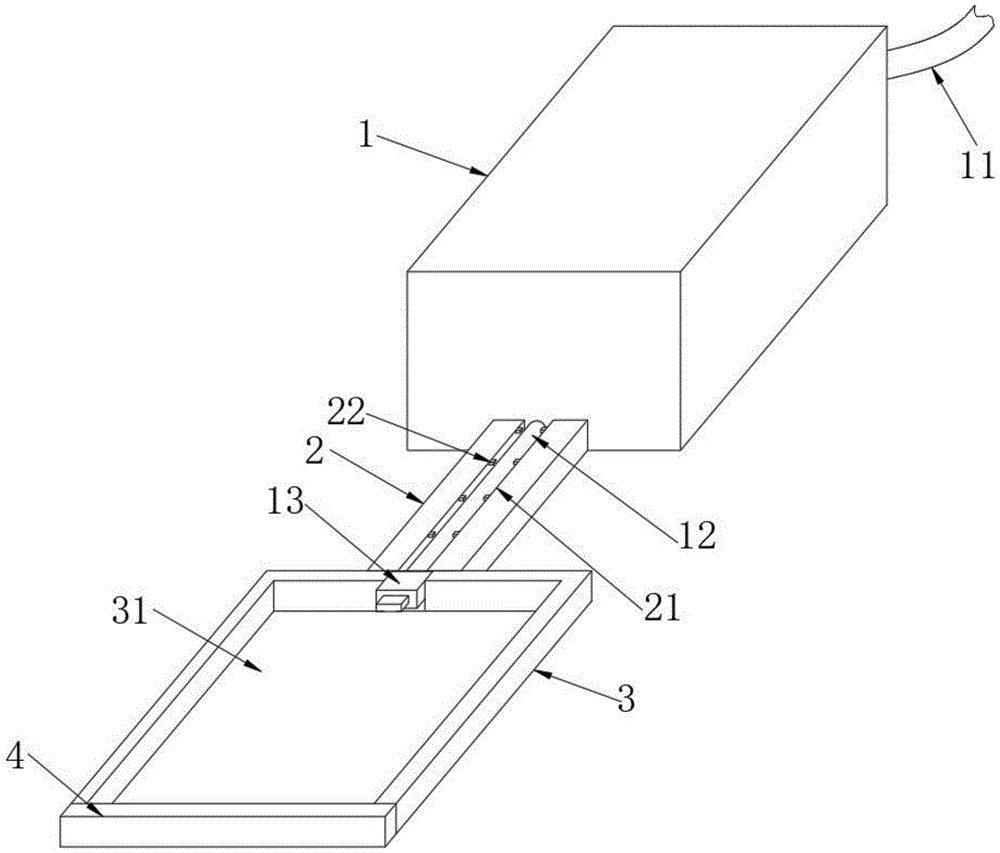

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the top section dynamic schematic diagram of the installation frame in the utility model;

Fig. 3 is the enlarged schematic diagram of A part in Fig. 2;

FIG. 4 is a static schematic view of the top section of the installation frame of the present invention.

In the figure: 1. Detection box; 11. Host connection line; 12. Mobile phone connection line; 13. Mobile phone connector; 131. Bump; 2. Extension rod; 21. Installation slot; 31, bottom plate; 32, snap slot; 33, sliding slot; 331, shrink part; 34, tension spring; 4, snap plate; 41, sliding rod; 42, limit plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides the following technical solutions: an automatic testing device for mobile phone software, comprising a detection box 1, and two sides of the detection box 1 are respectively provided with a host connection line 11 and a mobile phone connection line 12, and a mobile phone connection line 12 One end is provided with a mobile phone connector 13, one side of the detection box 1 is fixedly connected with an extension rod 2 for holding the mobile phone connection line 12, the upper end surface of the extension rod 2 is provided with a mounting groove 21 for matching with the mobile phone connection line 12, and one end of the extension rod 2 is fixed A mounting frame 3 for holding a mobile phone is connected, one end of the mounting frame 3 away from the extension rod 2 is an open structure, the bottom surface of the mounting frame 3 is fixedly connected with a bottom plate 31, the mobile phone connector 13 is fixedly connected to one side of the mounting frame 3, and the mounting frame 3 is open A snap-on plate 4 is slidably connected to the end, and two symmetrically distributed sliding rods 41 are fixedly connected to the side of the snap-on board 4. Two sliding slots 33 are provided at one end of the mounting frame 3 close to the snap-on board 4, which are matched with the sliding rods 41. The rod 41 is slidably connected inside the sliding groove 33, and the sliding groove 33 is provided with a tension spring 34. The sliding groove 33 and the sliding rod 41 are elastically connected by the tension spring 34; 13. The detection method of matching is well known in the industry and has technology, so the detection principle will not be explained. The installation groove 21 on the upper end face of the extension rod 2 stores and fixes the mobile phone connecting wire 12, and its purpose is mainly to restrict the mobile phone connecting wire 12 from moving or bending. , to increase the service life of the mobile phone connection line 12, and the extension rod 2 can increase the distance between the mobile phone connector 13 and the detection box 1, so as to facilitate the operation of the operator, and the purpose of the installation frame 3 fixedly connected by the extension rod 2 is for the installation frame 3 and the detection box 1. The fixed connection of the detection box 1. At this time, the mobile phone and the detection box 1 are always in a relatively static state, thus completely avoiding the cable damage caused by the relative displacement of the mobile phone and the detection box 1. At this time, pull the clamping plate 4 , the sliding rod 41 slides in the sliding groove 33 to elastically deform the tension spring 34, the mobile phone is installed in the mounting frame 3 and the bottom surface is in contact with the bottom plate 31, at this time, the clamping plate 4 is affected by the elastic force against the mobile phone, thereby reaching the limit , and because the mobile phone connector 13 is fixedly connected with the installation frame 3, when the mobile phone and the connector are disassembled, the mobile phone connector 13 is affected by the fixing of the installation frame 3, so that the mobile phone connector 13 cannot be displaced relative to the wiring, once again avoiding the mobile phone In the case where the cable is stretched and damaged after the wiring is removed from the mobile phone, the overall structure is simple and the use is stable, so it is more practical.

In Fig. 1: a number of limit blocks 22 are fixedly connected to the upper end surface of the extension rod 2, and the limit blocks 22 are evenly distributed on both sides of the installation slot 21, and are located above the mobile phone connecting line 12, and the mobile phone is connected to the mobile phone through the limit blocks 22. The limit of the wire 12 can prevent the mobile phone connecting wire 12 from being lifted from the installation groove 21 , and improve the stability of the mobile phone connecting wire 12 being fixed in the installation groove 21 .

In FIG. 2 , the two sides of the mobile phone connector 13 are fixedly connected with the bumps 131 , and the two sides of the inner wall of the installation frame 3 are provided with a snap-fit slot 32 for snap-fit with the bump 131 . The fixing of the mobile phone connector 13 and the installation frame 3 makes it possible that after the mobile phone is pulled out, the mobile phone connector 13 will not be affected by the tensile force of the mobile phone, thereby affecting the service life of the cable.

In Figures 2 and 4: the length of the sliding rod 41 is less than the depth of the sliding groove 33. Since the tension spring 34 has a certain length in the static state, the margin between the sliding rod 41 and the sliding groove 33 is mainly for the purpose of pulling There is an installation space for the spring 34 , so that when the tension spring 34 is stationary, the clamping plate 4 is in contact with the installation frame 3 .

In FIG. 3 : the sliding slot 33 has a constricted portion 331 , and one end of the sliding rod 41 is fixedly connected with a limit plate 42 that cooperates with the constricted portion 331 . 33 has two sizes, the cross-sectional size at the bottom of the sliding groove 33 is larger than the cross-sectional size above, the sliding groove 33 with the larger size cross-section slides the limiting plate 42, and the sliding groove 33 with the smaller size cross-section is slidably connected with the sliding rod 41, At this time, the sliding rod 41 is affected by the primary constriction portion 331 of the limiting plate 42 and cannot slip out of the sliding groove 33 , which improves the movement stability of the clamping plate 4 .

The working principle and use process of the utility model: the detection method of the detection box 1, the host connection line 11, the mobile phone connection line 12, and the mobile phone connector 13 is well known in the industry and has the technology, so the detection principle will not be explained again. The upper end surface of the extension rod 2 The installation slot 21 of the mobile phone connection line 12 is stored and fixed, and its purpose is mainly to limit the movement or bending of the mobile phone connection line 12 and increase the service life of the mobile phone connection line 12. In addition, the extension rod 2 can connect the mobile phone connector 13 to the distance between the detection box 1 Increase, so as to facilitate the operation of the operator, and the purpose of the installation frame 3 fixedly connected by the extension rod 2 is for the fixed connection of the installation frame 3 and the detection box 1. At this time, the mobile phone and the detection box 1 are always in a relatively static state, thereby completely avoiding In order to avoid the situation that the cable is damaged due to the relative displacement of the mobile phone and the detection box 1, the snap plate 4 is pulled at this time, and the sliding rod 41 slides in the sliding groove 33 to elastically deform the tension spring 34, and the mobile phone is installed in the installation frame 3. The inner and bottom surfaces are in contact with the bottom plate 31. At this time, the snap plate 4 is affected by the elastic force to withstand the mobile phone, thereby achieving the purpose of limiting the position. Since the mobile phone connector 13 is fixedly connected to the mounting frame 3, when the mobile phone and the connector are disassembled, the mobile phone The connector 13 is affected by the fixing of the installation frame 3, so that the mobile phone connector 13 cannot be displaced relative to the wiring, which once again avoids the cable stretching and damage caused by the mobile phone wiring after the mobile phone is pulled out, the overall structure is simple, and the use is stable. more practical.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides an automatic testing arrangement of cell-phone software, includes detection case (1), detection case (1) both sides are equipped with host computer connecting wire (11) and cell-phone connecting wire (12) respectively, cell-phone connecting wire (12) one end is equipped with cell-phone joint (13), its characterized in that: an extension rod (2) used for containing the mobile phone connecting wire (12) is fixedly connected to one side of the detection box (1), an installation groove (21) matched with the mobile phone connecting wire (12) is formed in the upper end face of the extension rod (2), an installation frame (3) used for containing a mobile phone is fixedly connected to one end of the extension rod (2), one end, far away from the extension rod (2), of the installation frame (3) is of an open structure, a bottom plate (31) is fixedly connected to the bottom face of the installation frame (3), and the mobile phone connector (13) is fixedly connected to one side of the installation frame (3);

installing frame (3) open end sliding connection has joint board (4), two symmetric distribution's of joint board (4) side fixedly connected with slide bar (41), installing frame (3) are close to joint board (4) one end seted up two with slide bar (41) complex sliding tray (33), slide bar (41) sliding connection be in inside sliding tray (33), inside extension spring (34) that is equipped with of sliding tray (33), sliding tray (33) with slide bar (41) pass through extension spring (34) elastic connection.

2. The device for automatically testing mobile phone software according to claim 1, wherein: extension rod (2) up end fixedly connected with a plurality of stopper (22), stopper (22) evenly distributed is in the both sides of mounting groove (21), and be located cell-phone connecting wire (12) top.

3. The device for automatically testing mobile phone software according to claim 1, wherein: cell-phone connects (13) both sides fixedly connected with lug (131), installing frame (3) inner wall both sides seted up with lug (131) joint complex joint groove (32).

4. The device for automatically testing mobile phone software according to claim 1, wherein: the length of the sliding rod (41) is smaller than the depth of the sliding groove (33).

5. The device for automatically testing mobile phone software according to claim 1, wherein: the sliding groove (33) is provided with a contraction part (331), and one end of the sliding rod (41) is fixedly connected with a limiting plate (42) matched with the contraction part (331).

6. The device for automatically testing mobile phone software according to claim 5, wherein: the width of the limiting plate (42) is larger than that of the sliding rod (41).
