Abstract

The utility model discloses an integrated oil quality monitoring device. The integrated oil quality monitoring device includes: a lubricating oil sampling pipeline, one end of which is communicated with the lubricating oil of the oil pan, and the other end is communicated with the oil pan; and an oil quality sensor, a heating The oil quality sensor probe is inserted into the lubricating oil sampling pipeline to monitor the oil quality. The integrated oil quality monitoring device can realize the oil quality monitoring when the internal combustion engine is not started, and avoid the hidden troubles caused by the monitoring of the lubricating oil quality only after the internal combustion engine is started.

Description

Integrated oil quality monitoring device

technical field

The utility model relates to the field of engines, in particular to an integrated oil quality monitoring device.

Background technique

During the working process of the internal combustion engine, moving parts such as crankshaft, piston, connecting rod, camshaft, gear transmission system, valve train and other parts usually require lubricating oil with a certain flow rate for lubrication and cooling. The degree of strengthening of the internal combustion engine and the characteristics of the working conditions are different, and the replacement cycle of the lubricating oil is also different. When the working condition of the internal combustion engine is bad, the lubricating oil is prone to aging in a short period of time, which affects the lubrication effect. In addition, under unpredictable circumstances, when water, fuel oil, or other liquid and solid particles enter the lubricating oil, it will have a great impact on the lubricating performance of the lubricating oil. High temperature and even fatigue fracture failure will seriously affect the continuous and safe operation of the internal combustion engine. To this end, there is an organic oil quality test sensor, which can monitor changes in oil quality. For example, it can monitor whether the oil contains non-lubricating oil liquids such as water, whether it contains particles, and whether the PH value exceeds the allowable range, so as to ensure the lubricating oil. Quality, to ensure the safe lubrication of internal combustion engines.

The existing oil quality sensor is usually installed in the main oil passage of the lubricating oil of the internal combustion engine, which is usually located on the body, and the lubricating oil of the crankshaft, camshaft, supercharger and other components of the internal combustion engine is usually taken from the main oil passage. The monitoring process is as follows: the internal combustion engine starts to start and completes the warm-up. Limited by the measurement principle of the traditional oil quality sensor, a certain flow rate or temperature is established in the lubrication system, and the oil quality sensor can start to monitor the lubricating oil. The monitoring value under this condition to be effective. The problem is that before the internal combustion engine is started, the lubricating oil in the oil pan of the internal combustion engine has been mixed with water, or hard particles, or the pH value has changed. After a certain flow rate and temperature, this period of time is a blank period for the monitoring of lubricating oil, that is, during this period, the lubricating oil with poor quality will not be able to form a good lubricating oil film, which will cause wear and tear to the moving parts of the internal combustion engine. .

The information disclosed in this Background section is only for enhancement of understanding of the general background of the invention and should not be taken as an acknowledgement or any form of suggestion that this information forms the prior art already known to a person of ordinary skill in the art.

Utility model content

The purpose of the present utility model is to provide an integrated oil quality monitoring device with a simple and reasonable structure, which can realize the oil quality monitoring when the internal combustion engine is not started, and avoid the problems caused by the monitoring of the lubricating oil quality after the internal combustion engine is started. problem hidden dangers.

In order to achieve the above purpose, the utility model provides an integrated oil quality monitoring device, comprising: a lubricating oil sampling pipeline, one end of which is communicated with the lubricating oil of the oil pan, and the other end is communicated with the oil pan to form a circulation pipeline. ; and an oil quality sensor, a heater and an electric pump arranged on the lubricating oil sampling pipeline, and the probe of the oil quality sensor extends into the lubricating oil sampling pipeline to monitor the oil quality.

In a preferred embodiment, the other end of the lubricating oil sampling pipeline is communicated with the oil pan through the oil return port on the crankcase of the cylinder block of the internal combustion engine.

In a preferred embodiment, the heater is an electronic heater.

In a preferred embodiment, an oil pump connection pipeline is also added between the heater and the electric pump.

In a preferred embodiment, the lubricating oil sampling pipeline, the oil quality sensor, the heater and the electric pump are arranged in the casing, and both ends of the lubricating oil sampling pipeline protrude from the casing.

In a preferred embodiment, the casing is mounted on the body of the internal combustion engine.

Compared with the prior art, the integrated oil quality monitoring device according to the present invention has the following beneficial effects: the integrated oil quality monitoring device integrates an oil quality sensor, an electronic heater, an electric pump and a lubricating oil sampling pipeline. , which can realize the oil quality monitoring when the internal combustion engine is not started, and avoid the hidden troubles caused by the monitoring of the lubricating oil quality after the internal combustion engine is started.

Description of drawings

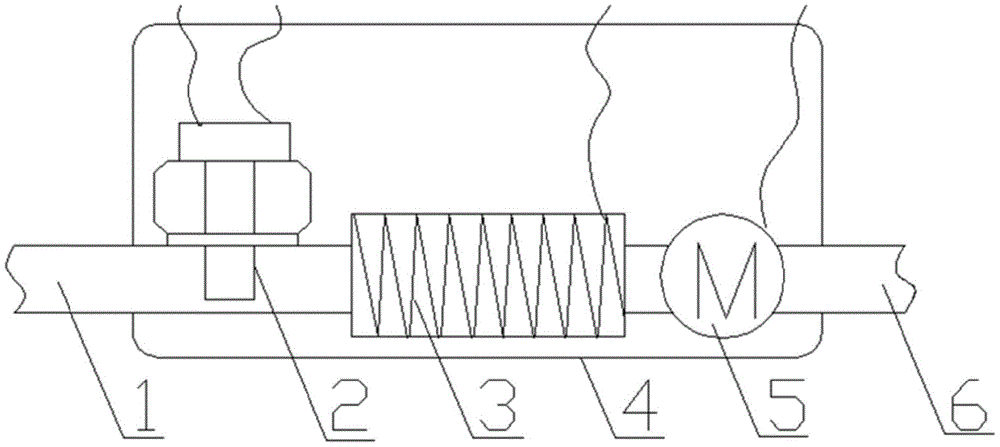

FIG. 1 is a schematic structural diagram of an integrated oil quality monitoring device according to an embodiment of the present invention.

Detailed ways

The specific embodiments of the present invention will be described in detail below with reference to the accompanying drawings, but it should be understood that the protection scope of the present invention is not limited by the specific embodiments.

Unless expressly stated otherwise, throughout the specification and claims, the term "comprising" or its conjugations such as "comprising" or "comprising" and the like will be understood to include the stated elements or components, and Other elements or other components are not excluded.

As shown in FIG. 1 , the specific structure of the integrated oil quality monitoring device according to the preferred embodiment of the present invention includes: a box 4 , a lubricating oil sampling pipeline, an oil quality sensor, a heater 3 and an electric pump 5 . Wherein, the lubricating oil sampling pipeline is arranged in the box body 4, and its two ends protrude from the box body 4, and are respectively communicated with the lubricating oil of the oil pan. The oil quality sensor, heater 3 and electric pump 5 are arranged on the lubricating oil sampling pipeline. Taking oil directly from the oil pan can monitor the abnormality of the lubricating oil in a short period of time. For example, the coolant flows into the lubricating oil of the oil pan, or the abnormal wear of some moving parts causes more metal powder to enter. in the lubricating oil of the oil pan. When these abnormal conditions are detected, an alarm will be given through relevant settings and equipment. It can monitor the oil quality of the internal combustion engine before starting, and avoid the hidden problems caused by monitoring the quality of the lubricating oil after the internal combustion engine is started.

Specifically, one end of the lubricating oil sampling pipeline is the oil pipeline oil inlet 6, which is communicated with the pipeline immersed under the lubricating oil liquid level of the oil pan of the internal combustion engine for lubricating oil sampling. The other end of the lubricating oil sampling pipeline is the oil outlet 1 of the oil pipeline, which is communicated with the oil pan, so that the sampled lubricating oil flows back to the oil pan.

Preferably, the oil outlet 1 of the oil pipeline is communicated with the oil pan through the oil return port on the crankcase of the cylinder block of the internal combustion engine.

The oil quality sensor is arranged on the lubricating oil sampling pipeline, and its probe 2 extends into the lubricating oil sampling pipeline to monitor the oil quality.

The heater 3 is arranged on the lubricating oil sampling pipeline to heat the oil in the lubricating oil sampling pipeline.

Preferably, the heater 3 is an electronic heater.

The electric pump 5 is arranged on the lubricating oil sampling pipeline, and is used to take oil directly from the oil pan. Before the internal combustion engine is started, the electronic heater 3 starts to work by setting, and when the set temperature is reached, the electric pump 5 starts to work; it is also possible to set the electronic heater 3 and the electric pump 5 to work at the same time. The lubricating oil sucked from the oil pan heats up under the heating action of the electronic heater 3. After the lubricating oil temperature setting value is triggered, the probe 2 starts to work to monitor the oil quality in the oil pan of the internal combustion engine. After the internal combustion engine is started, the electric pump 5 and the oil quality sensor will continue to work, and the electronic heater 3 can be set to stop heating when the temperature of the lubricating oil in the main oil passage of the internal combustion engine reaches the set value.

In one embodiment, the box 4 can be installed on the internal combustion engine body, or can be installed at other positions close to the internal combustion engine by means of an external hanging.

Preferably, an oil pump connection pipeline is also added between the heater 3 and the electric pump 5 for connecting to the oil outlet of the oil pump of the internal combustion engine. When the internal combustion engine is started, the lubricating oil supply of the integrated oil quality monitoring device can be supplied by the oil pump of the internal combustion engine, and the electric pump 5 can be set to a shutdown state. Relevant pipelines will add check valves as needed to avoid uncontrolled backflow of lubricating oil.

To sum up, the integrated oil quality monitoring device integrates the oil quality sensor, electronic heater, electric pump and lubricating oil sampling pipeline, which can realize the oil quality monitoring when the internal combustion engine is not started, and avoid monitoring the lubrication after the internal combustion engine is started. Potential problems caused by oil quality.

The foregoing descriptions of specific exemplary embodiments of the present invention have been presented for purposes of illustration and description. These descriptions are not intended to limit the invention to the precise form disclosed, and obviously many changes and variations are possible in light of the above teachings. The exemplary embodiments were chosen and described for the purpose of explaining certain principles of the invention and its practical applications, to thereby enable those skilled in the art to make and utilize various exemplary embodiments of the invention and various Different choices and changes. The scope of the present invention is intended to be defined by the claims and their equivalents.

Claims (6)

1. An integrated machine oil quality monitoring device, comprising:

one end of the lubricating oil sampling pipeline is communicated with a pipeline in the lubricating oil of the oil pan, and the other end of the lubricating oil sampling pipeline is communicated with the oil pan so as to form a circulating pipeline; and

the engine oil quality sensor, the heater and the electric pump are arranged on the lubricating oil sampling pipeline, and a probe of the engine oil quality sensor extends into the lubricating oil sampling pipeline to monitor the engine oil quality.

2. The integrated oil quality monitoring device of claim 1 wherein the other end of the oil sampling line communicates with the oil pan through an oil return port in a crankcase of a cylinder block of the internal combustion engine.

3. The integrated oil quality monitoring device of claim 1 wherein the heater is an electric heater.

4. The integrated machine oil quality monitoring device of claim 1, wherein an oil pump connection line is further provided between the heater and the electric pump.

5. The integrated oil quality monitoring device according to claim 1, wherein the oil sampling line, the oil quality sensor, the heater and the electric pump are disposed in a case, and both ends of the oil sampling line protrude from the case.

6. The integrated oil quality monitoring device of claim 5 wherein the housing is mounted to an engine block.
