CN211285917U - Sterile floor drain

Info

Publication number: CN211285917U
Application number: CN201922108061.0U
Authority: CN
Inventors: 郭卫强; 吕丽娣; 李水波
Original assignee: Kunshan Kinglai Hygienic Materials Co Ltd
Current assignee: Kunshan Kinglai Hygienic Materials Co Ltd
Priority date: 2019-11-29
Filing date: 2019-11-29
Publication date: 2020-08-18
Anticipated expiration: 2029-11-29

Abstract

The utility model discloses an aseptic floor drain, including a jar body, outlet pipe and inlet tube, one side of the jar body is run through and is provided with the inlet tube, the fixed ring flange that is provided with in one side of inlet tube, the fixed outlet pipe that is provided with of opposite side of the jar body, the top movable mounting of the jar body has seal assembly, the bottom activity of the jar body is provided with locating component, the inside both sides of locating component all run through and install the bolt. The utility model discloses a be provided with a series of structures and make this device be higher than the outlet pipe at the in-process inlet tube that uses, cooperation intermediate bottom can realize "water seal" structure, effectively blocks outside bacterium and peculiar smell cluster and goes into sterile space.

Description

Sterile floor drain

Technical Field

The utility model relates to a terminal/equipment of food/medicine clean sanitary grade pipeline and the terminal technical field of jar body specifically are an aseptic floor drain.

Background

The floor drain is an important interface for connecting a drainage pipeline system and indoor ground, is used as an important part of a drainage system in a house, has the performance which directly influences the quality of indoor air, is very important for controlling peculiar smell in a bathroom, and is required to be used at the tail end of a food/medicine clean and sanitary pipeline/equipment and the tail end of a tank body.

The existing floor drain has the defects that the back flow cannot be avoided, and the backflow of polluted gas causes secondary pollution.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an aseptic floor drain to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides an aseptic floor drain, includes a jar body, outlet pipe and inlet tube, one side of the jar body is provided with the inlet tube, the one end of inlet tube is provided with the ring flange, the jar body with one side that the inlet tube is relative is provided with the outlet pipe, the top movable mounting of the jar body has seal assembly, the bottom activity of the jar body is provided with locating component, the bolt is all installed to locating component's both sides, the inside fixed mounting of the jar body has the baffle, the inlet tube with the outlet pipe is located respectively the both sides of baffle, just the inlet tube is higher than the outlet pipe, the baffle bottom is less than the outlet pipe height, and with leave the clearance between jar body (2) diapire.

Preferably, the sealing assembly comprises a sealing cover, a handle is fixedly mounted at the top of the sealing cover, and a sealing gasket is fixedly arranged at the bottom of the sealing cover.

Preferably, a connecting ring is fixedly arranged at the top of the tank body.

Preferably, the other side of the water outlet pipe is movably provided with a connecting pipe, and the water outlet pipe is movably connected with the connecting pipe through a connecting bolt.

Preferably, the positioning assembly comprises a positioning seat, positioning holes are formed in two sides of the interior of the positioning seat, and a positioning ring is arranged at the top of the positioning seat.

Preferably, the both ends at inlet tube top all fixed mounting have the fixed block, the inside movable mounting of fixed block has the regulating block, the inside of regulating block runs through and installs the gim peg, the bottom fixed mounting of regulating block has the apron.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a be provided with a jar body, the inlet tube is higher than the outlet pipe, and cooperation intermediate bottom realizes "water seal" structure, effectively blocks outside bacterium and peculiar smell cluster and goes into sterile space.

2. The utility model discloses a run through in one side of the jar body and be provided with the inlet tube, unscrew the gim peg, adjust the angle of apron, be convenient for open the apron and close, screw up the gim peg again and fix, the apron plays the effect of flowing backward.

3. The utility model discloses a fixed outlet pipe that is provided with of opposite side at the jar body can utilize the connecting bolt to be connected connecting pipe and outlet pipe, makes things convenient for the staff to be connected connecting pipe and external equipment.

4. The utility model discloses a top movable mounting at the jar body has seal assembly, can utilize sealed the pad to seal this device, utilizes the handle to open and close sealed lid, and the staff of being convenient for operates, and sealed pad plays to block liquid and gas seepage to the inlet region.

5. The utility model discloses a bottom activity at the jar body is provided with locating component, can utilize locating hole cooperation bolt to carry out this device spacing, and the staff of being convenient for fixes this device.

Drawings

Fig. 1 is a schematic structural view of the present invention;

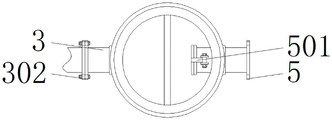

fig. 2 is a schematic top view of the partial structure of the present invention;

FIG. 3 is a front view of the present invention;

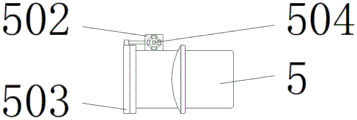

FIG. 4 is a schematic view of a partial structure of the water inlet pipe of the present invention;

fig. 5 is a schematic view of a partial structure of the sealing assembly of the present invention.

In the figure: 1. a seal assembly; 101. a sealing cover; 102. a handle; 103. a gasket; 2. a tank body; 201. a connecting ring; 202. a partition plate; 3. a water outlet pipe; 301. a connecting pipe; 302. a connecting bolt; 4. a positioning assembly; 401. positioning seats; 402. a positioning ring; 403. positioning holes; 5. a water inlet pipe; 501. an adjusting block; 502. a fixed block; 503. a cover plate; 504. a fixing bolt; 6. a flange plate; 7. and (4) bolts.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-5, the present invention provides an embodiment: an aseptic floor drain comprises a tank body 2, a water outlet pipe 3 and a water inlet pipe 5, wherein the water inlet pipe 5 penetrates through one side of the tank body 2. The one end of inlet tube 5 is provided with ring flange 6, and ring flange 6 can carry out swing joint with external equipment, makes things convenient for the staff to carry out installation work, and the fixed outlet pipe 3 that is provided with in one side relative with inlet tube 5 of jar body 2. The top of the tank body 2 is movably provided with a sealing component 1. The bottom activity of the jar body 2 is provided with locating component 4, locating component 4 can utilize locating hole 403 cooperation bolt 7 to carry on spacingly with this device, the dismouting is simple, the staff of being convenient for fixes this device, bolt 7 is all installed to locating component 4's both sides, the inside fixed mounting of the jar body 2 has baffle 202, inlet tube 5 and outlet pipe 3 are located the both sides of baffle 202 respectively, and inlet tube 5 is higher than outlet pipe 3, the baffle bottom is less than outlet pipe 3 height, and leave the clearance with jar 2 diapire between the body.

Further, seal assembly 1 includes sealed lid 101, and the top fixed mounting of sealed lid 101 has handle 102, and the fixed sealed pad 103 that is provided with in bottom of sealed lid 101 can utilize sealed pad 103 to seal this device when this device carries out work, utilizes handle 102 to open sealed lid 101 and close afterwards, and the staff of being convenient for operates, and sealed pad 103 plays and blocks liquid and gas leakage to the inlet region.

Further, a connecting ring 201 is fixedly arranged at the top of the tank body 2, so that the sealing assembly 1 can be conveniently connected.

Further, the connecting pipe 301 is movably arranged on the other side of the water outlet pipe 3, the water outlet pipe 3 is movably connected with the connecting pipe 301 through the connecting bolt 302, when the device works, the connecting pipe 301 and the water outlet pipe 3 can be connected through the connecting bolt 302, and a worker can conveniently connect the connecting pipe 301 with external equipment.

Further, locating component 4 includes positioning seat 401, and the inside both sides of positioning seat 401 all are provided with locating hole 403, and positioning seat 401's top is provided with holding ring 402, when this device carries out the during operation, can utilize holding ring 402 to support jar body 2, utilizes locating hole 403 cooperation bolt 7 to carry on spacingly with this device, and the staff of being convenient for fixes this device.

Furthermore, both ends of the top of the water inlet pipe 5 are fixedly provided with fixed blocks 502, the adjusting block 501 is movably arranged in the fixed blocks 502, the fixed bolt 504 penetrates through the adjusting block 501, the cover plate 503 is fixedly arranged at the bottom of the adjusting block 501, when the device works, the fixed bolt 504 can be unscrewed, the angle of the cover plate 503 can be adjusted, the cover plate 503 can be conveniently opened and closed, the fixed bolt 504 can be screwed for fixing, and the cover plate 503 has the effect of pouring.

The working principle is as follows: before the device is used, a user firstly detects the device, after no problem is confirmed, when the device is used, the positioning hole 403 is used for being matched with the bolt 7 to limit the device, so that the user can conveniently fix the device, then the fixing bolt 504 is unscrewed, the angle of the cover plate 503 is adjusted, so that the cover plate 503 can be conveniently opened and closed, then the fixing bolt 504 is screwed for fixing, the cover plate 503 has the effect of pouring backwards, then the water pipe 5 is higher than the water outlet pipe 3 and is matched with the middle partition plate 202 to realize a water seal structure, so that bacteria and peculiar smell outside are effectively prevented from being mixed into an aseptic space, then the connecting pipe 301 is connected with the water outlet pipe 3 by the connecting bolt 302, the connecting pipe 301 is conveniently connected with external equipment by the user, then the device is sealed by the sealing gasket 103, then the sealing cover 101 is opened and closed by the handle 102, so that the user can conveniently operate the device, the gasket 103 serves to block the leakage of liquid and gas to the inlet area.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides an aseptic floor drain, includes jar body (2), outlet pipe (3) and inlet tube (5), its characterized in that: one side of the jar body (2) is provided with inlet tube (5), the one end of inlet tube (5) is provided with ring flange (6), the jar body (2) with one side that inlet tube (5) is relative is provided with outlet pipe (3), the top movable mounting of the jar body (2) has seal assembly (1), the bottom activity of the jar body (2) is provided with locating component (4), bolt (7) are all installed to the both sides of locating component (4), the inside fixed mounting of the jar body (2) has baffle (202), inlet tube (5) with outlet pipe (3) are located respectively the both sides of baffle (202), just inlet tube (5) are higher than outlet pipe (3), the baffle bottom is less than outlet pipe (3) height, and with leave the clearance between the jar body (2) diapire.

2. A sterile floor drain according to claim 1, characterized in that: the sealing assembly (1) comprises a sealing cover (101), a handle (102) is fixedly mounted at the top of the sealing cover (101), and a sealing gasket (103) is fixedly arranged at the bottom of the sealing cover (101).

3. A sterile floor drain according to claim 1, characterized in that: the top of the tank body (2) is fixedly provided with a connecting ring (201).

4. A sterile floor drain according to claim 1, characterized in that: the other side of outlet pipe (3) is provided with connecting pipe (301) in the activity, outlet pipe (3) with through connecting bolt (302) swing joint between connecting pipe (301).

5. A sterile floor drain according to claim 1, characterized in that: the positioning assembly (4) comprises a positioning seat (401), positioning holes (403) are formed in two sides of the interior of the positioning seat (401), and a positioning ring (402) is arranged at the top of the positioning seat (401).

6. A sterile floor drain according to claim 1, characterized in that: the utility model discloses a water inlet pipe, including inlet tube (5) top, the both ends of inlet tube (5) top are fixed mounting all have fixed block (502), the inside movable mounting of fixed block (502) has regulating block (501), the inside of regulating block (501) is run through and is installed gim peg (504), the bottom fixed mounting of regulating block (501) has apron (503).
