The utility model discloses a cloth rolling cylinder for textile machinery, including setting up at subaerial base, the upside both ends of base are fixed first fixed plate and the second fixed plate of being equipped with respectively, be equipped with three mutual parallel arrangement's cloth rolling rod between first fixed plate and the second fixed plate, it is three it has the cloth to coil between the cloth rolling rod, the both ends symmetry of cloth rolling rod is equipped with two first backup pads. The utility model discloses a cloth rolling rod that sets up, with the help of driving motor's rotation, convolute textile fabric fast, for the artifical manual mode of coiling of tradition, improved production efficiency greatly to through leading the cloth pole, carry out simple adjustment to the place of cloth unevenness, first outer, because first fixed plate can realize sliding, so can change the cloth rolling rod of different length according to the cloth of different widths, it is convenient to dismantle, simple structure, and the practicality is very strong.

Description

Fabric drum for textile machinery
Technical Field
The utility model relates to a textile machine technical field especially relates to a cloth winding drum for textile machine.
Background
Textile machinery is the various mechanical devices required to process natural or chemical fibers into textiles. The machinery for producing chemical fibers, although including many types of chemical machinery, is now considered to be an extension of textile machinery and is a broad category of textile machinery. The different fibers such as cotton, hemp, silk and wool are processed into textiles by different procedures, and the required machines are various and various.
In the process of spinning of the textile machinery, the textile fabric winding drum needs to be manually used for winding textiles, the degree of mechanization is not high, the existing fabric winding drum is fixed in the using process, the existing fabric winding drum is inconvenient to disassemble after the completion of the fabric winding, and the width sizes of the fabrics are different, so that the fabric winding drums with different lengths need to be prepared for the fabrics with different sizes, the fabric winding drums with different lengths cannot be quickly and conveniently replaced, great inconvenience is brought to users, and meanwhile, the practicability of the existing fabric winding drum is reduced, so that the fabric winding drum for the textile machinery is particularly necessary.
SUMMERY OF THE UTILITY MODEL
The purpose of the utility model is to solve the shortcoming that exists among the prior art, if: knit machinery at the in-process of weaving, need the artifical weaving cloth winding drum of using to carry out the rolling to the fabrics, degree of mechanization is not high, and current cloth winding drum is all fixed at the in-process that uses moreover, after accomplishing the cloth and batching, it is inconvenient to dismantle, and because the width size of cloth is different, consequently to the cloth of equidimension just need prepare the cloth winding drum of different length, the cloth winding drum of the different length of change that can not be convenient fast, thereby bring very big inconvenience for the user, the practicality of current cloth winding drum has also been reduced simultaneously.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a cloth rolling barrel for textile machinery comprises a base arranged on the ground, wherein a first fixing plate and a second fixing plate are fixedly arranged at two ends of the upper side of the base respectively, three cloth rolling rods arranged in parallel are arranged between the first fixing plate and the second fixing plate, cloth is wound between the three cloth rolling rods, two first supporting plates are symmetrically arranged at two ends of each cloth rolling rod, a fixing block is fixedly arranged on one side wall of each first supporting plate far away from the cloth rolling rods, a clamping groove communicated with the outside is arranged on one side wall of each fixing block far away from the first supporting plate, a placing groove with two ends communicated with the outside is arranged in each first fixing plate, a driving motor is fixedly arranged in each placing groove, an output shaft of each driving motor is arranged close to the first supporting plate, a first rotating rod is fixedly connected to an output shaft of each driving motor, a second rotating rod is rotatably connected to the side wall of the second fixing plate close to the first supporting plate through a first movable shaft, just first dwang and second dwang are rather than adjacent draw-in groove looks joint respectively, the fixed chassis that is equipped with in bottom of first fixed plate, just the chassis both sides are rotated through the bearing and are connected with a plurality of pulleys, be equipped with the opening in the base and upwards just with the spout that the pulley matches.
Preferably, the fixed telescopic link that is equipped with two vertical arrangements of one side lateral wall that is close to first loose axle of second fixed plate, and two the telescopic link is located the below of first loose axle, two the one end that the second fixed plate was kept away from to the telescopic link all rotates through the second loose axle and is connected with the cloth guide bar, and two the one end that the telescopic link was kept away from to the cloth guide bar all rotates through the second loose axle and is connected with the second backup pad, two all be equipped with two screw threads that the position corresponds on the cloth guide bar, and two the screw thread that the position corresponds on the cloth guide bar is opposite direction and sets up, is located same two screw threads on the cloth guide bar are opposite direction and set up equally.
Preferably, a switch is fixedly arranged at the top of the first fixing plate and is connected with the driving motor through a power line.
Preferably, the three cloth winding rods are arranged in a staggered manner in height.
Preferably, the corners of the first fixing plate, the second fixing plate and the first supporting plate are provided with arc chamfers.
The utility model has the advantages that: through the batching pole that sets up, with the help of driving motor's rotation, convolute textile fabric fast, for the artifical manual mode of convoluteing of tradition, improved production efficiency greatly to through leading the cloth pole, carry out simple adjustment to the place of cloth unevenness, in addition, because first fixed plate can realize sliding, so can change the batching pole of different length according to the cloth of different widths, it is convenient to dismantle, simple structure, and the practicality is very strong.
Drawings

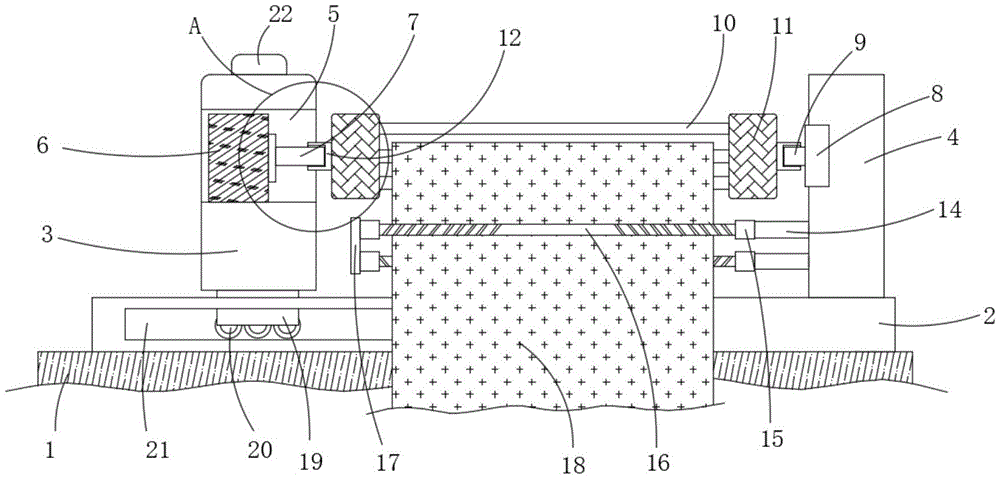

Fig. 1 is a schematic front structural view of a cloth winding drum for textile machinery according to the present invention;
FIG. 2 is a schematic front view of a cloth winding bar of a cloth winding drum for textile machinery according to the present invention;
FIG. 3 is a schematic front view of a cloth guide bar of a cloth winding drum for textile machinery according to the present invention;
FIG. 4 is a schematic side view of a cloth winding bar of a cloth winding drum for a textile machine according to the present invention;
fig. 5 is an enlarged view of the structure a in fig. 1.
In the figure: the cloth rolling machine comprises a base, a first fixing plate, a second fixing plate, a placing groove, a driving motor, a first rotating rod, a first movable shaft, a second rotating rod, a cloth rolling rod, a first supporting plate, a fixing block, a clamping groove, a 14 telescopic rod, a second movable shaft, a cloth guide rod, a second supporting plate, a cloth, a base plate, a fixing block, a clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-5, a cloth winding drum for textile machinery comprises a base 2 arranged on a ground 1, a first fixing plate 3 and a second fixing plate 4 are respectively fixedly arranged at two ends of the upper side of the base 2, three cloth winding rods 10 arranged in parallel are arranged between the first fixing plate 3 and the second fixing plate 4, cloth 18 is wound among the three cloth winding rods 10, the three cloth winding rods 10 are staggered with each other in height so as to generate corresponding pulling force on the cloth 18, thereby being capable of winding the cloth, two first supporting plates 11 are symmetrically arranged at two ends of the cloth winding rods 10, a fixing block 12 is fixedly arranged on one side wall of the first supporting plate 11 far away from the cloth winding rods 10, a clamping groove 13 communicated with the outside is arranged on one side wall of the fixing block 12 far away from the first supporting plate 11, a placing groove 5 with two ends communicated with the outside is arranged in the first fixing plate 3, a driving motor 6 is fixedly arranged in the placing groove 5, the cloth rolling rod 10 is driven to rotate by the operation of the driving motor 6, so as to realize the winding of the cloth 18, the output shaft of the driving motor 6 is arranged close to the first supporting plate 11, the output shaft of the driving motor 6 is fixedly connected with a first rotating rod 7, the side wall of the second fixing plate 4 close to the first supporting plate 11 is rotatably connected with a second rotating rod 9 through a first movable shaft 8, the first rotating rod 7 and the second rotating rod 9 are respectively clamped with a clamping groove 13 adjacent to the first rotating rod, the bottom of the first fixing plate 3 is fixedly provided with a chassis 19, two sides of the chassis 19 are rotatably connected with a plurality of pulleys 20 through bearings, a sliding groove 21 with an upward opening and matched with the pulleys 20 is arranged in the chassis 2, so that the first fixing plate 3 is slid according to the cloth 18 with different widths, the distance between the first fixing plate 3 and the second fixing plate 4 is adjusted, and the cloth rolling rods 10 with different lengths are convenient to, when the cloth rolling rods 10 with different lengths are replaced, only the first rotating rod 7 and the second rotating rod 9 are inserted into the clamping groove 13 for clamping, the replacement is convenient, two vertically arranged telescopic rods 14 are fixedly arranged on the side wall of one side, close to the first movable shaft 8, of the second fixing plate 4, the second fixing plate is convenient to stretch or contract according to the change of the distance between the first fixing plate 3 and the second fixing plate 4 in the later period, so that the position of the cloth guide rod 16 is convenient to adjust, the cloth guide rod 16 is convenient to be suitable for cloth with different lengths, the two telescopic rods 14 are positioned below the first movable shaft 8, one ends, far away from the second fixing plate 4, of the two telescopic rods 14 are rotatably connected with the cloth guide rod 16 through the second movable shaft 15, one ends, far away from the telescopic rods 14, of the two cloth guide rods 16 are rotatably connected with a second supporting plate 17 through the second movable shaft 15, two threads 23 corresponding to the positions are arranged on the two cloth guide rods, and the screw thread 23 that the position corresponds on two cloth guide 16 is opposite direction setting, two screw threads 23 that are located on same cloth guide 16 are opposite direction setting equally, carry out certain leveling to cloth 18 between two cloth guide 16 with this, avoid influencing subsequent coiling because of the fold of cloth 18, the fixed switch 22 that is equipped with in top of first fixed plate 3, switch 22 passes through the power cord and is connected with driving motor 6, first fixed plate 3, corner on second fixed plate 4 and the first backup pad 11 all is equipped with the circular arc chamfer, avoid the staff to take place to collide with when using this device, play certain guard action with this to the staff.
In the utility model, when the user uses the device, according to the approximate width of the cloth 18, firstly slide the first fixed plate 3, adjust the corresponding distance between the first fixed plate 3 and the second fixed plate 4 according to the width of the cloth 18, then clamp the first rotating rod 7 and the second rotating rod 9 with the corresponding clamping groove 13, and stretch the telescopic rod 14, so that the two cloth guide rods 16 are just placed against the cloth rolling rod 10, at the moment, the cloth 18 passes through the two cloth guide rods 16, and the cloth head is stretched to the space between the three cloth rolling rods 10, the driving motor 6 is started by the switch 22 to drive the cloth rolling rod 10 to rotate, because the heights of the three cloth rolling rods 10 are arranged in a staggered way, the cloth 18 can be generated with enough pulling force, the effect of rolling the cloth 18 is realized, and simultaneously, because the cloth 18 generates certain friction force to the two cloth guide rods 16 in the moving process, make two cloth guide 16 can take place to rotate, combine the screw thread 23 that sets up on two cloth guide 16, one of them cloth guide 16 realizes the trend that draws to both sides to the cloth, another cloth guide 16 realizes the trend that draws to the centre to the cloth, two cloth guide 16 simultaneous movement, mutually support can carry out certain leveling to cloth 18, guarantee that cloth 18 can be fine convolute on cloth rolling rod 10, if meet the cloth 18 of different width, then need adjust the distance between first fixed plate 3 and the second fixed plate 4, it can to change the cloth rolling rod 10 of different width.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (5)

1. A cloth rolling barrel for textile machinery comprises a base (2) arranged on the ground (1), and is characterized in that a first fixing plate (3) and a second fixing plate (4) are fixedly arranged at two ends of the upper side of the base (2) respectively, three cloth rolling rods (10) arranged in parallel are arranged between the first fixing plate (3) and the second fixing plate (4), cloth (18) is wound among the three cloth rolling rods (10), two first supporting plates (11) are symmetrically arranged at two ends of each cloth rolling rod (10), a fixing block (12) is fixedly arranged on one side wall of each first supporting plate (11) far away from the cloth rolling rods (10), a clamping groove (13) communicated with the outside is formed in one side wall of each fixing block (12) far away from the first supporting plate (11), a placing groove (5) with two ends communicated with the outside is formed in the first fixing plate (3), fixed driving motor (6) that is equipped with in standing groove (5), the output shaft of driving motor (6) is close to first backup pad (11) and sets up, just the first dwang (7) of output shaft fixedly connected with of driving motor (6), second fixed plate (4) are close to and rotate through first loose axle (8) on the lateral wall of first backup pad (11) and are connected with second dwang (9), just first dwang (7) and second dwang (9) are rather than adjacent draw-in groove (13) looks joint respectively, the fixed chassis (19) that are equipped with in bottom of first fixed plate (3), just chassis (19) both sides are rotated through the bearing and are connected with a plurality of pulleys (20), be equipped with opening in base (2) and upwards just with pulley (20) supporting spout (21).
2. The cloth roller for textile machinery according to claim 1, characterized in that two vertically arranged telescopic rods (14) are fixed on the side wall of the second fixed plate (4) near the first movable shaft (8), the two telescopic rods (14) are positioned below the first movable shaft (8), one ends of the two telescopic rods (14) far away from the second fixed plate (4) are rotatably connected with a cloth guide rod (16) through second movable shafts (15), and one ends of the two cloth guide rods (16) far away from the telescopic rod (14) are rotatably connected with a second supporting plate (17) through a second movable shaft (15), two threads (23) with corresponding positions are arranged on the two cloth guide rods (16), and the threads (23) corresponding to the two cloth guide rods (16) are arranged in opposite directions, and the two threads (23) on the same cloth guide rod (16) are also arranged in opposite directions.
3. The cloth roller for textile machinery according to claim 1, characterized in that a switch (22) is fixedly arranged on the top of the first fixing plate (3), and the switch (22) is connected with the driving motor (6) through a power cord.
4. The cloth drum for textile machinery according to claim 1, characterized in that three cloth winding rods (10) are arranged in a staggered manner in height.
5. The cloth roller for textile machinery according to claim 1, wherein the corners of the first fixing plate (3), the second fixing plate (4) and the first supporting plate (11) are provided with circular chamfer angles.
