CN211267328U - An energy-saving outdoor communication air-cooled cabinet - Google Patents

Abstract

The utility model discloses an energy-saving outdoor communication air-cooling cabinet, comprising a cabinet body, an upper end of the cabinet body is fixedly connected with a collecting mechanism, a lower end of the collecting mechanism is fixedly connected with a motor, and the end of the output shaft of the motor is fixedly connected The air intake mechanism is arranged through the top surface of the cabinet body, the outer side wall of the cabinet body is fixedly connected with an air intake mechanism, and the air intake end of the air intake mechanism is communicated with the left end side wall of the air intake mechanism. The side wall is communicated with an air inlet, the air outlet end of the air inlet mechanism is communicated with the air inlet, the right end side wall of the air inlet mechanism is communicated with a rainproof mechanism, and the upper end of the air inlet mechanism is provided with two The root connecting pipe of the utility model accelerates the circulation of air in the cabinet through the arrangement of the motor, the suction mechanism, the air outlet, the rainproof mechanism, the ventilation part and the collection mechanism, so that the cooling effect of the cabinet is better, and the rainwater can be prevented. It enters into the cabinet through the ventilation opening to protect the equipment in the cabinet.

Description

An energy-saving outdoor communication air-cooled cabinet

technical field

The utility model relates to the technical field of air-cooling cabinets, in particular to an energy-saving outdoor communication air-cooling cabinet.

Background technique

Due to the reduction of energy, many equipments advocate energy saving, and energy saving is to reduce energy consumption as much as possible, to produce the same quantity and quality of products as the original, or to produce more energy than the original quantity with the same amount of energy consumption. More or the same quantity and better quality products, and the communication chassis cabinet generally refers to the chassis cabinet used in communication. The chassis cabinet can provide space for the power supply, motherboard, various expansion boards, floppy disk drives, optical drives, hard disks Drives and other storage devices, and these parts are firmly fixed inside the chassis through some connectors inside the chassis. It also provides many easy-to-use panel switch indicators, etc., so that the operator can operate the microcomputer or observe the operation of the microcomputer more conveniently. Happening.

Some of the existing energy-saving air-cooled cabinets need to be installed outdoors. Due to the direct sunlight of the air-cooled cabinet and the heat generated by its own equipment, the temperature inside the cabinet is too high, and the existing equipment has poor heat dissipation effect, so the cabinet cannot be removed in time. Therefore, an energy-saving outdoor communication air-cooled cabinet is provided to solve the above problems.

Utility model content

The purpose of the utility model is to solve the problem of poor heat dissipation effect in the prior art, which makes the air-cooled cabinet easy to fail, and proposes an energy-saving outdoor communication air-cooled cabinet.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An energy-saving outdoor communication air-cooled cabinet includes a cabinet body, the upper end of the cabinet body is fixedly connected with a collecting mechanism, the lower end of the collecting mechanism is fixedly connected with a motor, and the end of the output shaft of the motor is fixedly connected with a through-the-cabinet roof The air intake mechanism is arranged on the surface, the outer side wall of the cabinet body is fixedly connected with an air intake mechanism, the air intake end of the air intake mechanism is communicated with the left end side wall of the air intake mechanism, and the side wall of the cabinet body is communicated with the air intake mechanism. There is an air inlet, the outlet end of the air inlet mechanism is arranged in communication with the air inlet, the right end side wall of the air inlet mechanism is communicated with a rainproof mechanism, and the upper end of the air inlet mechanism is provided with two connecting pipes, The bottom of the collection mechanism is symmetrically provided with two communication holes, the air inlet ends of the two connecting pipes are respectively connected with the two communication holes, and the side walls of the cabinet are provided with ventilation components. It should be noted that, The arrangement of the air-cooled cabinet accelerates the circulation of air in the cabinet, makes the cooling effect of the cabinet better, and prevents rainwater from entering the cabinet through the ventilation mechanism, thereby protecting the equipment in the cabinet.

Preferably, the collection mechanism includes two support columns fixedly arranged at the upper end of the cabinet body, the upper ends of the two support columns are fixedly connected to the same collection box, the motor is fixedly arranged at the lower end of the collection box, and the two support columns are fixedly connected to the lower end of the collection box. The communication holes are all connected and arranged at the bottom of the collection box. It should be noted that the setting of the collection mechanism can not only prevent rainwater from falling into the upper end of the air-cooled cabinet, but also has a resisting effect on the air-cooled cabinet, and can collect rainwater, which is convenient for replacing the suction The water in the mechanism accelerates the cooling of the air in the cabinet, making the cooling effect of the cabinet better.

Preferably, the suction mechanism includes a rotating rod fixedly arranged at the end of the motor output shaft, a fan blade is fixedly connected to the rotating rod coaxially, and an suction pipe is provided on the outer casing of the fan blade, and the suction pipe is fixed It is arranged through the top surface of the cabinet, the left end side wall of the suction pipe is arranged in communication with the air inlet mechanism, and the right end side wall of the suction pipe is arranged in communication with the rainproof mechanism. It should be noted that the setting of the suction mechanism , the hot air in the cabinet can be sucked out of the cabinet, and finally returned to the cabinet through the cooling effect of the air intake mechanism, so as to reduce the temperature in the cabinet.

Preferably, the air intake mechanism includes an annular column fixed on the side wall of the cabinet, two arc-shaped cavities are symmetrically arranged in the annular column, one end of the two arc-shaped cavities is communicated, and two connecting pipes are connected. They are all connected to the upper end of the arc-shaped cavity on the right, and the side wall of the arc-shaped cavity located on the left is communicated with a water outlet. The left end sidewall of the trachea is connected and arranged, and the air outlet end of the air inlet duct is arranged in communication with the air inlet. It should be noted that the setting of the air intake mechanism can cool the hot air absorbed by the air intake mechanism from the cabinet, which accelerates the The air circulation in the cabinet makes the heat dissipation effect in the cabinet better.

Preferably, the rainproof mechanism includes an air outlet pipe connected to the side wall of the right end of the air intake pipe, and the air outlet end of the air outlet pipe is connected with a flat pipe. It should be noted that the rainproof mechanism can be installed in rainy weather. Blow the rainwater away from the ventilation openings of the cabinet to prevent rainwater from entering the cabinet.

Preferably, the air outlet end of the flat tube is provided with a first dustproof net. It should be noted that the arrangement of the first dustproof net prevents dust from entering the cabinet through the flat tube and saves the trouble of cleaning the inside of the cabinet. .

Preferably, the ventilation component includes a ventilation opening arranged on the side wall of the cabinet, and a second dustproof net is installed in the ventilation opening. It should be noted that the setting of the second dustproof net prevents dust from entering the cabinet. Thereby, the cabinet is dust-proof.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The utility model speeds up the circulation of the air in the cabinet through the setting of the motor, the air suction mechanism and the air intake mechanism, so that the temperature in the cabinet can be quickly lowered, preventing the damage of the inside of the air-cooled cabinet due to excessive temperature. .

2. The utility model can blow the rainwater away from the vent in rainy days through the arrangement of the motor, the air suction mechanism and the rainproof mechanism, so as to prevent the rainwater from entering the cabinet and prevent the damage to the equipment in the cabinet.

3. The utility model makes the rainwater collected in the collection box in rainy days, and then enters the annular column through the connecting pipe, and the water in the annular column is replaced, so as to facilitate the hot air in the cabinet. It is replaced with air-conditioning, so that the heat dissipation effect in the cabinet is better, and the collection box can block the rainwater for the motor to avoid damage to the motor.

Description of drawings

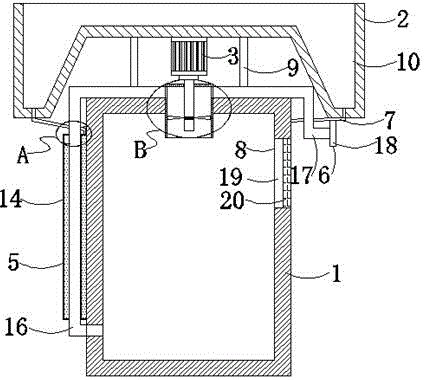

1 is a front perspective view of an energy-saving outdoor communication air-cooled cabinet proposed by the utility model;

2 is a front view of an energy-saving outdoor communication air-cooled cabinet proposed by the utility model;

Fig. 3 is the partial enlarged view of A place in Fig. 1;

Fig. 4 is a partial enlarged view at B in Fig. 1;

FIG. 5 is an overhead perspective view of an annular column in an energy-saving outdoor communication air-cooled cabinet proposed by the present invention.

In the picture: 1 cabinet, 2 collection mechanism, 3 motor, 4 air intake mechanism, 5 air intake mechanism, 6 rainproof mechanism, 7 connecting pipe, 8 ventilation parts, 9 support column, 10 collection box, 11 rotating rod, 12 Fan blades, 13 suction pipes, 14 annular columns, 15 arc-shaped cavities, 16 air inlet pipes, 17 air outlet pipes, 18 flat pipes, 19 vents, 20 second dust filters.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-5, an energy-saving outdoor communication air-cooled cabinet includes a cabinet body 1, the upper end of the cabinet body 1 is fixedly connected with a collecting mechanism 2, the lower end of the collecting mechanism 2 is fixedly connected with a motor 3, and the end of the output shaft of the motor 3 is fixed A suction mechanism 4 arranged through the top surface of the cabinet body 1 is connected. The outer side wall of the cabinet body 1 is fixedly connected with an intake mechanism 5. The intake end of the intake mechanism 5 is connected to the left side wall of the suction mechanism 4. The side wall of the body 1 is communicated with an air inlet, the outlet end of the air inlet mechanism 5 is communicated with the air inlet, the right end side wall of the air inlet mechanism 5 is communicated with a rainproof mechanism 6, and the upper end of the air inlet mechanism 5 is provided with a rainproof mechanism 6. There are two connecting pipes 7, two communication holes are symmetrically arranged at the bottom of the collecting mechanism 2, and the air inlet ends of the two connecting pipes 7 are respectively connected with the two communication holes. It is explained that the front end of the cabinet body 1 is hinged with a cabinet door through hinges, which is the prior art and will not be repeated here. The model of the motor 3 is ESS42-P11.

Among them, the collecting mechanism 2 includes two supporting columns 9 fixedly arranged on the upper end of the cabinet body 1, the upper ends of the two supporting columns 9 are fixedly connected to the same collecting box 10, the motor 3 is fixedly arranged on the lower end of the collecting box 10, and the two are connected to each other. The holes are connected to the bottom of the collection box 10. It should be explained that the two support columns 9 are arranged to support the collection box 10. The perspective view of the collection box 10 is shown in FIG. getting wet by rain, thus protecting motor 3.

The air suction mechanism 4 includes a rotating rod 11 fixedly arranged at the end of the output shaft of the motor 3. The rotating rod 11 is coaxially and fixedly connected with a fan blade 12. The fan blade 12 is covered with a suction pipe 13, which penetrates through the cabinet. The top surface of the body 1 is arranged, the left end side wall of the suction pipe 13 is arranged in communication with the air intake mechanism 5, and the right end side wall of the suction pipe 13 is arranged in communication with the rainproof mechanism 6. It should be explained that the rotating rod 11 is connected to the motor 3 The end of the output shaft is fixedly connected, so that when the motor 3 is running, the rotation of the output shaft can drive the rotation rod 11 to rotate, so that the fan blade 12 rotates, and the rotation of the fan blade 12 sucks the hot air in the cabinet 1 into the suction pipe 13 , in order to achieve the purpose of dissipating heat inside the cabinet 1, wherein, the air intake mechanism 5 includes an annular column 14 fixedly arranged on the side wall of the cabinet 1, and the annular column 14 is symmetrically provided with two arc-shaped cavities 15, two arc-shaped cavities 15. One end of the cavity 15 is communicated with each other, and the two connecting pipes 7 are connected to the upper end of the arc cavity 15 on the right. The side wall of the arc cavity 15 on the left is connected with a water outlet. The air pipe 16, the air inlet end of the air inlet pipe 16 is arranged in communication with the left end side wall of the air inlet pipe 13, and the air outlet end of the air inlet pipe 16 is arranged in communication with the air inlet. It should be noted that two arcs are symmetrically arranged in the annular column 14. Cavity 15, two arc-shaped cavities 15 are filled with cold water, the purpose is to re-enter the cabinet 1 through the cooling of the hot air from the cabinet 1, so as to achieve the ventilation inside the cabinet 1. The purpose is to make the air in the cabinet 1 circulate faster, and the heat dissipation effect on the inside of the cabinet 1 is better. More water can be stored inside, and the air intake pipe 16 slides through the inner wall of the annular column 14 .

Wherein, the rainproof mechanism 6 includes an air outlet pipe 17 connected to the side wall of the right end of the air intake pipe 13, and the air outlet end of the air outlet pipe 17 is connected with a flat pipe 18. It should be explained that the air outlet end of the flat pipe 18 is installed with a first A dust-proof net (not shown in the figure) prevents dust from entering the cabinet 1 through the flat tube 18, the air outlet 17 and the suction tube 13 in sequence. It should be explained that, as shown in FIG. 2, the two support columns 9 are respectively It is arranged behind the air intake pipe 16 and the air outlet pipe 17. As shown in FIG. 1, the two connecting pipes 7 are respectively arranged behind the air intake pipe 16 and the air outlet pipe 17. The width of the flat pipe 18 is wider than the width of the vent 19. Therefore, its air outlet end is also wider than the width of the ventilation opening 19, and the formed air curtain can effectively prevent the falling rainwater from entering the cabinet 1 through the ventilation opening 19, wherein the ventilation component 8 includes a ventilation device arranged on the side wall of the cabinet 1. Port 19, a second dust filter 20 is installed in the vent 19. It should be noted that the setting of the vent 19 enables the natural wind from the outside to flow into the cabinet 1 through the vent 19 to dissipate heat from the cabinet 1. , in order to prevent the cabinet 1 from damaging the equipment in it due to excessive temperature, and the setting of the second dust filter 20 has a dust-proof effect on the cabinet 1 to prevent dust from entering the cabinet 1 .

In the present utility model, when it is sunny, when the cooling effect of the cabinet 1 needs to be accelerated, the motor 3 is turned on, and the end of the output shaft of the motor 3 drives the rotating rod 11 to rotate, and the rotating rod 11 drives the fan blade 12 to rotate, and the rotation of the fan blade 12 will The hot air in the cabinet 1 flows into the air inlet pipe 16 and the air outlet pipe 17 respectively through the suction pipe 13. The air inlet pipe 16 is cooled by the cold water in the two arc-shaped cavities 15 and then returns to the cabinet body 1, so as to achieve the opposite effect to the cabinet body. 1 The purpose of internal ventilation, so that the air in the cabinet 1 can circulate faster, and the heat dissipation effect inside the cabinet 1 is better;

In rainy days, as described above, turn on the motor 3, and the fan blades 12 suck the hot air in the cabinet 1 into the air intake pipe 13, and from the air intake pipe 13 into the air intake pipe 16 and the air outlet pipe 17 respectively, the air intake pipe 16 passes through the cold water. The cooling of the radiator is returned to the cabinet 1, the cabinet 1 is dissipated, the rainwater is collected in the collection box 10, and the rainwater can enter one of the arc-shaped cavities 15 through the two connecting pipes 7. Due to the gravity of the water, the two The original water of the arc-shaped cavity 15 is squeezed out from the water outlet, and the water in the two arc-shaped cavities 15 is replaced, and the gas in the air outlet pipe 17 is blown out through the flat pipe 18, and the rainwater is blown out to the air away from the ventilation port 19. It is blown away in the direction to prevent rainwater from entering into the cabinet body 1 through the ventilation opening 19 , thereby protecting the equipment in the cabinet body 1 .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. An energy-saving outdoor communication air-cooled cabinet, comprising a cabinet body (1), characterized in that a collection mechanism (2) is fixedly connected to the upper end of the cabinet body (1), and a lower end of the collection mechanism (2) is fixed A motor (3) is connected, the end of the output shaft of the motor (3) is fixedly connected with a suction mechanism (4) arranged through the top surface of the cabinet body (1), and the outer side wall of the cabinet body (1) is fixedly connected with a an air intake mechanism (5), the air intake end of the air intake mechanism (5) is communicated with the left end side wall of the air intake mechanism (4), and the side wall of the cabinet body (1) is communicated with an air intake port, The air outlet end of the air intake mechanism (5) is arranged in communication with the air inlet, the right end sidewall of the air intake mechanism (5) is communicated with a rainproof mechanism (6), and the upper end of the air intake mechanism (5) Two connecting pipes (7) are provided, two communication holes are symmetrically arranged at the bottom of the collecting mechanism (2), and the air inlet ends of the two connecting pipes (7) are respectively communicated with the two communication holes, so The side walls of the cabinet body (1) are provided with ventilation components (8). 2. The energy-saving outdoor communication air-cooled cabinet according to claim 1, wherein the collecting mechanism (2) comprises two supporting columns (9) fixedly arranged on the upper end of the cabinet body (1), two The upper end of the support column (9) is fixedly connected with the same collection box (10), the motor (3) is fixedly arranged at the lower end of the collection box (10), and the two communication holes are connected to the collection box (10). 10) at the bottom. 3. An energy-saving outdoor communication air-cooled cabinet according to claim 1, characterized in that the suction mechanism (4) comprises a rotating rod (11) fixedly arranged at the end of the output shaft of the motor (3), the A fan blade (12) is coaxially and fixedly connected to the rotating rod (11). The top surface is arranged, the left end side wall of the air intake pipe (13) is communicated with the air intake mechanism (5), and the right end side wall of the air intake pipe (13) is communicated with the rainproof mechanism (6). 4. An energy-saving outdoor communication air-cooled cabinet according to claim 3, characterized in that the air intake mechanism (5) comprises an annular column (14) fixedly arranged on the side wall of the cabinet (1), the Two arc-shaped cavities (15) are symmetrically arranged in the annular column (14), one end of the two arc-shaped cavities (15) is communicated and arranged, and the two connecting pipes (7) are both communicated and arranged in the right arc-shaped cavity (15). 15), the side wall of the arc-shaped cavity (15) located on the left is communicated with a water outlet, and the annular column (14) is provided with an air intake pipe (16), and the air intake pipe (16) is provided with a water outlet. The air inlet end is communicated with the left end sidewall of the air intake pipe (13), and the air outlet end of the air intake pipe (16) is communicated with the air inlet. 5. An energy-saving outdoor communication air-cooled cabinet according to claim 4, characterized in that the rainproof mechanism (6) comprises an air outlet pipe (17) connected to the right end side wall of the air suction pipe (13), A flat tube (18) is communicated with the air outlet end of the air outlet pipe (17). 6 . The energy-saving outdoor communication air-cooled cabinet according to claim 5 , wherein a first dust filter is installed at the air outlet end of the flat tube ( 18 ). 7 . 7. An energy-saving outdoor communication air-cooled cabinet according to claim 6, characterized in that the ventilation component (8) comprises a ventilation port (19) arranged on the side wall of the cabinet body (1), the ventilation port A second dust filter (20) is installed in (19).
