Abstract

The utility model discloses an adjustable solar street lamp, which relates to the field of solar street lamps. The top is fixedly connected with a second support rod, the top of the second support rod is fixedly connected with a first fixing plate, the top of the first fixing plate is provided with a groove, and the inner part of the groove is fixedly connected with a motor, the The rotating shaft of the motor is fixedly connected with a second fixing plate. The utility model achieves the effect of supporting the first support rod by arranging the base, the effect of placing the cylinder through the first support rod, the effect of adjusting the height of the second support rod and the first fixing plate through the cylinder, and the effect of adjusting the height of the second support rod and the first fixing plate through the first support rod. A fixed plate and a groove can achieve the effect of placing the motor, and through the motor, the effect of driving the second fixed plate to rotate, the solar street light can adjust the height and the angle of the solar panel, which is convenient for people to use.

Description

An adjustable solar street light

technical field

The utility model relates to the technical field of solar street lamps, in particular to an adjustable solar street lamp.

Background technique

Solar street light is a new type of road lighting facility, which uses crystalline silicon solar cells for power supply, maintenance-free valve-regulated sealed batteries (colloidal batteries) to store electrical energy, ultra-bright LED lamps as light sources, and is controlled by an intelligent charge and discharge controller. It has the advantages of simple installation, less investment, good safety performance, energy saving and environmental protection. It is a street lamp used to replace traditional public electric lighting. However, the existing solar street lamp cannot adjust the height, and it is not convenient to adjust the angle of the solar panel. For this purpose, we propose an adjustable solar street light.

Utility model content

The purpose of the present utility model is to provide an adjustable solar street light, which has the advantages of being able to adjust the height and the angle of the solar panel, so as to solve the problem that the solar street light cannot be adjusted in height, and it is also inconvenient to adjust the height of the solar street light. The problem of adjusting the angle of the board.

In order to achieve the above purpose, the present invention provides the following technical solutions: an adjustable solar street lamp, comprising a base, a first support rod is fixedly connected to the top of the base, and a cylinder is arranged inside the first support rod, so The top of the cylinder is fixedly connected with a second support rod, the top of the second support rod is fixedly connected with a first fixing plate, the top of the first fixing plate is provided with a groove, and the interior of the groove is fixedly connected with a motor The rotating shaft of the motor is fixedly connected with a second fixing plate, both sides of the top of the second fixing plate are movably connected with electric telescopic rods through the rotating shaft, and the top of the electric telescopic rod is movably connected with the solar panel body through the rotating shaft.

Preferably, a spring is fixedly connected to the bottom of the inner cavity of the first support rod, and a third fixing plate is fixedly connected to the top of the spring, the top of the third fixing plate is fixedly connected to the cylinder, and the third fixing plate is Both sides are fixedly connected with sliders, the surface of the first support rod is provided with a first chute, and the slider is slidably connected with the first chute.

Preferably, a placing box is fixedly connected to the left side of the first support rod, a battery is fixedly connected to the inside of the placing box, a timer is fixedly connected to the top of the inner cavity of the placing box, and the inner cavity of the placing box is fixedly connected with a timer. The right side is fixedly connected with the controller.

Preferably, a connecting plate is fixedly connected to the right side of the first support rod, a slider is slidably connected to the right side of the connecting plate, and a display panel is fixedly connected to the right side of the slider.

Preferably, both sides of the bottom of the second fixing plate are fixedly connected with pulleys, the top of the first fixing plate is provided with a second chute, and the pulley is slidably connected to the second chute.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model achieves the effect of supporting the first support rod by setting the base, the effect of placing the cylinder through the first support rod, and the effect of adjusting the height of the second support rod and the first fixing plate through the cylinder, Through the first fixed plate and the groove, the effect of placing the motor is achieved, through the motor, the effect of driving the second fixed plate to rotate, through the second fixed plate and the electric telescopic rod, the effect of adjusting the angle of the solar panel body is achieved, The panel body can achieve the effect of generating energy. The solar street light can adjust the height and the angle of the solar panel, which is convenient for people to use.

2. The utility model achieves the effect of supporting the cylinder through the spring and the third fixing plate, and also achieves the effect of protecting the cylinder. Through the slider and the first chute, the effect of assisting the movement of the third fixing plate is achieved. , to achieve the effect of placing the battery and the controller, through the connecting plate, to achieve the effect of placing the slider, through the slider, to achieve the effect of driving the display board to move up and down, which is convenient for people to repair and replace the display board, through the display board, to achieve the The effect of advertising display, through the pulley and the second chute, achieves the effect of assisting the rotation of the second fixed plate, and avoids the situation of tilting of the second fixed plate.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

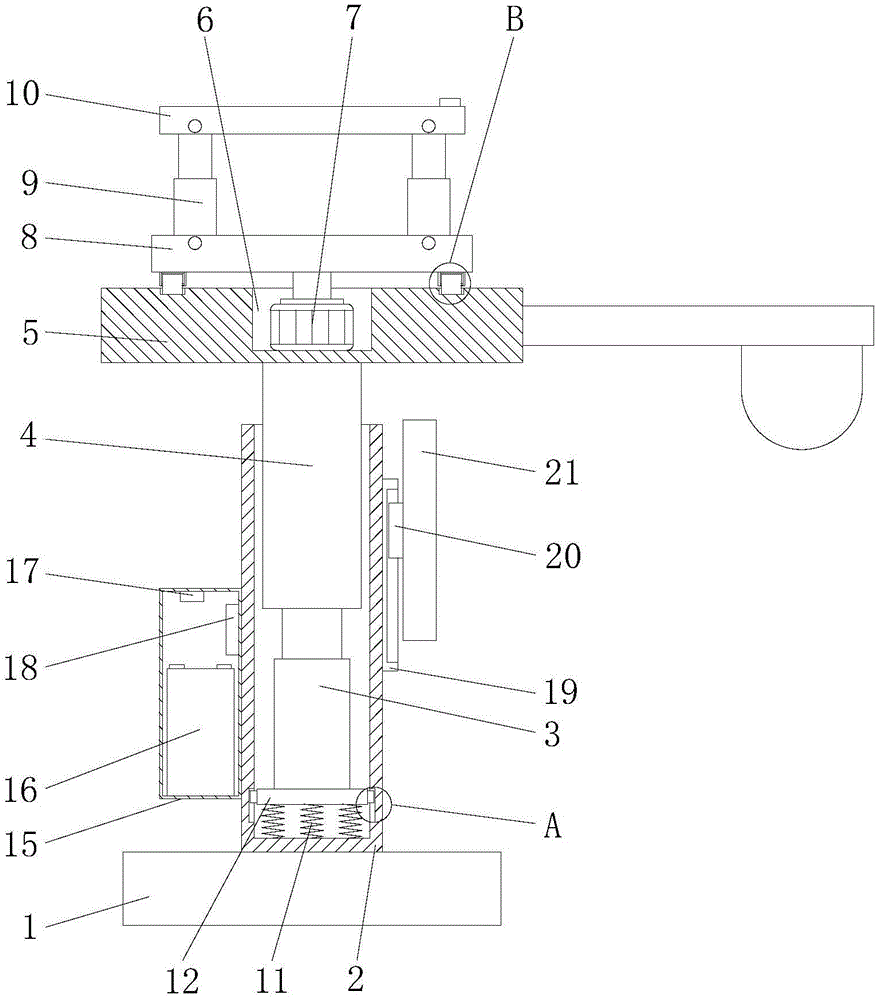

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the partial structure enlarged schematic diagram of A in Fig. 1 of the utility model;

FIG. 3 is an enlarged schematic view of the partial structure of B in FIG. 1 of the present utility model.

In the figure: 1 base, 2 first support rod, 3 cylinder, 4 second support rod, 5 first fixing plate, 6 groove, 7 motor, 8 second fixing plate, 9 electric telescopic rod, 10 solar panel body, 11 spring, 12 third fixing plate, 13 sliding block, 14 first chute, 15 placing box, 16 accumulator, 17 timer, 18 controller, 19 connecting plate, 20 slider, 21 display board, 22 pulley, 23 Second chute.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The base 1, the first support rod 2, the cylinder 3, the second support rod 4, the first fixing plate 5, the groove 6, the motor 7, the second fixing plate 8, the electric telescopic rod 9, and the solar panel body 10 of the present invention , spring 11, third fixing plate 12, slider 13, first chute 14, placing box 15, battery 16, timer 17, controller 18, connecting plate 19, slider 20, display panel 21, pulley 22 and The components of the second chute 23 are all common standard components or components known to those skilled in the art, and the structures and principles thereof are known to those skilled in the art through technical manuals or through conventional experimental methods.

1-3, an adjustable solar street light includes a base 1, a first support rod 2 is fixedly connected to the top of the base 1, a spring 11 is fixedly connected to the bottom of the inner cavity of the first support rod 2, and the spring 11 A third fixing plate 12 is fixedly connected to the top of the third fixing plate 12, and the top of the third fixing plate 12 is fixedly connected to the cylinder 3. Through the spring 11 and the third fixing plate 12, the effect of supporting the cylinder 3 is achieved, and the effect of protecting the cylinder 3 is also achieved. , the two sides of the third fixing plate 12 are fixedly connected with the slider 13, the surface of the first support rod 2 is provided with a first chute 14, and the slider 13 is slidably connected with the first chute 14, through the slider 13 and the first chute 14. The first chute 14 achieves the effect of assisting the movement of the third fixing plate 12, and the left side of the first support rod 2 is fixedly connected with a placing box 15, through the placing box 15, the effect of placing the battery 16 and the controller 18 is achieved, and the placing box A battery 16 is fixedly connected to the interior of 15, a timer 17 is fixedly connected to the top of the inner cavity of the placing box 15, a controller 18 is fixedly connected to the right side of the inner cavity of the placing box 15, and a connection is fixedly connected to the right side of the first support rod 2. The plate 19, through the connecting plate 19, achieves the effect of placing the slider 20. The right side of the connecting plate 19 is slidably connected with the slider 20. Through the slider 20, the effect of driving the display panel 21 to move up and down is achieved, which is convenient for people to view the display panel 21. Maintenance and replacement are carried out, and a display panel 21 is fixedly connected to the right side of the slider 20. Through the display panel 21, the effect of displaying advertisements is achieved. The interior of the first support rod 2 is provided with a cylinder 3, and the top of the cylinder 3 is fixedly connected with a The second support rod 4, the top of the second support rod 4 is fixedly connected with the first fixing plate 5, the top of the first fixing plate 5 is provided with a groove 6, and the interior of the groove 6 is fixedly connected with the motor 7, and the motor 7 is The rotating shaft is fixedly connected with a second fixing plate 8 , both sides of the bottom of the second fixing plate 8 are fixedly connected with pulleys 22 , the top of the first fixing plate 5 is provided with a second chute 23 , and the pulley 22 and the second chute 23 The sliding connection, through the pulley 22 and the second chute 23, achieves the effect of assisting the rotation of the second fixed plate 8, and avoids the tilt of the second fixed plate 8. Both sides of the top of the second fixed plate 8 are movably connected by a rotating shaft. The electric telescopic rod 9, and the top of the electric telescopic rod 9 is movably connected with the solar panel body 10 through the rotating shaft. Effect, through the air cylinder 3, to achieve the effect of adjusting the height of the second support rod 4 and the first fixed plate 5, through the first fixed plate 5 and the groove 6, to achieve the effect of placing the motor 7, through the motor 7, to drive the second The effect of rotation of the fixed plate 8, through the second fixed plate 8 and the electric telescopic rod 9, achieves the effect of adjusting the angle of the solar panel body 10, and through the solar panel body 10, achieves the effect of generating energy, the solar street light can adjust the height and solar energy. The angle of the board can be adjusted, which is convenient for people to use.

When in use, by setting the base 1, the effect of supporting the first support rod 2 is achieved, the first support rod 2 is used to achieve the effect of placing the cylinder 3, and the cylinder 3 is used to achieve the second support rod 4 and the first fixing plate 5. The effect of height adjustment, through the first fixed plate 5 and the groove 6, achieves the effect of placing the motor 7, through the motor 7, achieves the effect of driving the second fixed plate 8 to rotate, through the second fixed plate 8 and the electric telescopic rod 9, The effect of adjusting the angle of the solar panel body 10 is achieved, and the effect of generating energy is achieved through the solar panel body 10. The solar street light can adjust the height and the angle of the solar panel, which is convenient for people to use.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the within the protection scope of the present invention.

Claims (5)

1. An adjustable solar street light, comprising a base (1), characterized in that: a first support rod (2) is fixedly connected to the top of the base (1), and the inside of the first support rod (2) is A cylinder (3) is provided, the top of the cylinder (3) is fixedly connected with a second support rod (4), and the top of the second support rod (4) is fixedly connected with a first fixing plate (5). A groove (6) is formed on the top of the first fixing plate (5), and a motor (7) is fixedly connected to the inside of the groove (6), and a second fixing plate (8) is fixedly connected to the rotating shaft of the motor (7). ), both sides of the top of the second fixing plate (8) are movably connected with an electric telescopic rod (9) through a rotating shaft, and the top of the electric telescopic rod (9) is movably connected with a solar panel body (10) through a rotating shaft. 2. An adjustable solar street light according to claim 1, characterized in that: the bottom of the inner cavity of the first support rod (2) is fixedly connected with a spring (11), and the top of the spring (11) is fixed A third fixing plate (12) is connected, the top of the third fixing plate (12) is fixedly connected with the air cylinder (3), and both sides of the third fixing plate (12) are fixedly connected with sliders (13) A first chute (14) is provided on the surface of the first support rod (2), and the slider (13) is slidably connected with the first chute (14). 3. An adjustable solar street light according to claim 1, characterized in that: a placement box (15) is fixedly connected to the left side of the first support rod (2), and the placement box (15) is A battery (16) is fixedly connected inside, a timer (17) is fixedly connected to the top of the inner cavity of the placing box (15), and a controller (18) is fixedly connected to the right side of the inner cavity of the placing box (15). 4. An adjustable solar street light according to claim 1, characterized in that: a connecting plate (19) is fixedly connected to the right side of the first support rod (2), and the connecting plate (19) is A slider (20) is slidably connected to the right side, and a display panel (21) is fixedly connected to the right side of the slider (20). 5. An adjustable solar street light according to claim 1, characterized in that: both sides of the bottom of the second fixing plate (8) are fixedly connected with pulleys (22), and the first fixing plate ( 5) A second chute (23) is provided at the top, and the pulley (22) is slidably connected with the second chute (23).
