Abstract
The utility model discloses a chinese-medicinal material medicine cutting machine, which comprises a fixed base, the both sides of fixing base top outer wall all are fixed with the fixed plate, and all rotate through the bearing between the one side outer wall that two fixed plates are relative and be connected with the screw thread lead screw, the outer wall threaded connection of screw thread lead screw has the screw thread piece, and the bottom outer wall of screw thread piece is fixed with electric telescopic handle, electric telescopic handle's bottom outer wall is fixed with the backup pad, and the bottom outer wall of backup pad rotates through the bearing and is connected with the axis of rotation, the bottom outer wall of axis of rotation is fixed with the supporting seat, and the bottom outer wall of supporting seat is located. The utility model discloses can prevent because the live time overlength of activity cutter becomes blunt to cause the influence to the cutting of chinese-medicinal material, can adjust the angle of cutting as required, can prevent that the chinese-medicinal material after the cutting from piling up too much causing the interference to the cutting of chinese-medicinal material, can prevent that the piece from causing the influence to the cutting of chinese-medicinal material.
Description
Technical Field
The utility model relates to a well pharmaceutical processing technology field especially relates to a chinese-medicinal material medicine cutting machine.
Background
At present, Chinese medicinal materials need to be processed into various shapes such as tablets, powder or blocks so as to be convenient for later eating and bring the medicinal effect to the utmost.
Through retrieval, the patent with the Chinese patent authorization number of CN207387759U discloses a traditional Chinese medicine cutting machine, which comprises a cutting table, a cutting mechanism and a first driving mechanism, wherein the cutting mechanism can move towards or away from the cutting table; the cutting mechanism can rotate around the central axis of the cutting mechanism; the first driving mechanism is used for driving the cutting mechanism to move towards the cutting table or away from the cutting table, and the first driving mechanism is used for driving the cutting mechanism to rotate around the central axis of the cutting mechanism. The utility model discloses a chinese-medicinal material medicine cutting machine, its cutting mechanism can be towards being close to the cutting bed motion to accomplish the cutting operation of chinese-medicinal material, convenient operation. Meanwhile, the cutting mechanism can rotate around the central axis of the cutting mechanism, so that cutting operation can be performed from different angles, the cutting requirements of different traditional Chinese medicinal materials are met, the cutting is more flexible, and the application range is wider. A chinese-medicinal material medicine cutting machine in above-mentioned patent exists following not enough: when cutting traditional chinese medicine, because the cutter live time can be dull for a long time, current device can not dismantle the cutter to be not convenient for polish the cutter, and then can lead to the fact the influence to the cutting of traditional chinese medicine.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a traditional Chinese medicine cutting machine.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a chinese-medicinal material medicine cutting machine, includes the fixing base, the both sides of fixing base top outer wall all are fixed with the fixed plate, and all rotate through the bearing between the relative one side outer wall of two fixed plates and be connected with the screw thread lead screw, the outer wall threaded connection of screw thread lead screw has the screw thread piece, and the bottom outer wall of screw thread piece is fixed with electric telescopic handle, electric telescopic handle's bottom outer wall is fixed with the backup pad, and the bottom outer wall of backup pad rotates through the bearing and is connected with the axis of rotation, the bottom outer wall of axis of rotation is fixed with the supporting seat, and the bottom outer wall of supporting seat is located the intermediate position and is fixed with the stationary knife, a plurality of equidistance spouts that distribute are seted up to the bottom outer wall.
As a further aspect of the present invention: through holes are formed in the two ends of the outer wall of the threaded block, guide rods are inserted into the inner walls of the two through holes, and the two ends of each guide rod are connected with the fixing plate through bolts.
As a further aspect of the present invention: one side of backup pad top outer wall is fixed with first motor, and the one end of first motor output shaft is fixed with the driving gear, and the outer wall of axis of rotation is fixed with driven gear, intermeshing between driven gear and the driving gear.
As a further aspect of the present invention: and a second motor is fixed on the outer wall of one side of one fixing plate, and one end of an output shaft of the second motor is connected with the threaded screw rod through a bolt.
As a further aspect of the present invention: the outer wall of the top of the supporting seat is provided with a plurality of threaded holes distributed at equal intervals, and the inner wall of each threaded hole is in threaded connection with a fastening bolt.
As a further aspect of the present invention: and a cutting table is fixed at the middle position of the outer wall of the top of the fixed seat.
As a further aspect of the present invention: one side of the outer wall of the top of the fixed seat is provided with a discharge hole, and the inner wall of one side of the discharge hole and the outer wall of one side of the cutting table are positioned on the same plane.
As a further aspect of the present invention: one the outer wall of one side of fixed plate is fixed with electric putter, and electric putter's one side outer wall is fixed with the push pedal, and the bottom outer wall of push pedal is fixed with the cleaning brush.
The utility model has the advantages that:
1. through the fastening bolt, the sliding groove, the sliding block and the movable cutter, the device can be convenient for disassembling the movable cutter so as to polish the movable cutter, and the influence on the cutting of the Chinese medicinal materials caused by dullness due to overlong service time of the movable cutter is prevented;
2. the cutting angle can be adjusted according to the requirement through the rotating shaft, the driven gear, the driving gear and the first motor, so that the cutting convenience of the device for the Chinese medicinal materials is improved;
3. through electric putter, push pedal and the clearance brush that sets up, can clear up the chinese-medicinal material after the cutting is accomplished to in cutting the chinese-medicinal material, prevent that the chinese-medicinal material after the cutting from piling up too much cutting to cause the interference to the chinese-medicinal material, can clear up the piece through the clearance brush, prevent that the piece from causing the influence to the cutting of chinese-medicinal material.
Drawings

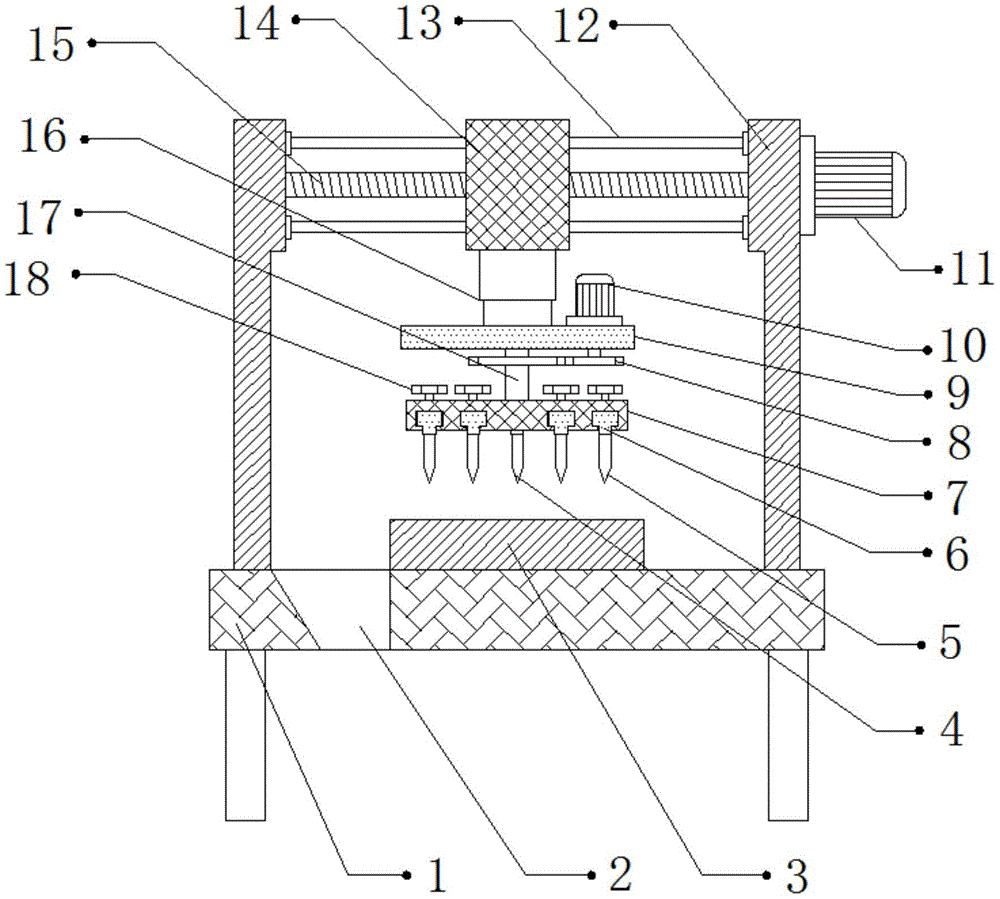

Fig. 1 is a schematic sectional structure view of a herbal medicine slicing machine provided in embodiment 1;
fig. 2 is a schematic view of a partial structure of a herbal medicine slicing machine provided in embodiment 1;
fig. 3 is a schematic sectional structure view of the herbal medicine slicing machine provided in embodiment 2.
In the figure: the device comprises a fixed seat 1, a discharge hole 2, a cutting table 3, a fixed cutter 4, a movable cutter 5, a sliding block 6, a supporting seat 7, a driving gear 8, a supporting plate 9, a first motor 10, a second motor 11, a fixed plate 12, a guide rod 13, a thread block 14, a thread lead screw 15, an electric telescopic rod 16, a rotating shaft 17, a fastening bolt 18, an electric push rod 19, a push plate 20 and a cleaning brush 21.
Detailed Description
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1-2, a Chinese herbal medicine slicing machine comprises a fixed seat 1, wherein two sides of the outer wall of the top of the fixed seat 1 are respectively connected with a fixed plate 12 through bolts, a threaded lead screw 15 is rotatably connected between the outer walls of the opposite sides of the two fixed plates 12 through bearings, the outer wall of the threaded lead screw 15 is in threaded connection with a threaded block 14, the outer wall of the bottom of the threaded block 14 is in threaded connection with an electric telescopic rod 16 through bolts, the outer wall of the bottom of the electric telescopic rod 16 is in threaded connection with a supporting plate 9 through bolts, the outer wall of the bottom of the supporting plate 9 is rotatably connected with a rotating shaft 17 through bearings, the outer wall of the bottom of the rotating shaft 17 is in threaded connection with a supporting seat 7, the outer wall of the bottom of the supporting seat 7 is in the middle position, the outer wall of the bottom of the sliding block 6 is connected with a movable cutter 5 through a bolt.
Wherein, both ends of the outer wall of the thread block 14 are provided with through holes, and the inner walls of the two through holes are inserted with guide rods 13, both ends of the guide rods 13 are connected with the fixing plate 12 through bolts, one side of the outer wall of the top of the supporting plate 9 is connected with a first motor 10 through bolts, one end of the output shaft of the first motor 10 is connected with a driving gear 8 through bolts, the outer wall of the rotating shaft 17 is connected with a driven gear through bolts, the driven gear is meshed with the driving gear 8, one side of the outer wall of one fixing plate 12 is connected with a second motor 11 through bolts, one end of the output shaft of the second motor 11 is connected with the thread screw 15 through bolts, the outer wall of the top of the supporting seat 7 is provided with a plurality of thread holes distributed equidistantly, the inner wall of the thread hole is connected with a fastening bolt 18 through a thread, one side of the outer wall of the top of the fixed seat 1 is provided with a discharge outlet 2, and the inner wall of one side of the discharge outlet 2 and the outer wall of one side of the cutting table 3 are positioned on the same plane.
The working principle is as follows: during the use, the traditional Chinese medicine that will cut the processing is placed on cutting bed 3, after placing and accomplishing, start second motor 11, second motor 11 can drive screw lead screw 15 and rotate, thereby make screw block 14 remove under the effect of guide bar 13, drive supporting seat 7 through electric telescopic handle 16 and move down, thereby make fixed cutter 4 and movable cutter 5 carry out the cutting processing to the traditional Chinese medicine, when the cutting angle of traditional Chinese medicine needs to be adjusted, start first motor 10, first motor 10 can drive supporting seat 7 and rotate, thereby can change the angle and carry out the cutting processing to the traditional Chinese medicine, the traditional Chinese medicine after the cutting can be discharged through bin outlet 2, when the longer messenger's edge of a knife that uses of movable cutter 5 time, through unscrewing fastening bolt 18, take out slider 6 from the inside of spout, thereby pull down movable cutter 5 from the device, and (5) polishing the edge of the movable cutter 5.
Example 2
Referring to fig. 3, in this embodiment, compared with embodiment 1, an outer wall of one side of a fixing plate 12 is connected with an electric push rod 19 through a bolt, an outer wall of one side of the electric push rod 19 is connected with a push plate 20 through a bolt, and an outer wall of the bottom of the push plate 20 is connected with a cleaning brush 21 through a bolt.
The working principle is as follows: during the use, the traditional Chinese medicine material that will cut the processing is placed on cutting bed 3, after placing and accomplishing, start second motor 11, second motor 11 can drive threaded lead screw 15 and rotate, thereby make the screw thread piece 14 remove under the effect of guide bar 13, drive supporting seat 7 through electric telescopic handle 16 and move downwards, thereby make fixed cutter 4 and movable cutter 5 carry out the cutting processing to the traditional Chinese medicine material, when the cutting angle of traditional Chinese medicine material needs to be adjusted, start first motor 10, first motor 10 can drive supporting seat 7 and rotate, thereby can change the angle and carry out the cutting processing to the traditional Chinese medicine material, after the cutting is accomplished, start electric putter 19, electric putter 19 can drive push pedal 20 and move, thereby the traditional Chinese medicine material after will cutting passes through bin outlet 2 and discharges, when movable cutter 5 live time is longer makes the knife edge dull, by loosening the fastening bolt 18, the slide block 6 is taken out from the inside of the slide groove, so that the movable cutter 5 is detached from the device, and the edge of the movable cutter 5 is ground.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (8)
1. The Chinese herbal medicine slicing machine comprises a fixing seat (1) and is characterized in that fixing plates (12) are fixed on two sides of the outer wall of the top of the fixing seat (1), a threaded lead screw (15) is rotatably connected between the outer walls of two opposite sides of the fixing plates (12) through bearings, a threaded block (14) is in threaded connection with the outer wall of the threaded lead screw (15), an electric telescopic rod (16) is fixed on the outer wall of the bottom of the threaded block (14), a supporting plate (9) is fixed on the outer wall of the bottom of the electric telescopic rod (16), a rotating shaft (17) is rotatably connected on the outer wall of the bottom of the supporting plate (9) through bearings, a supporting seat (7) is fixed on the outer wall of the bottom of the rotating shaft (17), a fixed cutter (4) is fixed at a position, in the middle of the outer wall of the bottom of the supporting seat (7, and the inner wall of the sliding groove is connected with a sliding block (6) in a sliding manner, and a movable cutter (5) is fixed on the outer wall of the bottom of the sliding block (6).
2. The traditional Chinese medicine slicing machine according to claim 1, wherein through holes are formed in both ends of the outer wall of the thread block (14), guide rods (13) are inserted into the inner walls of the two through holes, and both ends of each guide rod (13) are connected with the fixing plate (12) through bolts.
3. The herbal medicine slicing machine as claimed in claim 1, wherein a first motor (10) is fixed to one side of the outer wall of the top of the supporting plate (9), a driving gear (8) is fixed to one end of an output shaft of the first motor (10), a driven gear is fixed to the outer wall of the rotating shaft (17), and the driven gear and the driving gear (8) are meshed with each other.
4. The herbal medicine slicing machine as claimed in claim 1, wherein a second motor (11) is fixed to an outer wall of one side of one of the fixing plates (12), and one end of an output shaft of the second motor (11) is connected with the threaded screw (15) through a bolt.
5. The herbal medicine slicing machine as claimed in claim 1, wherein the outer wall of the top of the supporting seat (7) is provided with a plurality of threaded holes distributed at equal intervals, and the inner wall of each threaded hole is in threaded connection with a fastening bolt (18).
6. The herbal medicine slicing machine as claimed in claim 1, wherein a cutting table (3) is fixed at a position of the top outer wall of the fixed base (1) in the middle.
7. The Chinese herbal medicine slicing machine according to claim 1 or 6, wherein a discharge opening (2) is formed in one side of the outer wall of the top of the fixed seat (1), and the inner wall of one side of the discharge opening (2) and the outer wall of one side of the slicing table (3) are located on the same plane.
8. The herbal medicine slicing machine as claimed in claim 4, wherein an electric push rod (19) is fixed to the outer wall of one side of one of the fixing plates (12), a push plate (20) is fixed to the outer wall of one side of the electric push rod (19), and a cleaning brush (21) is fixed to the outer wall of the bottom of the push plate (20).
