CN211249746U - Welding deformation detection tool for crane boom - Google Patents

Abstract

A welding deformation detection tool for a crane boom belongs to the field of welding deformation detection, and comprises a body and a plurality of pin columns, wherein the body is two congruent rectangular flat plates, symmetrical clamping blocks vertically extend out of two sides of the body, fixing holes are formed in the clamping blocks, a laser pen is arranged on the symmetrical axis of the clamping blocks, the light beam of the laser pen is parallel to the symmetrical axis of the clamping blocks, the laser pen is fixedly arranged on the body, a connecting rod is fixedly arranged between the two bodies through a bolt, the structure is simple, the design is ingenious, whether the crane boom deforms due to welding or not can be accurately measured through the laser pen, and the detection precision is high; the utility model discloses preparation low cost utilizes the company's waste material to make, and light in weight gets puts easily, convenient to use, detection efficiency is high.

Description

Welding deformation detection tool for crane boom

Technical Field

The utility model belongs to the technical field of the welding deformation detection and specifically relates to a jib loading boom welding deformation detects frock is related to.

Background

The crane boom is commonly called as a boom and a suspension arm and comprises a main crane boom. The crane boom is arranged between the axis of a main hoisting mechanism steel wire rope guide pulley arranged at the head of the crane boom from a root hinge point hinged with the rotary table or the tower body. When the crane has no auxiliary crane boom, namely a crane boom, in the crane boom with the auxiliary boom, the auxiliary boom is usually formed by welding four rods, so that the bottom of the auxiliary boom is provided with four fixing pin holes, in practical use, whether the auxiliary boom of the crane is straight or not is particularly important, however, in the manufacturing and welding process, welding deformation cannot be avoided, generally, a welding tool table is designed for solving the welding deformation, welding is carried out on the tool table, welding deformation is reduced, then manual detection is utilized, and the conventional detection method is common and has low detection accuracy.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is: the defects of the prior art are overcome, and the high-precision crane boom welding deformation detection tool is provided.

The utility model provides a technical scheme that its technical problem adopted is: the utility model discloses a totally four fixture blocks, corresponding to the pinhole of jib boom, jib boom include main jib boom and vice jib boom, the utility model is used for measuring is vice jib boom, four fixture block card are blocked into the pinhole of vice jib boom, there is a draw-in groove of about 30mm ~40mm in the middle of the pinhole of jib boom, be the position that crane revolving stage or tower and jib boom are blocked, the fixture block can be blocked into the pinhole that corresponds, the pin column is used for fixing the utility model and jib boom, after the laser pen is fixed, the laser pen is opened, the light beam of the laser pen irradiates the other end of the crane boom, whether the crane boom is welded and deformed or not can be judged, the laser pen is fixedly arranged on a symmetrical shaft of the fixture block, the fixture block and the body are vertically arranged, therefore, the laser pen is positioned on the central line of the body and is vertical to the body, the whole structure is very simple, the precision is high, the laser pen is fixedly arranged on the body and is generally fixed by bolts, the laser pen is pressed by an iron sheet, the two sides of the iron sheet are fixed by the bolts, welding is not recommended, welding deformation cannot be avoided, and welding is not recommended to improve the precision; the utility model discloses a bolt fastening sets up and forms, does not adopt the welding, can not produce welding deformation, and the precision can be ensured.

Further, the positioning tolerance of the fixed orifices on one body is not more than 0.03mm, and the positioning tolerance of the fixed orifices is the axiality of the fixed orifices, ensures that two fixed orifices on one body are on same straight line, and the deviation can not be more than 0.03mm, and the fixed orifices can be processed through digit control machine tool, and present digit control machine tool processing, the deviation is not more than 0.03 and can realize completely, and concrete processing step is prior art, and here is unnecessary to be repeated.

Further, the diameter of the fixing hole is 40mm, the diameter of the fixing hole is equal to the diameter of the pin hole in the crane boom, when the pin column simultaneously fixes the fixing hole and the pin hole, the positions of the fixing hole and the pin hole can correspond to each other, the shaking situation cannot occur, and if the diameters of the fixing hole and the pin hole are more accurate, the possibility and the amplitude of shaking are smaller.

Further, the thickness of the fixture block is 30 mm-40 mm, the thickness of the fixture block corresponds to the thickness of the clamping groove in the middle of the pin hole of the crane boom, and generally, the thickness of the fixture block is relatively best with the thickness of the clamping groove in order to ensure that the fixture block can be clamped into the clamping groove.

Further, the length of the body is 540mm, the body is mainly connected with the fixture blocks, in order to ensure that the fixture blocks can be clamped into the pin holes of the crane boom at the same time, the interval between the fixture blocks and the interval between the pin holes are the same, at present, the interval between the pin holes of the crane boom processed by the crane is 540mm, so that the minimum length of the body is adopted, the material consumption of the body can be saved, and the overall quality is reduced.

Further, be equipped with the lightening hole on body and the connecting rod, the lightening hole is used for reducing the utility model discloses a weight because the welding is being connected between metal and the metal usually, involving welded company, the most is exactly the metal, so the utility model discloses all adopt metal material to make, the waste material in the production and processing of utilization, the weight of metal is generally heavier, especially the utility model discloses in, the event sets up the lightening hole and reduces the utility model discloses a weight promotes the convenience of practicality and operation.

Further, the lightening holes are round holes and/or kidney-shaped holes which are arranged conventionally, and can be independent or combined.

Further, be equipped with the diaphragm between laser pen and the body, be equipped with the lightening hole on the diaphragm, the diaphragm passes through the bolt fastening with body and fixture block, the laser pen sets up on the diaphragm central line, the diaphragm mainly promotes the precision of laser pen, because the laser pen sets up perpendicularly on the body, set up on the lateral wall of body in other words, and body thickness can not be greater than the length of laser pen, the laser pen directly sets up and can stretch out outside this body on the body, lead to the laser pen to rock easily like this, and can not guarantee the stability of whole device, it damages easily to stretch out this external laser pen, the event sets up the diaphragm and also is the protection laser pen simultaneously, prevent that the laser pen from touching with the external world and appearing damaging.

Further, round pin post quantity is four, and the round pin post is cylindrical structure, and every round pin post one end is equipped with the retaining ring, and the other end has chamfered angle or fillet, and the retaining ring prevents that the round pin post from directly stretching into in fixed orifices and pinhole, is difficult to extract, has chamfered angle and fillet to make things convenient for the round pin post to stretch into in fixed orifices and the pinhole, and the conventionality sets up, does not do too much repeated here.

The welding deformation adjusting method for the crane boom comprises the detection tool and specifically comprises the following steps:

firstly, horizontally placing a crane boom on the ground, and clamping a clamping block of a detection tool into the bottom of the crane boom;

aligning a fixing hole in the fixture block with a pin hole in the bottom of the crane boom, and fixing the detection tool with the crane boom by using a pin;

thirdly, switching on a power supply of the laser pen and turning on the laser pen to enable the light beam of the laser pen to irradiate the top of the auxiliary arm of the crane;

fourthly, applying 10 kilograms of force by hand to shake the detection tool, judging whether the middle point of the laser pen light beam shaking section is superposed with the middle point of the top of the crane boom, and if the laser pen light beam cannot shake, judging whether the laser pen light beam is superposed with the middle point of the top of the crane boom;

and fifthly, if the pin holes can not be overlapped, performing repair welding and polishing on the pin holes at the bottom of the crane boom in sequence, wherein the thickness of the repair welding and polishing is not more than 0.05 mm.

Specifically, the 10 kg force is slightly larger than the gravity of the detection tool, and the force for shaking the detection tool can be increased.

The utility model has the advantages that: the auxiliary crane boom welding device is simple in structure and ingenious in design, and high in detection precision by accurately measuring whether the auxiliary crane boom is deformed due to welding through the laser pen; the utility model has low manufacturing cost, is made of company waste, has light weight, easy taking and placing, convenient use and high detection efficiency; the method is simple to operate, has high detection precision, can be operated and judged whether the crane boom has welding deformation only by one person, and has short time consumption and high detection efficiency; after deformation is detected, the pin holes are finely adjusted skillfully, and the method for adjusting the deformation is simple and novel.

Drawings

FIG. 1 is a schematic view of the present invention;

FIG. 2 is a perspective view showing the structure of example 1;

FIG. 3 is a flow chart of the adjusting method of the present invention;

FIG. 4 is a perspective view showing the structure of example 2;

in the figure: the device comprises a crane boom, 11 pin holes, 2 a body, 21 a clamping block, 211 a fixing hole, 22 a laser pen, 3 a pin column, 31 a retaining ring, 4 a connecting rod, 5 a lightening hole and 6 a transverse plate.

Detailed Description

In the description of the present invention, it is to be understood that the terms "center", "upper", "lower", "front", "rear", "vertical", "horizontal", "top", "bottom", "inner", "outer", "axial", "radial", "circumferential", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; may be mechanically coupled, may be electrically coupled or may be in communication with each other; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

In the present application, unless expressly stated or limited otherwise, the first feature may be directly on or directly under the second feature or indirectly via intermediate members. Also, a first feature "over" a second feature may be directly or diagonally over the first feature or may simply mean that the first feature is at a higher level than the second feature. A first feature "under" a second feature may be that the first feature is directly under or obliquely under the second feature, or simply that the first feature is at a lesser elevation than the second feature.

In the description herein, references to the description of the terms "embodiment," "specific embodiment," "example" or "specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples and features of different embodiments or examples described in this specification can be combined and combined by one skilled in the art without contradiction.

Although embodiments of the present invention have been shown and described, it is understood that the above embodiments are exemplary and should not be construed as limiting the present invention, and that variations, modifications, substitutions and alterations can be made to the above embodiments by those of ordinary skill in the art without departing from the scope of the present invention.

Example 1

Referring to FIGS. 1 to 2: the welding deformation detection tool for the crane boom comprises a body 2 and a plurality of pins 3, wherein the number of the pins 3 is four, the pins 3 are of cylindrical structures, one end of each pin 3 is provided with a check ring 31, and the other end of each pin 3 is chamfered with an oblique angle or a round angle; the body 2 is two congruent rectangle flat boards, and body 2 both sides are stretched out perpendicularly and are had the fixture block 21 of symmetry, are equipped with fixed orifices 211 on the fixture block 21, and round pin post 3 sets up in fixed orifices 211, be equipped with laser pen 22 on the position of fixture block 21 symmetry axis, laser pen 22's light beam is parallel with fixture block 21's symmetry axis, and laser pen 22 is fixed to be set up on body 2, and the bolt fastening has connecting rod 4 between two bodies 2.

The positioning tolerance of the fixing holes 211 on one body 2 is not more than 0.03mm, and the positioning tolerance of the fixing holes 211, namely the coaxiality of the fixing holes 211, ensures that the two fixing holes 211 on one body 2 are on the same straight line, and the deviation is not more than 0.05 mm; the diameter of the fixing hole 211 is 40+0.02mm, and the diameter of the fixing hole 211 is equal to the diameter of the pin hole 11 on the boom 1; the thickness of the fixture block 21 is 30 mm-40 mm, the thickness of the fixture block 21 corresponds to the thickness of a clamping groove in the middle of the pin hole 11 of the crane arm 1, and the fixture block 21 can be clamped into the clamping groove; the length of the body 2 is 540 +/-0.03 mm, the length of the body 2 is equal to the interval of the pin holes 11, the length is the minimum length of the body 2, the material of the body 2 can be saved by adopting the minimum length, and meanwhile, the overall quality is reduced.

Be equipped with lightening hole 5 on body 2 and connecting rod 4, lightening hole 5 is round hole and/or waist type hole, and lightening hole 5 is used for reducing the utility model discloses a weight promotes the convenience of practicality and operation.

Referring to fig. 3, the welding deformation adjusting method for the crane boom comprises the detection tool and specifically comprises the following steps:

firstly, horizontally placing the crane boom 1 on the ground, and clamping a clamping block 21 of a detection tool into the bottom of the crane boom 1;

aligning a fixing hole 211 on the fixture block 21 with a pin hole 11 at the bottom of the crane boom 1, and fixing the detection tool with the crane boom 1 by using the pin 3;

thirdly, switching on the power supply of the laser pen 22 and switching on the laser pen 22 to enable the light beam of the laser pen 22 to irradiate the top of the auxiliary arm of the crane;

fourthly, applying 10 kilograms of force by hand to shake the detection tool, judging whether the middle point of the light beam shaking section of the laser pen 22 is superposed with the middle point of the top of the crane boom 1, and if the light beam of the laser pen 22 is not superposed with the middle point of the top of the crane boom 1;

and fifthly, if the crane boom can not be superposed, performing repair welding and polishing on the pin hole 11 at the bottom of the crane boom 1 in sequence, wherein the thickness of the repair welding and polishing is not more than 0.03 mm.

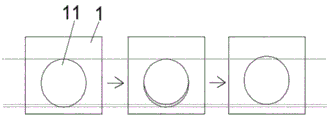

In fig. 3, the repair welding layer is the repair welding performed when the welding deformation of the boom 1 is detected, if the pin hole 11 needs to be finely adjusted upward, the repair welding needs to be performed below the pin hole 11, the repair welding is performed to a certain thickness, then the pin hole 11 is polished again, and the position where the pin hole 11 is finely adjusted is determined according to the deformation direction of the boom.

The utility model discloses a theory of operation: the utility model discloses the big or small position of fixed orifices 211 is confirmed according to the pinhole 11 size position that jib loading boom 1 set for, adopts the lathe processing of high accuracy to form, and measurement accuracy has obtained the assurance, and the position of laser pen 22 can be confirmed through the lathe, adopts laser pen 22 to measure, and its precision is high, and convenient to use is swift, is fit for being used for that this type of length of jib loading boom 1 is longer and the accuracy requirement is higher; the whole utility model does not adopt welding, welding deformation can not occur, and the precision can be ensured as well; the principle of detection is that the light beam passing through the laser pen 22 is a straight line, and if the light beam passing through the laser pen 22 is ensured to vertically pass through the middle points of the two ends of the crane boom 1, the crane boom 1 can be judged to meet the standard and not to be deformed; however, if the vertical passing through the middle point of the two ends cannot be guaranteed, the crane arm 1 is subjected to welding deformation, if the deformation is large, the whole crane arm needs to be repaired, because the crane arm 1 is connected to a crane through the pin hole 11, the welding deformation cannot be avoided, the repairing method can be used for finely adjusting the pin hole 11 on the crane arm 1, if the light beam of the laser pen 22 deviates to the right side of the middle point of the top end of the crane arm 1, it is proved that the pin hole 11 on the right side needs to be slightly adjusted to the left or the pin hole 11 on the left side needs to be adjusted to the left, and the hole adjusting method adopts the existing method to perform repair welding and grinding on the pin.

Example 2

Referring to fig. 4, the present embodiment is different from embodiment 1 in that: a transverse plate 6 is arranged between the laser pen 22 and the body 2, a lightening hole 5 is arranged on the transverse plate 6, the body 2 and the fixture block 21 are fixed through bolts, and the laser pen 22 is arranged on the central line of the transverse plate 6; because laser pen 22 sets up perpendicularly on body 2, be equivalent to the setting on the lateral wall of body 2, and body 2 thickness can not be greater than laser pen 22's length, laser pen 22 directly sets up and can stretch out outside body 2 on body 2, lead to laser pen 22 to rock easily like this, and can not guarantee the stability of whole device, stretch out the outer laser pen 22 of body 2 and damage easily, so set up diaphragm 6 and also protect laser pen 22 simultaneously, prevent that damage from appearing in laser pen 22 and the external contact.

Claims (9)

1. Jib loading boom welding deformation detects frock, including body (2) and a plurality of round pin post (3), its characterized in that: the body (2) is two congruent rectangle flat plates, and body (2) both sides are stretched out perpendicularly and are had fixture block (21) of symmetry, are equipped with fixed orifices (211) on fixture block (21), and round pin post (3) set up in fixed orifices (211), be equipped with laser pen (22) on the position of fixture block (21) symmetry axis, the light beam of laser pen (22) is parallel with the symmetry axis of fixture block (21), and laser pen (22) are fixed to be set up on body (2), and the bolt fastening has connecting rod (4) between two bodies (2).

2. The welding deformation detection tool for the crane arm according to claim 1, characterized in that: the positioning tolerance of the fixing hole (211) on the body (2) is not more than 0.03 mm.

3. The crane arm welding deformation detection tool of claim 2, characterized in that: the diameter of the fixing hole (211) is 40.

4. The crane arm welding deformation detection tool of claim 3, characterized in that: the thickness of the fixture block (21) is 30 mm-40 mm.

5. The crane arm welding deformation detection tool of claim 4, characterized in that: the length of the body (2) is 540 mm.

6. The crane arm welding deformation detection tool according to any one of claims 1 to 5, characterized in that: the body (2) and the connecting rod (4) are provided with lightening holes (5).

7. The crane arm welding deformation detection tool of claim 6, wherein: the lightening holes (5) are round holes and/or kidney-shaped holes.

8. The crane arm welding deformation detection tool according to any one of claims 1 to 5, characterized in that: a transverse plate (6) is arranged between the laser pen (22) and the body (2), lightening holes (5) are formed in the transverse plate (6), the body (2) and the clamping blocks (21) are fixed through bolts, and the laser pen (22) is arranged on the central line of the transverse plate (6).

9. The crane arm welding deformation detection tool according to any one of claims 1 to 5, characterized in that: the number of the pin columns (3) is four, the pin columns (3) are of cylindrical structures, one end of each pin column (3) is provided with a check ring (31), and the other end of each pin column is chamfered with a 45-degree oblique angle or a fillet.
