Abstract

The utility model discloses and belongs to the technical field of waste water treatment, in particular to a glass edging waste water treatment equipment, comprising a treatment box, support legs supported on the four corners of the bottom of the treatment box, a water inlet pipe connected to the right side of the top of the treatment box, and a plug connection At the water outlet pipe at the bottom center of the treatment box, the top left side of the treatment box is connected with an L-shaped connecting rod through bolts, and the upper right end of the L-shaped connecting rod is connected with a transmission motor through a motor seat. The bottom is connected with a rotating rod through a coupling, the bottom of the rotating rod is connected with a rotating plate through screws, the bottom of the rotating plate is evenly bonded with bristles through waterproof glue, and the left and right sides of the inner cavity of the processing box are provided with baffles, and the baffles are respectively connected with the front and rear inner walls of the treatment box by screws, and the tops of the baffles on the left and right sides are connected with a filter plate by screws. Maintenance is carried out, and the glass slag is convenient for centralized recovery.

Description

A glass edging wastewater treatment equipment

technical field

The utility model relates to the technical field of waste water treatment, in particular to a glass edging waste water treatment equipment.

Background technique

As a common device in daily life, glass is closely related to people's lives, so the processing effect of glass is particularly important. An important process in the processing of glass is edging the glass, and the glass after edging needs to be washed with water. The glass slag on the surface will produce waste water mixed with glass slag. If it is directly discharged, it will undoubtedly cause serious pollution to the environment. Therefore, a special waste water treatment equipment for glass edging is required for treatment.

However, the existing device has the problems that the filter plate is easily blocked by the glass slag, which requires frequent maintenance, and the glass slag is not convenient for centralized recovery.

Utility model content

The purpose of this utility model is to provide a glass edging wastewater treatment equipment, so as to solve the problem that the filter plate proposed in the above-mentioned background art is easily blocked by glass slag, which requires frequent maintenance, and the glass slag is not convenient for centralized recovery.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a glass edging wastewater treatment equipment, comprising a treatment box, support legs supported on the four corners of the bottom of the treatment box, a water inlet pipe plugged on the right side of the top of the treatment box, and a plug connection. At the water outlet pipe at the bottom center of the treatment box, the top left side of the treatment box is connected with an L-shaped connecting rod through bolts, and the upper right end of the L-shaped connecting rod is connected with a transmission motor through a motor seat. The bottom is connected with a rotating rod through a coupling, the bottom of the rotating rod is connected with a rotating plate through screws, the bottom of the rotating plate is evenly bonded with bristles through waterproof glue, and the left and right sides of the inner cavity of the processing box are provided with baffles, and the baffles are respectively connected with the inner walls of the front and rear sides of the processing box by screws, and the tops of the baffles on the left and right sides are connected with a filter plate by screws, and the top of the filter plate is in contact with the bottom of the bristles, the The left and right sides of the bottom of the treatment box are respectively provided with sewage discharge holes corresponding to the positions of the baffle plates, and sewage discharge valves are installed in the sewage discharge holes.

Preferably, the support legs are L-shaped support legs.

Preferably, the body of the rotating plate is evenly provided with filter holes.

Preferably, a water inlet valve is installed on the water inlet pipe.

Preferably, a bearing is installed at the connection between the rotating rod and the processing box.

Preferably, a screw hole is formed in the center of the bottom of the treatment box, a thread is engraved on the top of the outer wall of the water outlet pipe, and the top of the water outlet pipe is screwed into the screw hole.

Compared with the prior art, the beneficial effects of the present utility model are:

1) Drive the rotating plate to rotate through the transmission motor to drive the bristles to sweep continuously on the filter plate to prevent glass slag from blocking the filter plate, so that the device does not need frequent maintenance;

2) The glass slag is swept into the space between the baffle plate and the inner side wall of the treatment box by the bristles, and then after the sewage treatment is completed, the sewage valve is opened to collect the glass slag in a centralized manner;

3) The water outlet pipe is screwed to the bottom of the treatment box, which is more convenient when the water outlet pipe is blocked and needs to be disassembled and replaced.

Description of drawings

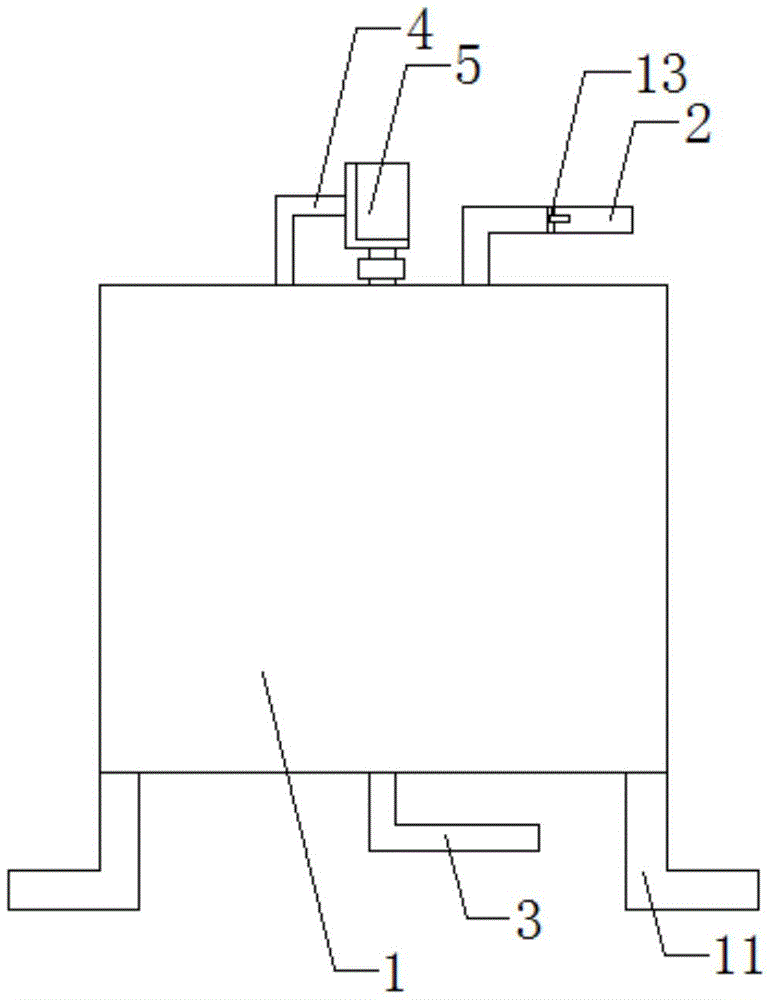

Fig. 1 is the structural representation of the utility model;

2 is a sectional view of the utility model;

FIG. 3 is an enlarged view of the connection between the rotating plate and the rotating rod of the present invention.

In the picture: 1 treatment box, 2 water inlet pipes, 3 water outlet pipes, 4 L-shaped connecting rods, 5 transmission motors, 6 rotating plates, 7 bristles, 8 baffle plates, 9 filter plates, 10 sewage valves, 11 support legs, 12 filter Hole, 13 water inlet valve, 14 bearing.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientation or positional relationship indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. is based on the drawings shown in the drawings. The orientation or positional relationship is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limit. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "provided with", "sleeve/connection", "connection", etc., should be understood in a broad sense, such as "Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be two elements Internal connectivity. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example:

1-3, the present utility model provides a technical solution: a glass edging waste water treatment equipment, comprising a treatment box 1, supporting legs 11 supported on the bottom four corners of the treatment box 1, plugged on the top right side of the treatment box 1 The water inlet pipe 2 on the side and the water outlet pipe 3 plugged into the bottom center of the treatment box 1, the support legs 11 support the stability of the whole device, the water inlet pipe 2 is responsible for introducing waste water into the treatment box 1, and the water outlet pipe 3 is responsible for discharging the treatment box 1 for treatment. after the wastewater.

The top left side of the processing box 1 is connected with an L-shaped connecting rod 4 through bolts, the upper right end of the L-shaped connecting rod 4 is connected with a transmission motor 5 through a motor seat, and the bottom of the transmission shaft of the transmission motor 5 is connected with a rotating rod through a coupling, The bottom of the rotating rod is connected with a rotating plate 6 by screws. The transmission motor 5 drives the rotating plate 6 to rotate through the rotating rod, thereby driving the bristles 7 to rotate to sweep off the glass slag on the filter plate 9. The bottom of the rotating plate 6 is evenly glued by waterproof glue. The bristles 7 are connected, and baffles 8 are provided on the left and right sides of the inner cavity of the processing box 1. The swept glass slag falls into the space between the baffle 8 and the inner side wall of the processing box 1 to be collected, and the baffles 8 are respectively connected to the processing box 1. The front and rear inner walls of the box 1 are connected by screws, and the tops of the left and right baffles 8 are connected with a filter plate 9 by screws, and the top of the filter plate 9 is in contact with the bottom of the bristles 7. The left and right sides of the bottom of the treatment box 1 are respectively There is a blowdown hole corresponding to the position of the baffle 8, and the blowdown valve 10 is opened. The glass slag in the space between the baffle 8 and the inner side wall of the treatment box 1 will be entrained by the residual waste water and collected through the blowdown hole. A blowdown valve 10 is installed.

Wherein, the support leg 11 is an L-shaped support leg, which makes the device more stable.

The body of the rotating plate 6 is evenly provided with filter holes 12 to reduce the resistance of the water when the rotating plate 6 rotates.

A water inlet valve 13 is installed on the water inlet pipe 2, which can flexibly control the water inlet condition.

A bearing 14 is installed at the connection between the rotating rod and the processing box 1, so that the rotation of the rotating rod is smoother.

The center of the bottom of the treatment box 1 is provided with a screw hole, the top of the outer wall of the water outlet pipe 3 is engraved with threads, and the top of the water outlet pipe 3 is screwed in the screw hole, which is more convenient to disassemble and replace the water outlet pipe 3 .

Working principle: connect the whole device to the external power supply, open the water inlet valve 13 so that the waste water continuously enters the treatment tank 1 through the water inlet pipe 2, and the waste water is flushed onto the filter plate 9 so that the mixed glass slag in the waste water is filtered out, and then passed through. The water outlet pipe 3 is discharged, and the transmission motor 5 is turned on at the same time. The transmission motor 5 drives the rotary plate 6 to rotate through the rotating rod, thereby driving the bristles 7 to rotate to sweep off the glass slag on the filter plate 9, and the swept glass slag falls into the baffles 8 and 8. The space between the inner side walls of the treatment box 1 is collected. When the waste water treatment is completed, the blowdown valve 10 is opened, and the glass slag in the space between the baffle 8 and the inner side wall of the treatment box 1 will be entrained by the residual waste water and fall through the blowdown hole. collected centrally.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. For those skilled in the art, it is obvious that the present invention is not limited to the details of the above-mentioned exemplary embodiments, and does not deviate from the present invention. The present invention can be realized in other specific forms without the spirit or basic characteristics of The scope of the present invention is defined by the appended claims rather than the above description, and therefore all changes that come within the meaning and scope of equivalency of the claims are intended to be embraced within the present invention, and any reference signs in the claims shall not be included deemed to limit the claims involved.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A glass edging wastewater treatment equipment, comprising a treatment box (1), support legs (11) supported at the bottom four corners of the treatment box (1), and a water inlet pipe (2) plugged into the top right side of the treatment box (1) ) and a water outlet pipe (3) inserted in the center of the bottom of the treatment box (1), characterized in that: the top left side of the treatment box (1) is connected with an L-shaped connecting rod (4) through bolts, and the L-shaped The upper right end of the connecting rod (4) is connected with a transmission motor (5) through a motor seat, the bottom of the transmission shaft of the transmission motor (5) is connected with a rotating rod through a coupling, and the bottom of the rotating rod is connected with a rotating rod through a screw. Plate (6), the bottom of the rotating plate (6) is evenly bonded with bristles (7) through waterproof glue, the left and right sides of the inner cavity of the processing box (1) are provided with baffles (8), and the baffles (8) are respectively connected with the front and rear inner walls of the processing box (1) by screws, and the tops of the baffle plates (8) on the left and right sides are connected by screws with a filter plate (9), and the filter plate (9) The top is in contact with the bottom of the bristles (7), the left and right sides of the bottom of the treatment box (1) are respectively provided with drain holes corresponding to the positions of the baffles (8), and drain valves (10) are installed in the drain holes. 2 . The glass edging wastewater treatment equipment according to claim 1 , wherein the supporting legs ( 11 ) are L-shaped supporting legs. 3 . 3 . The glass edging wastewater treatment equipment according to claim 1 , wherein filter holes ( 12 ) are evenly opened on the body of the rotating plate ( 6 ). 4 . 4 . The glass edging wastewater treatment equipment according to claim 1 , wherein a water inlet valve ( 13 ) is installed on the water inlet pipe ( 2 ). 5 . 5. The glass edging wastewater treatment equipment according to claim 1, wherein a bearing (14) is installed at the connection between the rotating rod and the treatment box (1). 6. The glass edging wastewater treatment equipment according to claim 1, wherein the bottom center of the treatment box (1) is provided with a screw hole, and the top of the outer wall of the water outlet pipe (3) is engraved with threads , the top of the water outlet pipe (3) is screwed in the screw hole.
