CN211235245U - A multifunctional fixture for sand and gravel detection - Google Patents

Abstract

The utility model belongs to the technical field of sand and gravel processing, in particular to a multi-functional jig for sand and gravel detection, comprising an installation table provided with a support, the inner side of the installation table is provided with four clamping plates, and the bottom of the installation table slides longitudinally There are U-shaped rods, connecting blocks are fixedly connected to the inner walls on both sides of the installation platform, two of the connecting blocks are respectively fixedly connected with two of the clamping plates, and the two ends of the U-shaped rod are respectively connected with the other two. The clamping plates are fixedly connected; through the rotation of the rotating rod, the human hand pushes the four laminating plates to fit the surface of the sand and gravel to increase the contact surface with the sand and gravel during clamping, and the alignment is completed by the setting of the limiting parts. The rapid positioning of the laminated board after rotation makes the laminated board unable to continue to rotate after fixing the sand and gravel, thus completing the fixation of the sand and gravel. This solution is more suitable for the sand and gravel with pits and depressions on the surface. While the fixation is stable, it can also reduce The shielding surface of the sand and gravel is more convenient to use when detecting the sand and gravel.

Description

A multifunctional fixture for sand and gravel detection

technical field

The utility model belongs to the technical field of sand and gravel processing, in particular to a multi-functional fixture for sand and gravel detection.

Background technique

Fixture refers to the device used to fix the processing object in the process of mechanical manufacturing, so that it occupies the correct position to accept construction or inspection, also known as fixture, in a broad sense, any process in the process is used to quickly, A device that can easily and safely install a workpiece can be called a fixture.

Now when the sand and gravel are detected and clamped, the surface of the sand and gravel is bumpy and uneven, and the existing vacuum suction method can not suck the sand and gravel well. Due to the irregularity of the sand and gravel, when the two-point clamping is performed, the contact surface with the sand and gravel is too small. When the hand touches the sand and gravel, it may cause the sand and gravel to rotate, and the fixing effect is poor, thus affecting the sand and gravel. It is easy to wear and dent the surface of the clamping block due to the tightness of the two-point clamping, and the multi-directional surrounding clamp will block the sand when clamping. It is inconvenient to carry out the sand and gravel inspection work.

Utility model content

In order to solve the problems raised in the above background art. The utility model provides a multifunctional clamp for sand and gravel detection, which has the characteristics of being fixed and stable.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a multi-functional jig for sand and gravel detection, comprising an installation platform provided with a support, the inner side of the installation platform is provided with four clamping plates, and the bottom of the installation platform is longitudinally arranged. A U-shaped rod is slid, and connecting blocks are fixedly connected to the inner walls on both sides of the installation platform, and two of the connecting blocks are respectively fixedly connected with two of the clamping plates. Each of the clamping plates is fixedly connected, the inner side of the clamping plate is rotatably connected with a rotating rod, and the rotating rod penetrates the clamping plate, the rotating rod is fixedly connected with a fitting plate, and one end of the rotating rod is connected There are several meshing teeth, one side of the clamping plate is provided with a limiting member, the limiting member includes a mounting block and a snap-on block, the snap-on block is slidably connected with the mounting block, and the snap-on block engage with the teeth.

Preferably, both ends of the U-shaped rod penetrate through the bottom wall of the installation platform, and the U-shaped rod is located below the connecting block.

Preferably, one side wall of the U-shaped rod is screwed and fixed with a screw rod, and one end of the screw rod is rotatably connected with a rotating block, and the rotating block is fixedly connected to the bottom of the installation platform.

Preferably, the bonding plate is fixedly connected with a bonding layer, the bonding layer is made of rubber material, and the cross-sectional shape of the bonding layer is an arc.

Preferably, a blowing pipe is fixedly connected to the upper end of the installation platform, and the blowing pipe is connected to an external fan.

Preferably, a spring is fixedly connected to the inner wall of the mounting block, and the other end of the spring is fixedly connected to the engaging block.

Compared with the prior art, the beneficial effect of the present utility model is: when the utility model is used, the sampled sand and gravel are placed on the two clamping plates fixed by the U-shaped rod and the two clamping plates fixed by the connecting block. Then push the U-shaped rod by turning the screw, so that the distance between the two clamping plates fixed at the upper end of the U-shaped rod and the two clamping plates fixed by the connecting block gradually decreases until the four clamping plates contact Go to the gravel for preliminary fixation, and then through the rotation of the rotating rod, the human hand pushes the four plywood to fit the surface of the gravel, and increases the contact surface with the gravel during clamping, which is completed by the setting of the limit parts. The quick positioning of the laminated board after rotation makes it impossible for the laminated board to continue to rotate after fixing the sand and gravel, thus completing the fixation of the sand and gravel. This solution is more suitable for the sand and gravel with pits and depressions on the surface. Reduce the blocking surface of the sand and gravel, so as to facilitate the detection and use of the sand and gravel.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

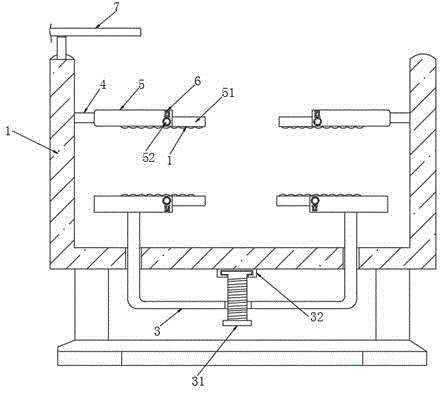

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the top sectional view of the clamping plate in the utility model;

Fig. 3 is the enlarged view of A part in Fig. 4;

4 is a schematic diagram of the use state of the present invention;

In the figure: 1, installation table; 2, support; 3, U-shaped rod; 31, screw rod; 32, rotating block; 4, connecting block; 5, clamping plate; 51, laminating plate; 511, laminating layer; 52, rotating rod; 521, teeth; 6, limit part; 601, spring; 61, installation block; 62, clamping block; 7, blowing pipe.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides the following technical solutions: a multi-functional jig for sand and gravel detection, comprising an installation table 1 provided with a support 2, the inner side of the installation table 1 is provided with four clamping plates 5, the installation table 1 A U-shaped rod 3 is slid longitudinally at the bottom of the mounting table 1, and connecting blocks 4 are fixedly connected to the inner walls on both sides of the mounting table 1. The two connecting blocks 4 are respectively fixedly connected with two clamping plates 5. The two clamping plates 5 are fixedly connected. The inner side of the clamping plate 5 is rotatably connected with a rotating rod 52, and the rotating rod 52 penetrates the clamping plate 5. One side of the clamping plate 5 is provided with a limit member 6 . The limit member 6 includes a mounting block 61 and an engaging block 62 . The engaging block 62 is slidably connected to the mounting block 61 , and the engaging block 62 is engaged with the engaging teeth 521 .

In this embodiment: the support 2 plays the role of supporting the installation table 1, and the sampled sand and gravel are placed on the two clamping plates 5 fixed by the U-shaped rod 3 and the two clamps fixed by the connecting block 4 during use. Between the holding plates 5, the U-shaped rod 3 is provided with a threaded groove, and the screw 31 rotates in the threaded groove opened by the U-shaped rod 3. By rotating the screw 31, the U-shaped rod 3 is between the screw groove and the threaded groove when the screw 31 rotates. The influence of the thread, move upward, so that the two clamping plates 5 fixed on the upper end of the U-shaped rod 3 move gradually to the position of the two clamping plates 5 fixed by the connecting block 4, and the distance gradually becomes smaller, until the sand and gravel touch the connecting block. 4. The two fixed clamping plates 5 have completed the preliminary limit fixing, and then the engaging blocks 62 in the four limiting parts 6 are respectively pressed to the inside of the mounting block 61 by the human hand, and the engaging blocks 62 are pressed by the human hand. At this time, the spring 601 will be elastically deformed. At this time, the several teeth 521 of the rotating rod 52 are no longer engaged with the engaging block 62, and the other hand can push the fitting plate 51, and the fitting plate 51 rotates together with the rotating rod 52. The clamping plate 5 is provided with a hole for the rotation of the rotating rod 52, so that the laminating plate 51 is in contact with the surface of the sand and stone. Move up, mesh with the teeth 521 again, complete the position limit of the rotating rod 52, and restrict the engaging block 62 by the inner wall of the mounting block 61, so that the rotating rod 52 cannot continue to rotate, and the fixing of the fitting plate 51 is completed. The bonding plate 51 is always attached to the surface of the sand and gravel to complete the fixation. When disassembling, it is only necessary to turn the screw 31 in the opposite direction, so that the U-shaped rod 3 is affected by the thread between the screw 31 and the threaded hole, and the U-shaped rod 3 is fixed. The distance between the two clamping plates 5 and the two fixed by the connecting block 4 is increased, and the sand and gravel can be disassembled without limiting the position. This solution is more suitable for the sand and gravel with pits and depressions on the surface. , while the fixation is stable, it can also reduce the blocking surface of the sand and gravel, which is more convenient for the detection and use of the sand and gravel.

In Figure 1: both ends of the U-shaped rod 3 penetrate through the bottom wall of the installation table 1, the U-shaped rod 3 is located below the connecting block 4, and a side wall of the U-shaped rod 3 is screwed and fixed with a screw 31, One end is rotatably connected with a rotating block 32, and the rotating block 32 is fixedly connected to the bottom of the installation platform 1. The U-shaped rod 3 is provided with a threaded groove, and the screw rod 31 rotates in the threaded groove opened by the U-shaped rod 3. The rod 3 moves upward due to the influence of the thread between the screw 31 and the thread groove when the screw 31 rotates, so that the positions of the two clamping plates 5 fixed at the upper end of the U-shaped rod 3 gradually move toward the two clamping plates 5 fixed by the connecting block 4. Move to achieve clamping and fixing of sand and gravel.

In Figure 2: the bonding plate 51 is fixedly connected with a bonding layer 511, the bonding layer 511 is made of rubber, and the elastic bonding layer 511 further increases the contact surface between the bonding board 51 and the surface of the sand and gravel, so that the sand and gravel are clamped It can be more stable when held fixed.

In Figure 3: a spring 601 is fixedly connected to the inner wall of the mounting block 61, and the other end of the spring 601 is fixedly connected to the engaging block 62; After the engaging block 62 is lowered in the retracted position, it is no longer engaged with the teeth 521, and the rotating rod 52 can be rotated, so that the bonding plate 51 is in contact with the sand and gravel.

In Figures 1 and 4: the upper end of the installation platform 1 is fixedly connected with a blowing pipe 7, and the blowing pipe 7 is connected with an external fan; At the same time of clamping, the dust remaining on the surface of the sand and gravel and the dust remaining on the surface of the mounting table 1 after clamping can also be cleaned, which is more conducive to the subsequent detection work.

The working principle and use process of the utility model: when in use, the sampled sand and gravel are placed between the two clamping plates 5 fixed by the U-shaped rod 3 and the two clamping plates 5 fixed by the connecting block 4. The threaded rod 3 is provided with a threaded groove, and the screw 31 rotates in the threaded groove opened by the U-shaped rod 3. By rotating the screw 31, the U-shaped rod 3 moves upward due to the influence of the thread between the screw 31 and the threaded groove during rotation. The two clamping plates 5 fixed on the upper end of the U-shaped rod 3 are moved gradually to the positions of the two clamping plates 5 fixed by the connecting block 4, and the distance gradually becomes smaller, until the sand and stone touch the two clamping plates fixed by the connecting block 4. Plate 5, complete the preliminary limit fixation, and then manually press the engaging blocks 62 in the four limiting components 6 to the inside of the mounting block 61, and the spring 601 will elastically deform when the engaging blocks 62 are pressed by the human hand. At this time, the several teeth 521 of the rotating rod 52 are no longer engaged with the engaging block 62, that is, the other hand can push the fitting plate 51, the fitting plate 51 rotates with the rotating rod 52, and the clamping plate 5 is provided with a Rotate the hole through which the rod 52 rotates, so that the bonding plate 51 is in contact with the surface of the gravel. After the contact, the human hand releases it and no longer presses the engaging block 62, so that the spring 601 rebounds and drives the engaging block 62 to move upward, and engages with the teeth 521 again. Intermeshing with each other, the limit of the rotating rod 52 is completed, and the inner wall of the mounting block 61 restricts the engaging block 62, so that the rotating rod 52 cannot continue to rotate, and the fixing of the lamination plate 51 is completed, so that the lamination plate 51 is always in contact with the sand. The surface of the stone is attached and the fixing is completed. When disassembling, it is only necessary to rotate the screw 31 in the opposite direction, so that the U-shaped rod 3 is affected by the thread between the screw 31 and the threaded hole. The distance between the two fixed connecting blocks 4 is increased, and the sand and gravel can be disassembled without limiting the position. This solution is more suitable for the sand and gravel with pits and depressions on the surface. It can reduce the blocking surface of sand and gravel, so as to facilitate the detection and use of sand and gravel.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (6)

1. A multifunctional jig for sand and gravel detection, comprising an installation table (1) provided with a support (2), characterized in that: the installation table (1) has four clamping plates (5) inside the installation table (1). A U-shaped rod (3) is longitudinally slid on the bottom of the mounting table (1), and connecting blocks (4) are fixedly connected to the inner walls of both sides of the mounting table (1), and the two connecting blocks (4) are respectively fixedly connected with Two of the clamping plates (5), the two ends of the U-shaped rod (3) are respectively fixedly connected with the other two clamping plates (5), and the inner sides of the clamping plates (5) are rotatably connected There is a rotating rod (52), and the rotating rod (52) penetrates through the clamping plate (5), the rotating rod (52) is fixedly connected with a fitting plate (51), and one end of the rotating rod (52) A plurality of teeth (521) are provided, and a limiting member (6) is provided on one side of the clamping plate (5), and the limiting member (6) includes a mounting block (61) and an engaging block (62), The engaging block (62) is slidably connected with the mounting block (61), and the engaging block (62) is engaged with the teeth (521). 2. The multi-functional fixture for sand and gravel detection according to claim 1, characterized in that: both ends of the U-shaped rod (3) penetrate through the bottom wall of the mounting table (1), and the U-shaped The rod (3) is located below the connecting block (4). 3. A multi-functional fixture for sand and gravel detection according to claim 1, characterized in that: a side wall of the U-shaped rod (3) is screwed and fixed with a screw (31), and the screw (31) is A rotating block (32) is rotatably connected to one end, and the rotating block (32) is fixedly connected to the bottom of the mounting table (1). 4 . The multi-functional jig for sand and gravel detection according to claim 1 , characterized in that: the bonding plate ( 51 ) is fixedly connected with a bonding layer ( 511 ), and the bonding layer ( 511 ) is made of rubber. 5 . . 5 . The multi-functional jig for sand and gravel detection according to claim 1 , wherein the upper end of the installation table ( 1 ) is fixedly connected with a blowing pipe (7), and the blowing pipe (7) is connected to an external fan. 6 . connect. 6 . The multi-functional jig for sand and gravel detection according to claim 1 , wherein a spring ( 601 ) is fixedly connected to the inner wall of the mounting block ( 61 ), and the other end of the spring ( 601 ) is connected to the The engaging block (62) is fixedly connected.
