An electric heating blast drying oven with dehumidification function

technical field

The utility model relates to the technical field of drying ovens, in particular to an electric heating blast drying oven with dehumidification function.

Background technique

With the continuous development of society and the continuous progress of science, drying ovens are one of the indispensable and important equipment in various research fields. The huge market demand makes the varieties of drying ovens diversified, and the structure and quality of products are also very different.

Most of the existing drying boxes are fixedly installed, and the instruments need to be placed in a horizontal state when in use. The operating conditions are relatively harsh, and most of the drying boxes have no water storage and drainage function inside. Most of the moisture in the inhaled air is discharged through the exhaust pipe. The discharge is not complete enough, so an electric heating blast drying box with dehumidification function is urgently needed to solve the above problems.

Utility model content

The purpose of this utility model is to provide an electric heating blast drying box with dehumidification function, so as to solve the problems that the above-mentioned background technology must be in a horizontal state and the drainage is incomplete.

In order to achieve the above purpose, the utility model provides the following technical solutions: an electric heating blast drying box with dehumidification function, comprising a drying box body and a motor, an air outlet is opened inside the drying box body, and the front side of the drying box body is provided. A box door is installed in the middle, and glass is inserted inside the box door, a handle is fixedly connected to the top of the right side of the box door, a sliding screw is fixedly connected to the bottom end of the drying box body, and the surface of the sliding screw is sleeved There is a nut, the bottom end of the sliding screw is fixedly connected to the limit block, and the surface of the limit block is covered with a chassis, the right surface of the drying box body is provided with a heat sink, and the inner bottom of the drying box body is A water outlet pipe is inserted at the end, and the surface of the water outlet pipe is sleeved with a first bevel gear, the top of the first bevel gear is fixedly connected with a fan blade, and the left surface of the first bevel gear is connected to the second bevel gear. The right side surface of the bevel gear meshes with each other, and the left side of the second bevel gear is fixedly connected with a connecting rod, the left side of the connecting rod is fixedly connected with a motor, and the top of the water outlet pipe is fixedly connected with a flowing water pipe, and the flowing water The surface of the pipe is covered with a condensed water wall, the inner top of the condensed water wall is fixedly connected with a water blocking plate, the inside of the drying box body is equipped with an electric heating pipe, and the inner back of the drying box body is equipped with a blower, And the bottom end of the blower is fixedly connected with an air inlet duct, the right bottom end of the air inlet duct is fixedly connected with an air inlet, the inside of the drying box body is provided with a chute, and the inside of the chute is inserted with a drying rack. , the top right side of the drying rack is covered with a pulley, and the bottom end of the right side of the drying box body is provided with a control table.

Preferably, the limiting block is a cylindrical structure, and the limiting block and the bottom frame form a sliding structure.

Preferably, the condensate wall has a circular structure, and the radius of the condensate wall is larger than the radius of the fan blade.

Preferably, the water blocking plate has a rectangular structure, and the width of the water blocking plate is larger than the width of the condensed water wall.

Preferably, the water outlet pipe has a cylindrical structure, and the interior of the water outlet pipe is hollow.

Preferably, the glass has a rectangular structure, and the length of the glass is greater than the length of the drying rack.

Compared with the prior art, the beneficial effect of the present utility model is: the electric heating blast drying box with dehumidification function is provided with a drying box body and a motor, when the device is placed, it is not in a horizontal plane, and the nuts in three directions are rotated to observe The horizontal bead adjusts the horizontal state of the device, which facilitates the use of the device, and can be used even on non-level ground. The condensed water droplets flow to the baffle plate through the condensed water wall, and the device is discharged through the outlet pipe to reduce the infiltration of water into the device. chance of damaging the device.

(1) The device is equipped with a drying box body and a motor. When the device is not placed on a horizontal plane, turn the nuts in three directions to observe the horizontal state of the horizontal bead adjustment device, which is convenient for the use of the device, even on non-level ground. use.

(2) The device flows the condensed water droplets to the water retaining plate through the condensed water wall, and through the water outlet pipe to remove the device, the inhaled water, the water is condensed in the device and directly eliminated, reducing the water infiltration into the device and damaging the device. probability.

Description of drawings

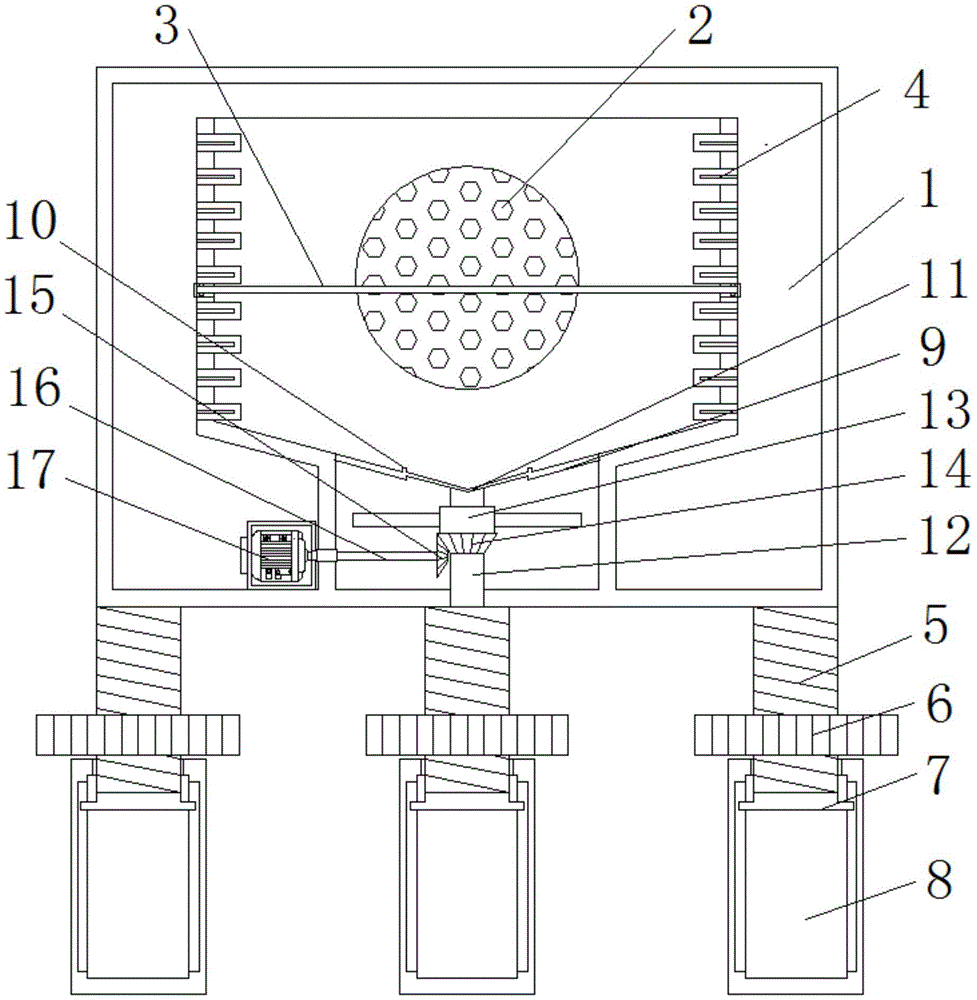

Fig. 1 is the structural front sectional schematic diagram of the present utility model;

Fig. 2 is the structural front view schematic diagram of the utility model;

3 is a schematic front view of the structure of the water baffle and the condensed water wall of the present invention;

4 is a schematic side view of the structure of the utility model;

Fig. 5 is the structural side sectional schematic diagram of the utility model;

6 is a schematic top-view cross-sectional view of the structure of the present invention;

FIG. 7 is a schematic top view of the structure of the horizontal bead and the drying box body of the present invention.

In the picture: 1. Drying box body; 2. Air outlet; 3. Drying rack; 4. Electric heating pipe; 5. Sliding screw; 6. Nut; 7. Limit block; 8. Bottom frame; 9. Condensate wall; 10. Water baffle; 11. Water pipe; 12. Water outlet pipe; 13. Fan blade; 14. First bevel gear; 15. Second bevel gear; 16. Connecting rod; 17. Motor; ; 19, handle; 20, glass; 21, box door; 22, pulley; 23, heat sink; 24, blower; 25, air inlet pipe; 26, air inlet; 27, chute; 28, horizontal bead.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-7, an embodiment provided by the present invention: an electric heating blast drying box with dehumidification function, comprising a drying box body 1 and a motor 17, and an air outlet 2 is opened inside the drying box body 1, A box door 21 is installed in the middle of the front of the drying box body 1, and a glass 20 is inserted inside the box door 21. The glass 20 is a rectangular structure, and the length of the glass 20 is greater than the length of the drying rack 3, and the state of the entire device can be observed. , the top right side of the box door 21 is fixedly connected with a handle 19, the bottom end of the drying box body 1 is fixedly connected with a sliding screw 5, and the surface of the sliding screw 5 is covered with a nut 6, and the bottom end of the sliding screw 5 is fixedly connected with a limit block 7, and the surface of the limit block 7 is covered with a bottom frame 8, the limit block 7 is a cylindrical structure, and the limit block 7 and the bottom frame 8 form a sliding structure, and the nut 6 is rotated, and the limit block 7 is in the bottom frame 8. The interior moves up and down to change the horizontal state of the device. The right surface of the drying box body 1 is provided with a heat sink 23, the inner bottom end of the drying box body 1 is inserted with a water outlet pipe 12, and the surface of the water outlet pipe 12 is sleeved with a first cone. The water outlet pipe 12 has a cylindrical structure, and the inside of the water outlet pipe 12 is hollow, and the water flows out of the device through the inside of the water outlet pipe 12 .

The top end of the first bevel gear 14 is fixedly connected with the fan blade 13 , the left side surface of the first bevel gear 14 meshes with the right side surface of the second bevel gear 15 , and the left side of the second bevel gear 15 is fixed A connecting rod 16 is connected, a motor 17 is fixedly connected to the left side of the connecting rod 16, a water pipe 11 is fixedly connected to the top of the water outlet pipe 12, and the surface of the water pipe 11 is covered with a condensed water wall 9, and the condensed water wall 9 is circular structure, and the radius of the condensate wall 9 is larger than the radius of the fan blade 13, the condensate wall 9 will not block the exhaust air from the fan blade 13, and the inner top of the condensate wall 9 is fixedly connected with a water baffle 10, and the water baffle 10 It is a rectangular structure, and the width of the water baffle 10 is larger than that of the condensed water wall 9. The water vapor condenses into water droplets on the surface of the condensed water wall 9 and is blocked by the water baffle 10. The interior of the drying box body 1 is equipped with an electric heater. Pipe 4, a blower 24 is installed on the inner back of the drying box body 1, and the bottom end of the blower 24 is fixedly connected with an air inlet duct 25, and the right bottom end of the air inlet duct 25 is fixedly connected with an air inlet 26, the drying box body 1 A chute 27 is opened inside the chute, and a drying rack 3 is inserted inside the chute 27. The top right side of the drying rack 3 is covered with a pulley 22. A horizontal ball 28 is installed on the top right side of the box body 1 .

Working principle: When in use, according to Figure 1, put the device on the ground, rotate the nut 6 in three directions, and rotate the nut 6 to move up and down on the surface of the air inlet duct 25, and the limit block 7 is changed under the nut 6. The inside of the bottom frame 8 slides up and down. According to FIG. 7, observe the horizontal beads 28 until the device is in a horizontal state. The box body 1, using the device, the drying rack 3 is dried inside the drying box body 1, and the inside of the device is observed through the glass 20.

According to Fig. 5, the outside air is sucked into the device by the blower 24, the electric heating pipe 4 heats the inside of the device, and the moisture in the outside air condenses into water droplets on the condensed water wall 9 in the device, slides down the surface of the condensed water wall 9, and is blocked by The water plate 10 is blocked, flows to the water pipe 11 through the gap, and flows along the water pipe 11 to the discharge device in the water outlet pipe 12. The motor 17 is connected to the connecting rod 16 to drive the second bevel gear 15 to rotate, and the second bevel gear 15 The first conical gear 14 and the fan blade 13 are driven to rotate, and the fan blade 13 rotates to discharge the air in the device, which drives the air flow in the device, so that the heating temperature of the electric heating tube 4 is more uniform.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. An electric heating blast drying box with dehumidification function, comprising a drying box body (1) and a motor (17), characterized in that: the inside of the drying box body (1) is provided with an air outlet (2), so The drying box body (1) is provided with a box door (21) in the middle of the front, and a glass (20) is inserted inside the box door (21), and a handle (20) is fixedly connected to the top right side of the box door (21). 19), the bottom end of the drying box body (1) is fixedly connected with a sliding screw (5), and the surface of the sliding screw (5) is covered with a nut (6), and the bottom end of the sliding screw (5) is fixedly connected A limiting block (7), and a bottom frame (8) is sleeved on the surface of the limiting block (7), a heat sink (23) is installed on the right side surface of the drying box body (1), and the drying box body The inner bottom end of (1) is provided with a water outlet pipe (12), and the surface of the water outlet pipe (12) is sleeved with a first bevel gear (14), and the top of the first bevel gear (14) is fixedly connected with a Fan blade (13), the left side surface of the first bevel gear (14) meshes with the right side surface of the second bevel gear (15), and the left side of the second bevel gear (15) is fixedly connected There is a connecting rod (16), the left side of the connecting rod (16) is fixedly connected with a motor (17), the top of the water outlet pipe (12) is fixedly connected with a water flow pipe (11), and the The surface is covered with a condensed water wall (9), the inner top of the condensed water wall (9) is fixedly connected with a water blocking plate (10), and the inside of the drying box body (1) is equipped with an electric heating pipe (4), A blower (24) is installed on the inner back of the drying box body (1), and an air inlet duct (25) is fixedly connected to the bottom end of the blower (24), and the bottom end on the right side of the air inlet duct (25) An air inlet (26) is fixedly connected, a chute (27) is opened inside the drying box body (1), and a drying rack (3) is inserted inside the chute (27), and the drying rack (3) ) is provided with a pulley (22) on the top right side of the drying box body (1), a control table (18) is installed on the bottom end of the right side of the drying box body (1), and a horizontal level is installed on the top right side of the drying box body (1). Beads (28). 2. An electric heating blast drying oven with dehumidification function according to claim 1, characterized in that: the limiting block (7) is a cylindrical structure, and the limiting block (7) is connected to the bottom frame (8). ) to form a sliding structure. 3. An electric heating blast drying oven with dehumidification function according to claim 1, characterized in that: the condensed water wall (9) is a circular structure, and the radius of the condensed water wall (9) is larger than that of the fan The size of the radius of the leaf (13). 4. An electric heating blast drying oven with dehumidification function according to claim 1, characterized in that: the water baffle (10) is a rectangular structure, and the width of the water baffle (10) is larger than that of condensed water The width of the wall (9). 5 . The electric heating blast drying oven with dehumidification function according to claim 1 , wherein the water outlet pipe ( 12 ) has a cylindrical structure, and the inside of the water outlet pipe ( 12 ) is hollow. 6 . 6. An electric heating blast drying oven with dehumidification function according to claim 1, characterized in that: the glass (20) is a rectangular structure, and the length of the glass (20) is greater than the length of the drying rack (3) .
