Abstract

The utility model relates to a square tube-core rock wool board, which comprises an outer rock wool board, an inner rock wool board and an elastic wave steel plate; an insulating material filling layer is arranged between the two inner rock wool boards, The two rock wool inner-layer boards are respectively provided with rock-wool outer-layer boards, and an elastic wave steel plate is arranged between the rock-wool outer-layer board and the rock-wool inner-layer board; A long-striped cavity is formed between the cotton outer layers, and a long sound-absorbing body with a wedge is arranged in the cavity; the edges of the rock wool outer plate, the rock wool inner layer and the elastic wave steel plate They are all covered by a square tube together to form an integrated board; the inner wall of the square tube is provided with an elastic support structure that makes the entire integrated board tightly sealed. The beneficial effects achieved by the utility model are: tight sealing, prevention of bacterial immersion, not easy to collapse, and excellent fire-proof, sound-absorbing and heat preservation.

Description

A square tube sandwich rock wool board

technical field

The utility model relates to the technical field of rock wool board structures used in clean rooms, in particular to a square tube-core rock wool board.

Background technique

Cotton board, also known as rock wool thermal insulation decorative board, is an inorganic fiber board made of basalt as the main raw material and processed by high temperature melting. It is a good thermal insulation, flame insulation and sound absorption material. However, the effect of simply using rock wool board is not ideal; therefore, some companies improve its performance by adding some thermal insulation and sound insulation materials.

But usually for different situations, the performance of a single aspect is improved, while the performance of other aspects is flawed. In particular, our company is mainly aimed at medical clean rooms, and it is very important to prevent the survival of bacteria, so we specially designed a square tube sandwich rock wool board, which is tightly sealed to prevent bacteria from infiltrating, and also has fire prevention, heat preservation, and noise reduction. The function of each performance has been comprehensively improved.

Utility model content

The purpose of the utility model is to overcome the shortcomings of the prior art, and to provide a square tube sandwich rock wool board that is tightly sealed, prevents bacteria from immersing, is not easy to collapse, and has excellent fireproof, sound-absorbing and heat-preserving properties.

The purpose of the utility model is achieved through the following technical solutions: a square tube sandwich rock wool board, including rock wool outer layer board, rock wool inner layer board and elastic wave steel plate;

A filling layer of insulating material is arranged between the two rock wool inner layer boards, and the two rock wool inner layer boards are respectively provided with a rock wool outer layer board, and a rock wool outer layer board is arranged between the rock wool inner layer board and the rock wool inner layer board. Elastic corrugated steel plate;

A long cavity is formed between the elastic wave steel plate, the inner rock wool board and the outer rock wool board, and a long sound absorbing body with a wedge is arranged in the cavity;

The edges of the rock wool outer layer board, the rock wool inner layer board and the elastic corrugated steel plate are all covered by a square tube to form an integrated board;

The inner wall of the square tube is provided with an elastic support structure that makes the whole integrated plate tightly sealed.

Further, the size of the rock wool inner layer board is equivalent to that of the insulating material filling layer, and the length and width of the rock wool outer layer board are larger than those of the rock wool inner layer board.

Further, the elastic support structure includes a plurality of springs and installation cylinders, and the installation cylinders are correspondingly fixed by glue at the edges of the opposite surfaces of the two rock wool outer layer boards;

The same spring is arranged in the two corresponding installation cylinders.

Further, a certain gap is formed between the edges of the two rock wool outer layers and the elastic support structure, and the gap is filled with vitrified microbeads.

Further, a gap is formed between the long sound absorbing body and the elastic corrugated steel plate, which is convenient for the long sound absorbing body to vibrate.

Preferably, filling foam is arranged between the rock wool inner layer plate and the rock wool outer layer plate at the circumferential edge of the elastic wave steel plate.

Further, the square tube is a half-side tube cut by a rectangular tube, and the gaps formed between adjacent square tubes are filled with resin.

(1) By setting up an elastic support structure, the square tube and the rock wool outer layer are tightly sealed to prevent bacteria from immersing;

(2) The insulation effect of the whole board is improved by setting the insulation material filling layer, the sound absorption effect of the whole board is improved by setting the long sound-absorbing body, and the whole board is prevented from collapsing by setting the elastic corrugated steel plate, and the elastic wave board and the long sound-absorbing body are connected. There is a gap between them, so the heat transfer is slow and the fireproof effect is improved; therefore, the overall board in this scheme has both beneficial effects of sound absorption, heat preservation and fire prevention.

Description of drawings

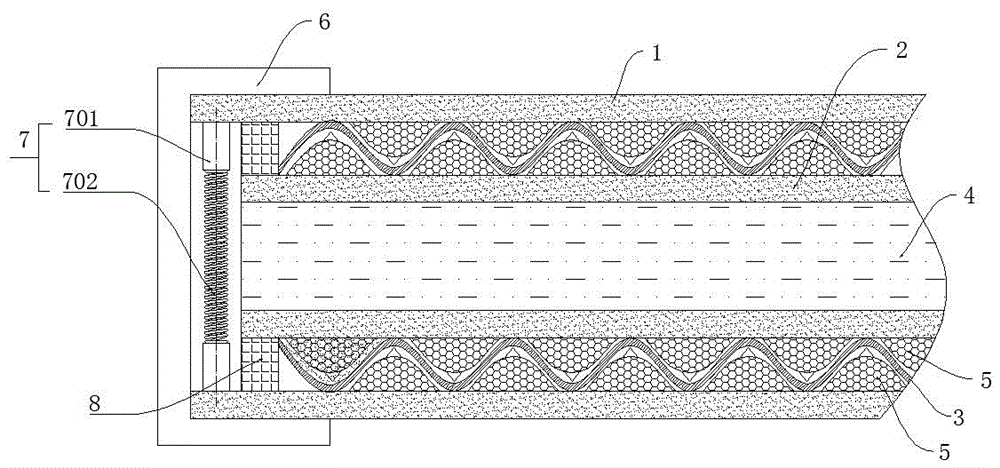

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a partial structural schematic diagram of the utility model;

Figure 3 is a schematic diagram of the structure of the square tube wrapping the integrated board;

In the picture: 1- rock wool outer board, 2- rock wool inner board, 3- elastic corrugated steel plate, 4- insulation material filling layer, 5- long sound absorbing body, 6- square tube, 7- elastic support structure, 701 - Spring, 702 - Mounting barrel.

Detailed ways

The present utility model will be further described below in conjunction with the accompanying drawings, but the protection scope of the present utility model is not limited to the following.

As shown in FIGS. 1 to 3 , a square tube sandwich rock wool board includes a rock wool outer layer board 1 , a rock wool inner layer board 2 and an elastic wave steel plate 3 .

As shown in Figure 2, in this solution, a thermal insulation material filling layer 4 is arranged between the two rock wool inner layer boards 2, and the two rock wool inner layer boards 2 are respectively provided with a rock wool outer layer board 1. An elastic wave steel plate 3 is arranged between the layer board 1 and the rock wool inner layer plate 2; a long cavity is formed between the elastic wave steel plate 3 and the rock wool inner layer plate 2 and the rock wool outer layer plate 1. A long sound-absorbing body 5 with a wedge is arranged in the cavity; the edges of the rock wool outer layer board 1 , the rock wool inner layer board 2 and the elastic wave steel plate 3 are all covered by the square tube 6 to form an integrated board.

In order to improve the sealing effect and prevent bacteria from infiltrating, in this solution, the inner wall of the square tube 6 is provided with an elastic support structure 7 that makes the entire integrated plate tightly sealed. Specifically, the size of the rock wool inner layer board 2 and the insulation material filling layer 4 are equivalent, and the length and width of the rock wool outer layer board 1 are larger than those of the rock wool inner layer board 2; An elastic support structure 7 is provided.

Specifically, the elastic support structure 7 includes a plurality of springs 701 and installation cylinders 702. The installation cylinders 702 are correspondingly fixed by glue at the edges of the opposite surfaces of the two rock wool outer layer boards 1; the two corresponding installation cylinders 702 are provided with the same root spring 701. In order to avoid cavities, a certain gap will be formed between the edges of the two rock wool outer layers 1 and the elastic support structure 7, so the gap is filled with vitrified microbeads (not shown in the figure).

In order to ensure the excellent sound absorption effect, a gap is formed between the long sound absorbing body 5 and the elastic wave steel plate 3 which is convenient for the long sound absorbing body 5 to vibrate.

In this embodiment, a filling foam 8 is provided between the rock wool inner layer plate 2 and the rock wool outer layer plate 1 at the circumferential edge of the elastic wave steel plate 3 .

In this embodiment, as shown in FIG. 3 , the square tube 6 is a half-side tube cut from a rectangular tube, and the gap formed between the adjacent square tubes 6 is filled with resin.

Claims (7)

1. The utility model provides a square pipe core rock wool board which characterized in that:

comprises a rock wool outer plate (1), a rock wool inner plate (2) and an elastic wave steel plate (3);

a heat-insulating material filling layer (4) is arranged between the two rock wool inner-layer plates (2), the two rock wool inner-layer plates (2) are respectively provided with a rock wool outer-layer plate (1), and an elastic wave steel plate (3) is arranged between the rock wool outer-layer plate (1) and the rock wool inner-layer plate (2);

strip-shaped cavities are formed among the elastic wave steel plates (3), the rock wool inner-layer plate (2) and the rock wool outer-layer plate (1), and strip-shaped sound absorbing bodies (5) with wedges are arranged in the cavities;

the edges of the rock wool outer plate (1), the rock wool inner plate (2) and the elastic wave steel plate (3) are all coated by the square tube (6) to form an integrated plate;

the inner wall of the square pipe (6) is provided with an elastic supporting structure (7) for tightly sealing the whole integrated plate.

2. The square tube sandwich rock wool board of claim 1, wherein: the size of the rock wool inner-layer plate (2) is equivalent to that of the heat-insulating material filling layer (4), and the length and width of the rock wool outer-layer plate (1) are larger than those of the rock wool inner-layer plate (2).

3. The square tube sandwich rock wool board of claim 2, wherein: the elastic supporting structure (7) comprises a plurality of springs (701) and mounting cylinders (702), and the mounting cylinders (702) are correspondingly fixed at the edges of the opposite surfaces of the two rock wool outer plates (1) through glue;

the same spring (701) is arranged in the two corresponding mounting cylinders (702).

4. The square tube sandwich rock wool board of claim 3, wherein: a certain gap is formed between the edge of the two rock wool outer plates (1) and the elastic supporting structure (7), and vitrified micro bubbles are filled in the gap.

5. The square tube sandwich rock wool panel according to claim 3 or 4, wherein: the strip sound absorbing body (5) and the elastic wave steel plate (3) form a gap which is convenient for the strip sound absorbing body (5) to vibrate.

6. The square tube sandwich rock wool board of claim 5, wherein: and filling foam (8) is arranged between the rock wool inner plate (2) and the rock wool outer plate (1) at the circumferential edge of the elastic wave steel plate (3).

7. The square tube sandwich rock wool board of claim 6, wherein: the square pipe (6) is a half-side pipe split by a rectangular pipe, and gaps formed between the adjacent square pipes (6) are filled with resin.
