Dustproof sweeper capable of being used for sweeping bumpy road surface
Technical Field
The utility model relates to a motor sweeper technical field specifically is a dustproof motor sweeper that can be used to jolt the road surface and clean.
Background
The sweeper is a novel efficient sweeping device integrating road surface sweeping, garbage recycling and transporting, and is a vehicle-type device suitable for all-dimensional sweeping work of roads such as factories, highways, parks, squares and the like. The novel vehicle type can complete the work of cleaning the ground, cleaning the curb of the road, sprinkling water to the ground after cleaning and the like at one time, and is suitable for cleaning operation of various climates and different dry pavements. The sweeper industry in China has been developed for decades, products are developed from a single pure sweeping type to various types, and the product performance and the product quality are rapidly improved. However, the level of the road sweeper in China is still a certain gap compared with that in foreign developed countries, particularly in the aspect of product reliability. In order to improve the level of the sweeper truck in China as soon as possible, reduce the difference with the level of the sweeper truck in advanced China and meet the requirements of environmental sanitation departments in China on road surface cleaning operation, a proper sweeper truck research direction is selected by sweeper truck production enterprises.
The existing sweeper is generally used on a straight road surface, the ground garbage is cleaned and collected through devices such as a cleaning device and a suction nozzle, the cleaning device of the existing equipment does not have the function of moving up and down and can only move in the horizontal direction, so that the garbage on the hollow road surface is difficult to be effectively cleaned when the hollow uneven road surface is met, in the garbage cleaning and collecting process, a large amount of dust is often generated, if the dust is not treated, the flying dust can fly into the machine, the machine is abraded and damaged, and more importantly, the dust can bring health damage to workers and pedestrians walking on the road. Therefore, the utility model provides a dustproof motor sweeper that can be used to jolt the road surface and clean.
Disclosure of Invention
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a can be used to jolt the dustproof motor sweeper that the road surface cleaned, possess and can use on the road surface of jolting, dirt-proof advantage has solved and can not use and produce the problem of dust on hollow road surface.
(II) technical scheme
In order to realize the above-mentioned road surface use of jolting, dirt-proof purpose, the utility model provides a following technical scheme: the utility model provides a dustproof motor sweeper that can be used to jolt road surface and clean, which comprises a carriage body, the inside swing joint of automobile body has the water tank, the right side swing joint of water tank has the water pump, the right side swing joint of water pump has the water pipe, the below swing joint of water pipe has the spray tube, the below swing joint of spray tube has the shower nozzle, the right side swing joint of spray tube has the negative pressure machine, the right side swing joint of negative pressure machine has the dustbin, the below swing joint of negative pressure machine has the suction nozzle, the bottom swing joint of automobile body has the wheel, the right side swing joint of wheel has the motor, the right side swing joint of motor has the cleaning roller, the top swing joint of cleaning roller has the telescopic link, the top swing joint of telescopic link has the spring, the top swing joint of spring has the bracing piece, the right side swing joint of motor has first transfer gear, the below swing joint of.
Preferably, the spray heads are provided with not less than five spray heads, and have the same shape, and the spray directions of the spray heads are directed to the surface of the cleaning roller.
Preferably, there are two motors and two cleaning rollers, and the rotation direction of the left motor is counterclockwise, and the rotation direction of the right motor is clockwise.
Preferably, the outer part of the spring is of a sealed design.
Preferably, the width of the cleaning roller is the same as the track between the wheels.
Preferably, the volume of the water tank is one kilolitre.
Preferably, the surface of the sweeping roller is covered with a broom-like brush.
(III) advantageous effects
Compared with the prior art, the utility model provides a can be used to jolt dustproof motor sweeper that road surface cleaned possesses following beneficial effect:
1. this dustproof motor sweeper that can be used to jolt road surface and clean uses through the cooperation between telescopic link, spring and bracing piece isotructure, has played the effect of going up and down, can be according to the height of the degree automatically regulated cleaning roller that the road surface undulates, has reached the purpose that the hole road surface was cleaned.
2. This dustproof motor sweeper that can be used to jolt road surface and clean uses through motor, belt and the cooperation between the roller isotructure of cleaning, and left side motor anticlockwise rotation, right side motor clockwise rotation drive and clean the roller and rotate in opposite directions, play and clean rubbish to two and clean between the roller, the effect of convenient collection.
3. This dustproof motor sweeper that can be used to jolt road surface and clean uses through the cooperation between structures such as water tank, water pump and shower nozzle, and the water pump is taken the water in the water tank out and both can play the washing and clean the roller and can play the effect of removing dust again through the shower nozzle blowout.
4. The dustproof sweeper capable of being used for sweeping bumpy road surfaces has the advantages that through the matched use of the structures such as the negative pressure machine, the dustbin and the suction nozzle, the negative pressure machine generates strong suction force, garbage below the suction nozzle is effectively sucked into the dustbin, and the purpose of clearing the garbage is achieved.
Drawings

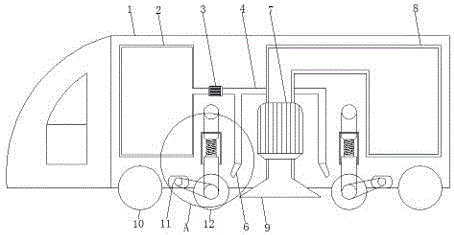

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a side view of the nozzle and the cleaning roller of the present invention;
FIG. 3 is an enlarged view of the structure A of FIG. 1 according to the present invention;
fig. 4 is a schematic view of the motor and the cleaning roller of the present invention.
In the figure: the cleaning device comprises a vehicle body 1, a water tank 2, a water pump 3, a water pipe 4, a spray pipe 5, a spray nozzle 6, a negative pressure machine 7, a garbage can 8, a suction nozzle 9, wheels 10, a motor 11, a cleaning roller 12, a telescopic rod 13, a spring 14, a support rod 15, a first transmission wheel 16, a second transmission wheel 17 and a belt 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, a dust-proof sweeper for sweeping bumpy road surface comprises a sweeper body 1, a water tank 2 is movably connected inside the sweeper body 1, the water tank 2 has a volume of one thousand liters and plays a role of filling water, a water pump 3 is movably connected to the right side of the water tank 2 and plays a role of pumping out water in the water tank 2, a water pipe 4 is movably connected to the right side of the water pump 3, a spray pipe 5 is movably connected to the lower portion of the water pipe 4, a spray head 6 is movably connected to the lower portion of the spray pipe 5, the spray head 6 is provided with at least five spray heads which are identical in shape and point to the surface of a cleaning roller 12 to play a role of cleaning the cleaning roller 12 and removing dust, a negative pressure machine 7 is movably connected to the right side of the spray pipe 5 and plays a role of generating negative pressure to suck garbage into a garbage can 8, a garbage can 8 is movably connected to the right side of the negative pressure, the bottom of the vehicle body 1 is movably connected with a wheel 10, the right side of the wheel 10 is movably connected with a motor 11, the right side of the motor 11 is movably connected with a cleaning roller 12, the number of the motor 11 and the cleaning roller 12 is two, the rotating direction of the motor 11 on the left side is anticlockwise, the rotating direction of the motor 11 on the right side is clockwise, the width of the cleaning roller 12 is the same as the wheel distance between the wheels 10, the surface of the cleaning roller 12 is covered with a brush similar to a broom, so as to clean the road surface, an expansion link 13 is movably connected above the cleaning roller 12, a spring 14 is movably connected above the expansion link 13, so as to adjust the height of the cleaning roller 12 according to the road surface, the outer part of the spring 14 is in a sealing design, a support rod 15 is movably connected above the spring 14, a first conveying wheel 16 is movably connected on the right side of the, a belt 18 is movably connected between the first transmission wheel 16 and the second transmission wheel 17.
The working principle is that the motor 11 is started, the left motor 11 rotates anticlockwise, the right motor 11 rotates clockwise to drive the cleaning rollers 12 to rotate oppositely, garbage is cleaned between the two cleaning rollers 12, the negative pressure machine 7 generates negative pressure to suck the garbage between the two cleaning rollers 12 into the garbage can 8, water is filled in the water tank 2, the water in the water tank 2 is pumped out by the water pump 3 and is sprayed to the surfaces of the cleaning rollers 12 through the spray heads 6, on one hand, the cleaning rollers 12 can be cleaned, on the other hand, the dust removal effect can be achieved, when a pothole uneven road surface is met, the telescopic rod 13 can move up and down, and due to the movable connection between the telescopic rod 13 and the spring 14, the telescopic rod 13 compresses or stretches the spring 14, so that the cleaning rollers 12 are driven to float up and down along with the road surface, and.
In summary, the following steps:
1. this dustproof motor sweeper that can be used to jolt road surface and clean uses through the cooperation between structures such as telescopic link 13, spring 14 and bracing piece 15, has played the effect of going up and down, can be according to the height of road surface undulation degree automatically regulated cleaning roller 12, has reached the purpose that the road surface of pothole cleans.
2. This dustproof motor sweeper that can be used to jolt road surface and clean uses through the cooperation between motor 11, belt 18 and the cleaning roller 12 isotructure, and 11 anticlockwise rotations of left side motor, 11 clockwise rotations of right side motor drive cleaning roller 12 and rotate in opposite directions, play and clean rubbish to two between the cleaning roller 12, the effect of convenient collection.
3. This dustproof motor sweeper that can be used to jolt road surface and clean uses through the cooperation between structures such as water tank 2, water pump 3 and shower nozzle 6, and water pump 3 takes out the water in the water tank 2 and through the effect that shower nozzle 6 blowout both can play washing cleaning roller 12 and can play the dust removal again.
4. According to the dustproof sweeper capable of being used for sweeping bumpy road surfaces, through the matching use of the structures such as the negative pressure machine 7, the garbage can 8 and the suction nozzle 9, the negative pressure machine 7 generates strong suction force, garbage below the suction nozzle 9 is effectively sucked into the garbage can 8, and the purpose of clearing the garbage is achieved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (7)

1. A dustproof motor sweeper that can be used to bump road surface and clean, includes automobile body (1), its characterized in that: the cleaning vehicle is characterized in that a water tank (2) is movably connected inside the vehicle body (1), a water pump (3) is movably connected on the right side of the water tank (2), a water pipe (4) is movably connected on the right side of the water pump (3), a spray pipe (5) is movably connected below the water pipe (4), a spray head (6) is movably connected below the spray pipe (5), a negative pressure machine (7) is movably connected on the right side of the spray pipe (5), a garbage can (8) is movably connected on the right side of the negative pressure machine (7), a suction nozzle (9) is movably connected below the negative pressure machine (7), a wheel (10) is movably connected at the bottom of the vehicle body (1), a motor (11) is movably connected on the right side of the wheel (10), a cleaning roller (12) is movably connected on the right side of the motor (11), a telescopic rod (13) is movably connected above, the upper part of the spring (14) is movably connected with a supporting rod (15), the right side of the motor (11) is movably connected with a first transmission wheel (16), the lower part of the first transmission wheel (16) is movably connected with a second transmission wheel (17), and a belt (18) is movably connected between the first transmission wheel (16) and the second transmission wheel (17).
2. A dust-proof sweeper truck for sweeping bumpy roads as claimed in claim 1, wherein: the spray heads (6) are not less than five and have the same shape, and the spraying directions of the spray heads point to the surface of the cleaning roller (12).
3. A dust-proof sweeper truck for sweeping bumpy roads as claimed in claim 1, wherein: the motor (11) and the cleaning roller (12) are both provided with two motors, the rotating direction of the motor (11) on the left side is anticlockwise, and the rotating direction of the motor (11) on the right side is clockwise.
4. A dust-proof sweeper truck for sweeping bumpy roads as claimed in claim 1, wherein: the spring (14) is of a sealed design on the outside.
5. A dust-proof sweeper truck for sweeping bumpy roads as claimed in claim 1, wherein: the width of the cleaning roller (12) is the same as the wheel track between the wheels (10).
6. A dust-proof sweeper truck for sweeping bumpy roads as claimed in claim 1, wherein: the volume of the water tank (2) is one kilolitre.
7. A dust-proof sweeper truck for sweeping bumpy roads as claimed in claim 1, wherein: the surface of the sweeping roller (12) is covered with a brush similar to a broom.
