Abstract

The utility model relates to the technical field of pillowcases, in particular to a novel multifunctional pillowcase. The detachable connection has an absorbent layer. The beneficial effects of the utility model are as follows: by setting the water absorption layer, the saliva is adsorbed, so that the saliva will not be immersed in the pillow core, nor will it be immersed in the pillow cover. At least to a certain extent, the difficulty of cleaning is reduced, and four drawstrings are arranged and formed into a ring shape, so that when the pillowcase is washed and dried, it is only necessary to use the hooks on the hanger in the prior art to hook two of the drawstrings. For drying, there is no need to use clips to clamp the pillowcase, so as to facilitate the drying of the pillowcase, and the middle of the zipper is set in an arc shape, so that after the zipper is opened, the opening area of the pillowcase will be larger, which is convenient for the pillow core to be inserted into the pillowcase.

Description

A new type of multifunctional pillowcase

technical field

The utility model relates to the technical field of pillowcases, in particular to a novel multifunctional pillowcase.

Background technique

Pillow is a commonly used bedding. The pillowcase is set on the outside of the pillow core, which is in direct contact with the head and neck where the human body has the densest nerves. Its touch directly affects people's sleep. The core function of the pillow is to provide people with the most comfortable sleeping position and to assist people to improve sleep quality.

Some people will drool during sleep. The saliva directly soaks into the pillow core through the pillowcase. Due to the complicated filling in the pillow core, it is inconvenient to clean, which leads to the growth of bacteria in the pillow core, which has certain hidden dangers to human health.

In view of this, the prior art Chinese Patent No. CN201720861605.9 discloses a multi-purpose pillowcase, comprising an upper pillowcase layer, a middle pillowcase layer, a lower pillowcase layer and a patch, characterized in that the upper layer of the pillowcase, the middle layer of the pillowcase, and the lower layer of the pillowcase have the same edge shape and size , the edges of the upper layer of the pillowcase, the middle layer of the pillowcase and the lower layer of the pillowcase are fixedly connected by sewing, a rectangular through hole is opened in the middle of the middle layer of the pillowcase, and a strip-shaped magic sticker is arranged around the rectangular through hole, and the magic sticker is arranged on the lower surface of the middle layer of the pillowcase The patch is a rectangular structure, and the size is adapted to the rectangular through hole opened in the middle of the pillowcase, and the upper surface of the patch is provided with a Velcro that is adapted to the strip Velcro provided around the rectangular through hole; the pillowcase The middle part of the lower layer is provided with a strip-shaped opening controlled by a zipper; the utility model designs the pillowcase into three layers, which effectively improves sleep quality, prevents saliva from contaminating the pillow core, reduces cleaning difficulty, and is waterproof, breathable, and anti-mite.

In the above-mentioned prior art, the saliva is adsorbed by arranging the composite layer structure in the pillow cover to reduce the saliva immersed in the pillow core. However, since the pillowcase has inner and outer layers, it is also inconvenient to clean, so the prior art still has room for improvement.

Utility model content

The purpose of this utility model is to overcome the problems existing in the prior art, and to provide a novel multifunctional pillowcase, which can solve the problems of the prior art at least to a certain extent.

In order to realize the above-mentioned technical purpose and achieve the above-mentioned technical effect, the utility model is realized through the following technical solutions:

A novel multifunctional pillowcase includes a pillowcase, four corners of the pillowcase are provided with drawstrings, the two ends of the drawstrings are connected to the pillowcase and the outer contour is roughly annular, and the front of the pillowcase is detachably connected with water absorbing Floor.

Further, both ends of the drawstring are sewn on the pillowcase.

Further, the water-absorbing layer is adhered to the pillowcase through Velcro.

Further, the water-absorbing layer is made of cotton yarn material.

Further, a zipper is arranged on the reverse side of the pillowcase, and the middle of the zipper is arranged in an arc shape.

Further, a plurality of massage protrusions are arrayed on the surface of the water-absorbing layer near one end in the width direction.

Further, the massage protrusions are made of magnets.

The beneficial effects of the utility model are as follows: by setting the water-absorbing layer, the saliva is adsorbed, so that the saliva will not be immersed in the pillow core, nor will it be immersed in the pillow cover. At least to a certain extent, the difficulty of cleaning is reduced, and four drawstrings are arranged and formed into a ring shape, so that when the pillowcase is washed and dried, it is only necessary to use the hooks on the hanger in the prior art to hook two of the drawstrings. For drying, there is no need to use clips to clamp the pillowcase, so as to facilitate the drying of the pillowcase, set the middle of the zipper into an arc, so that after the zipper is opened, the opening area of the pillowcase will be larger, which is convenient for the pillow core to be inserted into the pillowcase. The massage protrusions are easy to massage the human neck, improve the quality of sleep, and increase the sense of experience.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

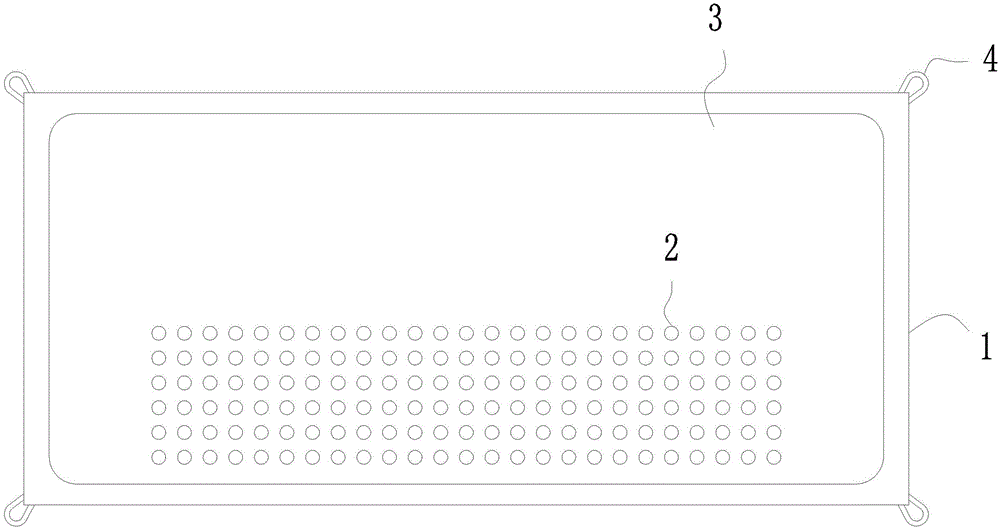

Fig. 1 is the front structure schematic diagram of the pillowcase in the utility model;

Fig. 2 is the reverse structure schematic diagram of the pillowcase in the utility model;

The reference numerals are explained as follows:

1-Pillowcase, 2-Massage bump, 3-Absorptive layer, 4-Pull strap, 5-Zipper.

Detailed ways

In order to make the technical means, creative features, goals and effects realized by the present utility model easy to understand, the following will clearly and completely describe the technical solutions in the embodiments of the present utility model with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-2. Fig. 1-2 shows a new type of multi-functional pillowcase, including a pillowcase 1. A zipper 5 is provided on the reverse side of the pillowcase 1. After the zipper 5 is opened, the inside of the pillowcase 1 can be opened, thereby enabling the The pillow core is stuffed into the pillowcase 1. At present, the zipper on the pillowcase 1 is basically in a straight line state, so when the pillow core is inserted, it is necessary to manually expand the mouth of the zipper 5 before the pillow core can be inserted into the pillowcase. It is convenient to increase the size of the mouth after the zipper is opened, and the middle of the zipper 5 is set in an arc shape, so that after the zipper 5 is opened, after the middle position is opened, the mouth of the zipper is enlarged, and at least to a certain extent, it is convenient to put the pillow The core is inserted into the pillowcase 1, and the four corners of the pillowcase 1 are sewn with drawstrings 4. The two ends of the drawstrings 4 are connected to the pillowcase 1 and the outer contour is roughly annular, so that when the pillowcase 1 is cleaned and dried, By directly hooking the hooks on the hanger in the prior art to the loop holes on two of the drawstrings 4, the pillowcase 1 can be hung on the hanger without using a clip to fix the pillowcase, which at least facilitates the drying of the pillowcase 1 to a certain extent. , the front of the pillowcase 1 is detachably connected with a water-absorbing layer 3 through Velcro, the water-absorbing layer 3 is made of cotton yarn material, and the cotton yarn material absorbs water better, and the water-absorbing layer 3 is close to one end of its width direction (basically corresponding to the human body). The surface array of the neck region) is provided with a plurality of massage protrusions 2, the massage protrusions 2 are made of magnets, and the massage function of the magnets has been disclosed in Chinese Patent No. CN201620170284.3, and will not be described here.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (7)

1. The utility model provides a novel multifunctional pillow case, includes pillowcase (1), its characterized in that, four corners of pillowcase (1) respectively are equipped with stretching strap (4), stretching strap (4) both ends are connected on pillowcase (1) and the outline roughly circularizes, pillowcase (1) can be dismantled on the front and be connected with layer (3) that absorb water.

2. A novel multifunctional pillow case as claimed in claim 1, characterised in that the drawstrings (4) are sewn at both ends to the pillow case (1).

3. The novel multifunctional pillow case as claimed in claim 1, wherein the water-absorbing layer (3) is adhered to the pillow case (1) by magic tape.

4. The novel multifunctional pillow case as claimed in claim 1, characterized in that the water-absorbing layer (3) is made of cotton yarn.

5. The novel multifunctional pillow case as claimed in claim 1, wherein a zipper (5) is arranged on the reverse side of the pillow case (1), and the middle part of the zipper (5) is arc-shaped.

6. The novel multifunctional pillow case as claimed in claim 1, wherein the water-absorbing layer (3) is provided with a plurality of massage protrusions (2) in an array manner near one end surface in the width direction.

7. A novel multifunctional pillow case as claimed in claim 6, characterized in that the massage protrusions (2) are made of magnet.
