CN211207513U

CN211207513U - English translation teaching auxiliary device

Info

Publication number: CN211207513U
Application number: CN201920146957.5U
Authority: CN
Inventors: 魏伟
Original assignee: Xingtai Polytechnic College
Current assignee: Xingtai Polytechnic College
Priority date: 2019-01-24
Filing date: 2019-01-24
Publication date: 2020-08-07
Anticipated expiration: 2029-01-24

Abstract

The utility model discloses an english translation teaching auxiliary device, the power distribution box comprises a box body, install the case lid on the box, be fixed with the tool to lock jointly on box and the case lid, the upper end of box is equipped with the standing groove, it is connected with the display screen to rotate jointly on the relative lateral wall in the standing groove, bottom both sides in the standing groove all are equipped with the spread groove, bottom in the spread groove is rotated and is connected with electric telescopic handle, electric telescopic handle's one end is rotated and is connected the lower extreme at the display screen, be equipped with the cavity in the box, bottom in the cavity is fixed with controller, battery and wireless connection module in proper order. The utility model discloses can the quick adjustment display screen angle, conveniently adapt to different users, prevent to use the cervical vertebra for a long time impaired, and can adjust the angle of adjusting the rotation clamp, conveniently place books, conveniently place the notebook through the movable plate, liberate user's both hands, be convenient for carry out the note, improve the study quality.

Description

English translation teaching auxiliary device

Technical Field

The utility model relates to an english teaching technical field especially relates to an english translation teaching auxiliary device.

Background

English is an important international language, in international trade, occupy important position in the international interchange, but the present teaching system of china makes a large amount of dumb english, a large amount of time can't reach due teaching effect, and the teacher of arbitrary lesson also can't carry out solitary training to solitary student, english translation is the very important link of our study english in-process, a lot of english syntaxes can be learnt to english translation's in-process, the student is in the classroom learning process, the efficiency and the effect of improvement study that need as far as possible, reach the purpose that deepens memory and improve teaching effect.

The inconvenient angle of adjusting the display screen of current english translation teaching auxiliary device causes the damage to the cervical vertebra easily in long-time, and need handheld books or data during the use, and inconvenient note has reduced the learning quality, and for this reason, we have provided an english translation teaching auxiliary device and have solved above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing an English translation teaching auxiliary device.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides an english translation teaching auxiliary device, includes the box, install the case lid on the box, be fixed with the tool to lock jointly on box and the case lid, the upper end of box is equipped with the standing groove, it is connected with the display screen to rotate jointly on the relative lateral wall in the standing groove, bottom both sides in the standing groove all are equipped with the spread groove, bottom in the spread groove is rotated and is connected with electric telescopic handle, electric telescopic handle's one end is rotated and is connected the lower extreme at the display screen, be equipped with the cavity in the box, bottom in the cavity is fixed with controller, battery and wireless connection module in proper order, one side of box is equipped with the recess, all be equipped with first spout on the relative lateral wall in the recess, all install the slider in the first spout, be fixed with the fixed plate jointly between two sliders, all be fixed with the connecting block on the relative lateral wall of two sliders, the one end of two connecting blocks is fixed with the connecting plate jointly, the upper end of connecting block is equipped with L type moving chute, be equipped with rotating device in the L type moving.

Preferably, the rotating device comprises two first moving blocks respectively arranged in the two L-shaped moving grooves, the upper ends of the first moving blocks are rotatably connected with connecting rods, the upper ends of the two connecting blocks are hinged with a rotating clamp together, and one end of each connecting rod is rotatably connected to the lower end of the corresponding rotating clamp.

Preferably, the adjusting device includes two second moving blocks respectively disposed in the two first moving grooves, the second moving block is provided with a blind threaded hole, a plurality of threaded through holes are equidistantly formed in a side wall of one end of the first moving groove, a threaded insert rod is disposed in one of the threaded through holes, one end of the threaded insert rod extends into the blind threaded hole, the bottom of the first moving groove is communicated with a side wall of one end of the L-type moving groove, and one side of the first moving block is fixed to one end of the second moving block.

Preferably, the opposite side walls of the two connecting blocks are provided with second sliding grooves, a moving plate is mounted in the two second sliding grooves, one end of the moving plate penetrates through the connecting plate and extends to one end of the connecting plate, and a second handle is fixed at one end of the moving plate.

Preferably, a first handle is fixed on both sides of one end of the connecting plate.

Preferably, a sponge cushion is fixed on one side of the box cover.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the display screen is conveniently driven to rotate through the matching between the electric telescopic rod and the display screen, the problem that most of the existing products are fixed and the angle is inconvenient to adjust is solved, the effect of quickly adjusting the angle of the display screen is achieved, and the display screen is convenient to adapt to different users;

2. the rotating clamp is conveniently driven to rotate through the matching among the rotating device, the adjusting device, the rotating clamp and the moving plate, the problem that books and notebooks are inconvenient to place in use is solved, the effect of adjusting the angle of the rotating clamp according to requirements is achieved, and the hands of a user are liberated; to sum up, this device can the quick adjustment display screen angle, and convenient the different users of adaptation prevent to use the cervical vertebra for a long time impaired, and can adjust the angle of adjusting the rotation clamp, conveniently places books, conveniently places the notebook through the movable plate, has liberated user's both hands, is convenient for carry out the note, improves the study quality.

Drawings

Fig. 1 is a schematic structural view of an english translation teaching aid according to the present invention;

fig. 2 is a schematic structural diagram of a box body of an english translation teaching aid provided by the utility model;

FIG. 3 is a schematic diagram of the internal structure of the case of the English translation teaching aid of the present invention;

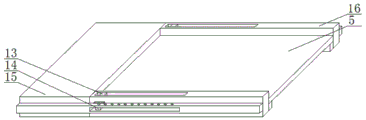

fig. 4 is a schematic structural view of a moving plate of the english translation teaching aid of the present invention;

fig. 5 is the utility model provides a connecting block inner structure schematic diagram of english translation teaching auxiliary device.

In the figure: the multifunctional electric cabinet comprises a cabinet cover 1, a sponge cushion 2, a lock 3, a rotating clamp 4, a moving plate 5, a first handle 6, a display screen 7, a cabinet 8, a connecting plate 9, a sliding block 10, an electric telescopic rod 11, a threaded inserted rod 12, a first moving block 13, a second moving block 14, a fixed plate 15, a connecting block 16, a connecting rod 17, a battery 18, a controller 19 and a wireless connecting module 20.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-5, an english translation teaching auxiliary device, including the box 8, install case lid 1 on the box 8, one side of case lid 1 is fixed with the foam-rubber cushion 2, be convenient for protect display screen 7, be fixed with tool to lock 3 jointly on box 8 and case lid 1, be convenient for protect display screen 7 when not using, the upper end of box 8 is equipped with the standing groove, it is connected with display screen 7 to rotate jointly on the relative lateral wall in the standing groove, bottom both sides in the standing groove all are equipped with the spread groove, bottom in the spread groove rotates and is connected with electric telescopic handle 11, one end of electric telescopic handle 11 rotates and connects the lower extreme at display screen 7, use and open tool to lock 3, then open case lid 1, drive display screen 7 through electric telescopic handle 11 and rotate, conveniently adjust the angle of display screen 7, conveniently adapt to different users, prevent that the cervical;

a cavity is arranged in a box body 8, a controller 19, a battery 18 and a wireless connection module 20 are sequentially fixed at the bottom in the cavity, the box body 8 is convenient to use in power failure and is convenient to be connected with other equipment through wireless, a groove is formed in one side of the box body 8, first sliding grooves are formed in opposite side walls in the groove, sliding blocks 10 are installed in the first sliding grooves, a fixing plate 15 is jointly fixed between the two sliding blocks 10, connecting blocks 16 are fixed on the two sliding blocks 10, second sliding grooves are formed in the opposite side walls of the two connecting blocks 16, a moving plate 5 is jointly installed in the two second sliding grooves, one end of the moving plate 5 penetrates through the connecting plate 9 and extends to one end of the connecting plate 9, a second handle is fixed at one end of the moving plate 5, the connecting plate 9 is convenient to move through the second handle, a connecting plate 9 is jointly fixed at one end of the two connecting blocks 16, a first handle 6 is fixed on two sides of one end of the connecting plate 9, the connecting plate 9 is convenient to move the connecting plate 9, an L-type moving groove is formed in the upper end of the connecting block 16, a rotating device is arranged in the L-type moving groove, a rotating device is convenient;

the utility model discloses in, rotating device is including setting up two first movable blocks 13 in two L type moving grooves respectively, and the upper end of first movable block 13 is rotated and is connected with connecting rod 17, and the common articulated rotation in upper end of two connecting blocks 16 presss from both sides 4, and the one end of connecting rod 17 is rotated and is connected the lower extreme that presss from both sides 4 in the rotation, removes first movable block 13, adjusts the angle that rotates and press from both sides 4 then to the convenience is placed book or data.

The utility model discloses in, adjusting device is including setting up two second movable blocks 14 at two first shifting chutes respectively, be equipped with the screw thread blind hole on the second movable block 14, equidistant a plurality of screw thread through-holes of being equipped with on the one end lateral wall in the first movable chute, be equipped with screw-in rod 12 in one of them screw thread through-hole, the one end of screw-in rod 12 extends to in the screw thread blind hole, bottom and the L type one end lateral wall in the shifting chute in the first movable chute link up the setting, and one side of first movable block 13 is fixed in the one end of second movable block 14, through screw-in rod 12, cooperation between screw thread through-hole and the screw thread blind hole, conveniently remove first movable block 13 and fix, be convenient for adjust the position of first movable block 13.

The utility model discloses in, during the use, tool to lock 3 is opened in the use, open case lid 1 then, drive display screen 7 through electric telescopic handle 11 and rotate, conveniently adjust the angle of display screen 7, conveniently adapt to different users, prevent to use the cervical vertebra for a long time impaired, 6 pulling connecting plates 9 through the first in command, thereby it removes to drive to rotate clamp 4, through screw inserted bar 12, cooperation between screw through-hole and the screw blind hole, conveniently adjust the position of first movable block 13, and then adjust the angle that rotates clamp 4, thereby conveniently place book or data, a hand of user has been liberated, stimulate movable plate 5 through the second in command, make movable plate 5 shift out, conveniently place the notebook, be convenient for take notes, improve the learning quality.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an english translation teaching auxiliary device, includes box (8), its characterized in that install case lid (1) on box (8), be fixed with tool to lock (3) jointly on box (8) and case lid (1), the upper end of box (8) is equipped with the standing groove, it is connected with display screen (7) to rotate jointly on the relative lateral wall in the standing groove, bottom both sides in the standing groove all are equipped with the spread groove, bottom in the spread groove is rotated and is connected with electric telescopic handle (11), the one end of electric telescopic handle (11) is rotated and is connected the lower extreme at display screen (7), be equipped with the cavity in box (8), bottom in the cavity is fixed with controller (19), battery (18) and wireless connection module (20) in proper order, one side of box (8) is equipped with the recess, all be equipped with first spout on the relative lateral wall in the recess, all install slider (10) in the first spout, be fixed with fixed plate (15) jointly between two sliders (10), all be fixed with connecting block (16) on the relative lateral wall of two sliders (10), the one end fixed with connecting block (16) and be equipped with connecting plate (9) jointly in 3583) the removal device, the removal groove (83), the first removal type device is equipped with the first removal groove (83).

2. The English translation teaching aid according to claim 1, wherein the rotating device comprises two first moving blocks (13) respectively arranged in two L-type moving grooves, the upper ends of the first moving blocks (13) are rotatably connected with connecting rods (17), the upper ends of the two connecting blocks (16) are hinged together with a rotating clamp (4), and one end of each connecting rod (17) is rotatably connected with the lower end of the rotating clamp (4).

3. The English translation teaching aid according to claim 1, wherein the adjusting device comprises two second moving blocks (14) respectively disposed in two first moving grooves, the second moving blocks (14) are provided with blind threaded holes, a plurality of through threaded holes are equidistantly formed in one side wall of the first moving groove, a threaded insert rod (12) is disposed in one through threaded hole, one end of the threaded insert rod (12) extends into the blind threaded hole, the bottom of the first moving groove is communicated with one side wall of the L type moving groove, and one side of the first moving block (13) is fixed to one end of the second moving block (14).

4. The English translation teaching aid according to claim 1, wherein the two connecting blocks (16) are provided with second sliding grooves on opposite side walls, the two second sliding grooves are provided with a moving plate (5) in common, one end of the moving plate (5) penetrates through the connecting plate (9) and extends to one end of the connecting plate (9), and a second handle is fixed at one end of the moving plate (5).

5. An English translation teaching aid according to claim 2, wherein a first handle (6) is fixed to each side of one end of the connecting plate (9).

6. An English translation teaching aid according to claim 1, characterized in that a sponge pad (2) is fixed to one side of the case cover (1).
