Abstract
The utility model discloses a guardrail tube lamp, which comprises an aluminum product lamp strip seat, an integrated full waterproof lamp strip and a PC lamp shade, wherein the end surface of the aluminum product lamp strip seat is integrally provided with an extrusion fixed lamp strip corresponding to the two sides of the lamp strip, and the integrated full waterproof lamp strip is fixedly clamped between the extrusion fixed lamp strips; the both sides of aluminum product lamp strip seat terminal surface are provided with the buckle, the installation end of PC lamp shade is provided with the screens to through screens and buckle inside fixed clamping. The guardrail tube lamp has the advantages of keeping the color temperature of the lamp in balance when the lamp is used, simplifying the production of the lamp, enhancing the waterproofness of the lamp, and solving the problems of unbalanced color temperature and complex production process of the existing outdoor lamp.
Description
Technical Field
The utility model relates to the technical field of lamps and lanterns, specifically be a guardrail tube lamp.
Background
The outdoor lamp is used outdoors, the lamp beads and other light-emitting structures are arranged inside the lamp section, the lamp with the structure is unbalanced in light-emitting color temperature during use, the existing process of assembling the lamp is complex, and the waterproofness is to be improved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a guardrail tube lamps and lanterns has the equilibrium that keeps the colour temperature when lamps and lanterns use, to lamps and lanterns production simplification, strengthens lamps and lanterns waterproof nature's advantage, has solved current outdoor lamps and lanterns colour temperature unbalance to and the complicated problem of production procedure.
In order to achieve the above object, the utility model provides a following technical scheme: a guardrail tube lamp comprises an aluminum product lamp strip seat, an integrated full waterproof lamp strip and a PC lampshade, wherein the end face of the aluminum product lamp strip seat is integrally provided with an extruded fixed lamp strip corresponding to two sides of the integrated full waterproof lamp strip, and the integrated full waterproof lamp strip is fixedly clamped between the extruded fixed lamp strips;
the both sides of aluminum product lamp strip seat terminal surface are provided with the buckle, the installation end of PC lamp shade is provided with the screens to through screens and buckle inside fixed clamping.
Furthermore, the installation end of the aluminum product light bar base is provided with an aluminum product hanging plate, and a quick-locking screw hole is formed corresponding to the aluminum product hanging plate.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses the terminal surface of aluminum product lamp strip seat extrudes through the extrusion fixed lamp strip and fixes clamping to integrative full waterproof lamp area, pass aluminum product lamp strip seat extrusion through the extrusion fixed lamp strip to integrative full waterproof lamp area and fix at the specific position of aluminum product lamp strip seat terminal surface, make integrative full waterproof lamp area can not influence the actual use of this device because of removing to fall down, integrative full waterproof lamp area is fixed in the extrusion fixed lamp strip and makes integrative full waterproof lamp area can move about again when fixed, make this device more convenient to use, integrative full waterproof lamp area card dress is after extrusion fixed lamp strip inside, PC lamp shade is fixed through the buckle of screens and aluminum product lamp strip seat terminal surface and clamps, improve the convenience of this device equipment; the light is generated through the operation of the integrated full-waterproof lamp strip inside the aluminum material lamp strip seat, and the balance of the color temperature of the light is improved when the device is used.
Drawings

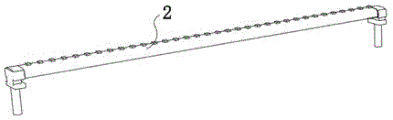

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of an assembly drawing structure of the present invention;
FIG. 3 is a schematic view of the structure of the lampshade of the present invention;
FIG. 4 is a schematic structural view of the integrated fully waterproof lampshade of the present invention after installation;
fig. 5 is a schematic view of the integrated waterproof lamp strip structure of the present invention.
In the figure: an aluminum material lamp strip holder 1; an integrated fully waterproof lamp strip 2; a PC lampshade 3; pressing and fixing the lamp strip 4; a buckle 5; a clamping position 6; an aluminum hanging plate 7; a quick lock screw hole 8.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, a guardrail tube lamp comprises an aluminum strip holder 1, an integrated fully waterproof lamp strip 2 and a PC lampshade 3, wherein the integrated fully waterproof lamp strip 2 is arranged in a waterproof lamp strip structure, the integrated fully waterproof lamp strip 2 has waterproofness, and the waterproofness of the device is improved when the device is used, the extrusion fixing lamp strip 4 is integrally arranged on the end surface of the aluminum strip holder 1 corresponding to two sides of the integrated fully waterproof lamp strip 2, and the integrated fully waterproof lamp strip 2 is fixedly clamped between the extrusion fixing lamp strip 4;
the both sides of 1 terminal surface of aluminum product lamp strip seat are provided with buckle 5, the installation end of PC lamp shade 3 is provided with screens 6 to through screens 6 and 5 inside fixed clamps of buckle.
Specifically, the installation end of the aluminum product light bar seat 1 is provided with an aluminum product hanging plate 7, and a quick-locking screw hole 8 is formed corresponding to the aluminum product hanging plate 7. The aluminum product lamp strip seat 1 and the mounting platform are fixedly mounted through the aluminum product hanging plate 7, and the aluminum product hanging plate 7 and the aluminum product lamp strip seat 1 are fixed through the screw which is screwed into the quick-locking screw hole 8.
When the device is used, the integrated full-waterproof lamp strip 2 is extruded and fixed at a specific position of the end face of the aluminum lamp strip seat 1 by the extruding and fixing lamp strip 4, so that the integrated full-waterproof lamp strip 2 cannot be moved and dropped to influence the actual use of the device, the integrated full-waterproof lamp strip 2 is fixed in the extruding and fixing lamp strip 4, so that the integrated full-waterproof lamp strip 2 can move back and forth while being fixed, the device is more convenient to use, after the integrated full-waterproof lamp strip 2 is clamped in the extruding and fixing lamp strip 4, the PC lampshade 3 is fixedly clamped with the buckle 5 on the end face of the aluminum lamp strip seat 1 through the clamping position 6, and the convenience of assembling the device is improved; light is produced through the operation of integrative full waterproof lamp area 2 inside 1 aluminum product lamp strip seats, the equilibrium of light colour temperature when improving this device and using.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (2)
1. The utility model provides a guardrail tube lamps and lanterns, includes aluminum product lamp strip seat (1), integrative full waterproof lamp area (2) and PC lamp shade (3), its characterized in that: the end face of the aluminum material lamp strip seat (1) corresponds to two sides of the integrated full waterproof lamp strip (2) and is integrally provided with an extruded fixed lamp strip (4), and the integrated full waterproof lamp strip (2) is fixedly clamped between the extruded fixed lamp strip (4);
the aluminum product lamp strip seat is characterized in that buckles (5) are arranged on two sides of the end face of the aluminum product lamp strip seat (1), clamping positions (6) are arranged at the mounting end of the PC lamp shade (3), and the clamping positions (6) and the buckles (5) are fixedly clamped.
2. The guardrail tube light of claim 1, wherein: the aluminum product light bar seat is characterized in that an aluminum product hanging plate (7) is arranged at the mounting end of the aluminum product light bar seat (1), and a quick-locking screw hole (8) is formed in the aluminum product hanging plate (7).
