Abstract

The utility model relates to a novel wall lamp, comprising: a base, a connecting protrusion block, a curved frame, a bare copper fishing net wire, a wire lock, an upper lampshade, a light-transmitting casing, an LED post lamp and a line post; the connecting protrusion the curved frame is connected to the connection protrusion block; the bare copper fishing net wire is arranged in the curved frame; one end of the bare copper fishing net wire is connected to the wire lock, and one end is connected to the wire lock The connecting protrusion block; the beneficial effects of the utility model: the double-ended wall lamp can provide more light sources on the basis of one base; the lifting and lowering of the light source can be realized by the bare copper fishing net wire, so that the two lamp bodies can be at different heights , freely adjustable, convenient and fast, and can also illuminate most of the walls, reducing the number of lamp installations and maintaining the cleanliness of the wall; the bare copper fishing net wire can also be used as a practical wire, reducing the use of wires, making the lamp body more concise.

Description

A new type of wall lamp

technical field

The utility model relates to the field of lighting equipment, in particular to a novel wall lamp.

Background technique

Wall lamps are lamps installed on the wall for auxiliary lighting. Wall lamps are mostly installed on balconies, stairs, corridors and bedrooms, and are suitable for long-term lighting; color-changing wall lamps are mostly used in festivals and festive occasions; bedside wall lamps are mostly installed. On the upper left of the bedside, the lamp head can be rotated in all directions, and the light beam is concentrated, which is easy to read; the wall lamp in front of the mirror is mostly decorated and used near the mirror in the bathroom. Downlights are used for direct light distribution to illuminate a large area of space; now there is a hollow area between the wall light and the downlight on the market. The brightness of the downlight is too bright, which is easy to irritate people's eyes. The wall light of a single light source is insufficient and has auxiliary lighting. function, cannot illuminate the entire area.

Therefore, how to provide a new type of wall lamp with simple appearance, reasonable structure and sufficient brightness is the research purpose of the present invention.

To sum up, the present utility model proposes technical solutions for further research and development and design of product structures in the same technical field on the basis of the existing known technology and combined with the verification of practical applications. Solving the problems existing in the prior art is also conducive to solving many technical problems in the same technical field and improving the expansibility of technical solutions.

SUMMARY OF THE INVENTION

In view of the deficiencies of the prior art, the utility model provides a new type of wall lamp. By arranging two light sources on the same base, the brightness of the wall lamp is improved; Cloth at different heights to increase the illumination range of wall lamps.

To achieve the above object, the utility model adopts the following technical solutions:

A new type of wall lamp, comprising: a base, a connecting protrusion, a curved frame, a bare copper fishing net wire, a wire lock, an upper lampshade, a light-transmitting shell, an LED post lamp, and a line post; the connecting protrusion is connected to the a base; the curved frame is connected to the connecting protrusion block; the bare copper fishing net wire is arranged in the curved frame; one end of the bare copper fishing net wire is connected to the wire lock, and one end is connected to the connecting protrusion The wire locking device is connected to the upper lampshade; the wire post is connected to the upper lampshade; the wire post is connected to the LED post lamp; the upper lampshade is connected to the light-transmitting housing.

Further, the shape of the base is a cylinder; the base has a built-in power controller; and the base is fixed on the wall through a hanging plate.

Further, the inside of the curved frame is provided with an insulator sheet, and the inside of the curved frame is equally divided into two parts along the shape of the curved frame.

Further, the wire locking device has a button, when the button is pressed, the locking device does not clamp the bare copper fishing net wire, and the bare copper fishing net wire can slide up and down freely; when the button is not pressed, all the The wire locking device clamps the bare copper fishing net wire, and the bare copper fishing net wire cannot be displaced.

Further, a machine screw is used for fixing between the connecting protruding block and the curved frame.

The beneficial effects of the utility model are as follows: the double-headed wall lamp can provide more light sources on the basis of one base; the lifting and lowering of the light source is realized by the bare copper fishing net wire, so that the two lamp bodies can be at different heights, which can be adjusted freely, which is convenient and quick, It can also illuminate most of the walls, reducing the number of lamps installed and maintaining the cleanliness of the walls; the bare copper fishing net wire can also be used as a wire for practical use, reducing the use of wires and making the lamp body more concise.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that are used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

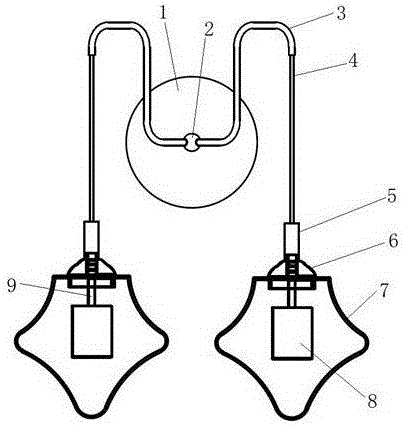

Fig. 1 is the front view of the utility model;

Fig. 2 is the side view of the utility model;

FIG. 3 is a top view of the utility model.

Among them: base 1, connecting bump 2, curved frame 3, bare copper fishing net wire 4, wire lock 5, upper lampshade 6, light-transmitting casing 7, LED post lamp 8, wire post 9.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all the embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1 to 3, a new type of wall lamp includes: a base 1, a connecting bulge 2, a curved frame 3, a bare copper fishing net wire 4, a wire lock 5, an upper lampshade 6, a light-transmitting casing 7, LED column lamp 8, line column 9; connecting raised block 2 is connected to base 1; curved frame 3 is connected to connecting raised block 2; bare copper fishing net wire 4 is arranged in curved frame 3; one end of bare copper fishing net wire 4 is connected to the lock One end of the wire device 5 is connected to the connecting protrusion block 2; the wire locking device 5 is connected to the lampshade 6;

The shape of the base 1 is a cylinder; the base 1 has a built-in power controller; the base 1 is fixed on the wall through a hanging plate. The base 1 is mainly used to support the lamp body and accommodate the power controller. The stainless steel material is used to reduce the pulling force on the wall, and it is flat and durable.

The inside of the curved frame 3 has an insulator sheet, and the inside of the curved frame 3 is equally divided into two parts along the shape of the curved frame 3 . When the bare copper fishing net wire 4 is placed inside the curved frame 3 , the insulator sheet will separate the two bare copper fishing net wires 4 of the curved frame 3 .

The thread locker 5 has a button. When the button is pressed, the thread locker 5 does not clamp the bare copper fishing net wire 4, and the bare copper fishing net wire 4 can slide up and down freely; when the button is not pressed, the thread locker 5 pairs the bare copper fishing net. The wire 4 is clamped, and the bare copper fishing net wire 4 cannot be displaced.

Use machine screws to fix the connection between the raised block 2 and the curved frame 3. A detachable structure is used between the connection protruding block 2 and the curved frame 3. When the lamp needs maintenance, the lamp can be disassembled and maintained separately. Since the connecting protrusion block 2 needs to support the weight of the lamp body, it is reinforced and installed with machine screws.

The beneficial effects of the utility model are as follows: the double-headed wall lamp can provide more light sources on the basis of one base; the lifting and lowering of the light source is realized by the bare copper fishing net wire, so that the two lamp bodies can be at different heights, which can be adjusted freely, which is convenient and quick, It can also illuminate most of the walls, reducing the number of lamps installed and maintaining the cleanliness of the walls; the bare copper fishing net wire can also be used as a wire for practical use, reducing the use of wires and making the lamp body more concise.

In the description of this specification, if the terms "Embodiment 1", "this embodiment", "specific implementation" and other descriptions appear, it means that the specific features, structures, materials or characteristics described in conjunction with this embodiment or example are included in the present invention in at least one embodiment or example of a new or utility model. In this specification, schematic representations of the above terms are not necessarily referring to the same embodiment or example; moreover, the particular features, structures, materials or characteristics described may be combined in the right way.

In the description of this specification, the terms "connected", "installed", "fixed", "arranged", "has", etc. are all understood in a broad sense. For example, "connected" can be a fixed connection or without affecting the relationship between components and technology On the basis of the effect, it is indirectly carried out through intermediate components, and it can also be integrally connected or partially connected. As in the case of this example, for those of ordinary skill in the art, they can understand the specific terms of the above terms in the present invention or the utility model according to specific circumstances. meaning.

The above embodiments are only used to illustrate the technical solutions of the present invention, but not to limit them; although the present invention has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand; The technical solutions described in the examples are modified, or some technical features thereof are equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions of the various embodiments of the utility model.

Claims (5)

1. A novel wall lamp is characterized by comprising a base, a connecting convex block, a curved frame, a bare copper fishing net wire, a wire locking device, an upper lamp shade, a light-transmitting shell, L ED pillar lamps and a wire pole, wherein the connecting convex block is connected with the base, the curved frame is connected with the connecting convex block, the bare copper fishing net wire is arranged in the curved frame, one end of the bare copper fishing net wire is connected with the wire locking device, the other end of the bare copper fishing net wire is connected with the connecting convex block, the wire locking device is connected with the upper lamp shade, the wire pole is connected with the L ED pillar lamp, and the upper lamp shade is connected with the light-transmitting shell.

2. A novel wall lamp as claimed in claim 1, wherein: the base is cylindrical; the base is internally provided with a power supply controller; the base is fixed on the wall surface through the hanging plate.

3. A novel wall lamp as claimed in claim 1, wherein: the curved frame has an insulator sheet therein, and the curved frame is equally divided into two parts along the curved frame shape.

4. A novel wall lamp as claimed in claim 1, wherein: the thread locker is provided with a button, when the button is pressed down, the thread locker does not clamp the bare copper fishing net thread, and the bare copper fishing net thread can freely slide up and down; when not pressing the button, the locking thread ware is right naked copper fishing net twine presss from both sides tight operation, naked copper fishing net twine can't produce the displacement.

5. A novel wall lamp as claimed in claim 1, wherein: and the connecting convex block and the curved frame are fixed by using a machine meter screw.
