Abstract

The utility model discloses a wall hanging structure for an LCD liquid crystal display, which comprises an LCD liquid crystal display and a wall hanging board. A first connecting seat is installed on one side of the middle of the LCD liquid crystal display, and a first connecting seat is installed between the first connecting seat and the wall hanging board. The middle support rod, an electric push rod is installed on the upper side between the LCD liquid crystal display and the wall hanging board, a middle connecting plate is installed on one side of the wall hanging board, and a vertical rod is installed on the lower side of the middle connecting board through the connecting sleeve, so the A base is installed on the lower side of the vertical rod through a connecting sleeve, and a hook hole is provided on the upper side of the wall hanging plate. The LCD liquid crystal display of the utility model adopts a wall hanging structure for hanging on one side of the wall. An electric push rod is installed on the upper side between the boards, which can adjust the inclination angle of the LCD liquid crystal display to meet the installation and use of different inclination angles.

Description

A wall-mounted structure for LCD liquid crystal display

technical field

The utility model relates to the technical field of wall hanging of liquid crystal splicing screens, in particular to a wall hanging structure for an LCD liquid crystal display.

Background technique

The LCD splicing screen can be used as a display alone or spliced into a large screen. According to different use requirements, realize the functions of large and small screens: single screen split display, single screen separate display, any combination display, full screen LCD splicing, double splicing LCD screen splicing, vertical screen display, image border Compensation or masking is optional, it supports roaming, zooming and stretching of digital signals, multi-screen display, setting and running of various display schemes, and real-time processing of full HD signals. The LCD splicing screen can be combined arbitrarily: it can be spliced with a large screen or a small screen; it can be displayed on a single screen or a whole screen. According to the application requirements and system scale of the LCD splicing screen system proposed by customers, according to the actual application environment, select the appropriate splicing method and the best products, design personalized solutions to meet the needs of customers.

The existing wall-mounted structure for LCD splicing screen LCD liquid crystal display is usually fixed on one side of the wall. After the hanging is completed, it is inconvenient to adjust the inclination angle of the LCD liquid crystal display, thereby reducing the flexibility of installation and use.

Utility model content

The purpose of this utility model is to provide a wall hanging structure for LCD liquid crystal display, so as to solve the problem that the existing wall hanging structure for LCD liquid crystal display is usually fixed and hung on one side of the wall. The use of inclination angles reduces the problem of flexibility of installation and use.

In order to achieve the above purpose, the utility model provides the following technical solutions: a wall-mounted structure for an LCD liquid crystal display, comprising an LCD liquid crystal display and a wall-mounted board, a first connection seat is installed on one side of the middle of the LCD liquid crystal display, and the first connection A middle support rod is installed between the seat and the wall hanging board, an electric push rod is installed on the upper side between the LCD liquid crystal display and the wall hanging board, a middle connecting plate is installed on one side of the wall hanging board, and the lower side of the middle connecting board passes through A vertical pole is installed on the connecting sleeve, a base is installed on the lower side of the vertical pole through the connecting sleeve, a hook hole is opened on the upper side of the wall hanging board, and the LCD liquid crystal display adopts a liquid crystal splicing screen.

Preferably, bolt connectors are installed on both ends of the wall hanging plate, and positioning holes are opened inside the bolt connectors.

Preferably, one end of the electric push rod is connected to the LCD liquid crystal display and the wall-mounted board respectively through the second connection seat and the third connection seat.

Preferably, one end of the electric push rod is hinged with the second connection seat through a pin, and the electric push rod and the third connection seat are slidably hinged.

Preferably, a spring is installed in the lower part between the LCD liquid crystal display and the wall-mounted board, and the spring is in a stretched state.

Preferably, an angle adjustment switch is installed on the upper side of the base, and the angle adjustment switch is electrically connected with the electric push rod.

Preferably, support feet are installed on the underside of the base, and anti-skid pads are installed on the underside of the support feet.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The utility model is used for hanging on one side of the wall, and an electric push rod is installed on the upper side between the LCD liquid crystal display and the wall hanging board, which can adjust the inclination angle of the LCD liquid crystal display to meet the installation and use of different inclination angles, Improve the flexibility of installation and use.

2. The utility model has hook holes on the upper side of the wall hanging board, which is convenient for the pipe to be installed on one side of the wall, and two hook holes are arranged, which is beneficial to improve the stability of hanging, and bolts are installed on both ends of the wall hanging board. The bolt connection is provided with a positioning hole, so that both ends of the wall-mounted board can be fixed by expansion bolts.

3. The utility model installs a spring between the LCD liquid crystal display and the wall hanging board, and the spring is in a stretched state, which can make the angle between the LCD liquid crystal display and the electric push rod in a tight state, which is beneficial to improve the LCD liquid crystal display. Stability of monitor angle tilt adjustment.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

Fig. 1 is the left side view of the overall structure of the utility model;

Fig. 2 is the structural schematic diagram of the wall-mounted board of the present invention;

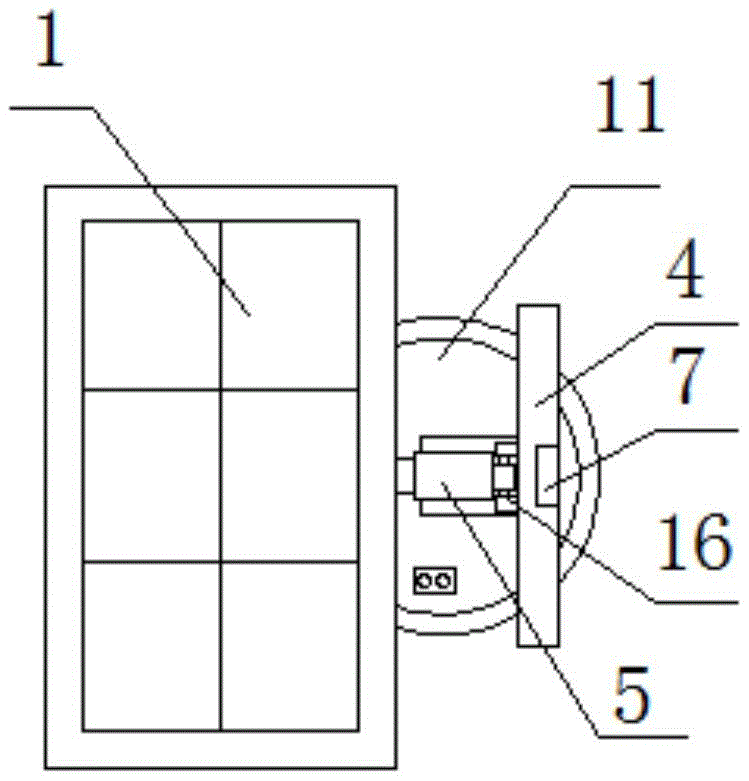

FIG. 3 is a top view of the overall structure of the present invention.

In the figure: 1. LCD liquid crystal display; 2. The first connecting seat; 3. The middle support rod; 4. The wall-mounted board; 5. The electric push rod; 6. The second connecting seat; plate; 9, pole; 10, connecting sleeve; 11, base; 12, angle adjustment switch; 13, supporting foot; 14, spring; 15, hook hole; 16, third connecting seat.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 , FIG. 2 , and FIG. 3 . In an embodiment of the present invention, a wall-mounted structure for an LCD liquid crystal display includes an LCD liquid crystal display 1 and a wall-mounted board 4 , and a first connection seat is installed on one side of the middle of the LCD liquid crystal display 1 2, and the first connecting seat 2 is hinged with one end of the supporting rod 3, a middle supporting rod 3 is installed between the first connecting seat 2 and the wall hanging board 4, and the middle supporting rod 3 adopts a telescopic rod, the LCD liquid crystal display 1 and the wall hanging board. An electric push rod 5 is installed on the upper side between the 4, and the tilt angle of the LCD liquid crystal display 1 can be adjusted by the telescopic extension of the electric push rod 5, so as to meet the use of different tilt angles. A middle connecting plate 8 is installed on one side of the wall hanging board 4, and the middle connecting plate 8. A vertical rod 9 is installed on the lower side through the connecting sleeve 10, and the vertical rod 9 is threadedly connected with the connecting sleeve 10, which is convenient for the detachable connection of the vertical rod 9. The lower side of the vertical rod 9 is installed with a base 11 through the connecting sleeve 10, so that the LCD liquid crystal display 1 is placed on the desktop for use, the upper side of the wall-mounted board 4 is provided with hook holes 15, and two hook holes 15 are provided, which is conducive to improving the stability of hanging, and is used for hanging on one side of the wall. The LCD display adopts LCD splicing screen.

Preferably, bolt connectors 7 are installed on both ends of the wall hanging plate 4, and the bolt connectors 7 are provided with positioning holes, so that both ends of the wall hanging plate 4 can be fixed by expansion bolts, which is conducive to improving the stability of hanging.

Preferably, one end of the electric push rod 5 is connected to the LCD liquid crystal display 1 and the wall-mounted board 4 respectively through the second connection base 6 and the third connection base 16, and one end of the electric push rod 5 is hinged with the second connection base 6 through pins, and the electric push rod 5 and the third connection base 16 are sliding and hinged, so that the tilt angle of the LCD liquid crystal display 1 can be adjusted by extending and retracting the electric push rod 5 to meet the use of different tilt angles.

Preferably, a spring 14 is installed at the lower part between the LCD liquid crystal display 1 and the wall hanging board 4, and the spring 14 is in a stretched state, which can make the angle between the LCD liquid crystal display 1 and the electric push rod 3 in a tight state when adjusting, which is beneficial to Improve the stability of LCD liquid crystal display 1 angle tilt adjustment.

Preferably, an angle adjustment switch 12 is installed on the upper side of the base 11 , and the angle adjustment switch 12 is electrically connected with the electric push rod 5 , which is convenient for adjusting and controlling the opening and closing of the electric push rod 5 to adjust the angle.

Preferably, support feet 13 are installed on the lower side of the base 11 , and anti-skid pads are installed on the lower side of the support feet 13 , which are used to support the lower side of the base 11 as a whole, and are placed flat on a desktop for use.

The working principle and use process of the present utility model: hook holes 15 are provided on the upper side of the wall hanging board 4 for hanging on one side of the wall for use, and a hook hole 15 installed on the upper side between the LCD liquid crystal display 1 and the wall hanging board 4 is used. The electric push rod 5 can adjust the inclination angle of the LCD liquid crystal display 1 to meet the installation and use of different inclination angles, and bolt connectors 7 are installed on both ends of the wall hanging plate 4, and the bolt connectors 7 are provided with positioning holes inside, which is convenient for Fixing both ends of the wall hanging board 4 by expansion bolts is beneficial to improve the stability of hanging.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. A wall-mounted structure for an LCD liquid crystal display, comprising an LCD liquid crystal display (1) and a wall-mounted board (4), characterized in that: a first connection seat (2) is installed on one side of the middle part of the LCD liquid crystal display (1), A middle support rod (3) is installed between the first connection seat (2) and the wall hanging board (4), and an electric push rod (3) is installed on the upper side between the LCD liquid crystal display (1) and the wall hanging board (4). 5), a middle connecting plate (8) is installed on one side of the wall hanging plate (4), a vertical rod (9) is installed on the lower side of the middle connecting plate (8), and a vertical rod (9) is installed on the lower side of the vertical rod (9). The base (11) is provided with hook holes (15) on the upper side of the wall-mounted board (4), and the LCD liquid crystal display (1) adopts a liquid crystal splicing screen. 2. The wall-mounted structure for an LCD liquid crystal display according to claim 1, characterized in that: both ends of the wall-mounted board (4) are provided with bolt connectors (7), and the bolt connectors (7) are internally provided with There are positioning holes. 3. The wall-mounted structure for an LCD liquid crystal display according to claim 1, wherein one end of the electric push rod (5) is respectively connected to the LCD through the second connection seat (6) and the third connection seat (16). The liquid crystal display (1) is connected to the wall-mounted board (4). 4. The wall-mounted structure for an LCD liquid crystal display according to claim 3, characterized in that: one end of the electric push rod (5) is hinged with the second connecting seat (6) by a pin, and the electric push rod (5) ) is slidably hinged with the third connecting seat (16). 5. The wall-mounted structure for an LCD liquid crystal display according to claim 1, wherein a spring (14) is installed in the lower part between the LCD liquid crystal display (1) and the wall-mounted board (4), and the spring (14) ) is the stretched state. 6. The wall-mounted structure for an LCD liquid crystal display according to claim 1, wherein an angle adjustment switch (12) is installed on the upper side of the base (11), and the angle adjustment switch (12) and the electric push rod (5) Electrical connection. 7. The wall hanging structure for an LCD liquid crystal display according to claim 1, characterized in that: a support foot (13) is installed on the lower side of the base (11), and a non-slip pad is installed on the lower side of the support foot (13) .
