CN211201559U - A curtain wall broken bridge heat insulation window - Google Patents

Abstract

The utility model discloses a curtain wall broken bridge heat insulation window, which comprises an aluminum alloy window sash. The aluminum alloy window sash includes a No. 1 window sash. Two sets of polyamide heat insulation strips are installed on one side of the lower end of the No. 1 window sash. One end of the polyamide heat insulation strip is installed with a No. 3 window sash, a No. 1 baffle is installed on the other side of the upper end of the No. 1 window sash, and a No. 1 buffer is installed on the lower end of the No. A No. 2 buffer rubber strip is installed on the other side of the middle position of the window sash. The utility model relates to a curtain wall broken bridge heat-insulating window, by arranging the No. 1 buffer rubber strip and the No. 2 buffer rubber strip between the No. 1 sash and the No. 2 sash, and setting between the No. 1 sash and the No. 3 sash Polyamide heat insulation strips can disconnect the aluminum alloy of the entire aluminum alloy window sash from the middle, and use hard plastic to connect the disconnected aluminum alloys. , the thermal insulation performance of the material is also improved.

Description

A curtain wall broken bridge heat insulation window

technical field

The utility model relates to the technical field of curtain walls, in particular to a curtain wall broken bridge heat insulation window.

Background technique

The curtain wall is the outer wall of the building. It is not load-bearing and hangs like a curtain, so it is also called "curtain wall". It is a lightweight wall with decorative effects commonly used in modern large and high-rise buildings. A building envelope or decorative structure composed of panels and a supporting structure system that can have a certain displacement ability relative to the main structure or a certain deformation ability itself, and does not assume the role of the main structure;

The "bridge" in the name "Broken Bridge Aluminum" refers to the "hot and cold bridge" in the sense of material science, and the word "broken" means action, that is, "breaking the hot and cold bridge", in order to meet the requirements of fire and smoke exhaust Due to its ventilation requirements, opening fans are often required on the curtain wall, and the opening windows are made of aluminum alloy, because aluminum alloy is a metal that conducts heat faster, so when the indoor and outdoor temperatures are very different, aluminum alloy can become a heat transfer. " Bridge”, such materials are used to make doors and windows, and its thermal insulation performance is not good. The setting of the open fan will greatly reduce the thermal performance of the entire curtain wall, which will have a certain impact on people’s use process. Therefore, we propose a curtain wall broken bridge thermal insulation window.

Utility model content

The main purpose of the utility model is to provide a curtain wall broken bridge heat insulation window, which can effectively solve the problems in the background technology.

To achieve the above purpose, the technical scheme adopted by the present utility model is:

A curtain wall broken bridge heat insulation window, comprising an aluminum alloy window sash, the aluminum alloy window sash includes a No. 1 window sash, and two sets of polyamide heat insulation strips are installed on the lower end side of the No. One end of the heat strip is installed with a No. 3 window sash, a No. 1 baffle is installed on the other side of the upper end of the No. 1 sash, a No. 1 buffer is installed on the lower end of the No. 1 baffle through bolts, and the middle position of the No. A No. 2 buffer rubber strip is installed on one side, a No. 2 window sash is installed at the lower end of the No. 1 window sash near the side of the No. 2 buffer rubber strip, and a No. 2 buffer rubber strip is installed on the upper side of the No. 2 window sash. A No. 2 baffle is installed on one side of the lower end of the No. sash, and a No. 2 buffer is installed on the upper end of the No. 2 baffle through bolts.

Further, the No. 1 buffer pad is located directly above the No. 2 buffer pad, the No. 1 buffer rubber strip is located on one side of the No. 1 baffle, and the No. 2 buffer rubber strip is located on one side of the No. 2 baffle, so The No. 1 buffer strip and No. 2 buffer strip are both EPDM rubber.

Further, a handle is installed on the upper end of the No. 1 window sash, a glass load-bearing block is installed on the upper end of the No. 3 window sash and two sets of polyamide heat insulation strips, and a No. 2 hard disk is fixed on one side of the No. 3 window sash. The upper end of the No. 2 rigid rubber strip and the glass bearing block is installed with a No. 1 hollow tempered glass, and the No. 1 hollow tempered glass is located on one side of the No. 1 window sash.

Further, an installation frame is installed on the lower end of the No. 2 baffle with screws, a No. 1 rigid rubber strip is installed on the upper end of the installation frame through screws, and a No. 1 rigid rubber strip is padded between the installation frame and the No. 1 rigid rubber strip. Rubber gasket.

Further, a No. 2 hollow tempered glass is installed on the lower end of the No. 1 rigid rubber strip, a connector is installed on one side of the installation frame, and the No. 2 hollow tempered glass and the installation frame are fixedly connected through the connector.

Further, a sealing rubber pad is installed on the lower end of the No. 2 hard rubber strip, and the sealing rubber pad is located at the upper end of the No. 1 hard rubber strip, and the No. 1 hard rubber strip and the No. 2 hard rubber strip are both. EPDM rubber.

Further, the No. 1 buffer pad and the No. 2 buffer pad are provided with a magnetic suction plate inside, and the No. 1 buffer pad and the No. 2 buffer pad interact with each other through the magnetic suction plate.

Compared with the prior art, the utility model has the following beneficial effects:

The aluminum alloy window sash is divided into three parts: No. 1 sash, No. 2 sash and No. 3 sash, and No. 1 and No. 2 buffer strips are arranged between No. 1 and No. 2 sash, No. 1 sash A polyamide heat insulation strip is set between the sash and the third sash, which can disconnect the aluminum alloy of the entire aluminum alloy sash from the middle, and use hard plastic to connect the disconnected aluminum alloy into one. The heat conduction of plastic is obviously slower than that of metal. It is not easy to pass through the whole material, and the thermal insulation performance of the material becomes better. It prevents heat from transferring in the gap between No. 1 hollow tempered glass and No. 2 hollow tempered glass, and plays a double-layer thermal insulation protection, which can better improve the thermal insulation performance of the curtain wall.

The parts not involved in the device are the same as the prior art or can be implemented by using the prior art.

Description of drawings

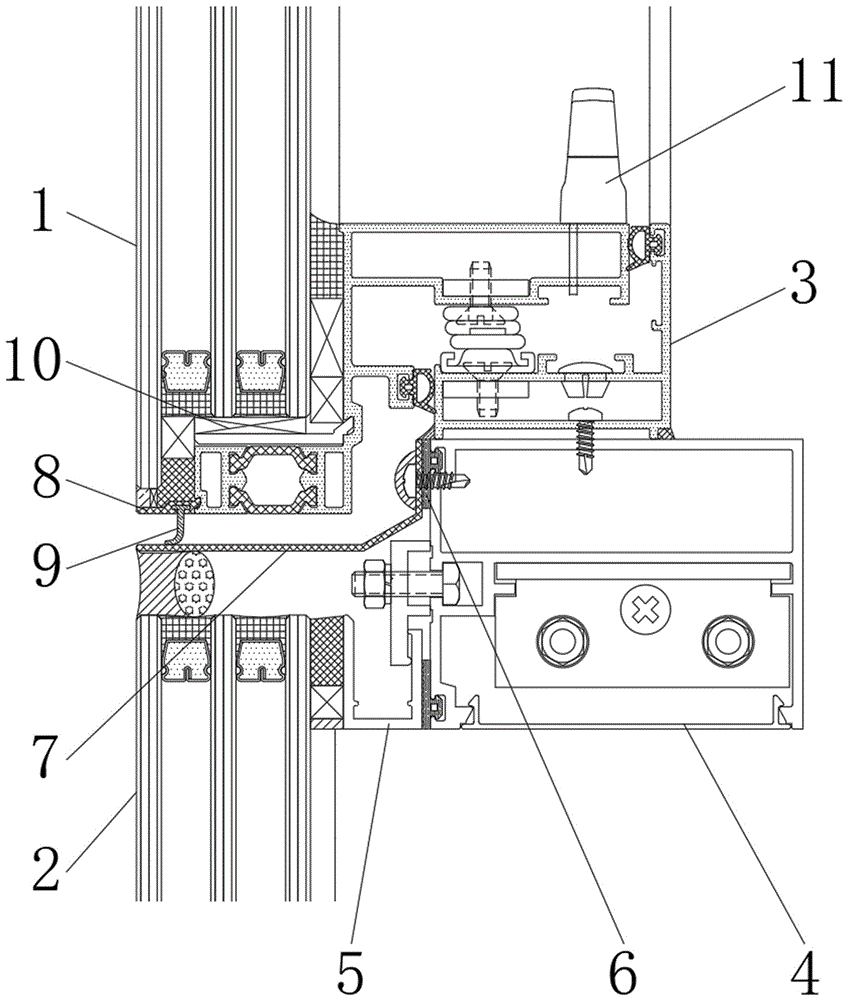

Figure 1 is a schematic diagram of the installation structure of a curtain wall broken bridge heat insulation window of the present invention.

Figure 2 is an exploded view of a curtain wall broken bridge heat insulation window of the present invention.

In the picture: 1. No. 1 insulating tempered glass; 2. No. 2 insulating glass; 3. Aluminum alloy window sash; 4. Mounting frame; 5. Connecting piece; 6. Rubber gasket; 8. No. 2 rigid rubber strip; 9. Sealing rubber pad; 10. Glass bearing block; 11. Handle; 12. No. 1 sash; 13. No. sash; 14. No. 1 baffle; 15. No. 1 buffer Pad; 16, No. 2 baffle; 17, No. 2 buffer pad; 18, No. 1 buffer strip; 19, No. 2 buffer strip; 20, No. 3 sash; 21, Polyamide insulation strip.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

Example

As shown in FIG. 1 and FIG. 2, a curtain wall broken bridge heat insulation window includes an aluminum alloy window sash 3, the aluminum alloy window 3 includes a No. 1 window sash 12, and two groups of polyamide heat insulation are installed on the lower end side of the No. Strip 21, one end of the two groups of polyamide heat insulation strips 21 is installed with a No. 3 window sash 20, a No. 1 baffle 14 is installed on the other side of the upper end of the No. 1 window sash 12, and a No. 1 buffer pad 15 is installed on the lower end of the No. , No. 2 buffer strip 19 is installed on the other side of the middle position of No. 1 window sash 12, No. 2 sash 13 is arranged at the lower end of No. 1 sash 12 on the side close to No. 2 buffer strip 19, and No. 2 sash 13 is on the upper side. A No. 1 buffer rubber strip 18 is installed, a No. 2 baffle 16 is installed on the lower end side of the No. 2 window sash 13, and a No. 2 buffer pad 17 is installed on the upper end of the No. 2 baffle 16 through bolts.

The No. 1 buffer pad 15 is located directly above the No. 2 buffer pad 17, the No. 1 buffer rubber strip 18 is located on one side of the No. 1 baffle 14, the No. 2 buffer rubber strip 19 is located on one side of the No. 2 baffle 16, and the No. The buffer rubber strip 18 and the No. 2 buffer rubber strip 19 are both EPDM rubber.

The handle 11 is installed on the upper end of the No. 1 window sash 12 , the glass load-bearing block 10 is installed on the upper end of the No. 3 window 20 and the two groups of polyamide heat insulation strips 21 , and the No. 2 rigid adhesive strip is fixedly installed on one side of the No. 3 window sash 20 8. The No. 2 rigid rubber strip 8 and the upper end of the glass bearing block 10 are installed with a No. 1 hollow tempered glass 1 , and the No. 1 hollow tempered glass 1 is located on one side of the No. 1 window sash 12 .

The lower end of the No. 2 baffle plate 16 is installed with the installation frame 4 by screws, the upper end of the installation frame 4 is installed with a No. 1 hard rubber strip 7 by screws, and a rubber pad is placed between the installation frame 4 and the No. 1 hard rubber strip 7 Gasket 6.

The lower end of No. 1 rigid rubber strip 7 is installed with No. 2 hollow tempered glass 2 , one side of the installation frame 4 is installed with a connector 5 , and the No. 2 hollow tempered glass 2 and the installation frame 4 are fixedly connected through the connector 5 .

A sealing rubber pad 9 is installed on the lower end of the No. 2 hard rubber strip 8, and the sealing rubber pad 9 is located at the upper end of the No. 1 hard rubber strip 7. The No. 1 hard rubber strip 7 and the No. 2 hard rubber strip 8 are three EPDM rubber.

Both the No. 1 buffer pad 15 and the No. 2 buffer pad 17 are provided with magnetic suction plates, and the No. 1 buffer pad 15 and the No. 2 buffer pad 17 attract each other through the magnetic suction plates.

By adopting the above technical solution: the aluminum alloy window sash 3 is divided into three parts: the first window sash 12, the second window 13 and the third window 20, and the first buffer glue is arranged between the first window 12 and the second window 13 Strip 18 and No. 2 buffer strip 19, and between No. 1 sash 12 and No. 3 sash 20 are provided with polyamide heat insulation strips 21, which can break the aluminum alloy of the entire aluminum alloy sash 3 from the middle, and use hard plastic to break the The open aluminum alloy is connected as a whole, and the heat conduction of plastic is obviously slower than that of metal, so that the heat is not easy to pass through the whole material, and the thermal insulation performance of the material becomes better; No. 1 rigid adhesive strip 7 and No. 2 rigid adhesive strip 8 are arranged between 2, which can effectively prevent heat from being transferred in the gap between No. Thermal protection can better improve the thermal insulation performance of the curtain wall.

It should be noted that the present utility model is a curtain wall broken bridge heat insulation window. When in use, firstly, the No. 1 sash 12 and No. 3 sash 20 of the aluminum alloy sash 3 are installed through two sets of polyamide heat insulation strips 21 Together, install the No. 1 sash 12 and No. 3 sash 20 on the No. 1 hollow tempered glass 1, and install the No. 2 rigid rubber strip 8, the sealing rubber pad 9 and the glass load-bearing block 10 in sequence in the middle. The No. 2 window sash 13 is installed on the installation frame 4 by screws, and the No. 1 rigid adhesive strip 7 is installed on the installation frame 4, and then the No. 2 hollow tempered glass 2 is installed on the No. 1 rigid adhesive strip 7, and is connected by The part 5 is fixed with the installation frame 4 to realize the fixed installation of the aluminum alloy window sash 3. By dividing the aluminum alloy window 3 into three parts: the first window sash 12, the second window 13 and the third window 20, and the first window sash No. 1 buffer strip 18 and No. 2 buffer strip 19 are arranged between 12 and No. 2 sash 13, and a polyamide heat insulation strip 21 is set between No. 1 sash 12 and No. 3 sash 20, so that the entire aluminum alloy sash 3 The aluminum alloy is disconnected from the middle, and the disconnected aluminum alloy is connected by hard plastic. The heat conduction of the plastic is obviously slower than that of the metal, so that the heat is not easy to pass through the whole material, and the thermal insulation performance of the material becomes better; at the same time No. 1 hard rubber strip 7 and No. 2 hard rubber strip 8 are arranged between No. 1 insulating tempered glass 1 and No. 2 insulating glass 2, which can effectively prevent heat from No. 1 insulating glass 1 and No. 2 insulating glass It is transmitted in the gap between 2 and plays a double-layer thermal insulation protection, which can better improve the thermal insulation performance of the curtain wall.

When the aluminum alloy window sash 3 is used, hold the handle 11 and pull up, and the magnetic suction plate between the No. 1 buffer pad 15 and the No. 2 buffer pad 17 is pulled apart, so that the aluminum alloy window sash 3 can be closed. Open, the No. 1 buffer rubber strip 18 is located on one side of the No. 1 baffle 14, and the No. 2 buffer rubber strip 19 is located on one side of the No. 2 baffle 16. While buffering and squeezing, it can also have a good heat insulation effect. The sealing rubber pad 9 between the No. 2 hard rubber strip 8 and the No. 1 hard rubber strip 7 can achieve the effect of sealing and heat insulation, which is more practical.

The basic principles and main features of the present invention and the advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a curtain bridge cut-off heat insulating window, includes aluminum alloy casement (3), its characterized in that: the aluminum alloy window sash (3) comprises a first window sash (12), two groups of polyamide heat-insulating strips (21) are arranged on one side of the lower end of the first window sash (12), a third window sash (20) is arranged at one end of each group of polyamide heat-insulating strips (21), a first baffle (14) is arranged on the other side of the upper end of the first window sash (12), a first cushion pad (15) is arranged at the lower end of the first baffle (14) through a bolt, a second buffer rubber strip (19) is arranged on the other side of the middle position of the first window sash (12), a second window sash (13) is arranged at the lower end of the first window sash (12) close to one side of the second buffer rubber strip (19), a first buffer rubber strip (18) is arranged on one side of the upper end of the second window sash (13), a second baffle (16) is arranged on one side of the lower end of the second window sash (13), no. two blotters (17) are installed through the bolt in the upper end of No. two baffle (16).

2. The curtain wall broken bridge heat insulation window according to claim 1, characterized in that: no. one blotter (15) is located No. two blotters (17) directly over, and No. one buffering adhesive tape (18) is located one side of No. one baffle (14), No. two buffering adhesive tape (19) are located one side of No. two baffles (16).

3. The curtain wall broken bridge heat insulation window according to claim 1, characterized in that: a handle (11) is installed to the upper end of a casement (12), glass bearing block (10) is installed with the upper end of two sets of polyamide heat insulating strip (21) in No. three casement (20), one side fixed mounting of No. three casement (20) has No. two hard adhesive tape (8), No. two hard adhesive tape (8) and glass bearing block (10) the upper end install No. one cavity toughened glass (1), and No. one cavity toughened glass (1) is located one side of a casement (12).

4. The curtain wall broken bridge heat insulation window according to claim 1, characterized in that: no. two lower extremes of baffle (16) have installing frame (4) through the screw installation, the upper end one side of installing frame (4) has a stereoplasm adhesive tape (7) through the screw installation, and has filled up rubber gasket (6) between installing frame (4) and stereoplasm adhesive tape (7).

5. The curtain wall broken bridge heat insulation window according to claim 4, wherein: no. two cavity toughened glass (2) are installed to the lower extreme of a stereoplasm adhesive tape (7), connecting piece (5) are installed to one side of installing frame (4), and pass through connecting piece (5) fixed connection between No. two cavity toughened glass (2) and installing frame (4).

6. The curtain wall broken bridge heat insulation window according to claim 3, characterized in that: and a sealing rubber pad (9) is arranged at the lower end of the second hard rubber strip (8), and the sealing rubber pad (9) is positioned at the upper end of the first hard rubber strip (7).

7. The curtain wall broken bridge heat insulation window according to claim 2, characterized in that: the inside of No. one blotter (15) and No. two blotters (17) all is provided with magnetism and inhales the board, and No. one blotter (15) and No. two blotters (17) through magnetism inhale mutually the attraction effect mutually.
