CN211197767U - A kind of auxiliary printing ink supply equipment - Google Patents

Abstract

The utility model relates to the field of printing ink supply, and relates to an auxiliary printing ink supply device, which comprises a main conveying line, at least one ink supply conveying line, a steering conveying line arranged between the main conveying line and the ink supply conveying line, and is used for loading ink. The positioning frame of the barrel, the main conveying line communicates with the ink supply conveying line, and the positioning frame is slidably arranged on the main conveying line and the ink supply conveying line. The utility model has the advantages of simple structure, reasonable structure, convenient installation, etc. The ink bucket is loaded through the positioning frame, placed on the track, and the ink bucket is pushed through the main conveying line, the ink supply conveying line and the turning conveying line, and then the ink supply position can be reached. , high work efficiency, effectively reduce the labor intensity of workers, prevent potential safety hazards, the positioning frame can avoid the left and right movement of the ink tank during transportation, further ensure the safety of ink supply, and improve work efficiency.

Description

A kind of auxiliary printing ink supply equipment

technical field

The utility model relates to the field of printing ink supply, and relates to an auxiliary printing ink supply device.

Background technique

At present, the centralized ink supply device used in the printing process of the factory is manually operated. An ink bucket weighs 200 kilograms. The workers operate it with a trolley, which is quite laborious during the operation, and there are potential safety hazards, which cannot meet the safety production of the enterprise.

Utility model content

The technical problem to be solved by the utility model is to provide an auxiliary printing ink supply device with high working efficiency, effectively reducing the labor intensity of workers, and preventing potential safety hazards.

In order to solve the above-mentioned technical problem, the technical scheme adopted by the utility model to solve its technical problem is:

An auxiliary printing ink supply device, comprising a main conveying line, at least one ink supply conveying line, a steering conveying line arranged between the main conveying line and the ink supply conveying line, and a positioning frame for loading an ink bucket, the main conveying line communicated with the ink supply conveying line, and the positioning frame is slidably arranged on the main conveying line and the ink supply conveying line;

The steering conveying line includes a bogie, a first conveying roller and two sets of second conveying rollers, the second conveying roller is connected to the bogie and the first conveying roller is arranged between the two sets of second conveying rollers, The moving direction of the first conveying roller is perpendicular to the moving direction of the second conveying roller, and the first conveying roller is connected with a lifting member, and the lifting member drives the first conveying roller to move up and down.

Preferably, the positioning frame is provided with a groove for placing the ink bucket, the groove is provided with a pushing member, the inner wall of the groove is provided with a positioning block, and the positioning block is provided with an arc-shaped concave surface. .

Preferably, a roller frame is arranged around the positioning frame, a plurality of pulleys are arranged on the roller frame, and slide rails matching the pulleys are arranged on both the main conveying line and the ink supply conveying line.

Preferably, the main conveying line and the ink supply conveying line are perpendicular to each other, and the horizontal height of the main conveying line is lower than that of the ink supply conveying line.

Preferably, the bogie is provided with a plurality of steering slide rails, the plurality of steering slide rails are evenly arranged on the side of the bogie, and the distance between adjacent steering slide rails is greater than the diameter of the pulley.

Preferably, the lifting component includes a lifting driver and a lifting plate, the lifting plate is drivingly connected to the lifting driver, a lifting bracket is arranged on the lifting plate, and the first conveying roller is arranged on the lifting bracket.

Preferably, an auxiliary frame is arranged on the lifting plate, and an auxiliary guide wheel is arranged on the auxiliary frame.

Preferably, the pusher component includes a pusher driver and a pusher plate, the pusher driver is disposed at the corner of the groove through a mounting seat, the pusher plate is drivably connected to the pusher driver, and the pusher The plate is a curved plate.

The beneficial effects of the present utility model:

The utility model has the advantages of simple structure, reasonable structure, convenient installation, etc. The ink bucket is loaded through the positioning frame, placed on the track, and the ink bucket is pushed through the main conveying line, the ink supply conveying line and the turning conveying line, and then the ink supply position can be reached. , High work efficiency, effectively reduce the labor intensity of workers, prevent potential safety hazards, the positioning frame can avoid the left and right movement of the ink tank during transportation, further ensure the safety of ink supply, and improve work efficiency.

Description of drawings

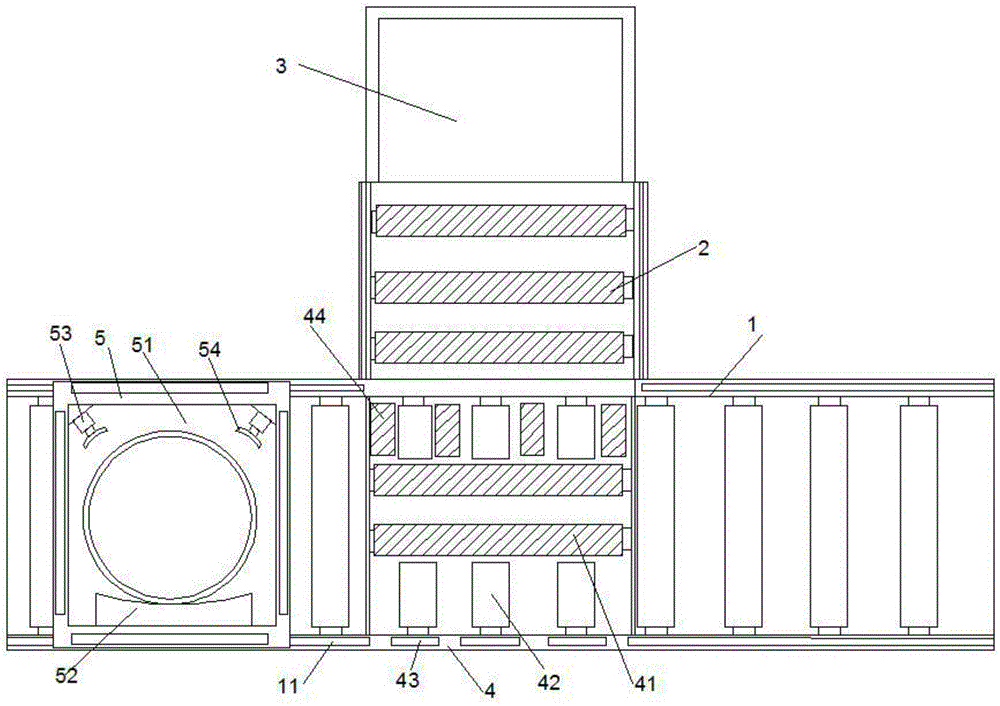

FIG. 1 is a schematic structural diagram of an auxiliary printing ink supply device of the present invention.

Figure 2 is a front view of the present utility model.

Numeral description in the figure: 1, main conveying line; 11, sliding rail; 2, ink supply conveying line; 3, ink supply position; 4, bogie; 41, first conveying roller; 42, second conveying roller; 43, Steering rail; 44, auxiliary guide wheel; 45, lift driver; 46, lift plate; 47, lift bracket; 48, auxiliary frame; 5, positioning frame; 51, groove; 52, positioning block; 53, pusher driver ; 54, push plate; 55, pulley;

Detailed ways

The present utility model will be further described below in conjunction with the accompanying drawings and specific embodiments, so that those skilled in the art can better understand the present utility model and implement it, but the examples are not intended to limit the present utility model.

Referring to Figures 1-2, an auxiliary printing ink supply device includes a main conveying line 1, at least one ink supply conveying line 2, a diverting conveying line arranged between the main conveying line 1 and the ink supply conveying line 2, for The positioning frame 5 for loading the ink bucket, the main conveying line 1 communicates with the ink supply conveying line 2, and the positioning frame 5 is slidably arranged on the main conveying line 1 and the ink supply conveying line 2;

The turning conveying line includes a bogie 4, a first conveying roller 41 and two sets of second conveying rollers 42. The second conveying rollers 42 are connected to the bogie 4. The first conveying rollers 41 are arranged in the two sets of second conveying rollers. Between the two conveying rollers 42 , the moving direction of the first conveying roller 41 is perpendicular to the moving direction of the second conveying roller 42 , the first conveying roller 41 is connected to a lifting member, and the lifting member drives the second conveying roller 42 . A conveying roller 41 moves up and down.

The utility model has the advantages of simple structure, reasonable structure, convenient installation, etc. The ink bucket is loaded through the positioning frame 5, placed on the rail, and the ink bucket can be pushed through the main conveying line 1, the ink supply conveying line 2 and the turning conveying line to reach the supply line. The ink position 3 has high work efficiency, effectively reduces the labor intensity of workers, and prevents potential safety hazards. The positioning frame 5 can avoid the left and right movement of the ink tank during transportation, which further ensures the safety of ink supply and improves the operation efficiency.

The main conveying line 1 and the ink supply conveying line 2 are both roller conveying lines.

Through the overlapping installation of the first conveying roller 41 and the two groups of second conveying rollers 42 at right angles, manual intervention can be avoided when the ink bucket turns at right angles, and the stability and safety during conveying are better.

The positioning frame 5 is provided with a groove 51 for placing the ink bucket, the groove 51 is provided with a pushing member, the inner wall of the groove 51 is provided with a positioning block 52, and the positioning block 52 is provided with a Arc concave.

A roller frame is arranged around the positioning frame 5, and a plurality of pulleys 55 are arranged on the roller frame. The main conveying line 1 and the ink supply conveying line 2 are both provided with sliding rails 11 that match the pulleys 55. .

The positioning frame 5 slides synchronously with the ink bucket on the main conveying line 1, the ink supply conveying line 2 and the turning conveying line, which makes it more stable during transportation and ensures the safety of conveying the ink bucket.

The main conveying line 1 and the ink supply conveying line 2 are perpendicular to each other, and the horizontal height of the main conveying line 1 is lower than that of the ink supply conveying line 2 .

The level of the main conveying line 1 is lower than the level of the ink supply conveying line 2, which can make the ink bucket convey the ink bucket to the ink supply conveying line 2 more quickly when it is conveyed to the turning conveying line, and shorten the ink supply time.

The bogie 4 is provided with a plurality of steering slide rails 43 , the plurality of steering slide rails 43 are evenly arranged on the side of the bogie 4 , and the distance between adjacent steering slide rails 43 is greater than the diameter of the pulley 55 .

The distance between the adjacent steering slide rails 43 is larger than the diameter of the pulley 55, which can limit the positioning frame 5. When the pulley 55 is between the adjacent steering slide rails 43, the positioning frame 5 and the steering slide rail 43 When disengaged, the positioning frame 5 can be pushed onto the ink supply conveying line 2 more smoothly. When the pulley 55 is on the steering slide rail 43, the positioning frame 5 can be guided by the steering rail and continue to be transported to the next station.

The lifting component includes a lifting driver 45 and a lifting plate 46, the lifting plate 46 is drivingly connected with the lifting driver 45, a lifting bracket 47 is arranged on the lifting plate 46, and the first conveying roller 41 is arranged on the lifting plate 46. on the lifting bracket 47 .

An auxiliary frame 48 is provided on the lift plate 46 , and an auxiliary guide wheel 44 is provided on the auxiliary frame 48 .

The pusher component includes a pusher driver 53 and a pusher plate 54. The pusher driver 53 is disposed at the corner of the groove 51 through a mounting seat, and the pusher plate 54 is drivingly connected to the pusher driver 53. The push plate 54 is an arc-shaped plate.

The pushing driver 53 and the lifting driver 45 can provide power for hydraulic device, pneumatic device, servo motor (reciprocating motion provided by driving screw, cam, etc.), etc.

The ejecting component and the positioning block 52 can position the ink tank, so that the positioning frame 5 and the ink tank have a good consistency of movement, and the conveying is stable.

The above-mentioned embodiments are only preferred embodiments for fully explaining the present invention, and the protection scope of the present invention is not limited thereto. Equivalent substitutions or transformations made by those skilled in the art on the basis of the present invention are all within the protection scope of the present invention. The protection scope of the present utility model is subject to the claims.

Claims (8)

1. The auxiliary printing ink supply equipment is characterized by comprising a main conveying line, at least one ink supply conveying line, a steering conveying line arranged between the main conveying line and the ink supply conveying line, and a positioning frame used for loading an ink barrel, wherein the main conveying line is communicated with the ink supply conveying line, and the positioning frame is slidably arranged on the main conveying line and the ink supply conveying line;

the steering conveying line comprises a bogie, a first conveying roller and two groups of second conveying rollers, the second conveying rollers are connected with the bogie, the first conveying rollers are arranged between the two groups of second conveying rollers, the moving direction of the first conveying rollers is perpendicular to the moving direction of the second conveying rollers, the first conveying rollers are connected with a lifting component, and the lifting component drives the first conveying rollers to move up and down.

2. The auxiliary printing ink supply equipment according to claim 1, wherein a groove for placing an ink barrel is formed in the positioning frame, a material pushing component is arranged on the groove, a positioning block is arranged on the inner wall of the groove, and an arc-shaped concave surface is formed in the positioning block.

3. The auxiliary printing ink supply equipment according to claim 1, wherein a roller frame is arranged around the positioning frame, a plurality of pulleys are arranged on the roller frame, and sliding rails matched with the pulleys are arranged on the main conveying line and the ink supply conveying line.

4. An auxiliary printing ink supply apparatus according to claim 1, wherein the main supply line and the ink supply line are perpendicular to each other, and the level of the main supply line is lower than the level of the ink supply line.

5. An auxiliary printing ink supply device according to claim 3, wherein a plurality of steering slide rails are arranged on the bogie, the steering slide rails are uniformly arranged on the side of the bogie, and the distance between adjacent steering slide rails is larger than the diameter of the pulley.

6. The auxiliary printing ink supply equipment according to claim 1, wherein the lifting part comprises a lifting driver and a lifting plate, the lifting plate is in driving connection with the lifting driver, a lifting support is arranged on the lifting plate, and the first conveying roller is arranged on the lifting support.

7. An auxiliary printing ink supply apparatus as in claim 6 wherein the lift plate has an auxiliary frame with an auxiliary guide wheel.

8. The auxiliary printing ink supply equipment of claim 2, wherein the material pushing component comprises a material pushing driver and a push plate, the material pushing driver is arranged at the corner of the groove through a mounting seat, the push plate is in driving connection with the material pushing driver, and the push plate is an arc-shaped plate.
