Abstract

The utility model discloses a garbage collection device used in the kitchen, which relates to the technical field of kitchen supplies. In order to solve the technical problem of poor convenience in the collection of kitchen waste in the prior art, the technical scheme of the utility model is as follows: , and also includes a kitchen waste collection device connected to one side of the vegetable washing pool; the kitchen waste collection device includes a funnel, a barrel body and a filter screen, the funnel is arranged on the side of the table surface of the vegetable washing pool, and the bottom of the funnel is provided with a sliding The barrel mouth of the barrel body is provided with a slider that slides with the chute, the bottom of the barrel body is provided with a drainage port, and the filter screen is placed across the middle of the inner cavity of the barrel body.

Description

Garbage collection device for kitchen

technical field

The utility model relates to the technical field of kitchen appliances, in particular to a garbage collection device used in kitchens.

Background technique

Kitchen waste is usually divided into wet kitchen waste and dry food packaging bag waste. When collecting kitchen waste, the usual practice is to put the kitchen waste and food packaging bag waste into the trash can, and then dump them uniformly. . At present, many cities such as Shanghai and Xi'an have started municipal management actions of dry and wet separation and garbage classification. The conventional kitchen garbage collection method can no longer meet the development needs of urban management at this stage.

Kitchen waste mainly includes vegetable residues, leftovers, etc. People usually finish the processing in the process of picking vegetables or washing dishes in the vegetable washing pool. The existing vegetable washing pool does not have a corresponding kitchen waste collection device. The kitchen pool is equipped with a kitchen waste collection device, so that people can easily complete the collection of kitchen waste during the process of washing vegetables and dishes, making the collection of kitchen waste more simple and humanized, and not only improving people's ability to separate dry and wet waste. Awareness also reduces the difficulty of sorting kitchen waste.

Utility model content

In order to solve the technical problem of poor convenience in the collection of kitchen waste in the prior art, the technical solution of the present invention is as follows:

The garbage collection device for kitchen in the utility model includes a vegetable washing pool, and also includes a kitchen waste collection device connected to one side of the vegetable washing pool; the kitchen waste collection device comprises a funnel, a barrel body and a filter screen, The funnel is set on one side of the table surface of the vegetable washing pool, the bottom of the funnel is provided with a chute, the barrel mouth of the barrel body is provided with a sliding bar that slides with the chute, the bottom of the barrel body is provided with a drainage port, and the filter screen is horizontal. Placed in the middle of the inner cavity of the barrel.

Further, the inner side of the funnel is coated with antifouling nano-coating.

Further, there are two vegetable washing pools, the middle connection is transitioned through a steel plate, and the funnel is opened on the steel plate.

Further, a deodorizing device is also included; the deodorizing device includes a box body and an activated carbon filling plate, and a plurality of the movable carbon filling plates are placed horizontally in the inner cavity of the box body.

Further, a deodorizing port is provided on the side wall of the barrel body, and the deodorizing port is connected with the box body, so that the box body is placed horizontally on one side of the barrel body.

Further, the end of the box body is inclined upward.

Further, one side of the box body is a movable plate, the movable plate and the box body are connected by sliding rails or hinges, and the box body can be opened and closed through the movable plate.

Further, a plurality of groups of chutes are arranged on the inner side of the box body, and the activated carbon filling plate is inserted into the chutes.

Further, the outer structure of the activated carbon filling plate is formed by splicing a plurality of hard mesh sheets, and the interior is divided into a plurality of cavity units by the hard mesh sheets, and each of the cavity units is filled with activated carbon.

Further, one side of the cavity unit is an opening and closing structure, and a fastener is provided at the connection of the opening and closing structure.

Compared with the prior art, the garbage collection device for kitchen in the utility model has the following beneficial effects:

The garbage collection device used in the kitchen of the utility model can directly dump the kitchen garbage into the funnel and collect it in the barrel during the process of picking vegetables and washing dishes, and the residual liquid of the kitchen garbage can pass through the filter net It flows into the bottom of the barrel, and the water outlet of the barrel is equipped with a water outlet valve to empty the liquid in the barrel. Remove it from the bottom of the funnel and bag the kitchen waste in the bucket or dump it directly into the outdoor kitchen waste bin. In the utility model, the kitchen waste collection device is arranged in the kitchen where kitchen waste is most likely to be generated - the vegetable washing pool. During the process of picking vegetables or washing dishes, the user can conveniently collect the kitchen waste in a centralized manner, reducing the reduction of At the same time, there is a kitchen waste collection device next to the vegetable washing pool, which can improve the user's awareness of garbage classification and reduce the resistance caused by the troublesomeness.

Description of drawings

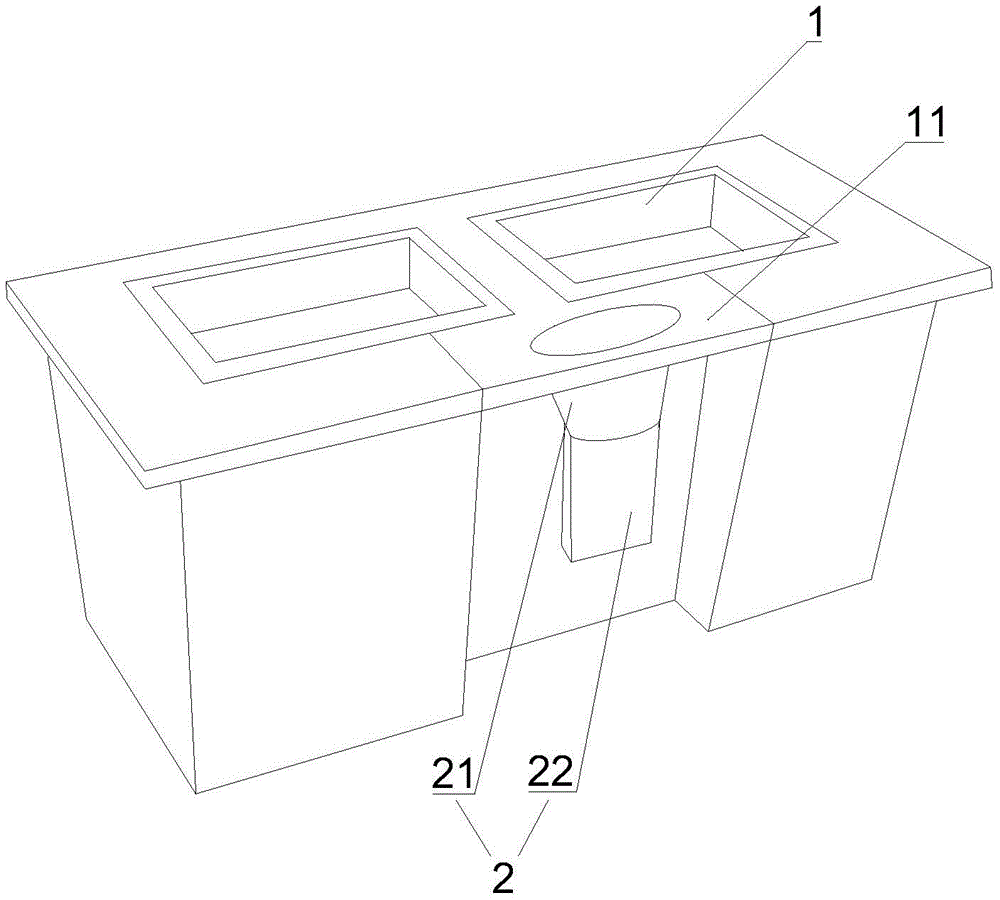

Fig. 1 is the schematic diagram of the garbage collection device used for kitchen in the present utility model;

Figure 2 is a schematic diagram of the connection between the bottom of the funnel and the kitchen waste collection device in the present invention;

Fig. 3 is the sectional view of the deodorizing device in the present utility model;

Figure 4 is a schematic diagram of the activated carbon filling plate in the present invention.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to the accompanying drawings of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-2, the garbage collection device for kitchen in the present invention includes a vegetable washing pool 1, and also includes a kitchen waste collection device 2 connected to one side of the vegetable washing pool 1. The kitchen waste collection device 2. It includes a funnel 21, a barrel body 22 and a filter screen (not shown). The funnel 21 is opened on one side of the table top of the vegetable washing pool 1. The bottom of the funnel 21 extends out of an extension plate, and the end face of the plate is provided with a chute 25. The barrel body 22 The mouth of the barrel is provided with a slide bar 24 which is slidingly matched with the chute 25 , the bottom of the barrel 22 is provided with a drainage port 23 , and the filter screen is placed in the middle of the inner cavity of the barrel 22 . When in use, in the process of picking vegetables and washing dishes, the kitchen waste can be directly dumped into the funnel 21 and concentrated in the barrel 22. The residual liquid of the kitchen waste flows into the bottom of the barrel 22 through the filter screen, and the drainage of the barrel 22. The outlet 23 is equipped with a water outlet valve to empty the liquid in the barrel. At the same time, when the kitchen waste in the barrel 22 is full, the slider 24 of the barrel 22 is pulled out from the chute 25, and the barrel 22 can be removed from the funnel. 21 Remove the bottom and bag the kitchen waste in the bucket or dump it directly into the outdoor kitchen waste bin. In the utility model, the kitchen waste collection device 2 is arranged in the kitchen where kitchen waste is most likely to be produced - the vegetable washing pool 1. The user can collect the kitchen waste in a centralized manner during the process of picking vegetables or washing dishes. , which reduces the user's difficulty in garbage classification. At the same time, the kitchen waste collection device 2 is next to the vegetable washing pool 1, which can improve the user's awareness of garbage classification and reduce the conflict caused by the troublesomeness.

The inner side of the funnel 21 is coated with antifouling nano-coating. The anti-fouling nano-coating is made of hydrophobic nano-materials in the prior art, which can form an anti-static layer on the surface of the funnel 21 and avoid the attachment of kitchen waste.

Preferably, in the present invention, there are two vegetable washing pools 1 , the middle connection is transitioned through the steel plate 11 , and the funnel 21 is opened on the steel plate 11 .

Since the leftovers are mostly high-protein and high-energy substances, some foul-smelling gases will be generated during the garbage placement and biochemical processes. The main components are ammonia, methane, benzene and other organic compounds. In order to prevent them from being emitted indoors, as shown in Figure 2 As shown in -4, the present utility model also includes a deodorizing device 3. The deodorizing device 3 includes a box body 31 and an activated carbon filling plate 32. A plurality of movable filling plates are placed horizontally in the inner cavity of the box body 31, and the odorous gas is adsorbed by the activated carbon. .

The preferred installation position of the deodorizing device 3 is as follows: a deodorizing port is provided on the side wall of the barrel body 22 , and the deodorizing port is connected to the box body 31 , so that the box body 31 is placed horizontally on one side of the barrel body 22 . In order to prevent liquid from flowing into the box body 31 when the garbage is dumped, the end of the box body 31 is inclined upward.

After the activated carbon is used for a period of time, its adsorption effect will decrease. Therefore, the deodorizing device 3 is designed to be a structure that can replace the adsorption core: one side of the box body 31 is the movable plate 33, and the movable plate 33 and the box body 31 pass through the sliding rail. Or hinged connection, the box body 31 can be opened and closed through the movable plate 33 . Multiple groups of chute 25 are provided on the inner side of the box body 31 , and the activated carbon filling plate 32 is inserted into the chute 25 so as to remove the activated carbon filling plate 32 .

Further, the activated carbon filling plate 32 is also designed to have a replaceable activated carbon structure: the external structure of the activated carbon filling plate 32 is formed by splicing a plurality of hard mesh sheets, and the interior is divided into a plurality of cavity units by the hard mesh sheets. , each cavity unit is filled with activated carbon, this structure can ensure the uniform distribution of activated carbon and avoid the accumulation of activated carbon to the bottom of the filling plate. One side of the cavity unit is an opening and closing structure, and the connection of the opening and closing structure is provided with a fastener, such as a magnetic hook, so that the cavity unit can be opened or closed.

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Replacement should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention should be based on the protection scope of the claims.

Claims (10)

1. The garbage collection device for the kitchen comprises a vegetable washing pool and is characterized by further comprising a kitchen garbage collection device connected to one side of the vegetable washing pool; the kitchen waste collection device comprises a funnel, a barrel body and a filter screen, wherein the funnel is arranged on one side of a table board of the vegetable washing tank, a sliding groove is formed in the bottom of the funnel, a sliding strip in sliding fit with the sliding groove is arranged at a barrel opening of the barrel body, a water outlet is formed in the bottom of the barrel body, and the filter screen is transversely arranged in the middle of an inner cavity of the barrel body.

2. The garbage collection device for kitchens as claimed in claim 1, wherein the inner side of said funnel is coated with an anti-fouling nano-paint.

3. The garbage collection device for the kitchen according to claim 1, wherein the number of the vegetable washing ponds is two, the middle joint is transited through a steel plate, and the funnel is arranged on the steel plate.

4. A waste collection device for a kitchen according to claim 1, further comprising a deodorising block; the deodorization device comprises a box body and an active carbon filling plate, and the active carbon filling plate is arranged in the inner cavity of the box body in a transverse mode.

5. A waste collection device for a kitchen according to claim 4, in which the bin body has a deodorising port in a side wall thereof, the deodorising port being connected to the bin body such that the bin body lies across one side of the bin body.

6. A waste collection device for a kitchen according to claim 5, in which the ends of the bin are upwardly inclined.

7. The garbage collection device for the kitchen according to claim 6, wherein a movable plate is arranged on one side of the box body, the movable plate is connected with the box body through a sliding rail or a hinge, and the box body can be opened and closed through the movable plate.

8. The garbage collection device for the kitchen according to claim 7, wherein the inner side surface of the box body is provided with a plurality of groups of sliding grooves, and the activated carbon filling plate is inserted into the sliding grooves.

9. The garbage collection device for the kitchen according to claim 8, wherein the external structure of the activated carbon filling plate is formed by splicing a plurality of hard grid sheets, the internal structure of the activated carbon filling plate is divided into a plurality of cavity units by the hard grid sheets, and activated carbon is filled in each cavity unit.

10. The garbage collection device for the kitchen according to claim 9, wherein one side of the cavity unit is an opening and closing structure, and a fastener is arranged at a joint of the opening and closing structure.
