Abstract
A perineum management device after femoral artery and vein catheterization comprises a pants body and a catheterization accommodating part, wherein the pants body is formed by sequentially connecting a front waistband, a blocking part and a rear waistband, the middle parts of the front waistband, the blocking part and the rear waistband are correspondingly provided with a strip-shaped mounting opening, and the periphery of the mounting opening is connected with a transparent plastic strip, so that an external salt pressing bag can be conveniently fixed, and nursing after catheterization is assisted; the utility model is overall in the shape of underpants and comfortable to wear, the water absorbing material layer can absorb urine or feces of patients, and the water absorbing material layer can be replaced regularly, thus the utility model is sanitary to use; the placing pipe is wrapped by a sterile containing cloth layer, so that a sterile environment is ensured; the utility model provides a difficult problem of nursing of external pipeline, the practicality is strong, effectively realizes the humanistic care.
Description
Technical Field
The utility model belongs to the technical field of the medical treatment, concretely relates to perineum management device after femoral artery and vein catheterization.
Background
The femoral artery and vein catheterization is a common operation in clinic, wherein the femoral artery catheterization is mainly used for embolization and thrombolysis of an arterial system, for example, patients with advanced gastric tumors cannot be treated by an operation, and in order to destroy tumor cells as much as possible and prolong the life of the patients, the gastroduodenal artery embolization is required. The femoral vein catheterization is mainly used for surgical fluid infusion, dialysis and the like, the length of an exposed part of the femoral vein catheterization is 10-20cm, and for example, a temporary dialysis catheter is usually kept in the femoral vein of a dialysis patient for whole-body hemodialysis. Because the femoral artery and vein is special in position, a patient is not easy to nurse after the catheter is placed, the catheter is generally worn in underpants of the patient at present, a disposable sterile adhesive film is pasted at the position where the catheter is out of the skin to prevent bacterial infection, and then the exposed pipeline is worn in the underpants.
SUMMERY OF THE UTILITY MODEL
The utility model provides a perineum management device after femoral artery and vein catheterization for solving the disadvantages in the prior art and preventing partial pollution caused by external leakage of the indwelling catheter.
In order to solve the technical problem, the utility model adopts the following technical scheme: the perineum management device after femoral artery and vein catheterization comprises an underwear body and a catheterization accommodating part, wherein the underwear body is formed by sequentially connecting a front waistband, a blocking part and a rear waistband, the middle parts of the front waistband, the blocking part and the rear waistband are correspondingly provided with strip-shaped mounting openings, the periphery of each mounting opening is connected with a transparent plastic strip, and the plastic strips of the mounting openings are detachably connected with a water absorption material layer; elastic bands are arranged at the upper parts of the front waistband and the rear waistband, the left side and the right side of the upper parts of the front waistband and the rear waistband are respectively connected with connecting lug parts, the two connecting lug parts of the rear waistband are both provided with tube placing through holes, and the connecting lug parts of the front waistband and the corresponding connecting lug parts of the rear waistband are connected through snap fasteners;
the pipe placing and accommodating piece comprises a first mounting disc, a second mounting disc and an accommodating cloth layer, wherein center holes are formed in the centers of the first mounting disc and the second mounting disc, the center holes of the first mounting disc and the second mounting disc are connected through a connecting pipe, one side of the accommodating cloth layer is connected to the side face of the second mounting disc, an adhesive tape is connected to the side face of the accommodating cloth layer, and adhesive rings are arranged on the side faces of the first mounting disc and the second mounting disc in the circumferential direction.
The water absorption material layer is stuck on the plastic strip of the mounting opening through viscose.
Adopt above-mentioned technical scheme, the utility model discloses following beneficial effect has: the utility model is overall in the shape of underpants and comfortable to wear, the water absorbing material layer can absorb urine or feces of patients, and the water absorbing material layer can be replaced regularly, thus the utility model is sanitary to use; the placing pipe is wrapped by a sterile containing cloth layer, so that a sterile environment is ensured; the utility model provides a difficult problem of nursing of external pipeline, the practicality is strong, effectively realizes the humanistic care.
Drawings
FIG. 1 is a schematic view of the structure of the underpants body;

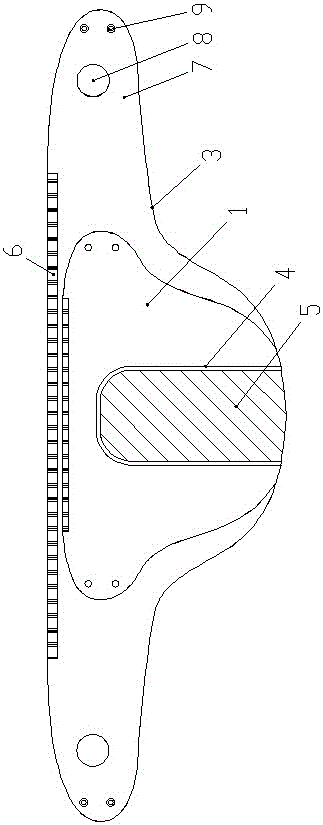

FIG. 2 is a developed state of the underpants body;
fig. 3 is a schematic structural view of the tube storage container.
Detailed Description
As shown in fig. 1-3, the perineum management device after femoral artery and vein catheterization of the present invention comprises a pants body and a catheterization receiving member, wherein the pants body is formed by sequentially connecting a front waistband 1, a blocking portion 2 and a rear waistband 3, the middle portions of the front waistband 1, the blocking portion 2 and the rear waistband 3 are correspondingly provided with a strip-shaped mounting opening, the periphery of the mounting opening is connected with a transparent plastic strip 4, the plastic strip 4 of the mounting opening is detachably connected with a water absorbing material layer 5, and the water absorbing material layer 5 is adhered to the plastic strip 4 of the mounting opening through an adhesive; elastic bands 6 are arranged at the upper edge parts of the front waistband 1 and the rear waistband 3, the left side and the right side of the upper parts of the front waistband 1 and the rear waistband 3 are respectively connected with connecting lug parts 7, the two connecting lug parts 7 of the rear waistband 3 are respectively provided with a tube placing through hole 8, and the connecting lug parts 7 of the front waistband 1 are connected with the corresponding connecting lug parts 7 of the rear waistband 3 through snap fasteners 9;
put a tub and accomodate piece including first mounting disc 10, second mounting disc 11 and accomodate cloth layer 12, the centre bore has all been seted up in the center department of first mounting disc 10 and second mounting disc 11, the centre bore of first mounting disc 10 and second mounting disc 11 passes through connecting pipe 13 to be connected, accomodate one side on cloth layer 12 and connect on the side of second mounting disc 11, the side of accomodating cloth layer 12 is connected with viscose area 14, the side of first mounting disc 10 and second mounting disc 11 is provided with viscose ring 15 along circumferential direction.
The utility model discloses at first place patient's buttockss portion below with the back waistband 3 of pants body when using, then pass exposed putting the pipe and pass first mounting disc 10 again, connecting pipe 13 and second mounting disc 11, wrap up through accomodating cloth layer 12 winding, utilize sticky tape 14 to fix, then paste first mounting disc 10 through sticky ring 15 and put the pipe and go out skin department, the winding is put the pipe and is passed through one of them and puts a tub through-hole 8, second mounting disc 11 pastes the pipe through sticky ring 15 and puts a tub through-hole 8 periphery of one of them connection ear 7 of back waistband 3, it further fixes to accomodate the pipe that cloth layer 12 is twined and put the pipe, then pass patient's perineum portion with back waistband 3 forward, utilize snap-fastener 9 to connect front waistband 1 and back waistband 3's connection ear 7 interconnect, so far accomplish the dress of device; when the man patient need urinate, tear partial absorbent material layer 5 in the front on waistband 1, can urinate, when needs are defecated, will absorb water material layer 5 and all tear, the installing port department is in whole open form, and the patient need not take off the device and can defecate, after the patient defecates, paste absorbent material layer again on plastic strip 4 can, in addition absorbent material layer can change after using a period, guarantees to use the health.
The present embodiment is not intended to limit the shape, material, structure, etc. of the present invention in any form, and all of the technical matters of the present invention belong to the protection scope of the present invention to any simple modification, equivalent change and modification made by the above embodiments.
Claims (2)
1. Perineum management device after femoral artery and vein catheterization, its characterized in that: the underwear comprises an underwear body and a tube accommodating and accommodating part, wherein the underwear body is formed by sequentially connecting a front waistband, a blocking part and a rear waistband, the middle parts of the front waistband, the blocking part and the rear waistband are correspondingly provided with elongated mounting openings, the periphery of each mounting opening is connected with a transparent plastic strip, and a water absorbing material layer is detachably connected onto the plastic strip of each mounting opening; elastic bands are arranged at the upper parts of the front waistband and the rear waistband, the left side and the right side of the upper parts of the front waistband and the rear waistband are respectively connected with connecting lug parts, the two connecting lug parts of the rear waistband are both provided with tube placing through holes, and the connecting lug parts of the front waistband and the corresponding connecting lug parts of the rear waistband are connected through snap fasteners;
the pipe placing and accommodating piece comprises a first mounting disc, a second mounting disc and an accommodating cloth layer, wherein center holes are formed in the centers of the first mounting disc and the second mounting disc, the center holes of the first mounting disc and the second mounting disc are connected through a connecting pipe, one side of the accommodating cloth layer is connected to the side face of the second mounting disc, an adhesive tape is connected to the side face of the accommodating cloth layer, and adhesive rings are arranged on the side faces of the first mounting disc and the second mounting disc in the circumferential direction.
2. The perineum management device after femoral arteriovenous catheterization of claim 1, characterized in that: the water absorption material layer is stuck on the plastic strip of the mounting opening through viscose.
