Abstract

The utility model discloses a household oven, which comprises a box body. The top of the box body is provided with a heat insulation board and is covered with a mounting cover to form an electric control box. The inside of the control box is separated from the inside of the box. The inside of the electric control box is the working space of the control module and other electrical components, and the inside of the box is the baking space. On the one hand, the heat insulation plate blocks and reflects the thermal radiation emitted by the heating tube, which improves the heating efficiency of the space inside the box. Reliable use; the front side of the installation cover is provided with a control panel, the control panel and the heating tube are electrically connected to the control module in the electric control box. Check the electrical controls of the oven.

Description

a household oven

technical field

The utility model relates to a kitchen appliance, in particular to a household oven.

Background technique

The oven is a widely used household food baking equipment at present. It uses the heating element in the oven liner to generate heat radiation after being energized, so that the food in the inner liner is continuously heated and slowly cooked, so as to realize the baking and cooking of the food.

The existing oven has the following defects in the use process: 1. The control module of the oven is located relatively close to the area where the box is heated. The heat generated when the box is working is radiated to the control module, and the temperature rises, resulting in frequent occurrence of the control module. 2. The control module is installed in the box, and the entire box needs to be disassembled during maintenance, which is difficult and laborious.

SUMMARY OF THE INVENTION

In order to overcome the deficiencies of the prior art, the utility model provides a household oven.

The technical scheme adopted by the utility model to solve its technical problems is:

A household oven, including a box body, the top of the box body is provided with a heat insulation board and covered with a mounting cover to form an electric control box, the electric control box is provided with a control module, and the bottom of the heat insulation board is provided with a heating The pipe is located in the box, and the front side of the installation cover is provided with a control panel, and the control panel and the heating pipe are electrically connected to the control module in the electric control box.

The side part of the installation cover is provided with fixing ears, the side part of the box body is provided with screw holes corresponding to the fixing ears, and the installation cover is fixed on the box body by screws.

The bottom surface of the heat insulation plate extends downward with a mounting block located inside the box, the mounting block is arranged corresponding to the screw hole and is provided with a through hole, the screw passes through the fixing ear and the screw hole extends into the through hole .

The edge of the top surface of the heat insulation board is provided with a positioning groove, and a positioning block is extended on the inner side of the installation cover corresponding to the positioning groove, and the positioning block is embedded in the positioning groove to realize the connection between the installation cover and the heat insulation board. Positioning installation.

The side of the installation cover is provided with ventilation holes.

The heat insulating plate is provided with a mounting plate, and the control module is fixed on the heat insulating plate through the mounting plate.

A fixing seat is arranged on the bottom surface of the heat insulating plate, and a fixing sleeve is arranged on the fixing seat, and the fixing sleeve fixes the heating pipe.

The beneficial effects of the utility model are as follows: the utility model forms an electric control box by covering an installation cover on the box body, the heat insulation board separates the inside of the electric control box from the inside of the box body, and the inside of the electric control box is the control module and other components. The working space of electrical components, the inside of the box is the baking space, and the heating tube is arranged at the bottom of the heat insulation board. On the one hand, it prevents the heat from being transferred upwards and affects the control modules in the electric control box. The partitions are clear, they do not affect each other, and the use is reliable. Check the control parts.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

Fig. 1 is the structural representation of the present utility model;

Fig. 2 is the structural representation of the utility model installation cover;

Fig. 3 is the structural representation of the electric control box of the present utility model;

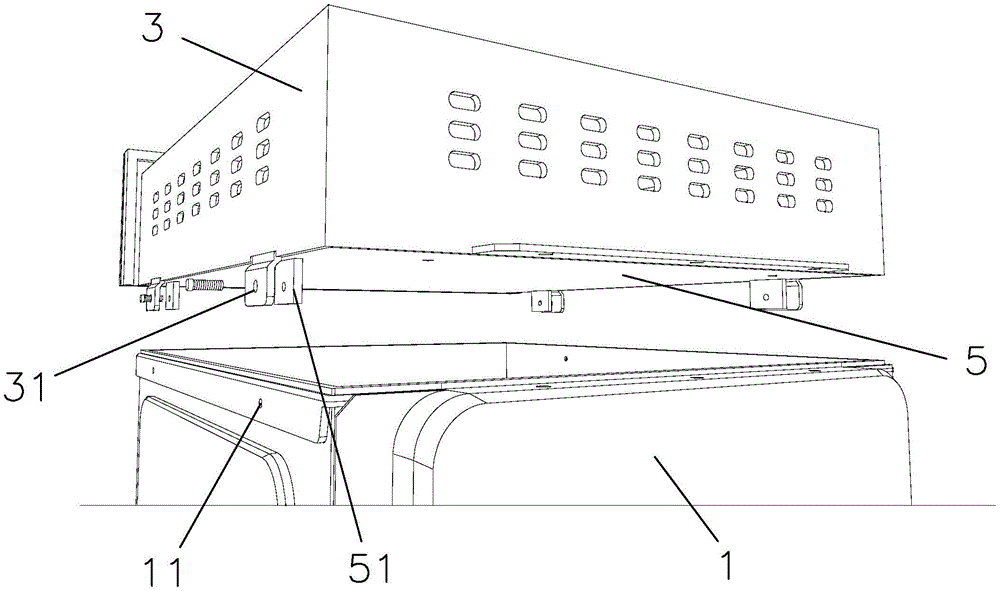

Fig. 4 is the installation schematic diagram of the electric control box and the box body of the present invention;

Fig. 5 is the structural representation of the thermal insulation board of the present utility model;

FIG. 6 is a schematic structural diagram of the thermal insulation panel of the present invention from another perspective.

Detailed ways

Referring to Figures 1 to 6, a household oven includes a box body 1, the top of the box body 1 is provided with a heat insulation board 5 and covered with a mounting cover 3 to form an electric control box 2, and the heat insulation board 5 connects the electric control box. 2. The interior is separated from the interior of the box 1. The electric control box 2 is provided with electrical components such as a control module 6. The interior of the box 1 is a baking space. On the one hand, the heat insulation plate blocks and reflects the thermal radiation emitted by the heating tube, which improves the heating efficiency of the space inside the box, and on the other hand, prevents the heat from being transferred upward, which affects the control module in the electric control box 2. The partitions are clear and mutually exclusive. The front side of the installation cover 3 is provided with a control panel 4, and the control panel 4 and the heating pipe 7 are electrically connected to the control module 6 in the electric control box 2. When the electric control components need to be repaired, only the installation cover needs to be installed. 3 Open, you can check the electric control parts of the oven.

As a preferred solution of the present invention, the side part of the installation cover 3 is provided with fixing ears 31, the side part of the box body 1 is provided with screw holes 11 corresponding to the fixing ears 31; and the bottom surface of the heat insulation plate 5 extends downward with a mounting block 51 located in the box body 1. On the inner side, the mounting block 51 is arranged corresponding to the screw hole 11 and is provided with a through hole 52; the edge of the top surface of the heat insulating plate 5 is provided with a positioning groove 53, and the inner side of the installation cover 3 is extended with a positioning block 32 corresponding to the positioning groove. During the installation process, first align the positioning groove 53 on the heat insulation board 5 with the positioning block 32 to realize the installation and positioning of the heat insulation board 5 and the installation cover 3, which is fast and convenient, and reduces the difficulty of installation; then put the installation cover 3 on the On the box body 1, screw the screws through the fixing ears 31, screw them into the screw holes 11, and extend into the through holes 52 of the mounting block 51, and limit the heat insulation board through the symmetrically distributed support positions to limit the transverse direction of the heat insulation board. Sliding, and the side of the heat insulation board is supported by two supports at the same time, and will not rotate, so as to realize the stable fixation of the heat insulation board, the operation is simple, the installation is reliable, and the installation of the installation cover on the box is realized in one step, which is simple and convenient. . When maintenance is required, screw the screw to disengage it from the through hole 52, and the heat insulating plate and the installation cover can be removed, which is convenient for the maintenance of the control module and the heating pipe, which is simple and convenient, and reduces the difficulty of maintenance.

Preferably, the side of the installation cover 3 is provided with ventilation holes 33, which increases the air circulation inside and outside the installation cover, facilitates heat dissipation, avoids heat accumulation in the installation cover 3, reduces the impact on the control module 6, and facilitates the normal operation of the control module 6.

Preferably, a mounting plate 61 is provided on the heat insulating plate 5, and the control module 6 is fixed on the heat insulating plate 5 through the mounting plate 61. The setting of the mounting plate 61 facilitates the installation and fixation of the control module 6 on the one hand, and avoids the control module 6 on the other hand. 6 is in direct contact with the heat insulation board 5 to prevent the heat insulation effect of the heat insulation board 5 from being deteriorated, resulting in a direct impact of the upward radiation of part of the heat on the controller 6 .

Preferably, the bottom surface of the heat insulating plate 5 is provided with a fixing seat 8 , and the fixing seat 8 is provided with a fixing sleeve 81 , and the fixing sleeve 81 fixes the heating tube 7 to effectively support and fix the heating tube 7 .

Claims (7)

1. A household oven comprising a box (1), characterized in that: the improved electric cabinet is characterized in that a heat insulation plate (5) is arranged at the top of the cabinet body (1) and covered with an installation cover (3) to form an electric cabinet (2), a control module (6) is arranged in the electric cabinet (2), a heating pipe (7) is arranged at the bottom of the heat insulation plate (5) and located in the cabinet body (1), a control panel (4) is arranged on the front side of the installation cover (3), and the control panel (4), the heating pipe (7) and the control module (6) in the electric cabinet (2) are electrically connected.

2. A domestic oven as claimed in claim 1, wherein: the side part of the mounting cover (3) is provided with a fixing lug (31), the side part of the box body (1) is provided with a screw hole (11) corresponding to the fixing lug (31), and the mounting cover (3) is fixed on the box body (1) through screws.

3. A domestic oven as claimed in claim 2, wherein: the bottom surface of the heat insulation plate (5) extends downwards to form an installation block (51) which is located on the inner side of the box body (1), the installation block (51) corresponds to the screw holes (11) and is provided with through holes (52), and screws penetrate through the fixing lugs (31) and the screw holes (11) and stretch into the through holes (52).

4. A domestic oven as claimed in claim 2, wherein: the edge of the top surface of the heat insulation plate (5) is provided with a positioning groove (53), the inner side surface of the installation cover (3) extends to form a positioning block (32) corresponding to the positioning groove, and the positioning block (32) is embedded into the positioning groove (53) to realize the positioning installation of the installation cover (3) and the heat insulation plate (5).

5. A domestic oven as claimed in claim 1, wherein: and a ventilation hole (33) is formed in the side surface of the mounting cover (3).

6. A domestic oven as claimed in claim 1, wherein: the heat insulation plate (5) is provided with a mounting plate (9), and the control module (6) is fixed on the heat insulation plate (5) through the mounting plate (9).

7. A domestic oven as claimed in claim 1, wherein: be equipped with fixing base (8) on the bottom surface of heat insulating board (5), be equipped with fixed cover (81) on fixing base (8), fixed cover (81) are fixed heating pipe (7).
