Abstract
The utility model discloses a make things convenient for self-cleaning's clear excrement machine of scraper blade formula, including two fixed blocks, two be equipped with excrement way between the fixed block, be equipped with the scraper blade in the excrement way, two relative one side of fixed block is rotated jointly and is connected with the screw rod, the screw thread has cup jointed the movable block on the screw rod, the upper end of movable block is fixed with two limiting plates, the limiting plate is L type setting, the lower extreme both sides of movable block all are fixed with electric putter, two electric putter's one end is fixed with the cage jointly, be equipped with rotating device, two in the cage the upper end of fixed block is fixed with the dead lever jointly, be equipped with washing unit on the dead lever, the utility model discloses convenient timely carry out self-cleaning to the scraper blade, avoided the excrement untimely can the adhesion at the scraper blade and increase the washing degree of difficulty, the effectual cleaning efficiency that has promoted, and reduced personnel's intensity of.
Description
Technical Field
The utility model relates to a clear excrement machine technical field especially relates to a make things convenient for self-cleaning to scrape board-like clear excrement machine.
Background
The livestock and poultry farm manure treatment system is designed or operated from the beginning of building the farm, and needs to comprehensively analyze and research the properties of manure and the problems of collection, transfer, storage, fertilization and the like, so that the manure cleaning machine is invented, wherein the scraper type manure cleaning machine is used for cleaning the excrement in the livestock and poultry farm by using a motor as power to drive a scraper to clean the manure.
The scraper type dung cleaning machine is characterized in that the scraper type dung cleaning machine is arranged on the scraper plate, and is used for cleaning the dung cleaning machine manually at intervals.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a scraper type dung cleaner convenient for automatic cleaning.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a make things convenient for self-cleaning's clear excrement machine of scraper blade formula, includes two fixed blocks, two be equipped with excrement way between the fixed block, be equipped with the scraper blade in the excrement way, two relative one side of fixed block is rotated jointly and is connected with the screw rod, the screw thread has cup jointed the movable block on the screw rod, the upper end of movable block is fixed with two limiting plates, the limiting plate is L type setting, the lower extreme both sides of movable block all are fixed with electric putter, two electric putter's one end is fixed with the lift box jointly, be equipped with rotating device in the lift box, two the upper end of fixed block is fixed with the dead lever jointly, be equipped with washing unit.
Preferably, rotating device is including rotating the three dwang of connection on one end lateral wall in the lift box, top in the lift box is fixed with driving motor, driving motor's output shaft end is fixed in the upper end of one of them dwang, and this dwang passes through the drive belt and is connected with other two dwang transmissions, and the lower extreme of dwang runs through the bottom in the lift box and extends to the lower extreme of lift box, and is three the lower extreme of dwang all is fixed with the brush head.
Preferably, the flushing device comprises two sliding blocks which are sleeved on the fixing rod in a sliding mode, one side of each sliding block is fixed to one end of each limiting plate, a water delivery hose penetrates through the upper ends of the sliding blocks, a spray head is fixed to one end of each electric push rod, and the lower ends of the water delivery hoses are connected to the upper ends of the two spray heads respectively.
Preferably, one side of one of the fixed blocks is provided with a groove, a servo motor is fixed at the bottom in the groove, and one end of the screw rod penetrates through one of the fixed blocks and is fixed at the tail end of an output shaft of the servo motor.
Preferably, one side of each of the two limiting plates is provided with a limiting rod in a penetrating mode, and two ends of each limiting rod are fixed to the opposite sides of the two fixing blocks respectively.
Preferably, both the spray heads are arranged obliquely.
Preferably, a collecting pool is arranged on one side of the excrement channel.
Compared with the prior art, the beneficial effects of the utility model are that:
1. through the matching of the spray head, the brush head, the moving block and other components, the scraper is convenient to clean in time, the problems that the existing scraper type dung cleaner is adhered to the scraper due to untimely cleaning of excrement, the cleaning difficulty is high, the cleaning efficiency is low are solved, the cleaning efficiency is effectively improved, and the scraper type dung cleaner is more convenient to use;
2. through the matching of the screw, the servo motor, the rotating device, the flushing device and other components, the scraper can be conveniently and automatically cleaned, the problems that the labor intensity of personnel is increased due to manual cleaning and the cleaning effect is poor are solved, the labor intensity of the personnel is effectively reduced, the operation is convenient, and the cleaning effect is good;
to sum up, the utility model discloses convenient timely carry out self-cleaning to the scraper blade, avoided the excrement untimely can the adhesion at the scraper blade and increase the washing degree of difficulty, the effectual cleaning efficiency that has promoted, and reduced personnel's intensity of labour, the cleaning performance is good, and it is more convenient to use.
Drawings
FIG. 1 is a schematic view of the internal structure of a scraper-type feces cleaning machine convenient for automatic cleaning;

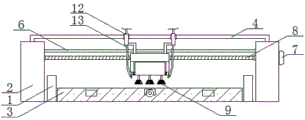

FIG. 2 is a front view of a scraper type dung cleaner convenient for automatic cleaning;
FIG. 3 is a top view of a scraper type dung cleaner convenient for automatic cleaning;
FIG. 4 is an enlarged view of the structure at the A position of the scraper type dung cleaner which is convenient for automatic cleaning and provided by the utility model;
in the figure: the excrement collecting device comprises a excrement channel 1, a fixing block 2, a scraping plate 3, a fixing rod 4, a limiting plate 5, a limiting rod 6, a servo motor 7, a screw rod 8, a brush head 9, a lifting box 10, a moving block 11, a sliding block 12, a water delivery hose 13, an electric push rod 14, a spray head 15, a transmission belt 16, a rotating rod 17, a driving motor 18 and a collecting pool 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, a scraper type dung cleaner convenient for automatic cleaning comprises two fixed blocks 2, a dung channel 1 is arranged between the two fixed blocks 2, a scraper 3 is arranged in the dung channel 1, a collecting tank 19 is arranged on one side of the dung channel 1, and when the scraper 3 moves under a traction device of the dung cleaner, excrement in the dung channel 1 can be conveyed into the collecting tank 19, so that the excrement can be cleaned conveniently.
The utility model discloses in, relative one side of two fixed blocks 2 is rotated jointly and is connected with screw rod 8, makes things convenient for screw rod 8's rotation, and one side of one of them fixed block 2 is equipped with the recess, and the bottom in the recess is fixed with servo motor 7, and servo motor 7 is connected with external equipment, conveniently controls, and one end of screw rod 8 runs through one of them fixed block 2 and fixes at servo motor 7's output shaft end, and servo motor 7 accessible output shaft drives screw rod 8 and rotates.
The utility model discloses in, the movable block 11 has been cup jointed to the screw thread on the screw rod 8, make movable block 11 move on screw rod 8 when screw rod 8 rotates, the upper end of movable block 11 is fixed with two limiting plates 5, movable block 11 can drive two limiting plates 5 when removing and remove, limiting plate 5 is L type setting, one side of two limiting plates 5 runs through jointly and is equipped with gag lever post 6, the relative one side at two fixed blocks 2 is fixed respectively at the both ends of gag lever post 6, gag lever post 6 conveniently carries out spacingly with limiting plate 5, thereby it is spacing to carry out movable block 11, make things convenient for the steady removal of movable block 11.
The utility model discloses in, the lower extreme both sides of movable block 11 all are fixed with electric putter 14, two electric putter 14 control through the synchro control system, make things convenient for two electric putter 14's one end synchronous motion, two electric putter 14's one end is fixed with cage 10 jointly, two electric putter 14 accessible one end drive cage 10 jointly and remove, the lift that conveniently passes through cage 10 makes brush head 9 contradict on scraper blade 3, be equipped with rotating device in cage 10, the convenience is washhed scraper blade 3, the upper end of two fixed blocks 2 is fixed with dead lever 4 jointly, be equipped with washing unit on dead lever 4, washing unit can erode scraper blade 3, the cleaning performance is good.
The utility model discloses in, rotating device is including rotating the three dwang 17 of connecting on one end lateral wall in the lift box 10, make things convenient for the rotation of dwang 17, top in the lift box 10 is fixed with driving motor 18, driving motor 18's output shaft end is fixed in the upper end of one of them dwang 17, make things convenient for driving motor 18 to drive this dwang 17 through the output shaft and rotate, and this dwang 17 passes through drive belt 16 and is connected with other two dwang 17 transmissions, drive other two dwang 17 rotations through drive belt 16 when this dwang 17 rotates.
The utility model discloses in, the lower extreme of dwang 17 runs through the bottom in the lift box 10 and extends to the lower extreme of lift box 10, and the lower extreme of three dwang 17 all is fixed with brush head 9, and dwang 17 drives brush head 9 when rotating and rotates, conveniently scours scraper blade 3.
The utility model discloses in, washing unit cup joints two sliders 12 on dead lever 4 including sliding, makes things convenient for slider 12's removal, and the one end at two limiting plates 5 is fixed respectively to one side of two sliders 12, can drive slider 12 and slide on dead lever 4 when limiting plate 5 removes.
The utility model discloses in, two sliders 12's upper end all runs through and is equipped with water hose 13, and two electric putter 14's one end all is fixed with shower nozzle 15, and shower nozzle 15 erodees scraper blade 3, and two shower nozzles 15 all are the slope setting, and the cleaning performance is good, and two water hose 13's lower extreme is connected respectively in two shower nozzles 15's upper end, makes things convenient for water hose 13 to provide the washing water for shower nozzle 15.
In the utility model, when in use, the scraper 3 stops moving when moving to the end of the excrement channel 1 under the traction device of the excrement cleaning machine, and simultaneously, excrement in the excrement channel 1 is conveyed into the collecting tank 19, the driving motor 18 drives one of the rotating rods 17 to rotate through the output shaft, the rotating rod 17 drives the other two rotating rods 17 to rotate through the driving belt 16 when rotating, so that the brush head 9 is driven to rotate when the rotating rod 17 rotates, one end of the two electric push rods 14 jointly drives the lifting box 10 to move, so that the brush head 9 is butted on the scraper 3, the water conveying hose 13 provides cleaning water for the sprayer 15, the brush head 9 is matched with the washing of the sprayer 15 to facilitate the cleaning of the scraper 3, the servo motor 7 drives the screw rod 8 to rotate through the output shaft, so that the moving block 11 moves on the screw rod 8 when the screw rod 8 rotates, the lifting box 10 and the sprayer 15 are driven by the electric push rods 14 when, the lifting box 10 drives the three brush heads 9 to move when moving, so that the scraper 3 is convenient to clean, the use is convenient, and the cleaning efficiency is high.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The scraper type dung cleaning machine convenient to automatically clean comprises two fixed blocks (2) and is characterized in that a dung channel (1) is arranged between the two fixed blocks (2), a scraper (3) is arranged in the dung channel (1), one opposite side of each fixed block (2) is connected with a screw (8) in a rotating mode, a moving block (11) is sleeved on the screw (8) in a threaded mode, two limiting plates (5) are fixed to the upper end of the moving block (11), the limiting plates (5) are L-shaped, electric push rods (14) are fixed to two sides of the lower end of the moving block (11), a lifting box (10) is fixed to one end of each electric push rod (14) jointly, a rotating device is arranged in the lifting box (10), two fixing rods (4) are fixed to the upper ends of the fixed blocks (2) jointly, and a washing device is arranged on each fixing rod (4).
2. The scraper type dung cleaner convenient for automatic cleaning as claimed in claim 1, wherein: rotating device is including rotating three dwang (17) of connecting on one end lateral wall in lift box (10), top in lift box (10) is fixed with driving motor (18), the output shaft end of driving motor (18) is fixed in the upper end of one of them dwang (17), and this dwang (17) is connected with other two dwang (17) transmissions through drive belt (16), and the lower extreme of dwang (17) runs through the bottom in lift box (10) and extends to the lower extreme of lift box (10), and is three the lower extreme of dwang (17) all is fixed with brush head (9).
3. The scraper type dung cleaner convenient for automatic cleaning as claimed in claim 1, wherein: the flushing device comprises two sliding blocks (12) which are sleeved on a fixing rod (4) in a sliding mode, one side of each sliding block (12) is fixed to one end of each limiting plate (5) respectively, the two ends of each sliding block (12) are provided with water delivery hoses (13) in a penetrating mode, the two ends of each electric push rod (14) are fixed to spray heads (15) respectively, and the two ends of each water delivery hose (13) are connected to the upper ends of the two spray heads (15) respectively.
4. The scraper type dung cleaner convenient for automatic cleaning as claimed in claim 1, wherein: one side of one of the fixed blocks (2) is provided with a groove, a servo motor (7) is fixed at the bottom in the groove, and one end of the screw rod (8) penetrates through one of the fixed blocks (2) and is fixed at the tail end of an output shaft of the servo motor (7).
5. The scraper type dung cleaner convenient for automatic cleaning as claimed in claim 1, wherein: and one side of each of the two limiting plates (5) is provided with a limiting rod (6) in a penetrating mode, and two ends of each limiting rod (6) are fixed on the opposite sides of the two fixing blocks (2) respectively.
6. The scraper type dung cleaner convenient for automatic cleaning as claimed in claim 3, wherein: two shower nozzles (15) all are the slope setting.
7. The scraper type dung cleaner convenient for automatic cleaning as claimed in claim 1, wherein: and a collecting pool (19) is arranged on one side of the excrement channel (1).
