Abstract

The utility model relates to the technical field of agriculture, and discloses a rapid watering device for agricultural plants, comprising a support block, the bottom of the support block is fixedly connected with a universal wheel, and the left side of the top of the support block is fixedly connected with two There are push rods arranged front and rear, a height adjustment component is arranged in the center of the top of the support block, and a hollow tube is arranged on the right side of the height adjustment component. When this scheme is used, the whole device is moved to the blank ditch of the farmland through the cooperation of the support block universal wheel and the push rod, and the height of the hollow tube is adjusted by adjusting the height adjustment component, so as to meet the needs of plants of different heights, so that the two groups of The sprinkler head is above the plants that need to be watered on both sides of the blank ditch, and then the external water source is connected to the water inlet pipe. Plants on both sides are watered, making work more efficient.

Description

A fast watering device for agricultural plants

technical field

The utility model relates to the technical field of agriculture, in particular to a fast watering device for agricultural plants.

Background technique

Plants are one of the main forms of life and include familiar creatures such as trees, shrubs, vines, grasses, ferns, and green algae lichens. Seed plants, bryophytes, ferns, and ferns are estimated to have about 350,000 species in existence.

Nowadays, plants are mostly watered manually or sprayed directly by water pipes. Manual watering has the disadvantages of being time-consuming, slow and labor-intensive. Direct spraying of water pipes cannot water plants of different heights.

Utility model content

1. Technical problems to be solved

In view of the problems existing in the prior art, the purpose of the present utility model is to provide a fast watering device for agricultural plants, which solves the problem that nowadays plants are mostly watered manually or directly sprayed by water pipes, and there is a problem of manual watering. The shortcomings of time-consuming, slow and labor-intensive, and the problem that direct spraying of water pipes cannot water plants of different heights.

2. Technical solutions

In order to solve the above-mentioned problems, the utility model adopts the following technical scheme:

A rapid watering device for agricultural plants, comprising a support block, the bottom of the support block is fixedly connected with a universal wheel, and the left side of the top of the support block is fixedly connected with two push rods arranged in the front and rear, the support block The center of the top is provided with a height adjustment component, the right side of the height adjustment component is provided with a hollow tube, and the front and rear of the bottom of the hollow tube are connected with two groups of spray heads arranged at an equal distance from front to back. A water inlet pipe is communicated with the top, and a support limit component is provided on the top of the support block and located in front of and behind the height adjustment component.

Preferably, the height adjustment assembly comprises a vertically arranged support housing, the bottom of the support housing is fixedly connected with the top of the support block, the inside of the support housing is provided with a vertically arranged threaded rod, the The bottom of the threaded rod is rotatably connected with a rotating seat, the bottom of the rotating seat is fixedly connected with the inner bottom wall of the support shell, the top of the threaded rod extends through and extends to the top of the support shell, and the threaded rod is located on the support A threaded ring is threadedly connected to the inside of the casing, a vertical through opening is provided on the right side of the support casing, a connecting rod is fixedly connected to the right side of the threaded ring, and the right end of the connecting rod passes through the through opening Extending to the right side of the support housing, the right end of the connecting rod is provided with a positioning assembly, and the hollow tube is connected with the positioning assembly.

Preferably, the through hole is adapted to the connecting rod, and the top end of the threaded rod is fixedly connected with an anti-skid knob.

Preferably, the positioning assembly includes a positioning rod, the bottom end of the positioning rod is fixedly connected with the top of the support block, the positioning rod is sleeved with a sliding block slidably connected with it, and the top end of the positioning rod is fixedly connected with a A positioning block, the right side of the sliding block is fixedly connected with a fixing rod, and the right end of the fixing rod is fixedly connected with the left side of the hollow tube.

Preferably, the support and limit assembly includes a limit rod, the bottom end of the limit rod is fixedly connected with the top of the support block, the limit block is sleeved with a limit block slidably connected with the limit rod, the limit The right side of the position block is fixedly connected with a support rod, the right end of the support rod is fixedly connected with the left side of the hollow tube, and the top end of the limit rod is fixedly connected with a stopper.

Preferably, a non-slip handle is fixedly connected to the left side of the two push rods.

Preferably, the cross section of the limit rod is square, and the limit block is adapted to the limit rod.

3. Beneficial effects

Compared with the prior art, the advantages of the present utility model are:

(1) When this scheme is used, the whole device is moved to the blank ditch of the farmland through the mutual cooperation of the support block universal wheel and the push rod, and the height of the hollow tube is adjusted by adjusting the height adjustment component, so as to meet the needs of plants of different heights. The two sets of sprinklers are placed above the plants that need to be watered on both sides of the blank ditch, and then the external water source is connected to the water inlet pipe. Plants on both sides can be watered at the same time, making work more efficient.

(2) By applying a rotating force to the threaded rod, the threaded rod can be driven to rotate in the rotating seat, and through the mutual cooperation of the connecting rod and the positioning assembly, the threaded ring threadedly connected with the threaded rod can be driven to move up and down, thereby realizing the height of the hollow tube. adjustment to meet the needs of plants of different heights.

(3) Through the mutual cooperation of the positioning rod, the sliding block, the positioning block and the fixing rod, the hollow tube can be limited and guided, so as to avoid the change of the angle during the lifting process.

(4) The hollow tube can be supported by the support rod to prevent it from breaking due to excessive force, and the mutual cooperation of the limit rod and the limit block does not affect the lifting movement of the hollow tube.

(5) The rotation of the threaded rod can be facilitated by the anti-skid knob, and the movement of the whole device can be facilitated by the anti-skid handle.

Description of drawings

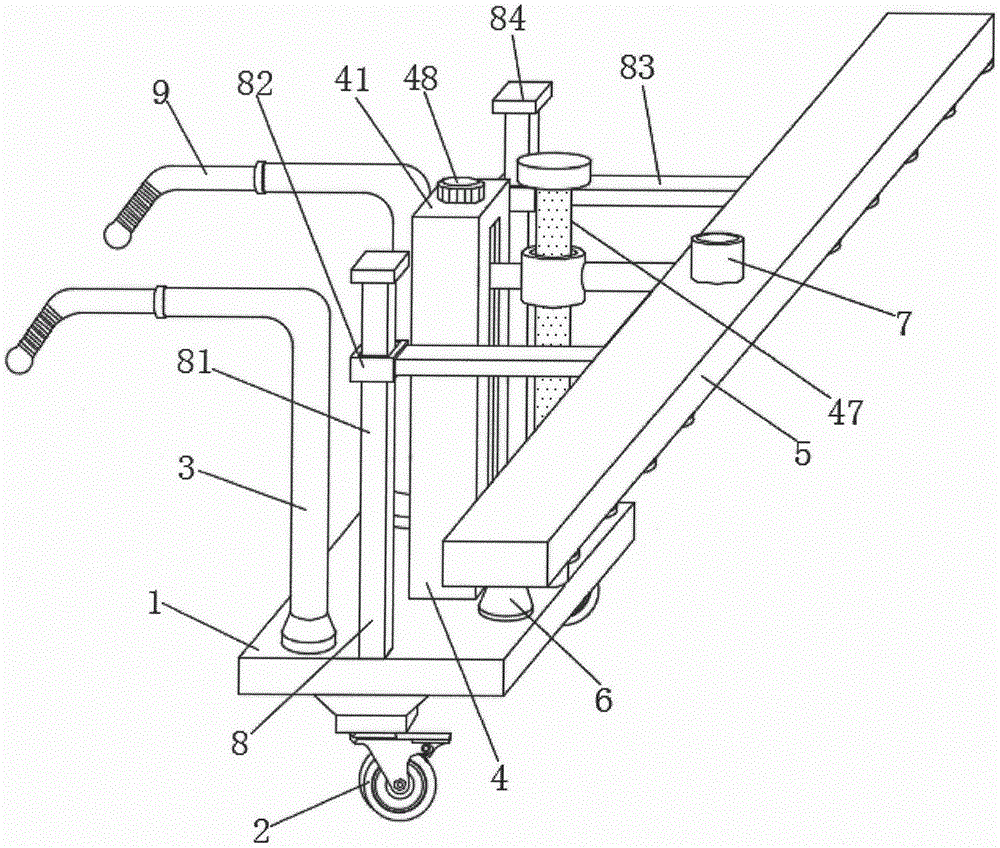

Fig. 1 is the perspective view of the utility model;

Fig. 2 is the front sectional view of Fig. 1 of the utility model;

FIG. 3 is a bottom view of the connection between the hollow tube and the nozzle of the utility model.

Description of the labels in the figure:

1. Support block; 2. Universal wheel; 3. Push rod; 4. Height adjustment assembly; 41. Support shell; 42. Threaded rod; 43. Rotary seat; 44. Threaded ring; connecting rod; 47, positioning assembly; 471, positioning rod; 472, slider; 473, positioning block; 474, fixing rod; 48, anti-skid knob; 5, hollow pipe; 6, nozzle; 7, water inlet pipe; 8, support Limit component; 81, limit rod; 82, limit block; 83, support rod; 84, stop; 9, non-slip handle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model; obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative work shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientations or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. are based on the orientations shown in the accompanying drawings Or the positional relationship is only for the convenience of describing the present utility model and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present utility model. . Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "provided with", "sleeve/connection", "connection", etc., should be understood in a broad sense, such as "Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be two elements Internal connectivity. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Figure 1-3, a rapid watering device for agricultural plants, including a support block 1, the bottom of the support block 1 is fixedly connected with a universal wheel 2, and the left side of the top of the support block 1 is fixedly connected with two front and rear The push rod 3 provided, the center of the top of the support block 1 is provided with a height adjustment assembly 4, the right side of the height adjustment assembly 4 is provided with a hollow tube 5, and the bottom of the hollow tube 5 is communicated with two groups of equal distances from front to back. Arranged spray heads 6, the top of the hollow pipe 5 is connected with a water inlet pipe 7, and the top of the support block 1 and located in front and behind the height adjustment assembly 4 is provided with a support limit assembly 8, when in use, through the support block 1 universal wheel 2 and the push rod 3 cooperate with each other to move the whole device into the blank ditch of the farmland, and adjust the height of the hollow tube 5 by adjusting the height adjustment assembly 4, so as to meet the needs of plants of different heights, so that two groups of sprinklers 6 are on both sides of the blank ditch. Above the plants that need to be watered, the external water source is then connected to the water inlet pipe 7, the water enters the hollow pipe 5 through the water inlet pipe 7, and the water is then sprayed on the plants through the nozzle 6, and with the movement of the device, it can be simultaneously The plants on the side are watered, making the work more efficient.

Further, the height adjustment assembly 4 includes a vertically arranged support housing 41, the bottom of the support housing 41 is fixedly connected with the top of the support block 1, and the inside of the support housing 41 is provided with a vertically arranged threaded rod 42. The threaded rod The bottom of 42 is rotatably connected with a rotating seat 43, the bottom of the rotating seat 43 is fixedly connected with the inner bottom wall of the support shell 41, the top of the threaded rod 42 extends through and extends to the top of the support shell 41, and the threaded rod 42 is located on the support shell 42. A threaded ring 44 is threadedly connected to the inside of the body 41, a vertical through-hole 45 is opened on the right side of the support housing 41, a connecting rod 46 is fixedly connected to the right side of the threaded ring 44, and the right end of the connecting rod 46 penetrates the through-hole 45 extends to the right side of the support housing 41, the right end of the connecting rod 46 is provided with a positioning assembly 47, the hollow tube 5 is connected with the positioning assembly 47, and by applying a rotating force to the threaded rod 42, the threaded rod 42 can be driven on the rotating seat 43. The threaded ring 44 threadedly connected with the threaded rod 42 is driven to move up and down through the cooperation of the connecting rod 46 and the positioning assembly 47, so as to realize the adjustment of the height of the hollow tube 5 to meet the needs of plants of different heights.

Further, the through hole 45 is adapted to the connecting rod 46 , and the top end of the threaded rod 42 is fixedly connected with an anti-skid knob 48 , and the rotation of the threaded rod 42 can be facilitated by the anti-skid knob 48 .

Further, the positioning assembly 47 includes a positioning rod 471, the bottom end of the positioning rod 471 is fixedly connected with the top of the support block 1, the positioning rod 471 is sleeved with a sliding block 472 slidably connected with it, and the top of the positioning rod 471 is fixedly connected with a positioning rod 472. Block 473, a fixing rod 474 is fixedly connected to the right side of the sliding block 472, and the right end of the fixing rod 474 is fixedly connected to the left side of the hollow tube 5, through the mutual cooperation of the positioning rod 471, the sliding block 472, the positioning block 473 and the fixing rod 474 The hollow tube 5 can play a role of limiting and guiding, so as to avoid the change of the angle in the process of lifting and lowering.

Further, the support and limit assembly 8 includes a limit rod 81, the bottom end of the limit rod 81 is fixedly connected with the top of the support block 1, and the limit block 82 is sleeved on the limit rod 81 to be slidably connected with the limit block. The right side of 82 is fixedly connected with a support rod 83, the right end of the support rod 83 is fixedly connected with the left side of the hollow tube 5, and the top end of the limit rod 81 is fixedly connected with a stopper 84, through which the support rod 83 can play a role in the hollow tube 5. The effect of support is to avoid the phenomenon of being broken due to excessive force, and the lifting movement of the hollow tube 5 is not affected by the mutual cooperation of the limit rod 81 and the limit block 82 .

Further, the left sides of the two push rods 3 are fixedly connected with anti-skid handles 9 , and the movement of the whole device is facilitated by the anti-skid handles 9 .

Further, the cross section of the limit rod 81 is square, and the limit block 82 is adapted to the limit rod 81 , so that the limit block 82 can move on the limit rod 81 easily.

Working principle: When in use, the whole device is moved to the blank ditch of the farmland through the cooperation of the support block 1, the universal wheel 2, the anti-skid handle 9 and the push rod 3, and then the threaded rod 42 is adjusted according to the height of the plants that need to be watered. The force of rotation can drive the threaded rod 42 to rotate in the rotating seat 43, and through the mutual cooperation of the connecting rod 46 and the positioning assembly 47, the threaded ring 44 threadedly connected with the threaded rod 42 is driven to move up and down, thereby realizing the height of the hollow tube 5. The adjustment can meet the needs of plants of different heights, so that the two groups of sprinklers 6 are above the plants that need to be watered on both sides of the blank ditch, and then the external water source is connected to the water inlet pipe 7, and the water enters the hollow pipe 5 through the water inlet pipe 7. , the water is then sprayed on the plants through the nozzle 6, and at the same time, the staff exerts a pushing force on the push rod 3 to drive the movement of the entire device. With the movement of the device, the plants on both sides can be watered at the same time, thereby improving the watering efficiency. .

The above descriptions are only preferred specific embodiments of the present invention; however, the protection scope of the present invention is not limited thereto. Any person skilled in the art who is familiar with the technical scope disclosed by the present utility model, according to the technical solution of the present utility model and its improvement concept, equivalently replaces or changes, should be covered within the protection scope of the present utility model.

Claims (7)

1. The utility model provides an agricultural is with plant device that waters fast, includes supporting shoe (1), its characterized in that: the supporting device is characterized in that universal wheels (2) are fixedly connected to the front portion and the rear portion of the bottom of the supporting block (1), push rods (3) are fixedly connected to the left side of the top of the supporting block (1) in two front portions and rear portions and are arranged in the front portion and the rear portion, a height adjusting assembly (4) is arranged in the center of the top of the supporting block (1), a hollow pipe (5) is arranged on the right side of the height adjusting assembly (4), two groups of spray heads (6) which are arranged in the front portion and the rear portion of the bottom of the hollow pipe (5) are communicated with each other in two groups of equal distances, a water inlet pipe (7) is communicated with the top.

2. An agricultural plant rapid watering device according to claim 1, wherein: the height adjusting assembly (4) comprises a vertically arranged supporting shell (41), the bottom of the supporting shell (41) is fixedly connected with the top of the supporting block (1), a vertically arranged threaded rod (42) is arranged in the supporting shell (41), the bottom of the threaded rod (42) is rotatably connected with a rotating seat (43), the bottom of the rotating seat (43) is fixedly connected with the inner bottom wall of the supporting shell (41), the top of the threaded rod (42) extends to the upper side of the supporting shell (41) in a penetrating manner, a threaded ring (44) which is arranged on the threaded rod (42) and is in threaded connection with the inner side of the supporting shell (41) is arranged, a vertically arranged through hole (45) is formed in the right side of the supporting shell (41), a connecting rod (46) is fixedly connected to the right side of the threaded ring (44), and the right end of the connecting rod (46) extends to the right side of the supporting shell (41) in a penetrating manner, the right end of connecting rod (46) is provided with locating component (47), hollow tube (5) are connected with locating component (47).

3. An agricultural plant rapid watering device according to claim 2, wherein: the through hole (45) is matched with the connecting rod (46), and the top end of the threaded rod (42) is fixedly connected with an anti-skidding knob (48).

4. An agricultural plant rapid watering device according to claim 2, wherein: the positioning assembly (47) comprises a positioning rod (471), the bottom end of the positioning rod (471) is fixedly connected with the top of the supporting block (1), a sliding block (472) in sliding connection with the positioning rod (471) is sleeved on the positioning rod (471), a positioning block (473) is fixedly connected to the top end of the positioning rod (471), a fixing rod (474) is fixedly connected to the right side of the sliding block (472), and the right end of the fixing rod (474) is fixedly connected with the left side of the hollow tube (5).

5. An agricultural plant rapid watering device according to claim 1, wherein: support spacing subassembly (8) and include gag lever post (81), the bottom of gag lever post (81) and the top fixed connection of supporting shoe (1), the cover is equipped with stopper (82) rather than sliding connection on gag lever post (81), the right side fixedly connected with bracing piece (83) of stopper (82), the right-hand member of bracing piece (83) with the left side fixed connection of hollow tube (5), the top fixedly connected with dog (84) of gag lever post (81).

6. An agricultural plant rapid watering device according to claim 1, wherein: the left sides of the two push rods (3) are fixedly connected with anti-skidding handles (9).

7. An agricultural plant rapid watering device according to claim 5, wherein: the cross section of the limiting rod (81) is square, and the limiting block (82) is matched with the limiting rod (81).
