Abstract

English teaching vocabulary display device, the upper part of the frame is fixed with a guide rod, the guide rod is slidably connected with a sliding block, the lower part of the sliding block is fixed with a blocking plate located on the front side of the writing board, and the middle part of the blocking board facing the writing board is fixed with a mounting strip The guide rod is slidably connected to the installation strip through the installation bar, a clamping strip is fixed between the same ends of the two guide rods, a blocking cloth is arranged between the installation strip and the clamping strip, and one side of the frame is provided with a rotating shaft , the two ends of the rotating shaft are fixedly connected to the frame through the mounting seat, the rotating shaft is provided with a plurality of marking components at intervals, and the marking components include a reel and a card seat that are rotatably connected to the rotating shaft, and the reel is wound with a marking line , the free end of the marking line is fixed with a card block, the card seat is fixed on the side of the frame away from the marking line assembly, and the card seat is provided with a card slot. The position and scope of the shielding of the writing board can be easily adjusted to facilitate students' dictation memory; setting the marking line can provide a reference for the teacher to write, making the writing on the writing board more tidy.

Description

English teaching vocabulary display device

technical field

The utility model relates to the technical field of English teaching, in particular to an English teaching vocabulary display device.

Background technique

In the process of English learning, word memory is an important part of English learning. When the teacher explains the words, he needs to explain and write a lot of words on the writing board. After the students memorize them, they need to let the students review them by dictation. At this time, the words written on the blackboard will affect the students' dictation memory. After the students' dictation memory, they need to be compared with the words written on the blackboard by the teacher. In the existing blackboard display device, there is no matching shielding device to shield the words on the blackboard. At the same time, when writing on the blackboard, it is easy to deviate the writing of the words without the marking line, which affects the teacher's writing display.

Utility model content

In view of the above situation, in order to overcome the defects of the prior art, the purpose of the present invention is to provide an English teaching vocabulary display device, which can conveniently and flexibly block the words on the writing display board, which is convenient for students to learn. Line, for the teacher's writing reference, so that the teacher's writing on the writing board is more neat.

The solution is that the English teaching vocabulary display device includes a frame, a writing board is arranged in the frame, a guide rod is fixed on the upper part of the frame, a sliding block is slidably connected to the guide rod, and a lower part of the sliding block is fixed on the front side of the writing board. The shielding plate is fixed in the middle of one side of the shielding plate facing the writing board, and the upper and lower ends of the installation bar are slidably connected with horizontal guide rods. A clamping strip is fixed between the same ends of the rod, a shielding cloth is arranged between the mounting strip and the clamping strip, one side of the frame is provided with a rotating shaft, and both ends of the rotating shaft are fixedly connected to the frame through the mounting seat, and the rotating shaft is There are a plurality of marking components at the upper interval. The marking components include a reel and a card seat that are rotatably connected with the rotating shaft. The reel is wound with a marking line, and a clip block is fixed at the free end of the marking line. The clip is fixed on the frame away from the frame. On one side of the marking assembly, there is a card slot on the card holder.

Preferably, the marking assembly further includes a driven bevel gear and a wire ring located at the lower part of the reel, a driving bevel gear meshing with the driven bevel gear, a driving bevel gear, and a bearing fixed on the rotating shaft is provided below the driven bevel gear The driving bevel gear is rotatably connected with the bearing frame through the gear shaft, the driven bevel gear is fixed with the equalizing wheel, the end of the gear shaft away from the driving bevel gear is fixed with a rotating handle, the wire ring is fixed on the frame away from the card seat, the wire The center of the ring is at the same level as the groove.

Preferably, the length of the shielding cloth along the direction of the guide rod is not shorter than the distance between the mounting bar and the clamping bar.

Preferably, the reticle is an elastic cord.

Preferably, the shielding plate is capable of writing on its side facing away from the writing plate by means of a writing pen.

The beneficial effects of the utility model are: the position and range of shielding the writing board can be adjusted conveniently, which is convenient for students to dictately memorize; setting the marking line can provide a reference for the teacher to write, so that the writing on the writing board is more tidy.

Description of drawings

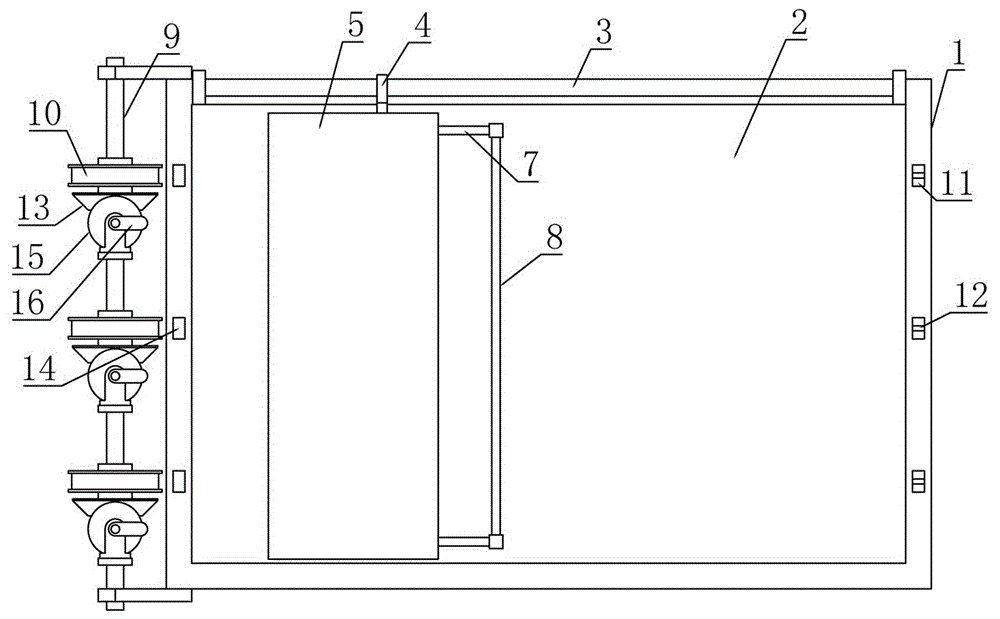

Figure 1 is a schematic structural diagram of the utility model.

FIG. 2 is a schematic left side view of FIG. 1 of the present utility model.

FIG. 3 is a schematic diagram of the utility model along the A-A direction of FIG. 2 .

FIG. 4 is a schematic diagram of the three-dimensional structure of the present invention.

Detailed ways

The specific embodiments of the present utility model will be further described in detail below with reference to the accompanying drawings.

1 to 4, the English teaching vocabulary display device includes a frame 1, and a writing board 2 is arranged in the frame 1. It is characterized in that a guide rod 3 is fixed on the upper part of the frame 1, and the guide rod 3 is slidably connected. There is a sliding block 4, the lower part of the sliding block 4 is fixed with a shielding plate 5 located on the front side of the writing board 2, and a mounting bar 6 is fixed in the middle of the side of the shielding plate 5 facing the writing board 2, and the upper and lower ends of the mounting bar 6 are slidably connected There is a transverse guide rod 7, and the guide rod 7 is slidably connected to the mounting bar 6 through the mounting bar 6, and a clamping bar 8 is fixed between the same ends of the two said guiding bars 7. A shielding cloth is arranged between, one side of the frame 1 is provided with a rotating shaft 9, both ends of the rotating shaft 9 are fixedly connected with the frame 1 through the mounting seat, and a plurality of marking components are arranged on the rotating shaft 9 at intervals, and the marking components include The reel 10 and the card seat 11 are rotatably connected with the rotating shaft 9. The reel 10 is wound with a marking line, the free end of the marking line is fixed with a clamping block, and the card seat 11 is fixed on the side of the frame 1 away from the marking assembly. The seat 11 is provided with a card slot 12 . The writing pad 2 is used for writing, and the shielding plate 5 is used to shield the content on the writing pad 2 . The shielding plate 5 can slide along the guide rod 3 to shield different positions of the writing pad 2 . By stretching the clamping bar 8, the length of the shielding plate 5 extending out of the shielding plate 5 can be adjusted, and then the range of shielding and covering the writing plate 2 can be adjusted. range. When marking is required, one end of the marking line is fixed on the reel 10, and the other end of the marking line passes through the card slot 12 of the card seat 11, and then the card block cooperates with the card slot 12 so that one end of the marking line is fixed on the card. On the seat 11, the marking line is located between the shielding plate 5 and the writing line board at this time, and the blocking block is blocked on the side of the card seat 11 away from the reel 10. When the marking line is not required, the marking line can be wrapped around the winding line. round 10.

The line marking assembly also includes a driven bevel gear 13 located at the lower part of the reel 10, a wire ring 14, a driving bevel gear 15 meshing with the driven bevel gear 13, and a driving bevel gear 15. Below the driven bevel gear 13 is provided. The bearing frame fixed on the rotating shaft 9, the driving bevel gear 15 is rotatably connected to the bearing frame through the gear shaft, the driven bevel gear 13 is fixed with the equalizing wheel, and the end of the gear shaft away from the driving bevel gear 15 is fixed with a rotating handle 16, a wire ring 14 Fixed on the side of the frame 1 away from the card seat 11 , the center of the wire loop 14 is at the same height as the card slot 12 . By rotating the handle 16, the driving bevel gear 15 and the driven bevel gear 13 drive the reel 10 to rotate, so that the marking line can be retracted into the reel 10 easily. The reticle passes through the wire loop.

The length of the shielding cloth along the direction of the guide rod 3 is not shorter than the distance between the mounting bar 6 and the clamping bar 8 .

The marking line is an elastic cord. Using the elasticity of its elastic rope is more conducive to marking the line.

The shielding plate 5 can be written on its side away from the writing board 2 by a writing pen. You can write on the shielding board 5, which is convenient for teachers to ask questions and write them silently, and compare them with the content on the writing board.

When the utility model is in use, the writing board 2 is used for writing, the blocking board 5 blocks the content on the writing board 2, and the range of the blocking board 5 is adjusted by the blocking cloth. The marking line can be flexibly extended and retracted, which can be selected by the teacher when writing. .

The beneficial effects of the utility model are: the position and range of shielding the writing board can be adjusted conveniently, which is convenient for students to dictately memorize; setting the marking line can provide a reference for the teacher to write, so that the writing on the writing board is more tidy.

The above-mentioned embodiments are not intended to limit the scope of the present utility model. On the premise of not departing from the design concept of the present utility model, various modifications and improvements made by those skilled in the art to the technical solutions of the present utility model shall be incorporated into the present invention. within the scope of protection determined by the claims of the utility model.

Claims (5)

1. An English teaching vocabulary display device, comprising a frame (1), and a writing board (2) is arranged in the frame (1), characterized in that a guide rod (3) is fixed on the upper part of the frame (1), and the guide rod ( 3) A sliding block (4) is slidably connected to the upper part, and the lower part of the sliding block (4) is fixed with a shielding plate (5) located on the front side of the writing board (2), and the shielding plate (5) faces the side of the writing board (2). A mounting bar (6) is fixed in the middle, the upper and lower ends of the mounting bar (6) are slidably connected with a transverse guide rod (7), and the guide rod (7) passes through the mounting bar (6) and is slidably connected with the mounting bar (6). , a clamping strip (8) is fixed between the same ends of the two guide rods (7), and a shielding cloth is arranged between the mounting strip (6) and the clamping strip (8). A rotating shaft (9) is provided on one side, and both ends of the rotating shaft (9) are fixedly connected with the frame (1) through the mounting seat. A plurality of marking components are arranged on the rotating shaft (9) at intervals, and the marking components include and are connected to the rotating shaft ( 9) Rotate the connected reel (10) and the card seat (11), the reel (10) is wound with a marking line, the free end of the marking line is fixed with a block, and the card seat (11) is fixed on the frame (1) A card slot (12) is provided on the card seat (11) on the side away from the marking assembly. 2 . The English teaching vocabulary display device according to claim 1 , wherein the marking assembly further comprises a driven bevel gear ( 13 ) and a wire ring ( 14 ) located at the lower part of the reel ( 10 ), and 2 . The driving bevel gear (15) meshed with the driven bevel gear (13), the driving bevel gear (15), the bearing frame fixed on the rotating shaft (9) is arranged under the driven bevel gear (13), the driving bevel gear (15) The gear shaft is rotatably connected with the bearing frame, the driven bevel gear (13) is fixed with the equalizing wheel, the end of the gear shaft away from the driving bevel gear (15) is fixed with a rotating handle (16), and the wire ring (14) is fixed on the frame (1). ) on the side away from the card holder (11), the center of the wire loop (14) and the card slot (12) are at the same height. 3 . The English teaching vocabulary display device according to claim 1 , wherein the length of the shielding cloth along the direction of the guide rod ( 3 ) is not shorter than the length between the installation strip ( 6 ) and the clamping strip ( 8 ). 4 . distance. 4 . The English teaching vocabulary display device according to claim 1 , wherein the marking line is an elastic rope. 5 . 5 . The English teaching vocabulary display device according to claim 1 , wherein the shielding plate ( 5 ) can write on the side away from the writing board ( 2 ) through a writing pen. 6 .
