Abstract
The utility model discloses a gutter inlet filtering and dirt intercepting hanging basket capable of improving discharged water quality and easy to clean, which comprises a basket body, wherein the upper part is an overflow chamber, the lower part is a rainwater discharging chamber, the middle part of the basket body is provided with a filtering and dirt intercepting cavity and a reverse cleaning cavity, a filter material basket is placed in the filtering and sewage-cutting cavity, the back-washing cavity is provided with a top cover plate and is divided into a water injection pipe installation cavity and a sewage discharge chamber, a water injection pipe is arranged in the water injection pipe installation cavity, the upper end of the water injection pipe extends into the overflow chamber, the lower end of the water injection pipe is a water outlet communicated with the rainwater discharge chamber, the sewage discharge chamber is provided with a sewage inlet and a bottom sealing plate, a brake bar penetrates through the sewage discharge chamber, a sewage inlet brake plate and a rainwater discharge port brake plate are arranged on the brake bar, the brake bar is connected on the sewage discharge chamber, the upper end of the brake bar penetrates through the top cover plate and extends into the overflow chamber, and is provided with a tool connecting structure, and a sewage discharge port is arranged on the side wall of the sewage discharge chamber facing the air. The utility model discloses it is convenient to wash, and the discharge water quality is good.
Description
Technical Field
The utility model relates to a drainage facility, in particular to a gutter inlet filtering and dirt-intercepting hanging basket capable of improving the discharged water quality and easy to clean.
Background
Along with the comprehensive popularization of sponge city construction in China, the requirement of the sponge city on rainwater discharge water quality is becoming stricter day by day, the rainwater inlet is used as the last link of rainwater entering a rainwater pipe network in a sponge system, if a device can be installed in the rainwater inlet to play a role in purifying rainwater, the quality of rainwater discharge water quality is changed, and the problem of non-point source pollution control in the sponge city construction is solved.
At present, a plurality of newly developed devices can be installed in a gutter inlet to achieve the effective dirt interception and SS (suspended solid) removal capacity, but the devices cannot be effectively popularized, and the reason is summarized that the devices are relatively complex and have high manufacturing cost; part of equipment can not ensure the safety of the drainage system under strong rainfall; and the equipment with the SS removing capability needs to be cleaned or backwashed regularly to ensure the removal efficiency and speed of pollutants, but the cleaning of the equipment can only be carried out manually at present, the cleaning time is long, a large amount of manpower, material resources and financial resources are required to be invested in the frequent rainfall season for maintenance, and the operation and maintenance cost of the sponge city is greatly increased.
In summary, it is an urgent need to solve the technical problems of the present technology to find an apparatus or method that is economical and practical, can achieve efficient cleaning, and has a good decontamination effect.
Patent application CN107476412A discloses a gutter inlet filters cuts dirty basket and application method, and this application provides a gutter inlet filters and cuts dirty basket, should cut dirty basket and install in the gutter inlet, and upper portion and gutter inlet frame are connected, and the lower part is installed the filter screen, and the filter material in the filter screen basket adopts the form that geotechnological cloth is bagged, can cut dirty and play the ability of getting rid of the SS effectively. However, the above-mentioned sewage intercepting basket has the following disadvantages:
1) the equipment is difficult to take out: although the equipment can effectively intercept dirt and play a role in removing SS, pollutants can be accumulated in the dirt intercepting basket at the lower part of the equipment, when filter materials need to be washed, the dirt intercepting basket and the pollutants in the basket are extremely heavy, and a single cleaner cannot take out the dirt intercepting basket by self power.
2) The cleaning of the filter material is time-consuming and labor-consuming: the rainwater grate is opened, the equipment in the rainwater port is taken out, the filter material is unloaded for backwashing, and the filter material is reassembled and then placed back into the rainwater port, so that the set of flow is completed, and the fastest efficiency of two persons is required to be 30 minutes; and needs to be matched with a flushing water vehicle and a sewage suction vehicle for synchronous operation. The clean within range of municipal administration cleaning staff people all contain the inlet for stom water number and exceed 200, consequently wash this inlet for stom water and not only consumed manpower and materials greatly to can not satisfy the requirement of sponge city to the inlet for stom water washing time limit.
Patent No. CN201710331867 discloses a block-resistant sewage-intercepting hanging basket with a function of controlling non-point source pollution, when wastewater with solid particles or suspended pollutants enters into a rainwater inlet, and enters into the sewage-intercepting hanging basket through a diversion frame, the pollutants are intercepted and filtered, and the filtered wastewater is converged into a rainwater pipeline through a filtering hole or a clear water tank of the sewage-intercepting hanging basket to flow away. When the filter screen is blocked, the water level rises to a certain height, siphon is formed in the siphon, backwashing is started, and the blockage of the filter screen is relieved. However, the hanging basket has the following disadvantages:
1) the backwash effect remains questionable as it has been calculated that backwashing of the screen requires a head of water of more than 5m, whereas the gutter inlet is generally at a depth of about 1m, although this patent can utilise the siphon principle for backwashing, the siphon head does not reach the pressure required for flushing and hence backwashing is not readily achievable.
2) The equipment maintenance is difficult: just need take out when can not automatic backwash after the filter screen blocks up and wash, need to have a certain amount of water when this equipment normal use, consequently when depositing water the state, this equipment weight is very big, and when the filter material blocks up and can not automatic backwash, if want to take out equipment, will be a trouble that wastes time and energy only by the manpower, has greatly improved the human cost.
3) When the equipment is normally used, a certain amount of water needs to be stored, and if the equipment does not rain for a long time, the water body is easy to smell and deteriorate, so that the surrounding environment is seriously influenced; if the equipment is used in the north, if the stored water in the equipment is not emptied in winter, the equipment is very easy to be frozen and cracked, and the maintenance cost of the equipment is increased.
4) The municipal gutter inlet drawing set provides that the inner diameter of the gutter inlet is 380 x 680mm, the relevant specifications provide that the water passing capacity is not less than 12L/s, the equipment has the safe drainage capacity, the equipment does not have an emergency drainage channel, and the siphon drainage channel of the equipment manufactured under the size of the gutter inlet does not meet the drainage strength requirement of 12L/s, so that the potential safety hazard of rainwater drainage exists.
5) The sewage backwashed by the equipment is directly discharged into a rainwater system, and the problem of pollution control is not solved.
Disclosure of Invention
The utility model provides a gutter inlet filtering and dirt-intercepting hanging basket which can improve the water quality of the discharged water and is easy to clean for solving the technical problems in the prior art.
The utility model discloses a solve the technical scheme that technical problem that exists among the well-known technique took and be: a gutter inlet filtering and dirt-intercepting hanging basket capable of improving discharged water quality and easy to clean comprises a basket body, wherein an overflow chamber is arranged at the upper part of the basket body, and a plurality of uniformly distributed overflow ports are formed in the periphery of the overflow chamber; the lower part of the basket body is provided with a rainwater discharge chamber, and the bottom of the rainwater discharge chamber is provided with a rainwater discharge port; the middle part of the basket body is divided into a filtering sewage intercepting cavity and a reverse cleaning cavity by a vertical partition plate I extending along the width direction of the basket body, the bottom of the filtering sewage intercepting cavity is provided with a support frame, a filter material basket is placed in the filtering sewage intercepting cavity, the reverse cleaning cavity is provided with a top cover plate, a water injection pipe installation cavity and a sewage discharge chamber are divided by a vertical partition plate II extending along the length direction of the basket body, a water injection pipe is fixedly arranged in the water injection pipe installation cavity in a penetrating manner, the upper end of the water injection pipe penetrates through the top cover plate and extends into the overflow chamber, the lower end of the water injection pipe is a water outlet communicated with the rainwater discharge chamber, the sewage discharge chamber is provided with a sewage inlet and a bottom sealing plate which are positioned on the top cover plate, a brake rod penetrates through the sewage discharge chamber, the brake rod is provided with a sewage inlet brake plate and a rainwater discharge port brake plate, and the sewage inlet brake plate is positioned below the sewage inlet, Be located in the sewage discharge chamber, the rainwater discharge port flashboard is located the top of rainwater discharge port, be located in the rainwater discharge chamber, the brake lever is connected on the sewage discharge chamber, the upper end of brake lever is passed the lamina tecti extends to in the overflow chamber to be equipped with instrument connection structure be equipped with sewage discharge port on the face empty lateral wall of sewage discharge chamber.
The bottom surface of the rainwater drainage chamber is a slope surface, the part corresponding to the filtering and dirt intercepting cavity is higher, the part corresponding to the backwashing cavity is lower, and the rainwater drainage port is arranged at the slope bottom of the slope surface.
The basket body is provided with an outward extending supporting edge.
The filter material basket is provided with a handle.
The tool connecting structure is of an inner hexagonal structure or an outer hexagonal structure.
The water outlet is a water outlet elbow bent towards the filtering dirt intercepting cavity and arranged in the rainwater discharging chamber.
The utility model has the advantages and positive effects that: need not to propose the inlet for stom water, alright with the relevant instrument butt joint of municipal administration, realize the washing, improved cleaning efficiency. The rainwater sewage interception device is simple and convenient to operate, greatly reduces the difficulty and the required time for cleaning a single rainwater inlet by a single person, improves the working efficiency of municipal operation, and further greatly reduces the maintenance cost of rainwater sewage interception facilities. The structure is simple, the device does not need to be repeatedly taken out and put in, the maintenance period is long, and the maintenance cost is reduced. Pollutants in rainwater can be effectively intercepted, the problem of low removal rate of road rainwater SS in sponge cities is solved, rainwater and sewage are shunted, secondary pollution of backwashing sewage to rainwater quality can be prevented, and rainwater discharge quality is improved.
Drawings

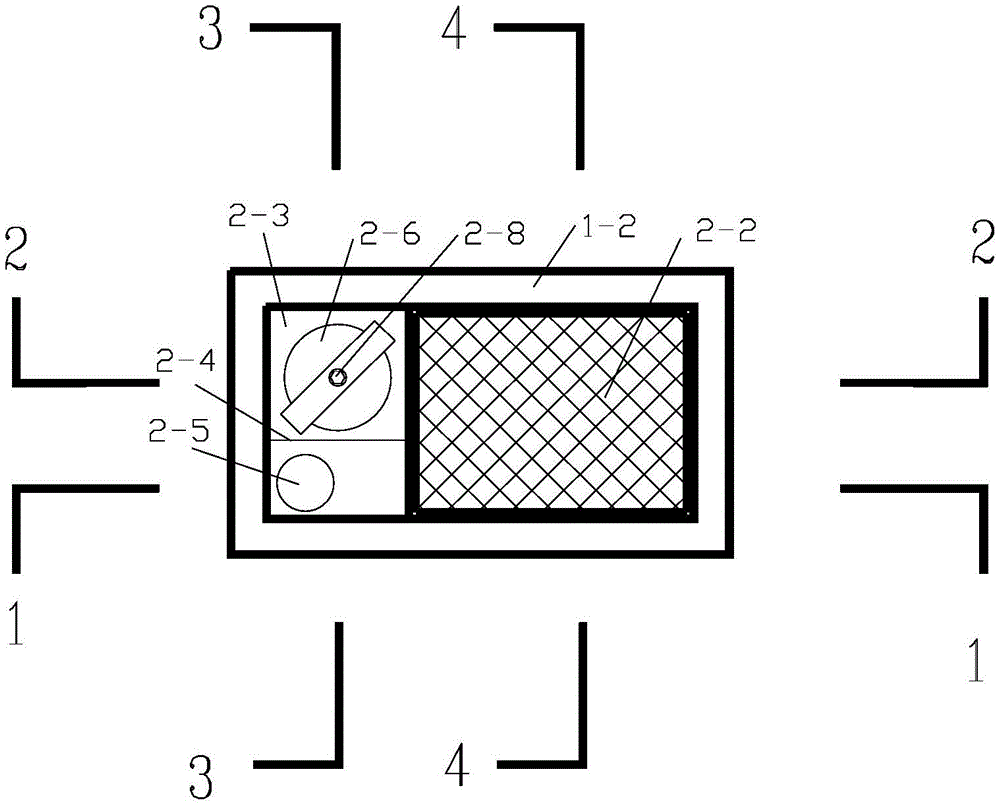

Fig. 1 is a top view of the present invention;
FIG. 2 is a cross-sectional view taken along line 1-1 of FIG. 1;
FIG. 3 is a cross-sectional view taken along line 2-2 of FIG. 1;
FIG. 4 is a cross-sectional view taken along line 3-3 of FIG. 1;
FIG. 5 is a cross-sectional view taken at 4-4 of FIG. 1;
FIG. 6 is a schematic diagram of the normal operation of the present invention;
FIG. 7 is a schematic diagram of the operation of the present invention in a blocked state;
fig. 8 is a working principle diagram of the backwashing state of the present invention.
In the figure: 1-1, an overflow port; 1-2, supporting the edge; 2-1, erecting a partition plate I; 2-2, a filter material basket; 2-3, a top cover plate; 2-4, erecting a partition plate II; 2-5, a water injection pipe; 2-6, a sewage inlet; 2-7, a sewage inlet flashboard; 2-8, brake bar; 2-9, a bottom sealing plate; 2-10, a rainwater drainage port flashboard; 2-11 parts of sewage discharge port; 2-12, water outlet elbow; 3-1 and a rainwater drainage port.
Detailed Description
For further understanding of the contents, features and effects of the present invention, the following embodiments are exemplified and will be described in detail with reference to the accompanying drawings:
the utility model discloses the inlet for stom water that can get rid of SS in the rainwater at present is applied mechanically the difficult problem of equipment maintenance, has designed one kind and can get rid of the SS and easy abluent place in the intraoral high efficiency of ordinary rainwater cuts dirty basket of hanging, can not only effectively get rid of the SS in the rainwater to compare in current equipment and change in the washing, material resources can be used manpower sparingly, the sewage that washs the used discharges into the sewage pipe network, realizes the distribution of rain and sewage, can improve rainwater drainage quality of water.
Referring to fig. 1 to 8, the gutter inlet filtering and dirt intercepting hanging basket capable of improving the discharged water quality and being easy to clean comprises a basket body, wherein an overflow chamber is arranged at the upper part of the basket body, and a plurality of overflow ports 1-1 which are uniformly distributed are arranged around the overflow chamber.
The lower part of the basket body is provided with a rainwater discharge chamber, and the bottom of the rainwater discharge chamber is provided with a rainwater discharge port 3-1.
The middle part of the basket body is divided into a filtering and dirt intercepting cavity and a back washing cavity by a vertical partition plate I2-1 extending along the width direction of the basket body, a support frame is arranged at the bottom of the filtering and dirt intercepting cavity, and a filter material basket 2-2 is placed in the filtering and dirt intercepting cavity. The reverse cleaning cavity is provided with a top cover plate 2-3, a vertical partition plate II 2-4 extending along the length direction of the basket body is adopted to partition the reverse cleaning cavity into a water injection pipe installation cavity and a sewage discharge chamber, a water injection pipe 2-5 is fixedly arranged in the water injection pipe installation cavity in a penetrating manner, the upper end of the water injection pipe 2-5 penetrates through the top cover plate 2-3 and extends into the overflow chamber, and the lower end of the water injection pipe 2-5 is a water outlet communicated with the rainwater discharge chamber. The sewage discharge chamber is provided with a sewage inlet 2-6 and a bottom closing plate 2-9 which are positioned on the top cover plate 2-3, a brake rod 2-8 penetrates through the sewage discharge chamber, a sewage inlet flashboard 2-7 and a rainwater discharge port flashboard 2-10 are arranged on the brake rod 2-8, the sewage inlet flashboard 2-7 is positioned below the sewage inlet 2-3 and positioned in the sewage discharge chamber, the rainwater discharge port flashboard 2-10 is positioned above the rainwater discharge port 3-1 and positioned in the rainwater discharge chamber, the brake rod 2-8 is connected to the sewage discharge chamber, and the upper end of the brake rod 2-8 penetrates through the top cover plate 2-3 and extends into the overflow chamber and is provided with a tool connecting structure; and the side wall of the sewage discharge chamber facing the air is provided with sewage discharge ports 2-11.
In this implementation, the bottom surface of the rainwater drainage chamber is a slope surface, the part corresponding to the filtering and dirt intercepting cavity is higher, the part corresponding to the backwashing cavity is lower, and the rainwater drainage port 3-1 is arranged at the slope bottom of the slope surface, so that rainwater can be drained and drained conveniently. The basket body is provided with an outward extending supporting edge 1-2, so that the hanging basket is convenient to mount. The filtering basket 2-2 is provided with a handle, so that the filtering basket 2-2 can be conveniently taken out and put in. The tool connecting structure is of an inner hexagonal structure or an outer hexagonal structure, and is convenient to connect with the existing screwing tool.
The water outlet is a water outlet elbow 2-12 which is bent towards the direction of the filtering and dirt intercepting cavity and is arranged in the rainwater discharging chamber, so that the impact on the bottom surface of the rainwater discharging chamber can be reduced, and clean water can return upwards conveniently.
The utility model discloses a theory of operation:
when in use, the hanging basket is clamped in the rainwater port through the supporting edge. And a steel wire mesh or a large-particle pollutant intercepting mesh is arranged below the rainwater grate.
Under the initial running state of equipment, twist the brake lever to the peak with ordinary hex bolts spanner, sewage entry flashboard is closed sewage entry this moment, and the rainwater discharge port flashboard is opened. And covering a rainwater grate.
Referring to fig. 6, the apparatus operates normally: rainwater enters the filtering and dirt-intercepting cavity through the overflow chamber, enters the rainwater discharge chamber after being filtered and dirt-intercepted by the filter material basket, and is discharged through the rainwater discharge port, so that pollutants are effectively intercepted.
Referring to fig. 7, when the filter material in the filter material basket is blocked or meets heavy rain, the rainwater enters the overflow chamber, enters the rainwater port through the overflow port and is discharged. Under the condition, normal drainage of rainwater can be ensured, and drainage safety is ensured.
Referring to fig. 8, when the filter material needs to be cleaned, the rainwater grate is opened, impurities in the steel wire mesh are cleaned, and then the steel wire mesh is directly butted with a water injection pipe by using a municipal water truck; the brake lever is screwed to the lowest point by a common hexagon bolt wrench, the sewage inlet flashboard is opened at the moment, and the rainwater discharge port flashboard is closed. Then clear water is injected, the clear water enters the rainwater discharge chamber through the water injection pipe and then returns upwards to enter the filtering and dirt intercepting cavity to flush the filter material basket, and sewage flows into the sewage inlet through the overflow chamber, enters the sewage discharge chamber and is discharged through the sewage discharge port. The back flushing time is about 3-5 min. After backwashing, the brake rod is screwed to the uppermost position by using a common hexagon bolt spanner, and the rainwater grate is covered.
Under the condition that the filter material is damaged and needs to be maintained, only the filter material basket needs to be taken out to replace the filter material.
Although the preferred embodiments of the present invention have been described with reference to the accompanying drawings, the present invention is not limited to the above-mentioned embodiments, which are only illustrative and not restrictive, and those skilled in the art can make many forms without departing from the spirit and scope of the present invention, which is within the scope of the present invention.
Claims (6)
1. A gutter inlet filtering and dirt-intercepting hanging basket capable of improving discharged water quality and easy to clean comprises a basket body and is characterized in that an overflow chamber is arranged at the upper part of the basket body, and a plurality of uniformly distributed overflow ports are formed in the periphery of the overflow chamber;
the lower part of the basket body is provided with a rainwater discharge chamber, and the bottom of the rainwater discharge chamber is provided with a rainwater discharge port;
the middle part of the basket body is divided into a filtering and sewage intercepting cavity and a backwashing cavity by a vertical clapboard I extending along the width direction of the basket body,
a supporting frame is arranged at the bottom of the filtering and sewage intercepting cavity, a filtering material basket is placed in the filtering and sewage intercepting cavity,
the back cleaning cavity is provided with a top cover plate and is divided into a water injection pipe installation cavity and a sewage discharge chamber by a vertical clapboard II extending along the length direction of the basket body,
a water injection pipe is fixedly arranged in the water injection pipe mounting cavity in a penetrating way, the upper end of the water injection pipe penetrates through the top cover plate and extends into the overflow chamber, the lower end of the water injection pipe is a water outlet communicated with the rainwater discharge chamber,
the sewage discharge chamber is provided with a sewage inlet and a bottom closing plate which are positioned on the top cover plate, a brake rod penetrates through the sewage discharge chamber, the brake rod is provided with a sewage inlet flashboard and a rainwater discharge port flashboard, the sewage inlet flashboard is positioned below the sewage inlet and positioned in the sewage discharge chamber, the rainwater discharge port flashboard is positioned above the rainwater discharge port and positioned in the rainwater discharge chamber, the brake rod is connected on the sewage discharge chamber, the upper end of the brake rod penetrates through the top cover plate and extends into the overflow chamber, and is provided with a tool connecting structure,
and a sewage discharge port is arranged on the side wall of the sewage discharge chamber facing the air.
2. The gutter inlet filtering and dirt intercepting hanging basket capable of improving the quality of discharged water and easy to clean as claimed in claim 1, wherein the bottom surface of the rainwater discharging chamber is a slope surface, the part corresponding to the filtering and dirt intercepting cavity is higher, the part corresponding to the backwashing cavity is lower, and the rainwater discharging port is arranged at the slope bottom of the slope surface.
3. The gully filter and dirt retention basket of claim 1, wherein the basket body has an overhanging support rim.
4. The gutter inlet filtering and dirt intercepting hanging basket capable of improving the quality of discharged water and easy to clean as claimed in claim 1, wherein the filter basket is provided with a handle.
5. The gutter inlet filtering and dirt-intercepting hanging basket capable of improving the quality of discharged water and being easy to clean as claimed in claim 1, wherein the tool connecting structure is an inner hexagonal structure or an outer hexagonal structure.
6. The gutter inlet filtering and dirt-intercepting hanging basket capable of improving the quality of discharged water and being easy to clean as claimed in claim 1, wherein the water outlet is a water outlet elbow bent towards the filtering and dirt-intercepting cavity and arranged in the rainwater discharge chamber.
