CN211169550U - Hoisting device for maintaining and replacing speed reducer - Google Patents

Abstract

A hoisting device for repairing and replacing a reducer belongs to the technical field of hoisting equipment and is used for hoisting the reducer in a workshop. The technical scheme is as follows: two vertical columns are welded and connected at both ends of the beam, the lower ends of the two columns are vertically welded with a base, the length of the base is perpendicular to the beam, the slide rail is parallel to the beam, the slide rail is located under the beam, and the slide rail is parallel to the beam. Both ends are connected with two uprights by welding. The sliding frame is a U-shaped frame. The upper ends of the two sides of the U-shaped frame are respectively provided with rollers facing inward. The rollers are installed with rollers. The two rollers are located on the top surface of the slide rail. It is in rolling fit with the upper surface of the sliding rail, and the lower cross bar of the U-shaped frame of the sliding frame is connected with the hook of the chain hoist. The utility model has the advantages of simple structure and convenient use, and can hoist the reducer, motor or other large equipment in workshops or other work sites, solve the problem of hoisting without a crane, reduce the labor intensity of maintenance personnel, and improve maintenance. work efficiency.

Description

A hoisting device for repairing and replacing a reducer

technical field

The utility model relates to a special device for hoisting a reducer, belonging to the technical field of hoisting equipment.

Background technique

At present, most modern enterprises are equipment-based and highly centralized production models. Reducers and motors are widely used in various power transmission equipment. Each production line uses dozens of motors or reducers, which require frequent maintenance or repair. replace. However, in many workshops, there is no crane equipment for hoisting, and only chain hoists can be used. However, there are also great limitations when hoisting equipment such as reducers or motors. Some reducers or motors cannot be hooked above. The chain hoist cannot be hoisted for every reducer or motor, so it requires manpower to carry it, which not only occupies personnel, but also is very laborious, which brings great difficulties to the maintenance work. In view of this, it is very necessary to design a special device that can easily hoist the reducer or motor.

Utility model content

The technical problem to be solved by the utility model is to provide a hoisting device for repairing and replacing the reducer. The hoisting device can cooperate with the chain hoist to hoist the motors at different positions in the workshop or change the reducer, so that the hoisting work can adapt to each In this environment, it is more convenient to maintain and replace the reducer or motor, reduce the labor intensity of maintenance personnel, and improve the efficiency of maintenance work.

The technical solutions to solve the above technical problems are:

A hoisting device for repairing and replacing a reducer, which includes a beam, a column, a base, a slide rail, and a sliding frame. The two columns are vertically welded and connected to both ends of the beam. The length direction of the slide rail is vertical, the slide rail is parallel to the beam, the slide rail is located under the beam, the two ends of the slide rail are welded to the two columns, the sliding frame is a U-shaped frame, and the upper ends of the two sides of the U-shaped frame are respectively provided with inward rollers , There are rollers installed on the rollers. The two rollers on the upper end of the U-shaped frame of the sliding frame are located on the top surface of the slide rail. The rollers and the top surface of the slide rail are in rolling fit. The hook of the chain hoist is connected.

In the above-mentioned hoisting device for maintenance and replacement of the reducer, the outer sides of the two vertical columns are respectively provided with inclined support rods, the upper ends of the two inclined support rods are respectively welded to the two ends of the beam, and the lower ends of the two inclined support rods are welded with support seats, The support base is parallel to the bases at the lower ends of the two uprights.

In the above lifting device for maintenance and replacement of the reducer, a plurality of tie rods are welded between the beam and the slide rail, the tie rods are perpendicular to the beam, and the lower end of the tie rod is located between the two rollers on the upper end of the U-shaped frame of the sliding frame.

The beneficial effects of the present utility model are:

The utility model is a door-shaped frame, the sliding rail is installed under the beam, the sliding frame can slide on the sliding rail through two rollers, the hook of the chain hoist is connected with the sliding frame, and the chain hoist hoists the reducer or the motor along the sliding frame. Move along the slide rail to complete the hoisting operation of the reducer or motor.

The utility model has the advantages of simple structure and convenient use, can hoist the reducer, motor or other large equipment in the workshop or other work sites, solves the problem of hoisting without a crane, can adapt to various environments, and makes the maintenance work more convenient , reducing the labor intensity of maintenance personnel and improving the efficiency of maintenance work.

Description of drawings

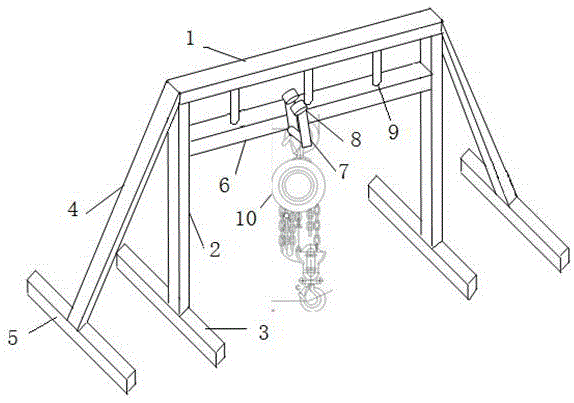

Figure 1 is a schematic structural diagram of the present invention.

The marks in the figure are as follows: beam 1, column 2, base 3, inclined support rod 4, support base 5, slide rail 6, sliding frame 7, roller 8, pull rod 9, chain hoist 10.

Detailed ways

The utility model consists of a beam 1 , a column 2 , a base 3 , an inclined support rod 4 , a support seat 5 , a sliding rail 6 , a sliding frame 7 , a roller 8 , and a pull rod 9 .

As shown in the figure, two uprights 2 are vertically welded to both ends of the beam 1 , the lower ends of the two uprights 2 are vertically welded and connected to a base 3 , and the base 3 is perpendicular to the length direction of the beam 1 . The beam 1 and the column 2 form the main frame of the hoisting device, and the base 3 can stably support the beam 1 and the column 2 to prevent the hoisting device from tipping over.

As shown in the figure, there are inclined support rods 4 on the outer sides of the two uprights 2 respectively, the upper ends of the two inclined support rods 4 are respectively welded and connected with the two ends of the beam 1, and the lower ends of the two inclined support rods 4 are welded with a support seat 5, and the support 5 The seat is parallel to the base 3 at the lower end of the two uprights 2 . The oblique support rod 4 and the support base 5 enhance the stability of the main frame, and when the hoisting equipment slides along the beam 1, the beam 1 and the column 2 are more stable.

As shown in the figure, the slide rail 6 and the slide frame 7 are hoisting parts. The slide rail 6 is parallel to the cross beam 1 , the slide rail 6 is located below the cross beam 1 , and the two ends of the slide rail 6 are connected to the two uprights 2 by welding. The sliding frame 7 is hung on the sliding rail 6, and the sliding frame 7 can slide along the sliding rail 6 to hoist the equipment.

As shown in the figure, the sliding frame 7 is a U-shaped frame. The upper ends of the two sides of the U-shaped frame are respectively provided with inward rollers. The rollers are installed with rollers 8. The two rollers 8 on the upper end of the U-shaped frame of the sliding frame 7 are located on the sliding On the top surface of the rail 6 , the roller 8 is in rolling fit with the top surface of the slide rail 6 , and the roller 8 can roll along the top surface of the slide rail 6 , thereby driving the sliding frame 7 to move along the slide rail 6 .

As shown in the figure, the lower cross bar of the U-shaped frame of the sliding frame 7 is connected with the hook of the chain hoist 10 . The chain hoist 10 can be hoisted with a reducer, a motor or other equipment and then moved with the sliding frame 7 to complete the hoisting operation.

As shown in the figure, a plurality of tie rods 9 are welded between the beam 1 and the slide rail 6 . The function of the pull rod 9 is to connect the slide rail 6 with the beam 1 , increase the strength of the slide rail 6 , and prevent the slide rail 6 from being deformed during long-term heavy-duty use.

In actual use, a walking trolley can also be configured. Each walking trolley consists of a bottom plate and two universal wheels. The two walking trolleys are placed under the two bases 3 respectively. The hoisting device is pushed to the hoisting position by the walking trolley, and then Remove the walking trolley for hoisting operation. After the hoisting is completed, place the walking trolley under the base 3, and then remove the hoisting device, which is very convenient.

An embodiment of the present utility model is as follows:

Beam 1, column 2, base 3, inclined support rod 4, and support base 5 are all made of 15# channel steel;

The length of beam 1 is 1800mm;

The length of column 2 is 1650mm;

The length of the base 3 is 700mm;

The length of the inclined support rod 4 is 1800mm;

The length of the support base 5 is 700mm;

The slide rail 6 is made of square steel pipe, and the length of the slide rail 6 is 1800mm;

The sliding frame 7 is made of 4.0 thick steel plate, and the height of the sliding frame 7 is 180mm;

The diameter of the roller 8 is 60mm;

The pull rod 9 is a round steel rod, the diameter of the pull rod 9 is 48mm, and the length is 200mm.

Claims (3)

1. A hoisting device for maintenance and replacement of a reducer, characterized in that: it comprises a beam (1), a column (2), a base (3), a slide rail (6), a sliding frame (7), two columns ( 2) Vertically welded and connected to both ends of the beam (1), the lower ends of the two uprights (2) are vertically welded with a base (3), the base (3) is perpendicular to the length direction of the beam (1), and the slide rail (6) is connected to The beam (1) is parallel, the slide rail (6) is located under the beam (1), the two ends of the slide rail (6) are welded to the two uprights (2), the sliding frame (7) is a U-shaped frame, and the U-shaped frame ( 7) There are rollers facing inward on the upper ends of both sides respectively, and rollers (8) are installed on the rollers. The two rollers (8) on the upper end of the U-shaped frame of the sliding frame (7) are located on the top of the sliding rail (6). The upper surface of the roller (8) and the sliding rail (6) are in rolling fit, and the lower crossbar of the U-shaped frame of the sliding frame (7) is connected with the hook of the chain hoist (10). 2. The hoisting device for maintenance and replacement of the reducer according to claim 1, characterized in that: the outer sides of the two vertical columns (2) are respectively provided with inclined support rods (4), and the two inclined support rods (4) The upper ends are respectively welded and connected to both ends of the beam (1), and the lower ends of the two inclined support rods (4) are welded to support seats (5), which are parallel to the bases (3) at the lower ends of the two uprights (2). 3. The hoisting device for maintenance and replacement of the reducer according to claim 1, characterized in that: a plurality of tie rods (9) are welded between the beam (1) and the slide rail (6), and the tie rods (9) and The beam (1) is vertical, and the lower end of the tie rod (9) is located between the two rollers (8) at the upper end of the U-shaped frame of the sliding frame (7).
