Abstract

The utility model discloses a punching auxiliary device for carton packaging processing, a punching auxiliary device for carton packaging processing, comprising a frame, a rotatable rotating rod is horizontally arranged on the upper surface of the frame, and the Both ends of the surface of the rotating rod are provided with external threads with opposite directions, and movable sleeves are threadedly connected to the outer threads, and the movable sleeves are fixedly connected with horizontal plates. The punching auxiliary device for carton packaging processing uses two sets of L-shaped plates that can be moved in the horizontal direction opposite to each other. During the punching process, the carton is buckled above the L-shaped plate, and the two L-shaped plates are inside the carton. The two corners on the diagonal of the cavity support the carton outwards, which changes the existing fixing method of extrusion and clamping, and supports from the corners inside the carton to avoid putting pressure on the side walls of the carton and preventing the carton from being damaged. Excessive force will cause damage and deformation, and avoid defective products.

Description

A kind of punching auxiliary device for carton packaging processing

technical field

The utility model relates to the technical field of carton processing, in particular to a punching auxiliary device for carton packaging processing.

Background technique

Cardboard boxes are the most widely used packaging products. According to different materials, there are corrugated boxes, single-layer cardboard boxes, etc., with various specifications and models. As an indispensable part of modern logistics, packaging boxes are responsible for containing, protecting products, beautiful important responsibility.

During the production and processing of the carton, it is often necessary to punch holes on the surface of the carton. During the punching process, the carton needs to be supported and fixed. Some existing punching equipment is generally fixed by extrusion and clamping. Due to the material of the carton itself, if the force is too large, the carton will be damaged and deformed, and it is easy to produce defective products and increase the production cost.

Utility model content

In view of the deficiencies of the prior art, the utility model provides a punching auxiliary device for carton packaging processing, which solves the problem that during the punching process of the carton, the carton will be damaged due to the material of the carton itself under the condition of excessive force. , deformation, easy to produce defective products.

In order to achieve the above purpose, the present utility model is achieved through the following technical solutions: a punching auxiliary device for carton packaging processing, comprising a frame, and a rotatable rotating rod is horizontally arranged on the upper surface of the frame, and the rotating Both ends of the rod surface are provided with external threads in opposite directions, and movable sleeves are threadedly connected to the external threads. The length direction of the horizontal plate is vertical, the lower surface of the horizontal plate is slidably connected with the upper surface of the frame, the upper surface of the horizontal plate is provided with an electric guide rail along its length direction, and the electric guide rail is provided with a The first movable seat driven by the electric guide rail, the upper surface of the first movable seat is vertically provided with a support rod, the top end of the support rod is fixed with an L-shaped plate, and the two L-shaped plates are opposite to each other on a diagonal line set up.

Further, the middle part of the upper surface of the frame is provided with an end-to-end annular track, the annular track is provided with a second movable seat driven by the annular track and can move in the horizontal direction, the second movable seat An electric telescopic rod is vertically arranged on the upper surface of the electric telescopic rod, and the top end of the electric telescopic rod is provided with a puncher, and the puncher is arranged on the The top of the electric telescopic pole.

Further, both ends of the lower surface of the bottom of the horizontal plate are provided with support plates, and the bottom of the support plates is slidably connected to the upper surface of the frame.

Further, two sides of the upper surface of the frame are provided with sliding grooves for the movement of the support plate along the length direction thereof.

Further, a motor capable of driving the rotating rod to rotate is fixed on the upper surface of the frame.

Further, the upper end surface of the L-shaped plate may be provided with a cover plate horizontally.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) The punching auxiliary device for carton packaging processing uses two sets of L-shaped plates that can be moved in the horizontal direction opposite to each other. During the punching process, the carton is buckled above the L-shaped plate, and two L-shaped plates are The board supports the carton outward at the two corners on the diagonal line of the inner cavity of the carton, which changes the existing fixing method of pressing and clamping, and supports from the corners inside the carton to avoid putting pressure on the side walls of the carton. , to avoid damage and deformation caused by excessive force on the carton, avoid defective products, and the processing effect is better.

(2) The punching auxiliary device for carton packaging processing is provided with a ring-shaped track, an electric telescopic rod that can be lifted and lowered, and a placement seat that can adjust the angle of the puncher is set at the top of the electric telescopic rod. The seat works together to adjust the position, height and angle of the puncher, so that different positions can be punched from the inside of the carton, which can meet different processing requirements.

Description of drawings

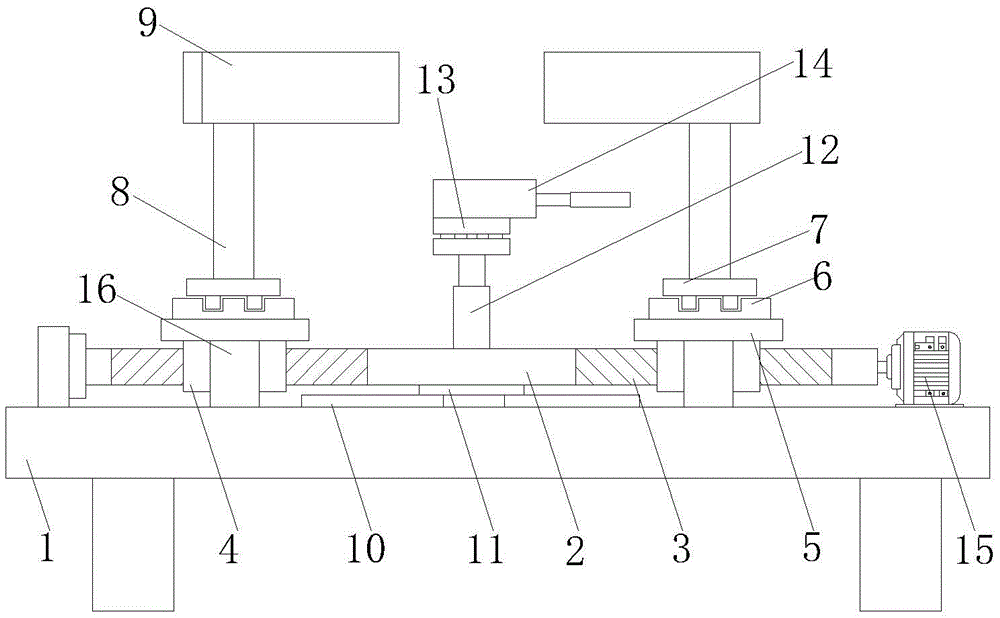

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the side view of the utility model;

FIG. 3 is a top view of the utility model.

In the picture: 1-frame, 2-rotating rod, 3-external thread, 4-movable sleeve, 5-horizontal plate, 6-electric guide rail, 7-first movable seat, 8-support rod, 9-L-shaped plate , 10-ring track, 11-second movable seat, 12-electric telescopic rod, 13-placement seat, 14-hole punch, 15-motor, 16-support plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a punching auxiliary device for carton packaging processing, comprising a frame 1, a rotatable rotating rod 2 is horizontally arranged on the upper surface of the frame 1, and the machine A motor 15 that can drive the rotating rod 2 to rotate is fixed on the upper surface of the frame 1 . The motor 15 can be forward and reversed and can be a three-phase asynchronous motor.

Two ends of the surface of the rotating rod 2 are provided with external threads 3 in opposite directions, and the external threads 3 are all threadedly connected with movable sleeves 4 . When the rotating rod 2 rotates, the movement directions of the two movable sleeves 4 are opposite to each other, approaching each other or moving away from each other.

The movable sleeve 4 is fixedly connected with a horizontal plate 5 . The two horizontal plates 5 are parallel to each other and perpendicular to the length direction of the rotating rod 2 . Both ends of the lower surface of the bottom of the horizontal plate 5 are provided with support plates 16 , and the bottom of the support plates 16 is slidably connected to the upper surface of the rack 1 . The two sides of the upper surface of the frame 1 are provided with sliding grooves for the movement of the support plate 16 along the length direction thereof.

When the rotating rod 2 rotates, the two movable sleeves 4 drive the two transverse plates 5 to move on the horizontal plane along the length direction of the rotating rod 2 .

The upper surface of the transverse plate 5 is provided with an electric guide rail 6 along its length direction, the electric guide rail 6 is provided with a first movable seat 7 driven by the electric guide rail 6, and the upper surface of the first movable seat 7 is vertically provided with a support rod 8 , the top end of the support rod 8 is fixed with an L-shaped plate 9, and the two L-shaped plates 9 are arranged opposite to each other on the diagonal line.

The top view of the L-shaped plate 9 is L-shaped. When both ends of the two L-shaped plates 9 are extended outward, they will be combined to form a quadrilateral. The two L-shaped plates 9 are located at one end of a diagonal line, respectively. The included angle is inward.

When drilling a hole, first control the rotation of the rotating rod 2 to make the two horizontal plates 5 approach each other, shorten the longitudinal distance between the two L-shaped plates 9, and then move the two L-shaped plates 9 to the electric The middle of the guide rail 6 moves to shorten the lateral distance between the two L-shaped plates 9, thereby reducing the area of the quadrilateral formed by the two L-shaped plates 9, and then the carton is buckled upside down, so that the two L-shaped plates 9 are located in the carton At this time, the rotating rod 2 is rotated to increase the longitudinal distance between the two L-shaped plates 9, which is matched with the length of the inner cavity of the carton. After adjusting the L-shaped plates 9 through the electric guide 6 to keep them away from each other, the increase The lateral distance between the two larger L-shaped panels 9 is adapted to the width of the inner cavity of the carton, until the two L-shaped panels 9 are located at one corner of the carton, respectively, and the two L-shaped panels 9 are located on a diagonal. On the line, support the two opposite corners of the carton outward to fix the carton.

The height of the L-shaped plate 9 is relatively low, and when it is located in the inner cavity of the carton, it will only be in contact with the uppermost part of the inner wall of the carton, and will not affect the normal punching.

The middle part of the upper surface of the rack 1 is provided with an end-to-end annular track 10, the annular track 10 is provided with a second movable seat 11 driven by the annular track 10 and can move in the horizontal direction, and the upper surface of the second movable seat 11 is vertical. An electric telescopic rod 12 is provided on the upper end of the electric telescopic rod 12 , and a hole punch 14 is disposed at the top of the electric telescopic rod 12 , and the electric telescopic rod 12 can drive the hole punch 14 to ascend and descend to a designated position.

The annular track 10 is approximately rectangular, which can drive the second movable seat 11 to move freely. At the same time, the size of the inner ring of the annular track 10 is small, which is smaller than the size of the carton that needs to be punched, so that the punch 14 located above the annular track 10 is always located in the carton. lumen.

The hole punch 14 is arranged on the top end of the electric telescopic rod 12 through a placing seat 13 which can adjust the direction and horizontal position of the hole punch 14 .

The placing seat 13 can be rotated, thereby driving the hole punch 14 to rotate, keeping the hole punch 14 outward and facing the side wall of the carton. When the annular track 10 drives the hole punch 14 to move, the hole punch 14 cannot be in contact with the inner wall of the carton. Otherwise, the inner wall of the carton will be scratched and damaged, and the placing seat 13 has the function of driving the hole punch 14 to extend outward for a certain distance.

When the annular track 10 drives the hole punch 14 to move, the hole punch 14 is retracted inward, and when it moves to the position where punching is required, the electric telescopic rod 12 is stretched and retracted, and the hole punch 14 is driven to a specified height, and the seat 13 is placed. Rotate the hole puncher 14 toward the outside, and at the same time drive the hole puncher 14 to move outward for a certain distance, so that the hole puncher 14 is in contact with the side wall of the carton for punching.

The upper end surface of the L-shaped plate 9 can be provided with a cover plate horizontally. When the carton is fixed, the upper surface of the cover plate can be in contact with the bottom of the inner wall of the carton. Contact each other to improve the punching effect.

When working, first control the rotation of the rotating rod 2 to make the two horizontal plates 5 approach each other, shorten the longitudinal distance between the two L-shaped plates 9, and then move the two L-shaped plates 9 to the electric guide rail 6 through the electric guide rail 6 respectively. The central movement shortens the lateral distance between the two L-shaped plates 9, thereby reducing the area of the quadrilateral formed by the two L-shaped plates 9, and then the carton is buckled upside down so that the two L-shaped plates 9 are located in the inner cavity of the carton. When rotating the rotating rod 2, the longitudinal distance between the two L-shaped plates 9 is increased, which is matched with the length of the inner cavity of the carton. After adjusting the L-shaped plates 9 through the electric guide rail 6 to keep them away from each other, increase the two The lateral distance between the L-shaped plates 9 is adapted to the width of the inner cavity of the carton, until the two L-shaped plates 9 are located at a corner of the carton respectively, and the two L-shaped plates 9 are located on a diagonal line, Support the two opposite corners of the carton outward to fix the carton.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the within the scope of protection of the present invention.

Claims (6)

1. A punching auxiliary device for carton packaging processing, comprising a frame (1), characterized in that: a rotatable rotating rod (2) is horizontally provided on the upper surface of the frame (1), and the rotating Both ends of the surface of the rod (2) are provided with external threads (3) in opposite directions, and a movable sleeve (4) is threadedly connected to the external threads (3), and the movable sleeve (4) is fixedly connected with a horizontal plate (5), the two horizontal plates (5) are parallel to each other and are perpendicular to the length direction of the rotating rod (2), the lower surface of the horizontal plate (5) and the upper surface of the frame (1) A sliding connection, an electric guide rail (6) is arranged on the upper surface of the horizontal plate (5) along its length direction, and a first movable seat driven by the electric guide rail (6) is arranged on the electric guide rail (6). (7), the upper surface of the first movable seat (7) is vertically provided with a support rod (8), and the top end of the support rod (8) is fixed with an L-shaped plate (9). The plates (9) are arranged opposite to each other on the diagonal. 2. A kind of punching auxiliary device for carton packaging processing according to claim 1, characterized in that: the middle part of the upper surface of the frame (1) is provided with an end-to-end annular track (10), the annular track (10) is provided with a second movable seat (11) that is driven by the annular track (10) and can move in a horizontal direction, and an electric telescopic rod is vertically arranged on the upper surface of the second movable seat (11). (12), the top of the electric telescopic rod (12) is provided with a hole punch (14), and the hole punch (14) passes through a placement seat that can adjust the direction and horizontal position of the hole punch (14). (13) is arranged on the top end of the electric telescopic rod (12). 3. A kind of punching auxiliary device for carton packaging processing according to claim 1, characterized in that: both ends of the lower surface of the bottom of the horizontal plate (5) are provided with support plates (16), the support plates The bottom of (16) is slidably connected with the upper surface of the frame (1). 4. The perforating auxiliary device for carton packaging processing according to claim 3, characterized in that: both sides on the upper surface of the frame (1) are provided with supporting plates (16) along its length direction. ) moving chute. 5. A kind of punching auxiliary device for carton packaging processing according to claim 1, characterized in that: a motor ( 15). 6 . The punching auxiliary device for carton packaging processing according to claim 1 , wherein a cover plate can be horizontally provided on the upper end surface of the L-shaped plate ( 9 ). 7 .
