Abstract

The utility model discloses a display stand for handmade works of preschool education, which comprises a display stand main body, L-shaped fixing pieces are symmetrically installed on both ends of a fixing plate, a display cabinet is installed on one side of the surface of the fixing plate, and a display cabinet is installed on one side of the display cabinet. The display board, the top and bottom ends of the display board are installed with slide rails, one end of the display board is installed with a rotating shaft, one end of the rotating shaft is installed with a gland, the other end of the rotating shaft is installed with a fixed bar, and the surface of the display cabinet is installed with a fixed A sliding drawer is installed on the inner side of the fixed outer casing, a handle is installed on the surface of one end of the sliding drawer, and a display stand is installed on the inner bottom end of the sliding drawer. By installing the display cabinet on the main body of the display rack, the utility model protects the integrity of the three-dimensional handicraft works through the sealing effect of the display cabinet, and the display board on the other side can also seal and preserve the plane handicraft works, or the three-dimensional handicraft in the display cabinet can be sealed. The works are displayed graphically, so as to facilitate viewing and learning.

Description

A preschool education handicraft display stand

technical field

The utility model relates to the field of preschool education, in particular to a display stand for handmade works of preschool education.

Background technique

The display stand is generally used as a stand for displaying and viewing various items, which is convenient for later learners to learn and appreciate. It can convey artistic information through the shape of the item and its connotation. If necessary, an explanation or diagram will be set on one side to help visitors learn .

However, in the current preschool education display stand, the preservation method for the excellent and exquisite handmade works is usually the exposed type. During the display process, due to the adsorption of wind and dust, the original artistic characteristics will be covered. The handmade works of the nature cannot be well protected. Not only are they easy to fall to the ground when subjected to strong winds, but they are more prone to cracking or damage due to prolonged corrosion than flat handmade works. For younger children, it is impossible to generate interest and learn. And exemplary role, its easily destroyed nature also has a blow to the producer's production motivation.

Utility model content

The technical problem to be solved by the utility model is to overcome the defects of the prior art and provide a display stand for handmade works of preschool education.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

The utility model relates to a display stand for handmade works of preschool education, comprising a display stand main body, a title board is installed on the top of the display stand main body, a white board is installed on the middle surface of the title board, and a fixed plate is installed on the bottom end of the title board The two ends of the fixed plate are symmetrically installed with L-shaped fixing pieces, a display cabinet is installed on one side of the surface of the fixed plate, a display board is installed on one side of the display cabinet, and the bottom end of the display board is installed There is a support table, one end of the support table is installed with a drawer, the top and bottom ends of the display board are installed with slide rails, one end of the display board is installed with a rotating shaft, and one end of the rotating shaft is installed with a gland, A fixed bar is installed on the other end of the rotating shaft, a fixed shell is installed on the surface of the display cabinet, a sliding drawer is installed on the inner side of the fixed shell, and a handle is installed on the surface of one end of the sliding drawer. A display stand is installed at the inner bottom end.

As a preferred technical solution of the present invention, the display stand is made of copper alloy material, a circular magnet is arranged in the middle of the display stand, and the display stand and the sliding drawer are fixedly connected.

As a preferred technical solution of the present invention, the fixed shell and the fixed plate are fixedly connected, a sliding block is provided on one side of the top and bottom ends of the sliding drawer, the sliding drawer and the sliding rail are slidingly connected, and The length of the sliding rail extends into the inner side of the fixed casing, and the sliding drawer is arranged in a C-shaped structure.

As a preferred technical solution of the present invention, the press cover and the fixed rail are movably connected by a rotating shaft, the press cover and the fixed rail are connected by snaps, and the fixed rail and the fixed plate are fixedly connected.

As a preferred technical solution of the present invention, the fixing plate and the L-shaped fixing piece are fixedly connected, the fixing plate and the support table are fixedly connected, the drawer and the support table are slidingly connected, and the title plate and the support table are connected by sliding. The fixed plate is a fixed connection.

As a preferred technical solution of the present invention, the cover and the fixed column are made of PVE material, and the pressure cover and the fixed column are arranged in a transparent state, and the number of the display cabinet and the display board is at least 4 .

As a preferred technical solution of the present invention, the fixed shell is made of polymethyl methacrylate material, and the fixed shell is set in a transparent state, and the sliding drawer is made of aluminum alloy material.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

By installing the display cabinet on the main body of the display rack, the utility model protects the integrity of the three-dimensional handicraft works through the sealing effect of the display cabinet, and the display board on the other side can also seal and preserve the plane handicraft works, or the three-dimensional handicraft works in the display cabinet can be sealed. The works are displayed graphically, which is convenient for viewing and learning. Users can also copy and create handmade works on the support table, so as to enhance the interest of children in their own hands-on work.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

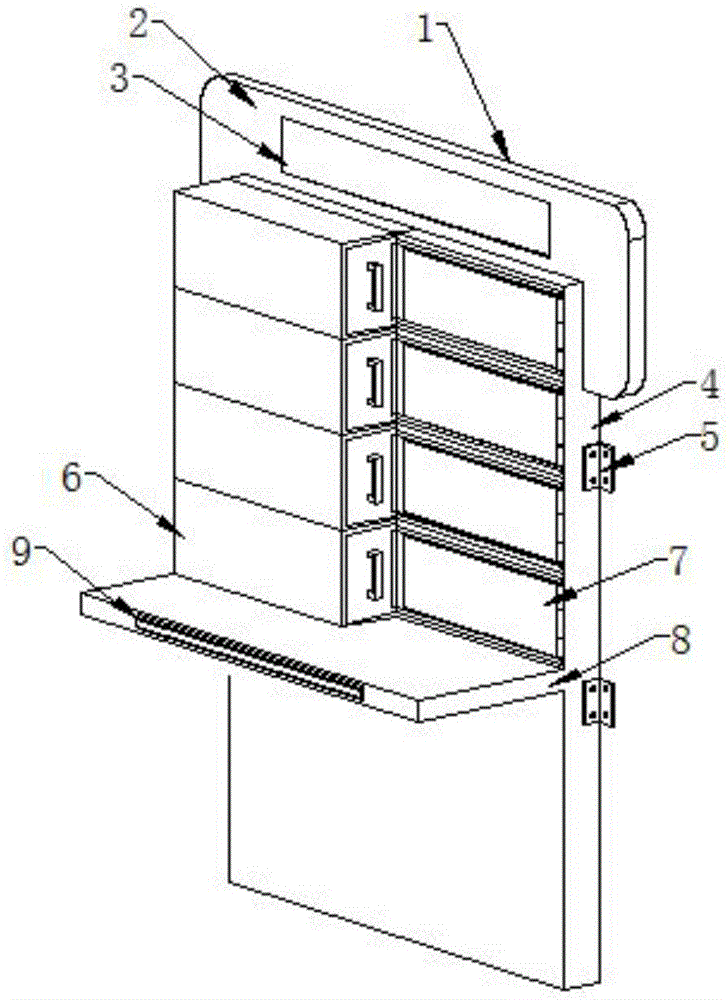

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the structural representation of the display board of the present invention;

Fig. 3 is the structural representation of the display cabinet of the present invention;

In the picture: 1. Main body of display stand; 2. Title board; 3. White board; 4. Fixing board; 5. L-shaped fixing part; 6. Display cabinet; 7. Display board; 8. Support table; 9. Drawer; 10 , slide rail; 11, rotating shaft; 12, gland; 13, fixed column; 14, fixed shell; 15, sliding drawer; 16, handle; 17, display stand.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Wherein the same reference numbers in the drawings refer to the same parts throughout.

Example 1

As shown in Figures 1-3, the present utility model provides a preschool education handicraft display stand, comprising a display stand main body 1, a title board 2 is installed on the top of the display stand main body 1, and a whiteboard 3 is installed on the middle surface of the title board 2, A fixing plate 4 is installed at the bottom end of the title plate 2, L-shaped fixing parts 5 are installed symmetrically at both ends of the fixing plate 4, a display cabinet 6 is installed on one side of the surface of the fixing plate 4, and a display board is installed on one side of the display cabinet 6 7. A support table 8 is installed at the bottom end of the display board 7, a drawer 9 is installed at one end of the support table 8, a slide rail 10 is installed at the top and bottom ends of the display board 7, and a rotating shaft 11 is installed at one end of the display board 7. One end of the shaft 11 is installed with a press cover 12, the other end of the rotating shaft 11 is installed with a fixed bar 13, a fixed casing 14 is installed on the surface of the display cabinet 6, and a sliding drawer 15 is installed on the inner side of the fixed casing 14, and one end surface of the sliding drawer 15 is installed. A handle 16 is installed, and a display stand 17 is installed at the inner bottom end of the sliding drawer 15 .

Further, the display stand 17 is made of copper alloy material. A circular magnet is arranged in the middle of the display stand 17. The display stand 17 and the sliding drawer 15 are fixedly connected. The shaped magnet is adsorbed and fixed to the display stand 17 , so as to fix the position of the three-dimensional work on the display stand 17 , and prevent the three-dimensional handmade work from falling when the user pulls out the sliding drawer 15 .

The fixed casing 14 and the fixed plate 4 are fixedly connected, the top and bottom sides of the sliding drawer 15 are provided with sliding blocks, the sliding drawer 15 and the sliding rail 10 are slidingly connected, and the length of the sliding rail 10 extends into the inner side of the fixed casing 14 , the sliding drawer 15 is set in a C-shaped structure, so that the sliding drawer 15 inside the fixed casing 14 can be slid out through the sliding rail 10 , so as to facilitate the replacement or maintenance of the three-dimensional handmade works on the display stand 17 .

The cover 12 and the fixed column 13 are movably connected by the rotating shaft 11, the pressure cover 12 and the fixed column 13 are connected by a snap, and the fixed column 13 and the fixed plate 4 are fixedly connected, so that the plane handicrafts placed in the fixed column 13 can pass through. The press cover 12 is compacted and sealed to reduce dust adherence to the surface and reduce its artistic and ornamental quality.

The fixing plate 4 and the L-shaped fixing member 5 are fixedly connected, the fixing plate 4 and the supporting table 8 are fixedly connected, the drawer 9 and the supporting table 8 are slidingly connected, and the title plate 2 and the fixing plate 4 are fixedly connected, so that the fixing plate 4 can be connected. The L-shaped fixing member 5 is fixed to the flat panel or the wall by screws, and the support table 8 and the fixing plate 4 are fixed at an inclined angle, which is convenient for the user to use on the desktop. It becomes horizontal due to the inclination angle.

The pressure cover 12 and the fixed column 13 are made of PVE material, and the pressure cover 12 and the fixed column 13 are arranged in a transparent state. The materials used do not obscure the viewing area of the handmade work.

The fixed casing 14 is made of polymethyl methacrylate material, and the fixed casing 14 is set in a transparent state, and the sliding drawer 15 is made of aluminum alloy material, so that the materials used in the sliding drawer 15 will not be corroded by water. The sliding drawer 15 is caused to fall, and the fixed casing 14 covering the outer side of the sliding drawer 15 is made of transparent material, which does not affect the placement of the three-dimensional handmade works, and its material is similar to glass material, which is easy to clean.

Specifically, the user can fix the L-shaped fixing member 5 on the fixing plate 4 to the flat plate or the wall with screws, and the support table 8 and the fixing plate 4 are fixed at an inclined angle, which is convenient for the user to use on the desktop and at the same time. When the fixing plate 4 is fixed with the inclined bracket, the table top can be horizontal due to the inclination angle. After determining the theme of the display, the user can write Chinese characters or draw a pattern on the white board 3 on the surface of the title plate 2, indicating the displayed handicrafts. Then pull the drawer 15 out from the handle 16 along the slide rail 10, and attach the work to the display table 17 through the circular magnet on the surface of the display table 17, so as to fix the position of the three-dimensional work on the display table 17 and prevent the use of the work. When the user pulls out the sliding drawer 15, the three-dimensional handmade works are dropped, and then the sliding drawer 15 is pushed into the inner side of the fixed shell 14 to achieve a sealing effect. The illustration paper of the works in the display board 7 is entered, and the support table 8 at the bottom of the display cabinet 6 is convenient for making handmade works by yourself when reading the illustration paper, and imitating and recreating the works in the display cabinet 6 .

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. The utility model provides a preschool education handmade works show shelf, includes show shelf main part (1), its characterized in that, title board (2) are installed on the top of show shelf main part (1), the middle part surface mounting of title board (2) has blank (3), fixed plate (4) are installed to the bottom of title board (2), L type mounting (5) are installed to the both ends symmetry of fixed plate (4), show cupboard (6) are installed to surface one side of fixed plate (4), show board (7) are installed to one side of show cupboard (6), support table (8) are installed to the bottom of show board (7), drawer (9) are installed to the one end of support table (8), slide rail (10) are installed to the top and the bottom of show board (7), rotation axis (11) are installed to the one end of show board (7), gland (12) are installed to the one end of rotation axis (11), fixed column (13) are installed to the other end of rotation axis (11), the surface mounting of show cupboard (6) has fixed shell (14), slide drawer (15) are installed to the inboard of fixed shell (14), slide drawer (15) surface mounting, slide drawer (17) are the inboard.

2. The preschool education handmade work display stand according to claim 1, wherein the display stand (17) is made of a copper alloy material, a circular magnet is arranged in the middle of the display stand (17), and the display stand (17) is fixedly connected with the sliding drawer (15).

3. The preschool educational manual work display stand according to claim 1, wherein the fixed shell (14) and the fixed plate (4) are fixedly connected, one side of the top end and the bottom end of the sliding drawer (15) is provided with a sliding block, the sliding drawer (15) and the sliding rail (10) are in sliding connection, the length of the sliding rail (10) extends into the inner side of the fixed shell (14), and the sliding drawer (15) is arranged in a C-shaped structure.

4. The preschool educational handmade work display stand according to claim 1, wherein the pressing cover (12) and the fixing rail (13) are movably connected through the rotating shaft (11), the pressing cover (12) and the fixing rail (13) are connected in a snap-fit manner, and the fixing rail (13) and the fixing plate (4) are connected in a fixed manner.

5. A pre-educational manual works display stand according to claim 1, wherein the fixing plate (4) and L type fixing member (5) are fixedly connected, the fixing plate (4) and supporting table (8) are fixedly connected, the drawer (9) and supporting table (8) are slidably connected, and the title plate (2) and fixing plate (4) are fixedly connected.

6. The preschool educational handmade work display stand according to claim 1, wherein the pressing cover (12) and the fixing rail (13) are made of PVE material, the pressing cover (12) and the fixing rail (13) are arranged in a transparent manner, and the number of the display cabinets (6) and the display boards (7) is at least 4.

7. The preschool educational handmade work display stand according to claim 1, wherein the fixed shell (14) is made of polymethyl methacrylate material, the fixed shell (14) is transparent, and the sliding drawer (15) is made of aluminum alloy material.
