Abstract

The utility model belongs to an internet teaching device based on big data analysis, comprising an electric curtain, the electric curtain comprises a shell, the shell is provided with a rotating shaft, a tubular motor, a curtain and a cloth outlet, and the shell is provided with Sponge pad, a first electromagnet and a connecting seat are symmetrically arranged on both sides of the storage cavity, the connecting seat is threadedly connected with a connecting piece, the connecting piece is rotatably connected with a rotating piece, and the rotating piece is provided with an elastic rubber roller, There are three proximity switches evenly distributed on the top of the storage cavity, and one side of the three proximity switches is provided with a fixing seat. The stopper matched with the metal sheet, the utility model can monitor the unfolding situation of the curtain, prevent the curtain from being stuck in the electric curtain and cause damage to the electric curtain, and at the same time, when the curtain is rolled up, the curtain is flattened to prevent wrinkles, and can automatically Clean the surface of the curtain.

Description

An Internet teaching equipment based on big data analysis

technical field

The utility model belongs to the technical field of teaching equipment, in particular to an Internet teaching equipment based on big data analysis.

Background technique

Internet teaching refers to the application of multimedia and network technology under the guidance of certain teaching theories and ideas, through the multilateral and multi-directional interaction of teachers, students, and the media, as well as the collection, transmission, processing, and sharing of teaching information from various media, to achieve teaching. A teaching model of the goal, the existing Internet equipment, due to the support of big data, teachers can download the electronic courseware prepared by themselves in the classroom, search and consult teaching materials and question banks, and conduct statistical analysis on students' homework, etc. Enrich teaching knowledge and improve teaching quality. Internet teaching equipment is usually composed of multimedia host, projector and electric screen. The multimedia host is used to control the teacher's operation, the projector projects the teaching content, and the electric screen is the projection imaging of the projector. The electric curtain is controlled by the control panel to rewind and unfold the curtain. Due to the large size of the electric curtain, it will block the blackboard, which is not conducive to teachers' writing on the blackboard. Therefore, the electric curtain usually retracts the curtain, only when it is necessary to use the Internet for teaching When the electric curtain is installed, it will be unfolded. Since the existing electric curtain is in the curtain, there is no detection unit to detect whether the curtain is normally unfolded, so that when the curtain is stuck in the electric curtain, it cannot be stopped in time, causing damage to the electric curtain, and only relying on the counterweight Blocks straighten the curtain, the curtain is still easy to wrinkle when it is rolled up, causing damage to the curtain, and the dust in the same classroom is easily absorbed on the surface of the curtain, and the electric curtain cannot be automatically cleaned.

Utility model content

The purpose of this utility model is: to provide a kind of Internet teaching equipment based on big data analysis, which can monitor the unfolding situation of the curtain, prevent the curtain from being stuck in the electric curtain and cause the damage of the electric curtain, and at the same time when the curtain is rolled up, the curtain Tiled to prevent wrinkling, and can automatically clean the surface of the screen.

In order to realize the above-mentioned technical purpose, the technical scheme that the utility model adopts is as follows:

An Internet teaching device based on big data analysis, including a control panel, a multimedia host, a projector and an electric screen, the electric screen includes a casing, the casing contains a control cavity and a storage cavity, and the control cavity is provided with a control chip, the storage cavity is provided with a rotating shaft, a tubular motor, a curtain and a cloth outlet, the lower side of the curtain is provided with a counterweight, the shell is provided with a bracket matching the cloth outlet, and the bracket is fixedly connected There is a sponge pad, there is a gap between the sponge pad and the curtain, the storage cavity is symmetrically provided with a first electromagnet and a connecting seat on both sides, the connecting seat is threadedly connected with a connecting piece, and the connecting piece is rotatably connected with a rotating The rotating member includes a hollow bracket matched with the first electromagnet, two rotating brackets matching the connecting member are symmetrically arranged on both sides of the hollow bracket, and the rotating bracket is provided with a first fixed short bracket. The rod and the rotating circular hole matched with the connecting piece, the lower side of the hollow support is evenly distributed with connecting supports matching the rotating support, and the connecting supports are symmetrically provided with the first fixed short rods on both sides. Two fixed short rods, elastic rubber rollers are arranged between the rotating bracket and the connecting bracket and between two adjacent connecting brackets, the diameter of the elastic rubber roller is larger than the width of the connecting bracket, and the elastic rubber roller is two The sides are symmetrically provided with grooves that match the first fixed short rod and the second fixed short rod, three proximity switches are evenly distributed on the top of the storage cavity, and each side of the three proximity switches is provided with a fixed seat, the The fixing base is hinged with a detection metal sheet that matches the proximity switch, the fixing base is welded with a stopper that matches the detection metal sheet, and the power output end of the control chip is electrically connected with the tubular motor and the first electromagnet. The signal output end of the control chip is connected with the proximity switch signal.

By adopting the technical scheme of the utility model, the bracket is used to fix the sponge pad; the hollow bracket is not only stable in structure but also light in weight, so that the heavier elastic rubber roller is always vertically downward under the action of gravity, not in contact with the curtain, and relatively The light hollow bracket is vertically upward and does not contact the curtain; the detection metal sheet is hinged with the fixed seat, so that the detection metal sheet can rotate relative to the fixed seat, and under the action of gravity, the detection metal sheet tilts downward and does not contact the proximity switch. When the screen is in contact with each other, it is limited by the stopper, which is convenient for detecting that the metal sheet is in contact with the proximity switch under the push of the screen after the screen is accumulated in the storage cavity. The tubular motor rewinds the curtain, and the control chip controls the first electromagnet to be energized to absorb the hollow bracket. The hollow bracket drives the connecting bracket and the elastic rubber roller to rotate around the connecting piece, so that the elastic rubber roller slightly pushes the curtain to ensure that the curtain is laid flat and prevent the curtain. It is wrinkled during winding, and at the same time, the elastic rubber roller pushes the curtain to make the front of the curtain contact with the sponge pad, and the sponge pad wipes the front of the curtain to keep it clean; when the control panel controls the curtain to unfold, the first electromagnet is powered off, and the rotating part is under gravity Under the action of reset, the curtain is unfolded under the action of the counterweight and the tubular motor. When the curtain is stuck in the electric curtain, the curtain accumulates in the storage cavity, so that the curtain pushes the detection metal sheet to move up around the fixed seat, and the proximity switch detects the detection After the metal sheet, the control chip immediately cuts off the power supply of the tubular motor, the equipment stops working, and the tubular motor can be energized until the detection of the metal sheet is reset. , At the same time, when the curtain is rolled up, the curtain is laid flat to prevent wrinkles, and the surface of the curtain can be automatically cleaned.

Further limited, the connecting piece includes a limiting cylinder, a fixing rod and a threaded rod, and the connecting seat is provided with a threaded blind hole matched with the threaded rod. Such a structure facilitates the fixed connection between the connecting piece and the connecting seat.

Further limited, the limiting cylinder is provided with a cross groove. Such a structure facilitates the installation and removal of the connecting piece.

Further limited, the cross section of the bracket is L-shaped. Such a structure is convenient to install and fix the sponge pad.

Further limited, the end face of the stopper is L-shaped. Such a structure is convenient to limit the detection metal piece.

Description of drawings

The present invention may be further illustrated by the non-limiting examples given in the accompanying drawings;

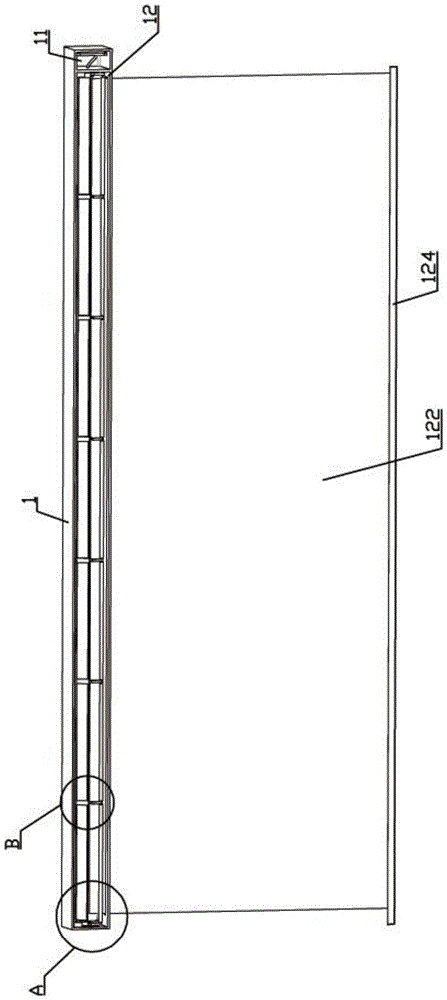

1 is a schematic structural diagram of an embodiment of an Internet teaching device based on big data analysis of the present invention;

Fig. 2 is the structure enlarged schematic diagram at A place in Fig. 1;

Fig. 3 is the structure enlarged schematic diagram at B place in Fig. 1;

4 is a schematic diagram of a partial structure of an embodiment of an Internet teaching device based on big data analysis of the present invention;

Fig. 5 is the structure enlarged schematic diagram at C place in Fig. 4;

Fig. 6 is the structure enlarged schematic diagram at D place in Fig. 5;

7 is a schematic diagram of the assembly structure of a connecting seat and a connecting piece of an embodiment of an Internet teaching device based on big data analysis of the present invention;

8 is a schematic cross-sectional structural diagram of an elastic rubber roller according to an embodiment of an Internet teaching device based on big data analysis of the present invention;

The main component symbols are explained as follows:

Housing 1, control cavity 11, storage cavity 12, rotating shaft 121, curtain 122, cloth outlet 123, counterweight 124, bracket 2, sponge pad 21, first electromagnet 3, connecting seat 4, connecting piece 41, limiter Position cylinder 411, cross groove 4111, fixed rod 412, threaded rod 413, hollow bracket 5, rotating bracket 51, first fixed short rod 511, connecting bracket 52, second fixed short rod 521, elastic rubber roller 53, groove 531 , the proximity switch 6 , the fixed seat 61 , the detection metal sheet 62 , and the stopper 63 .

Detailed ways

In order to enable those skilled in the art to better understand the present invention, the technical solutions of the present invention are further described below with reference to the accompanying drawings and embodiments.

As shown in Figures 1-8, an Internet teaching device based on big data analysis of the present invention includes a control panel, a multimedia host, a projector and an electric screen. The electric screen includes a casing 1, and the casing 1 contains a control cavity 11. and storage cavity 12, the control cavity 11 is provided with a control chip, the storage cavity 12 is provided with a rotating shaft 121, a tubular motor, a curtain 122 and a cloth outlet 123, the lower side of the curtain 122 is provided with a counterweight 124, and the shell 1 is provided with an outlet. The bracket 2 matched with the cloth mouth 123, the bracket 2 is fixedly connected with the sponge pad 21, there is a gap between the sponge pad 21 and the curtain 122, the storage cavity 12 is symmetrically provided with a first electromagnet 3 and a connecting seat 4, and the connecting seat 4 A connecting piece 41 is threadedly connected, and the connecting piece 41 is rotatably connected with a rotating piece. The rotating piece includes a hollow bracket 5 matched with the first electromagnet 3 . The rotating bracket 51 is provided with a first fixed short rod 511 and a rotating circular hole matching the connecting piece 41. The lower side of the hollow bracket 5 is evenly distributed with connecting brackets 52 matching the rotating bracket 51. The connecting bracket 52 are symmetrically provided with second fixed short rods 521 matching the first fixed short rods 511 on both sides, elastic rubber rollers 53 are provided between the rotating bracket 51 and the connecting bracket 52 and between the two adjacent connecting brackets 52, The diameter of the elastic rubber roller 53 is larger than the width of the connecting bracket 52 , the two sides of the elastic rubber roller 53 are symmetrically provided with grooves 531 matching the first fixed short rod 511 and the second fixed short rod 521 , and the top of the storage cavity 12 is evenly distributed There are three proximity switches 6 , and each side of the three proximity switches 6 is provided with a fixing seat 61 . The block 63 , the power output end of the control chip is electrically connected to the tubular motor and the first electromagnet 3 , and the signal output end of the control chip is signally connected to the proximity switch 6 .

Adopting the technical solution of the present invention, the bracket 2 is used to fix the sponge pad 21; the hollow bracket 5 is not only stable in structure but also light in weight, so that the heavier elastic rubber roller 53 is always vertically downward under the action of gravity, and is not in contact with the curtain 122. The lighter hollow bracket 5 does not contact the curtain 122 vertically upward; the detection metal sheet 62 is hinged with the fixing seat 61, so that the detection metal sheet 62 can rotate relatively around the fixing seat 61 under the action of gravity , the detection metal sheet 62 is inclined downward and does not contact the proximity switch 6, and is limited by the stopper 63, which is convenient for the detection of the metal sheet 62 after the curtain 122 is stacked in the storage cavity 12, and the detection metal sheet 62 is accurately driven by the curtain 122. contact with the proximity switch 6; when the control board controls the curtain 122 to rewind, the control chip controls the tubular motor to rewind the curtain 122, and the control chip controls the first electromagnet 3 to energize to absorb the empty bracket 5, and the empty bracket 5 drives the connection The bracket 52 and the elastic rubber roller 53 rotate around the connecting piece 41, so that the elastic rubber roller 53 pushes the curtain 122 slightly to ensure that the curtain 122 is laid flat and prevent the curtain from wrinkling during winding. Contact with the sponge pad 21, the sponge pad 21 wipes the front of the screen cloth 122 to keep it clean; when the control panel controls the screen cloth 122 to unfold, the first electromagnet 3 is powered off, the rotating part is reset under the action of gravity, and the screen cloth 122 is on the counterweight block 124. When the curtain 122 is stuck in the electric curtain, the curtain 122 is accumulated in the storage cavity 12, so that the curtain 122 pushes the detection metal sheet 62 to move up around the fixed seat 61, and the proximity switch 6 detects the detection metal sheet After 62, the control chip immediately cuts off the power supply of the tubular motor, the equipment stops working, and the tubular motor can be energized until the detection metal sheet 62 is reset. , At the same time, when the curtain is rolled up, the curtain is laid flat to prevent wrinkles, and the surface of the curtain can be automatically cleaned.

Preferably, the connecting piece 41 includes a limiting cylinder 411 , a fixing rod 412 and a threaded rod 413 , and the connecting seat 4 is provided with a threaded blind hole matched with the threaded rod 413 . Such a structure facilitates the fixed connection between the connecting member 41 and the connecting base 4 . In fact, other structures may also be used for the connecting member 41 according to specific conditions, so as to facilitate the fixed connection between the connecting member 41 and the connecting base 4 .

Preferably, the limiting cylinder 411 is provided with a cross groove 4111 . Such a structure facilitates the installation and removal of the connecting piece 41 . In fact, grooves of other shapes may also be used to facilitate the installation and removal of the connecting piece 41 according to specific conditions.

Preferably, the cross section of the bracket 2 is L-shaped. Such a structure is convenient to install and fix the sponge pad 21 . In fact, other shapes of the cross-section of the bracket 2 can also be used to facilitate the installation and fixation of the sponge pad 21 according to specific conditions.

The end face of the stopper 63 is preferably L-shaped. Such a structure is convenient for limiting the detection metal piece 62 . In fact, other structural shapes may also be used on the end face of the stopper 63 to facilitate the limiting of the detection metal sheet 62 according to specific conditions.

The above-mentioned embodiments merely illustrate the principles and effects of the present invention, but are not intended to limit the present invention. Anyone skilled in the art can modify or change the above embodiments without departing from the spirit and scope of the present invention. Therefore, all equivalent modifications or changes completed by those with ordinary knowledge in the technical field without departing from the spirit and technical idea disclosed by the present invention should still be covered by the claims of the present invention.

Claims (4)

1. An Internet teaching device based on big data analysis, comprising a control panel, a multimedia host, a projector and an electric screen, the electric screen comprises a casing (1), and the casing (1) contains a control cavity (11) and a storage cavity (12), the control cavity (11) is provided with a control chip, the storage cavity (12) is provided with a rotating shaft (121), a tubular motor, a curtain (122) and a cloth outlet (123), the The lower side of the curtain (122) is provided with a counterweight (124), characterized in that: the casing (1) is provided with a bracket (2) matching the cloth outlet (123), and the bracket (2) is fixed A sponge pad (21) is connected, there is a gap between the sponge pad (21) and the curtain (122), and a first electromagnet (3) and a connecting seat (4) are symmetrically arranged on both sides of the storage cavity (12) , the connecting seat (4) is threadedly connected with a connecting piece (41), the connecting piece (41) is rotatably connected with a rotating piece, and the rotating piece includes a hollow support (41) matched with the first electromagnet (3). 5), two rotating supports (51) matched with the connecting piece (41) are symmetrically arranged on both sides of the hollow support (5), and the rotating support (51) is provided with a first fixed short rod (511) and the rotating circular hole matched with the connecting piece (41), the lower side of the hollow bracket (5) is evenly distributed with connecting brackets (52) matching the rotating bracket (51), and the connecting bracket (52) is divided into two parts. A second fixed short rod (521) matched with the first fixed short rod (511) is arranged symmetrically on the side, between the rotating bracket (51) and the connecting bracket (52) and between two adjacent connecting brackets (52) There are elastic rubber rollers (53) between them, the diameter of the elastic rubber rollers (53) is larger than the width of the connecting bracket (52), and the elastic rubber rollers (53) are symmetrically provided on both sides with the first fixed The rod (511) and the second fixed short rod (521) are matched with the groove (531), and three proximity switches (6) are evenly distributed on the top of the storage cavity (12), and the three proximity switches (6) are one Each side is provided with a fixing seat (61), the fixing seat (61) is hinged with a detection metal sheet (62) matched with the proximity switch (6), and the fixing seat (61) is welded with the detection metal sheet (62). ) matching stopper (63), the power output end of the control chip is electrically connected to the tubular motor and the first electromagnet (3), the signal output end of the control chip is signally connected to the proximity switch (6), and the connection The component (41) includes a limiting cylinder (411), a fixing rod (412) and a threaded rod (413), and the connecting seat (4) is provided with a threaded blind hole matching the threaded rod (413). 2. An internet teaching device based on big data analysis according to claim 1, characterized in that: the limiting cylinder (411) is provided with a cross groove (4111). 3 . The internet teaching equipment based on big data analysis according to claim 2 , wherein the cross section of the bracket ( 2 ) is L-shaped. 4 . 4. An internet teaching device based on big data analysis according to claim 3, characterized in that: the end face of the stopper (63) is L-shaped.
