Abstract

The utility model relates to a slideway that is easy to assemble, including two relatively spaced mounting strips and a plurality of support plates arranged side by side between the two mounting strips for supporting materials. The technical key points are that the support plate includes a main board and a first end and a second end detachably plugged at both ends of the main board, the main board is provided with a guide convex strip for guiding the material, the first end and the second end are respectively connected to the two mounting strips, and the support plate is provided with a guardrail for guiding the material. The utility model has a simple structure, is easy to install, and has strong versatility.

Description

An easy-to-assemble slide

【Technical field】

The utility model relates to a material slideway.

【Background technique】

Usually, slideways are placed in freezers or shelves in supermarkets, shopping malls or passenger transport places. The slideways are generally inclined and placed on the slideways. Cold drinks, food, etc. are placed on the slideways. Cold drinks and food are automatically replenished by gravity. Due to the different widths of materials, when When a row of guide slides is put into materials of other widths, the width of the guide slides needs to be adjusted. For the existing adjustable-width shelf, the slideways are all a single piece of board, facing refrigerated cabinets of different sizes, such as refrigerated cabinets with 10 bottles in a row and 11 bottles of beverages in a row. The lengths are different, and the entire support plates of different refrigerators or shelf gravity slides cannot be used universally.

【Content of utility model】

The purpose of the utility model is to overcome the deficiencies of the prior art and provide a slideway with a simple structure and increased versatility that is easy to assemble.

In order to solve the above problems, the utility model adopts the following technical solutions:

A slideway that is easy to assemble, comprising two oppositely spaced mounting bars and a plurality of support plates arranged side by side between the two mounting bars for supporting materials, characterized in that the support plates include a main board and a detachable support plate. The first end and the second end are plugged into the two ends of the main board, the main board is provided with a sliding guide strip to guide the material, and the first end and the second end are respectively installed with the two ends. The said support plate is provided with the guardrail which guides the material.

The above-mentioned slideway that is easy to assemble is characterized in that: the first end head and the second end head are respectively provided with a plurality of insertion holes, and the two ends of the guardrail are respectively inserted into the first end into the insertion hole of the head and the second end.

The above-mentioned slideway for easy assembly is characterized in that: the main board is provided with two oppositely arranged clamping grooves along its length direction, and one end of the first end and the second end is inserted into the in the clip slot.

The above-mentioned slideway that is easy to assemble is characterized in that: the back of the support plate is provided with a reinforcing rib, and the first end and the second end are respectively provided with a reinforcing rib to pass through. Avoid the slot.

The above-mentioned slideway for easy assembly is characterized in that: the mounting bar is provided with a plug-in slot into which the other ends of the first end head and the second end head extend, and the first end head A guide slot is respectively provided on the second end and the insertion slot, and a guide protruding strip inserted into the guide slot is arranged in the insertion slot.

A slideway easy to assemble as described above, characterized in that: the left and right sides of the first end and the second end are respectively provided with a left connecting part and a right connecting part, adjacent to the first end The left connecting part on the end head and the adjacent second end head is connected with the right connecting part.

A slideway easy to assemble as described above, characterized in that: the adjacent support plates are spaced apart, and the left connecting part and/or the right connecting part are lateral to the first end and the second end Protruding, the left connecting part and the right connecting part on the adjacent first end head and the adjacent second end head are stacked, and the guardrail is inserted into the stacked left connecting part and the right connecting part.

The above-mentioned slideway that is easy to assemble is characterized in that: the right connecting part protrudes to the side of the first end and the second end, and the right connecting part is provided with a guide boss, The left connecting portion is provided with a guide groove for the guide boss to be inserted into.

The above-mentioned slideway that is easy to assemble is characterized in that: the bottom of the right connecting part is provided with a plug-in boss, and the left connecting part is provided with a plug-in groove for the plug-in boss to be inserted into .

The beneficial effects of the utility model are as follows: the support plate is detachably plugged into the first end and the second end at both ends of the main board by the main board, so that when changing the length, only the main board needs to be replaced, because the main board has a simple appearance and is convenient Cutting, the production cost is low, so there is no need to replace the entire support plate, which increases the versatility and is easy to assemble. It does not need a high-cost bottom plate mold, which is convenient for multiple batches of flexible orders; the support plate is arranged at multiple intervals, adjacent to each other. The left connecting part and the right connecting part on the board are stacked, which is convenient for left and right adjustment, so as to adjust the spacing between the adjacent support boards to achieve the purpose of adjusting the width, and the support boards correspond to the materials that need to be supported, while the two adjacent rows of The materials are separated, saving materials, and the overall shelf is light.

【Description of drawings】

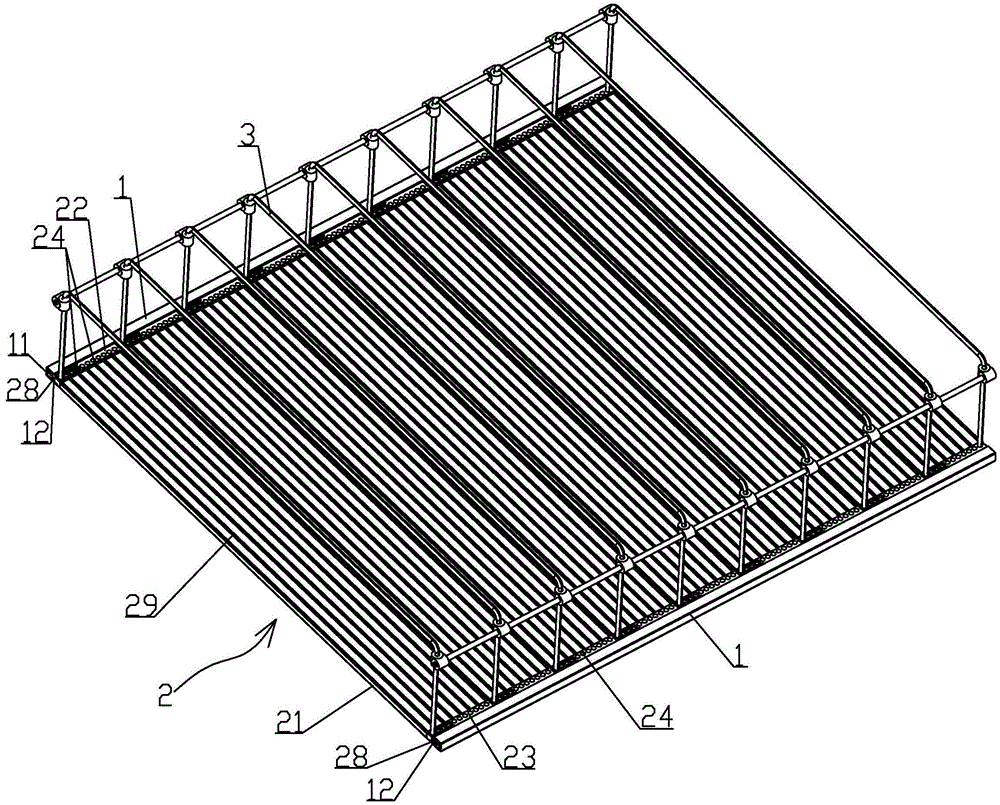

1 is a perspective view of Embodiment 1 of the present utility model;

Fig. 2 is the exploded view of embodiment 1 of the present utility model;

Fig. 3 is the exploded view of the support plate of Embodiment 1 of the present utility model;

4 is a perspective view of Embodiment 2 of the present utility model;

Fig. 5 is the exploded view of embodiment 2 of the present utility model;

FIG. 6 is an exploded view of the support plate according to the second embodiment of the present invention.

【Detailed ways】

Below in conjunction with the accompanying drawings and specific embodiments, the present utility model is described in further detail:

Embodiment 1, as shown in Figures 1 to 3, a slideway that is easy to assemble, comprising two mounting bars 1 arranged oppositely and spaced apart and a plurality of supporting plates arranged side by side between the two mounting bars 1 for supporting materials 2. The supporting plate 2 is in the shape of "1", and the mounting strip 1 assembles all the supporting plates 2. The supporting plate 2 and the mounting strip 1 can be fixed by screws. The materials are arranged in a row along the length direction of the support plate 2. The support plate 2 includes a main board 21 and a first end 22 and a second end 23 detachably plugged at both ends of the main board 21. The main board 21 is provided with For the guide-sliding protruding strips 29 for guiding the material, the slideway is inclined and placed on the shelf, so that the support plate 2 is inclined, and the materials are automatically slid and replenished through the guiding-sliding protruding strips 29 under the action of gravity. The first end head 22 and the second end head 23 are respectively at two ends in the length direction of the main board 21 , and the first end head 22 and the second end head 23 are respectively connected to the two mounting bars 1 . The support plate 2 is provided with a guardrail 3 that guides the material, the first end 22 and the second end 23 are respectively provided with a plurality of insertion holes 24, and both ends of the guardrail 3 are inserted into the first end 22 and the second end respectively. In the insertion hole 24 of the end head 23, it is convenient to install by means of insertion. The insertion holes 24 are arranged along the width direction of the support plate 2. The adjacent two guardrails 3 form a guardrail, and a row of materials is in a guardrail. . All the guardrails 3 are arranged in parallel, two connecting rods can be set to connect all the guardrails 3, and a buckle is arranged on the connecting rods, so that the connecting rods and the guardrails 3 are buckled together, and the guardrails 3 are more stable. The main board 21 is provided with two oppositely arranged clamping grooves 25 along its length direction. Install. The back of the support plate 2 is provided with a reinforcing rib 26, the first end 22 and the second end 23 are respectively provided with an escape groove 27 for the reinforcing rib 26 to pass through, and a plurality of reinforcing ribs 26 are arranged along the length of the supporting plate 2 direction extension. The mounting bar 1 is provided with an insertion slot 11 into which the other ends of the first end 22 and the second end 23 are inserted, and the first end 22 and the second end 23 are respectively provided with guide slots 28 for insertion The groove 11 is provided with a guide protruding strip 12 which is inserted into the guide slot 28 . When applied to automatic replenishment shelves,

The second embodiment, as shown in FIGS. 4 to 6 , the difference between the second embodiment and the first embodiment is that in the second embodiment, the adjacent support plates are connected, specifically the first end 22 and the second end 23 The left and right sides are respectively provided with a left connecting part 4 and a right connecting part 5 , and the left connecting part 4 on the adjacent first end 22 and the adjacent second end 23 is connected with the right connecting part 5 . The adjacent support plates 2 are spaced apart, and the left connecting portion 4 and/or the right connecting portion 5 protrudes laterally toward the first end 22 and the second end 23, and protrudes to the left or right (that is, to the opposite side. The adjacent support plate 2 protrudes on one side), the left connecting part 4 and the right connecting part 5 on the adjacent first end 22 and the adjacent second end 23 are stacked, in order to stack the left connecting part 4 and the right connecting part 5 There is a certain level difference in the vertical direction, and the guardrail 3 is inserted into the left connecting part 4 and the right connecting part 5 which are stacked on top of each other. The right connecting portion 5 protrudes to the side of the first end 22 and the second end 23 , the right connecting portion 5 is provided with a guide boss 51 , and the left connecting portion 4 is provided with a guide boss 51 for inserting the guide groove 41 , so that the entire support plate 2 is C-shaped. It is also possible that the right connecting portion 5 of the first end head 22 protrudes, and the left connecting portion 4 of the second end head 23 protrudes, so that the entire support plate 2 is in a zigzag shape. The bottom of the right connecting portion 5 is provided with an inserting boss 52, and the left connecting portion 4 is provided with an inserting groove 42 into which the inserting boss 52 is inserted. The inserting groove 42 is a sinking groove in the inserting hole 24, It is convenient for the installation and positioning of the adjacent support plates 2 .

The above content is a further detailed description of the present invention in combination with specific preferred technical solutions, and it cannot be considered that the specific implementation of the present invention is limited to these descriptions. For those of ordinary skill in the technical field of the present invention, without departing from the concept of the present invention, some simple deductions or substitutions can be made, which should be regarded as belonging to the protection scope of the present invention.

Claims (9)

1. The utility model provides a slide convenient to equipment, includes that two are used for supporting backup pad (2) of material, its characterized in that to separate mounting bar (1) and a plurality of setting side by side between two mounting bars (1) that set up relatively: backup pad (2) include mainboard (21) and removable first end (22) and second end (23) of pegging graft at mainboard (21) both ends, mainboard (21) on be equipped with and lead smooth sand grip (29) of leading to the material, first end (22) and second end (23) be connected with two mounting bar (1) respectively, backup pad (2) on be equipped with guardrail (3) to the material direction.

2. A skid for facilitating assembly according to claim 1, wherein: the guardrail comprises a guardrail body and is characterized in that a plurality of inserting holes (24) are respectively formed in the first end head (22) and the second end head (23), and two ends of the guardrail (3) are respectively inserted into the inserting holes (24) of the first end head (22) and the second end head (23).

3. A skid for facilitating assembly according to claim 1, wherein: the main plate (21) is provided with two oppositely arranged clamping grooves (25) along the length direction, and one ends of the first end head (22) and the second end head (23) are inserted into the clamping grooves (25).

4. A skid for facilitating assembly according to claim 1 or 3, wherein: the back of backup pad (2) be equipped with strengthening rib (26), first end (22) and second end (23) on be equipped with respectively and supply keeping away groove (27) that strengthening rib (26) passed.

5. A skid for facilitating assembly according to claim 1, wherein: the mounting bar (1) on be equipped with the inserting groove (11) that supplies first end (22) and second end (23) other end to stretch into, first end (22) and second end (23) on be equipped with direction slot (28) respectively, inserting groove (11) in be equipped with direction sand grip (12) of inserting in direction slot (28).

6. A skid for facilitating assembly according to claim 1, wherein: the left and right sides of first end (22) and second end (23) be equipped with left connecting portion (4) and right connecting portion (5) respectively, adjacent first end (22) and adjacent left connecting portion (4) on second end (23) meet with right connecting portion (5).

7. A skid for facilitating assembly according to claim 6, wherein: the adjacent supporting plates (2) are spaced, the left connecting part (4) and/or the right connecting part (5) protrude towards the sides of the first end head (22) and the second end head (23), the left connecting part (4) and the right connecting part (5) adjacent to the first end head (22) and the second end head (23) are stacked, and the guardrail (3) is inserted into the stacked left connecting part (4) and the stacked right connecting part (5).

8. A skid for facilitating assembly according to claim 7, wherein: right connecting portion (5) to first end (22) and second end (23) side protrusion, right connecting portion (5) on be equipped with direction boss (51), left connecting portion (4) on be equipped with and supply direction boss (51) to insert direction recess (41).

9. A skid for facilitating assembly according to claim 8, wherein: the bottom of the right connecting part (5) is provided with an inserting boss (52), and the left connecting part (4) is provided with an inserting groove (42) for inserting the inserting boss (52).
