The utility model discloses a cleaning device for punching machine sweeps, its technical scheme main points are: a cleaning device for waste scraps of a punching machine is arranged on a punching platform of the punching machine, and a lower die plate seat is arranged on the punching platform; the cleaning device comprises an absorbing component and a driving component, wherein the absorbing component is arranged above the stamping platform and used for absorbing the scraps on the surface of the lower template base, the driving component is used for driving the absorbing component to reciprocate along the width direction of the lower template base, the absorbing component comprises a suction nozzle for absorbing the scraps on the lower template base, an air inlet pipe communicated with the suction nozzle and a fan communicated with the air inlet pipe, and a collecting box for collecting the scraps is arranged on the fan in a communicated manner. The utility model has the advantages that alleviate staff's intensity of labour, improve work efficiency.
Description
Technical Field
The utility model relates to a fine work steel system technical field, concretely relates to a cleaning device for punching machine sweeps.
Background
The shackle is a cleaning device for waste scraps of a punching machine of a rigging, and the shackles commonly used in domestic markets are generally divided into three types, namely national standard, American standard and Japanese standard according to production standards; the American standard is the most commonly used standard, and is widely used because of its small volume and heavy load. In the forming manufacturing of shackle, need cut into standard length with the raw and other materials of column, form the metal rod, convey the metal rod to the heating furnace in again and heat, make raw and other materials burn to the surface leads to red, then place the metal rod after heating on the conveyer belt through getting material conveying mechanism, and convey the metal rod to expecting on the platform through the conveyer belt, the staff need place the metal rod on the punching machine through the tool tongs and carry out the flat pressure of tip in proper order, the middle part is bent, the extrusion of overall structure, carry out the work of deburring again at last, just make the shackle shaping roughly.
The punching machine comprises a machine base, a punching platform and a punching end are arranged on the machine base, a lower template base is arranged on the punching platform, the punching end is located above the lower template base and is provided with an upper template base which is matched with the lower template to punch and form the shackle, and a holding tank for holding the shackle is arranged on the lower template base. When carrying out overall structure's extrusion, the metal sweeps that produce are concentrated on the lower bolster seat, and the staff need take out the back from holding the inslot with breaking out earlier, and the sweeps on the high-pressure spray gun of manually taking on the lower bolster seat again clears up, and after long-term work, causes staff's work burden easily, is unfavorable for improving staff's work efficiency.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a cleaning device for punching machine sweeps, its advantage alleviates staff's intensity of labour, improves work efficiency.
The above technical purpose of the present invention can be achieved by the following technical solutions:
a cleaning device for waste scraps of a punching machine is arranged on a punching platform of the punching machine, and a lower die plate seat is arranged on the punching platform; the cleaning device comprises an absorbing component and a driving component, wherein the absorbing component is arranged above the stamping platform and used for absorbing the scraps on the surface of the lower template base, the driving component is used for driving the absorbing component to reciprocate along the width direction of the lower template base, the absorbing component comprises a suction nozzle for absorbing the scraps on the lower template base, an air inlet pipe communicated with the suction nozzle and a fan communicated with the air inlet pipe, and a collecting box for collecting the scraps is arranged on the fan in a communicated manner.
Through the technical scheme, after the shackle is pressurized, the worker sucks the scraps on the lower template seat through the driving assembly driving the suction nozzle to reciprocate along the width direction of the lower template seat, and sucks the scraps into the collecting box through the fan for centralized treatment, so that the labor intensity of the worker is reduced, and the work efficiency of the worker is improved.
The utility model discloses further set up to: the driving assembly comprises a pair of hydraulic cylinders arranged on the stamping platform and a connecting rod arranged at the end part of a piston rod of each hydraulic cylinder and connected with the suction nozzle.
Through the technical scheme, after the pressure of the shackle is completed, the worker drives the suction nozzle to suck and remove the scraps on the lower template base in a reciprocating manner along the width direction of the lower template base through the lifting of the hydraulic cylinder, so that the labor intensity of the worker is reduced, and the working efficiency of the worker is improved conveniently; and the hydraulic cylinder has simple structure and is convenient for installation and maintenance by workers.
The utility model discloses further set up to: the two opposite inner side walls of the suction nozzle are connected with scraping and sweeping assemblies for scraping and sweeping the lower template base, and the scraping and sweeping assemblies comprise transverse rods connected with the two opposite inner walls of the suction nozzle and brush pieces arranged on the peripheral surfaces of the transverse rods.
Through the technical scheme, the in-process brush piece of suction nozzle gettering sweeps, stirs the sweeps on the lower bolster seat, and the suction nozzle of being convenient for is cleared up in sucking the collecting box with the sweeps automatically to alleviate staff's intensity of labour, be convenient for improve staff's work efficiency.
The utility model discloses further set up to: the two ends of the cross rod are rotatably connected with the side wall of the suction nozzle, and one end of the cross rod is provided with a driven assembly for driving the cross rod to rotate.
Through above-mentioned technical scheme, the horizontal pole rotates with the suction nozzle lateral wall to be connected, and the suction nozzle is at the in-process of motion for the brush piece is changeed and is scraped, is stirred the sweeps, is convenient for the suction nozzle with the sweeps suction collecting box in.
The utility model discloses further set up to: the driven assembly comprises a gear coaxially fixedly connected to one end of the cross rod and a rack arranged on the lower template base and meshed with the gear in a matching mode, and the rack is arranged along the telescopic direction of the piston rod of the hydraulic cylinder.
Through above-mentioned technical scheme, the in-process of pneumatic cylinder control suction nozzle motion can drive the gear and rotate on the rack to strengthened the rotation of horizontal pole, the brush piece of being convenient for is scraped the sweeps, is stirred, and the suction nozzle of being convenient for inhales the collecting box with the sweeps in.
The utility model discloses further set up to: the surface of the lower template base is provided with an embedded groove, two ends of the embedded groove penetrate through the lower template base, and the rack is arranged in the embedded groove and does not protrude out of the upper surface of the lower template base.
Through the technical scheme, the embedded groove is formed, so that the rack is positioned in the lower die plate seat, and the shackle pressurizing process is not influenced.
The utility model discloses further set up to: the brush piece is a piece body made of a metal material.
Through the technical scheme, the sheet body made of the metal material can reduce the damage of the brush sheet caused by the high temperature generated when the shackle is subjected to high-temperature pressure forming.
To sum up, the utility model discloses following beneficial effect has:
1. the cleaning device is arranged to automatically absorb the scraps on the lower template base, so that the labor intensity of workers is reduced, and the working efficiency is improved;
2. the scraping and sweeping assembly is arranged, the suction nozzle is used for hanging, sweeping and stirring the sweeps on the lower template base in the process of sucking and removing the sweeps, and the sweeps are sucked and removed by the suction nozzle more easily.
Drawings

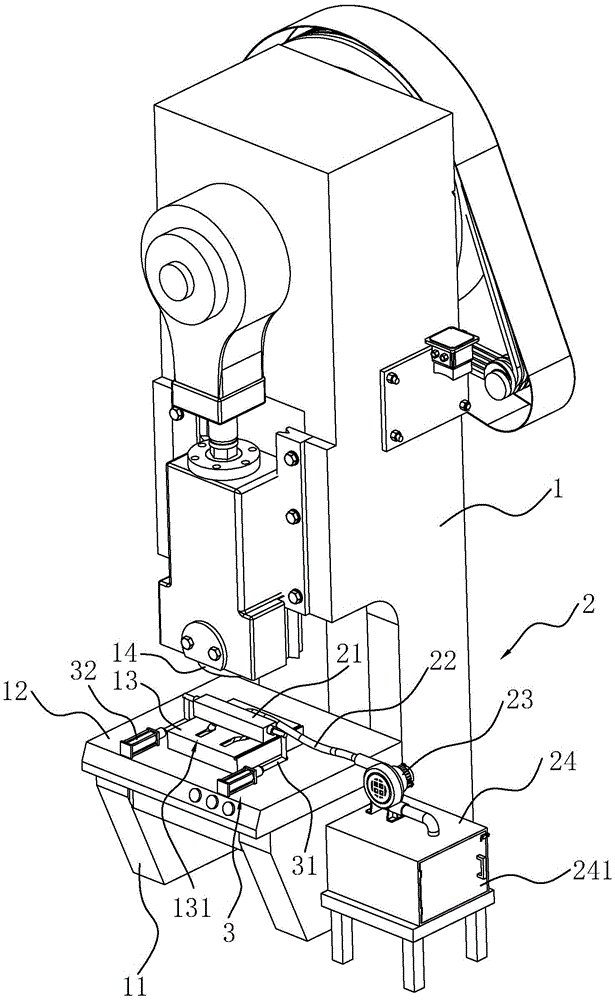

Fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is a schematic view of the construction of the highlight squeegee assembly;
figure 3 shows a schematic view of the embodiment of the embedded groove.
In the figure, 1, a punch; 11. a machine base; 12. a stamping platform; 13. a lower template base; 131. accommodating grooves; 14. an upper template seat; 2. a gettering assembly; 21. a suction nozzle; 22. an air inlet pipe; 23. a fan; 24. a collection box; 241. opening and closing the door; 3. a drive assembly; 31. a connecting rod; 32. a hydraulic cylinder; 4. a sweeping assembly; 41. a cross bar; 42. brushing sheets; 43. a gear; 44. a rack; 45. and a groove is embedded.
Detailed Description
Example (b):
as shown in fig. 1, a sweeps cleaning device for punching machine, punching machine 1 includes frame 11, is provided with punching press platform 12 and punching press end on the frame 11, is provided with lower template seat 13 on the punching press platform 12, and the punching press end is located the top of lower template seat 13 and is provided with and carries out stamping forming's upper template seat 14 with the lower template cooperation to the shackle, is provided with the holding tank 131 that is used for holding the shackle on the lower template seat 13.
As shown in fig. 1 and 2, the cleaning device includes an absorbing component 2 disposed above the stamping platform 12 for absorbing and removing the waste on the surface of the lower template base 13, and a driving component 3 for driving the absorbing component 2 to reciprocate along the width direction of the lower template, the absorbing component 2 includes a suction nozzle 21 for absorbing and removing the waste on the lower template base 13, an air inlet pipe 22 communicated with the suction nozzle 21, and a fan 23 communicated with the air inlet pipe 22, and a collecting box 24 for collecting the waste is disposed on the fan 23 in a communicating manner. One end of the collection box 24, which is far away from the fan 23, is provided with an opening and closing door 241, one end of the opening and closing door 241 is hinged with the box body of the collection box 24, the other end of the opening and closing door 241 is connected with the collection box 24 through a bolt, and a worker opens the opening and closing door 241 to clean waste scraps in the collection box 24.
As shown in FIGS. 1 and 2, the driving assembly 3 includes a pair of hydraulic cylinders 32 disposed on the stamping platform 12 and a connecting rod 31 disposed at an end of a piston rod of the hydraulic cylinder 32 and connected to the suction nozzle 21, a cylinder body of the hydraulic cylinder 32 is fixedly connected to the stamping platform 12, and a piston rod of the hydraulic cylinder 32 extends and retracts along a width direction of the lower platen base 13. the connecting rod 31 is L-shaped, and one end of the connecting rod 31 away from the piston rod is fixedly connected to an outer wall of the suction nozzle 21. when the lower platen base 13 needs to be cleaned, a worker drives the suction nozzle 21 connected to the piston rod to automatically suck and remove the waste chips on the upper surface of the lower platen base 13 in a reciprocating manner by driving the piston rod of the hydraulic cylinder 32 to suck and treat the waste chips into the collecting box 24, thereby reducing labor intensity of the worker and improving work efficiency of the worker.
As shown in fig. 2, the opposite inner side walls of the suction nozzle 21 are connected with a sweeping assembly 4 for sweeping the upper template base 14, the sweeping assembly 4 comprises a cross rod 41 connected with the opposite inner walls of the suction nozzle 21 and a brush 42 arranged on the periphery of the connecting rod 31, and the length of the brush 42 can clean the wall of the accommodating groove 131. In order to reduce the damage of the brush piece 42 caused by the high temperature generated when the shackle is formed by high-temperature pressing, the brush piece 42 is a sheet body made of iron material.
As shown in fig. 2 and 3, two ends of the cross bar 41 are rotatably connected with the side wall of the suction nozzle 21, one end of the cross bar 41 is provided with a driven assembly for driving the cross bar 41 to rotate, the driven assembly comprises a gear 43 coaxially and fixedly connected to one end of the cross bar 41 and a rack 44 arranged in the suction nozzle 21 and engaged with the gear 43 to rotate, an embedded groove 45 is formed in the surface of the lower template base 13, and the embedded groove 45 is arranged along the extending direction of the piston rod of the hydraulic cylinder 32. Referring to fig. 1, the rack 44 is fixed in the insertion groove 45, and the upper surface of the rack 44 does not protrude from the upper surface of the lower shoe base 13, so that the rack 44 does not affect the pressing process when the upper shoe base 14 presses the shackle. Rack 44 is fixed on the suction nozzle 21 lateral wall, when suction nozzle 21 moves on die bed board seat 13, because the piston rod of pneumatic cylinder 32 is at flexible removal in-process, can drive gear 43 meshing rotation on rack 44, the rotation of horizontal pole 41 has been strengthened, make the faster frequency of brush piece 42 scrape to die bed board seat 13 and sweep, stir, scrape and sweep, stir the in-process, the sweeps is inhaled by the wind-force that fan 23 produced and is collected in the case 24, clear up the sweeps automatically, thereby alleviate staff's intensity of labour, be convenient for improve staff's work efficiency, for the convenience of staff's operation, be provided with the flexible button of control pneumatic cylinder 32 piston rod on stamping platform 12.
The working process is as follows: when the shackle punch forming is completed and a worker needs to clean the waste scraps on the lower template base 13, the piston rod of the hydraulic cylinder 32 stretches and retracts to drive the suction nozzle 21 connected with the piston rod to reciprocate on the upper surface of the lower template base 13 to automatically suck and remove the waste scraps, so that the waste scraps are sucked into the collection box 24 to be treated; the in-process brush piece 42 that suction nozzle 21 absorbed the sweeps on the lower bolster seat 13 scrapes, stirs the sweeps, and the suction nozzle 21 of being convenient for inhales the sweeps in the collecting box 24 automatically and clears up to alleviate staff's intensity of labour, be convenient for improve staff's work efficiency.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.
