Abstract

The utility model provides a high-speed mixing machine, comprising a machine base, a mixing barrel is fixed on the machine base through a bracket, the upper part of the mixing barrel is provided with a feeding port, the feeding port is provided with a valve 1, and the lower part of the mixing barrel is provided with an outlet There is a valve 2 at the material outlet and the material outlet. The upper part of the mixing barrel is provided with a rotating seat by means of axial fixing and circumferential rotation. The rotating seat is connected with a power structure that can drive it to rotate. The rotating seat is connected with two The positioning rod, the scraping knife is respectively fixed on the positioning rod, and the rotating seat is also connected with two mounting seats, and the mounting seats and the positioning rod are staggered. The mounting seats are respectively provided with spindles, and the spindles are arranged in an inclined manner, and the lower end of the spindle It is connected with the middle of the stirring rod. Both ends of the stirring rod are provided with stirring blades. The upper end of the main shaft is connected with the linkage gear. The upper part of the mixing barrel is also fixed with an auxiliary rod. The auxiliary rod is fixed with an auxiliary gear, and the auxiliary gear is meshed with the linkage gear. The utility model has the advantages of rapid mixing.

Description

A high-speed mixer

technical field

The utility model belongs to the technical field of machinery, and relates to a mixer, in particular to a high-speed mixer.

Background technique

In addition to containing zingerone, gingerol and other physiologically active substances, old ginger also contains protein, polysaccharide, vitamins and various trace elements. It integrates nutrition, flavoring and health care. blood circulation and other functions. The old ginger tea granules are purified and processed at low temperature, which ensures that the active ingredients and structure of ginger are not damaged, and the active ingredients and aroma of ginger are effectively extracted. Specially made, it is very convenient to combine with milk, cola and other beverages into your favorite and changeable taste, which meets the needs of convenience and taste. In the production process of the old ginger tea granules, ginger extract, white sugar, brown sugar and additives need to be stirred and mixed, which requires the use of mixing equipment.

After searching, for example, Chinese patent documents disclose a mixer [application number: 201621404287.5; publication number: CN206285773U]. This kind of mixer is characterized in that it includes: a body, a accommodating groove arranged in the body, the groove wall of the accommodating groove is lower than the height of the side wall of the body, and the bottom of the groove wall is provided with There is a through hole; it also includes a rotating shaft arranged in the accommodating groove, and a plurality of stirring blades arranged on the rotating shaft; and a lifting device for driving the rotating shaft to rise and fall.

Although the mixer disclosed in the patent can realize the stirring of materials, the structure of the mixer is too simple, and it cannot quickly mix the materials evenly, and the mixing speed is slow. Therefore, it is very important to design a high-speed mixer. necessary.

SUMMARY OF THE INVENTION

The purpose of this utility model is to solve the above-mentioned problems in the existing technology, and propose a high-speed mixer, which has the characteristics of rapid mixing.

The purpose of this utility model can be achieved through the following technical solutions: a high-speed mixer, comprising a machine base, characterized in that a mixing bucket is fixed on the machine base through a bracket, and the upper part of the mixing bucket has a feeding port, There is a valve one at the feed port, a discharge port at the lower part of the mixing barrel, and a valve two at the discharge port. The upper part of the mixing barrel is provided with a rotating seat by means of axial fixing and circumferential rotation. The rotating power structure is connected, the rotating seat is connected with two positioning rods, the positioning rods are respectively fixed with scrapers, and the rotating seat is also connected with two mounting seats, and the mounting seats and the positioning rods are staggered. The main shafts are respectively rotated and arranged, and the main shafts are arranged in an inclined manner. The lower end of the main shaft is connected with the middle of the stirring rod. Both ends of the stirring rod are provided with stirring blades. The upper end of the main shaft is connected with the linkage gear. There is an auxiliary gear, and the auxiliary gear meshes with the linkage gear.

With the above structure, the rotating base is driven to rotate by the power structure, the rotating base drives the stirring rod and the scraper to rotate, and the scraper scrapes off the material remaining on the inner wall of the mixing tank. It rotates with the auxiliary gear, the auxiliary gear drives the main shaft to rotate, and the main shaft drives the stirring rod to rotate, so that the stirring blade also rotates around the main shaft during the rotation, so that the materials in the mixing tank can be quickly mixed evenly and quickly.

The power structure includes a mounting rod, a power motor, a ring gear and a gear, the ring gear is fixed on the rotating seat, the mounting rod is fixed on the mixing bucket, the power motor is fixed on the mounting rod, and the output shaft of the power motor is vertically arranged, The gear is fixed on the end of the output shaft of the power motor, and the gear meshes with the ring gear.

With the above structure, the output shaft of the power motor is controlled to rotate, the output shaft of the power motor drives the gear to rotate, the gear meshes with the ring gear, and the ring gear rotates the rotating seat.

One end of the mixing bucket and the protective cover is hinged, and the other end of the protective cover is detachably connected to the mixing bucket through a quick clip.

With the above structure, components such as the power motor, the ring gear and the gear can be protected by the protective cover, so as to prevent them from being directly exposed to the external environment.

The protective cover also has a handle.

The material of the protective cover is transparent organic glass.

Using the above materials, it is convenient to check the abnormal conditions inside the protective cover.

The machine base also has a feeding mechanism, the feeding mechanism includes a cylinder, a vibration motor, a lifting seat and a material guide plate, the cylinder is fixed on the base, and the cylinder is located directly below the discharge port, and the piston rod of the cylinder is vertical Up, the lifting seat is fixed on the end of the piston rod of the cylinder, the material guide plate is fixed on the lifting seat by a spring, the vibration motor is fixed on the material guide plate, and the material guide plate is also vertically fixed with a blanking rod, and the blanking rod It can extend into the discharge port, and there are several protruding auxiliary parts on the unloading rod.

With the above structure, the piston cylinder of the air cylinder is controlled to move upward, the piston rod of the air cylinder drives the lift seat to move upward, the lift seat makes the blanking rod extend into the discharge port, and the vibration motor is controlled to work, and the vibration motor drives the guide plate to vibrate. Under the action of the rod, the material at the discharge port can be smoothly output to the material guide plate, which is convenient for unloading.

Compared with the prior art, the high-speed mixer has the following advantages:

In the utility model, the rotating base is driven to rotate by the power structure, the rotating base drives the stirring rod and the scraper to rotate, and the scraper scrapes off the materials remaining on the inner wall of the mixing bucket. It rotates with the auxiliary gear, the auxiliary gear drives the main shaft to rotate, and the main shaft drives the stirring rod to rotate, so that the stirring blade also rotates around the main shaft during the rotation, so that the materials in the mixing tank can be quickly mixed evenly and quickly.

Description of drawings

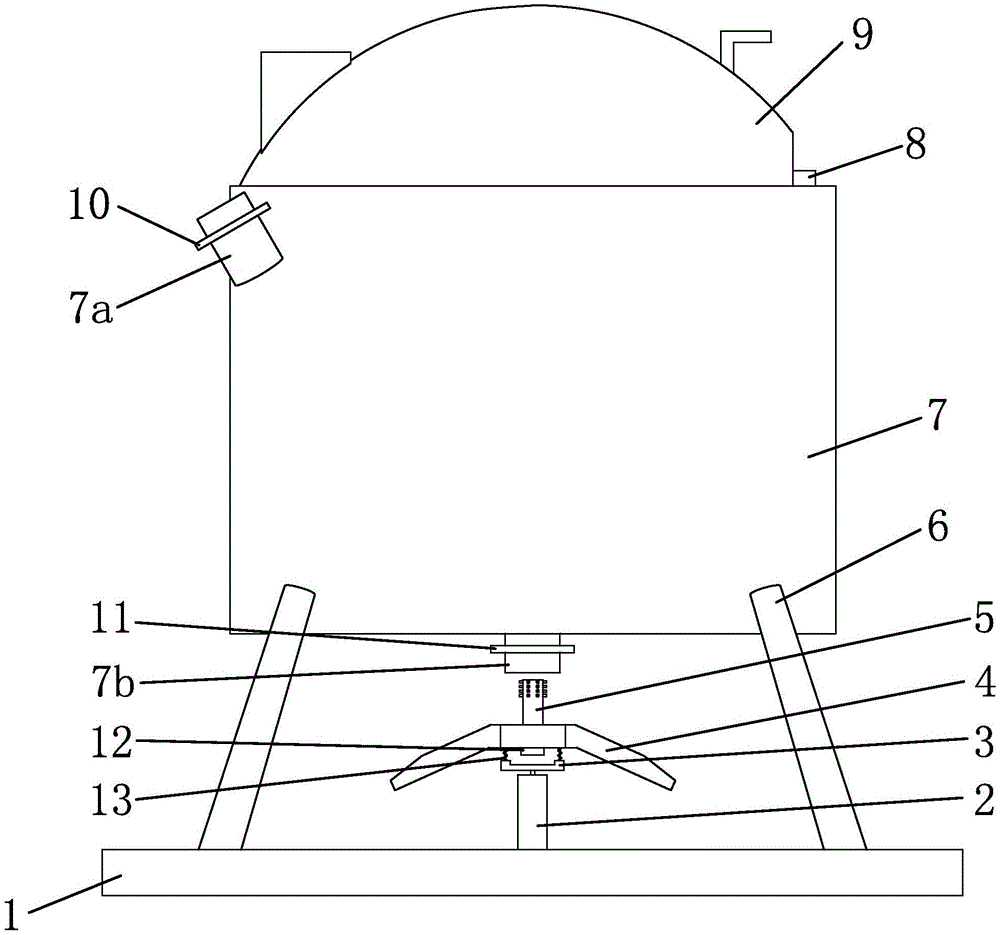

FIG. 1 is a schematic view of the plane structure of the present invention.

Fig. 2 is a three-dimensional schematic view of the dismantled part of the present utility model.

FIG. 3 is a schematic three-dimensional structure diagram of a protective cover in the present invention.

FIG. 4 is a schematic three-dimensional structure diagram of a material guide plate in the present invention.

FIG. 5 is a schematic three-dimensional structure diagram of the quick clip in the present invention.

In the figure, 1, machine base; 2, air cylinder; 3, lift seat; 4, material guide plate; 5, blanking rod; 6, bracket; 7, mixing barrel; 7a, feed port; 7b, discharge port ;8, quick clamp; 9, protective cover; 9a, handle; 10, valve one; 11, valve two; 12, vibration motor; 13, spring; 14, rotating seat; 15, auxiliary rod; 16, ring gear; 17 , mounting rod; 18, power motor; 19, gear; 20, auxiliary gear; 21, linkage gear; 22, mounting seat; 23, main shaft; 24, stirring blade; 25, stirring rod; 26, scraper; 27, positioning rod.

Detailed ways

The following are specific embodiments of the present utility model combined with the accompanying drawings to further describe the technical solutions of the present utility model, but the present utility model is not limited to these embodiments.

As shown in Figures 1-5, the high-speed mixer includes a base 1, and a mixing bucket 7 is fixed on the base 1 through a bracket 6. The upper part of the mixing bucket 7 has a feeding port 7a, and the feeding port 7a is at the There is a valve one 10, the lower part of the mixing barrel 7 has a discharge port 7b, and the discharge port 7b has a valve two 11, the upper part of the mixing barrel 7 is provided with a rotating seat 14 by means of axial fixation and circumferential rotation, and the rotating seat 14 Connected with a power structure that can drive it to rotate, the rotating base 14 is connected with two positioning rods 27, the positioning rods 27 are respectively fixed with scraping blades 26, and the rotating base 14 is also connected with two mounting bases 22, and the installation The seat 22 and the positioning rod 27 are staggered, and the main shaft 23 is respectively rotated and arranged on the mounting seat 22, and the main shaft 23 is arranged in an inclined manner. The lower end of the main shaft 23 is connected to the middle of the stirring rod 25. The upper end is connected with the linkage gear 21, the upper part of the mixing barrel 7 is also fixed with an auxiliary rod 15, the auxiliary gear 20 is fixed on the auxiliary rod 15, and the auxiliary gear 20 is meshed with the linkage gear 21; using this structure, the output of the power motor 18 is controlled. The shaft rotates, the output shaft of the power motor 18 drives the gear 19 to rotate, the gear 19 meshes with the ring gear 16, the ring gear 16 rotates the rotating seat 14, the rotating seat 14 drives the stirring rod 25 and the scraper 26 to rotate, and the scraper 26 The material remaining on the inner wall of the mixing bucket 7 is scraped off, and at the same time, due to the rotation of the rotating base 14, the linkage gear 21 and the auxiliary gear 20 rotate, the auxiliary gear 20 drives the main shaft 23 to rotate, and the main shaft 23 drives the stirring rod 25 to rotate, so that The stirring blade 24 also rotates around the main shaft 23 during the rotation, so that the materials in the mixing bucket 7 can be quickly mixed evenly and quickly.

The power structure includes a mounting rod 17, a power motor 18, a ring gear 16 and a gear 19. The ring gear 16 is fixed on the rotating seat 14, the mounting rod 17 is fixed on the mixing bucket 7, and the power motor 18 is fixed on the mounting rod 17. In this embodiment, the power motor 18 is fixed on the mounting rod 17 by means of bolt connection; the output shaft of the power motor 18 is arranged vertically, the gear 19 is fixed on the end of the output shaft of the power motor 18, and the gear 19 and the ring gear 16 meshed.

One end of the mixing bucket 7 and the protective cover 9 are hinged, and the other end of the protective cover 9 is detachably connected to the mixing bucket 7 through a quick clamp 8; in this embodiment, the quick clamp 8 adopts an existing product available in the market; With this structure, the power motor 18 , the ring gear 16 , the gear 19 and other components can be protected by the protective cover 9 to prevent them from being directly exposed to the external environment.

The protective cover 9 also has a handle 9a.

The material of the protective cover 9 is transparent plexiglass; by using this material, it is convenient to check the abnormal conditions inside the protective cover 9 .

The machine base 1 also has a feeding mechanism. The feeding mechanism includes a cylinder 2, a vibration motor 12, a lifting base 3 and a material guide plate 4. The cylinder 2 is fixed on the base 1. In this embodiment, the cylinder 2 is connected by bolts and the cylinder 2 is located directly below the discharge port 7b, the piston rod of the cylinder 2 is vertically upward, the lifting seat 3 is fixed on the end of the piston rod of the cylinder 2, and the material guide plate 4 passes through the spring 13 It is fixed on the lifting base 3, the vibration motor 12 is fixed on the material guide plate 4, and the material guide plate 4 is also vertically fixed with a blanking rod 5, and the blanking rod 5 can extend into the discharge port 7b, and the material is discharged. The rod 5 also has a number of protruding auxiliary parts; in this embodiment, the number of auxiliary parts is ten; using this structure, the piston cylinder of the control cylinder 2 moves upward, and the piston rod of the air cylinder 2 drives the lift seat 3 to move upward. , the lifting seat 3 makes the blanking rod 5 extend into the discharge port 7b, and controls the vibration motor 12 to work. The vibration motor 12 drives the material guide plate 4 to vibrate. Under the action of the blanking rod 5, the material at the discharge port 7b is made It is smoothly output to the 4 places of the guide plate, and it is convenient to unload.

The specific embodiments described herein are merely illustrative of the spirit of the present invention. Those skilled in the art of the present invention can make various modifications or supplements to the described specific embodiments or replace them in similar ways, but will not deviate from the spirit of the present invention or go beyond the appended claims the defined range.

Claims (6)

1. A high-speed mixer comprises a base and is characterized in that a mixing barrel is fixed on the base through a support, a feed inlet is formed in the upper portion of the mixing barrel, a valve I is formed in the feed inlet, a discharge outlet is formed in the lower portion of the mixing barrel, a valve II is formed in the discharge outlet, a rotating seat is arranged on the upper portion of the mixing barrel in an axially fixed and circumferential rotating mode and connected with a power structure capable of driving the mixing barrel to rotate, two positioning rods are connected onto the rotating seat, scraping knives are fixed onto the positioning rods respectively, two mounting seats are connected onto the rotating seat and distributed with the positioning rods in a staggered mode, a main shaft is arranged on the mounting seats in a rotating mode and is arranged in an inclined mode, the lower end of the main shaft is connected with the middle of a stirring rod, stirring blades are arranged at two ends of the stirring rod, the upper end of the main shaft is connected with a linkage gear, an auxiliary, and the auxiliary gear is meshed with the linkage gear.

2. The high-speed mixer according to claim 1, wherein the power structure comprises a mounting rod, a power motor, a gear ring and a gear, the gear ring is fixed on the rotating base, the mounting rod is fixed on the mixing barrel, the power motor is fixed on the mounting rod, an output shaft of the power motor is vertically arranged, the gear is fixed at the end of the output shaft of the power motor, and the gear is meshed with the gear ring.

3. The high-speed mixer according to claim 1, wherein the mixing barrel is hinged to one end of a protective cover, and the other end of the protective cover is detachably connected to the mixing barrel through a quick clamp.

4. The high-speed mixer according to claim 3, wherein the guard further comprises a handle.

5. The high-speed mixer according to claim 3, wherein the material of the protective cover is transparent organic glass.

6. The high-speed mixer according to claim 1, wherein the base further comprises a discharging mechanism, the discharging mechanism comprises a cylinder, a vibration motor, a lifting seat and a material guide plate, the cylinder is fixed on the base and is located right below the discharging port, a piston rod of the cylinder is vertically upward, the lifting seat is fixed at an end of the piston rod of the cylinder, the material guide plate is fixed on the lifting seat through a spring, the vibration motor is fixed on the material guide plate, a discharging rod is vertically fixed on the material guide plate and can extend into the discharging port, and the discharging rod further comprises a plurality of protruding auxiliary portions.
