Abstract
The utility model relates to a multi-functional smoke purification treatment equipment, including the clearing machine body, this internal from last degerming unit that down has set gradually of clearing machine, secondary filter unit, first filter unit and dirt collection unit, the air intake has been seted up to one side of first filter unit, the air inlet pipeline is connected with the air intake through the second fan, be provided with the dust collection chamber in the dirt collection unit, one side of dirt collection unit is provided with the door, be provided with a plurality of filter column in the first filter unit, secondary filter unit is from up having set gradually the cowling panel down, first filter, second filter and third filter, the air outlet has been seted up to one side of degerming unit, the top of degerming unit is provided with bacteria removing. The utility model discloses a degerming unit, secondary filter unit, first filter unit and the integrated collection dirt of dust collecting unit handle, smog filtration processing and smog degerming processing function, the function is diversified, and the adaptability scope is wider.
Description
Technical Field
The utility model relates to a smoke purification handles relevant technical field, especially relates to a multi-functional smoke purification treatment facility.
Background
With the development of industry, the consumption of energy is gradually increased, and the emission of atmospheric pollutants is correspondingly increased. Atmospheric quality is an important aspect of environmental quality. People can not live in the air at all times, and the atmospheric quality is closely related to the living environment of the people. From the viewpoint of environmental protection, the dust is a big enemy of human health. Some dust can directly reach the lung through the respiratory tract and deposit, and some dust can adhere to the surface of the upper respiratory tract of the human body, thus seriously harming the health of the human body. Most of smoke purification treatment equipment in the prior art has single function, poor smoke treatment effect and poor adaptability; and the floor area of the machine is large, the maintenance work of parts is complicated, and the cost is high.
In view of the above-mentioned drawbacks, the present designer has made active research and innovation to create a multifunctional smoke purifying and treating apparatus, which has industrial application value.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model aims at providing a multi-functional smoke purification treatment equipment.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a multi-functional smoke purification treatment equipment, including the clearing machine body, this internal from last degerming unit that down has set gradually of clearing machine, the secondary filter unit, first filter unit and dirt collection unit, the air intake has been seted up to one side of first filter unit, the intake stack is connected with the air intake through the second fan, be provided with the dust collection chamber in the dirt collection unit, one side of dirt collection unit is provided with the door, be provided with a plurality of filter column in the first filter unit, the secondary filter unit is from down having set gradually the cowling panel up, first filter, second filter and third filter, the air outlet has been seted up to one side of degerming unit, the top of degerming unit is.
As a further improvement of the utility model, a cotton gauze is arranged on the filter column.
As a further improvement, the first filter is an activated carbon filter screen, the second filter is an HEPA filter screen, the third filter is a deodorizing board, and a deodorant is arranged in the deodorizing board.
As a further improvement of the utility model, the sterilizing device is an ultraviolet sterilizing lamp.
As a further improvement, the position of keeping away from the air outlet in the degerming unit is provided with first fan, and the position of keeping away from the air intake in the first filter unit is provided with the third fan.
As a further improvement, the filter columns are all fixed in the purifier body through the supporting plate.
As a further improvement of the utility model, the air inlet and the air outlet are both provided with metal mesh filter layers.
As a further improvement of the utility model, the bottom of the purifier body is provided with a first caster wheel, and the bottom of the dust collection cavity is provided with a second caster wheel.
As a further improvement, the cross-sectional area of the rectifying plate, the first filter, the second filter and the third filter is equal to the cross-sectional area of the purifier body.
As the utility model discloses a further improvement, even being provided with a plurality of rectification hole on the cowling panel, the rectification hole all distributes along vertical direction.
Borrow by above-mentioned scheme, the utility model discloses at least, have following advantage:
the utility model integrates the functions of dust collection treatment, smoke filtration treatment and smoke sterilization treatment through the sterilization unit, the secondary filter unit, the primary filter unit and the dust collection unit, and has diversified functions and wider adaptability range; the utility model has the advantages of small floor area, simple structure of internal parts and low maintenance cost; through filter column, first filter, second filter and the combination quadruple filtration mode of third filter, smog treatment effect is better.
The above description is only an overview of the technical solution of the present invention, and in order to make the technical means of the present invention clearer and can be implemented according to the content of the description, the following detailed description is made with reference to the preferred embodiments of the present invention and accompanying drawings.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.
Fig. 1 is a schematic structural view of the multifunctional smoke purifying treatment equipment of the utility model.

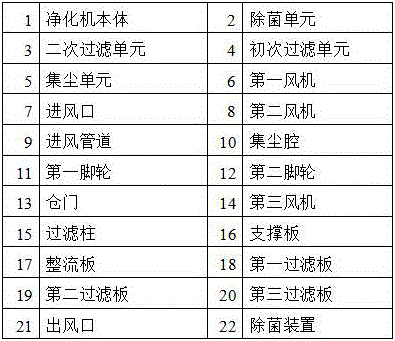

In the drawings, the meanings of the reference numerals are as follows.
Detailed Description
The following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.
In order to make the technical solution of the present invention better understood, the technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. The components of embodiments of the present invention, as generally described and illustrated in the figures herein, may be arranged and designed in a wide variety of different configurations. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiment of the present invention, all other embodiments obtained by the person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
As shown in figure 1 of the drawings, in which,
the utility model provides a multi-functional smoke purification treatment equipment, including clearing machine body 1, from last degerming unit 2 that has down set gradually in the clearing machine body 1, secondary filter unit 3, first filter unit 4 and dust collection unit 5, air intake 7 has been seted up to one side of first filter unit 4, intake stack 9 is connected with air intake 7 through second fan 8, be provided with dust collection chamber 10 in the dust collection unit 5, one side of dust collection unit 5 is provided with door 13, be provided with a plurality of filter column 15 in the first filter unit 4, secondary filter unit 3 is from down having set gradually cowling panel 17 up, first filter 18, second filter 19 and third filter 20, air outlet 21 has been seted up to one side of degerming unit 2, the top of degerming unit 2 is provided with bacteria removing device 22.
Preferably, a cotton gauze is arranged on the filter column 15. The inlet air is subjected to preliminary filtration treatment by a cotton gauze provided on the filter column 15.
Preferably, the first filter 18 is an activated carbon filter screen, the second filter 19 is a HEPA filter screen, the third filter 20 is a deodorizing board, and a deodorant is provided in the deodorizing board. The gas after being treated through active carbon filter screen and HEPA filter screen carries out the deodorization through the deodorization board again and handles, and purifying effect is better.
Preferably, the sterilization device 22 is an ultraviolet sterilization lamp. The gas is sterilized by an ultraviolet sterilizing lamp. The ultraviolet sterilizing lamp can sterilize the filtered gas, so that the real air purification is achieved, and the purification effect is good.
Preferably, a first fan 6 is disposed in the sterilizing unit 2 at a position far away from the air outlet 21, and a third fan 14 is disposed in the primary filtering unit 4 at a position far away from the air inlet 7. Wherein, be convenient for through first fan 6 to the gaseous drainage that enters into in degerming unit 2, the entering is discharged through air outlet 21. The dust collected on the filter column 15 is blown away by the third fan 14 at regular time and collected by the dust collecting chamber 10 of the bottom dust collecting unit 5.
Preferably, a plurality of filter columns 15 are all fixedly arranged in the purifier body 1 through a support plate 16.
Preferably, the air inlet 7 and the air outlet 21 are both provided with metal mesh filter layers. The metal mesh filter layers arranged at the air inlet 7 and the air outlet 21 prevent larger particles in the air from being damaged by impurities in the purifier body 1, and further filter parts in the purifier body 1 are damaged.
Preferably, the bottom of the cleaner body 1 is provided with a first caster 11, and the bottom of the dust collecting chamber 10 is provided with a second caster 12. Under the condition that the second fan stops working, blocked dust can slowly descend and is accumulated in the dust collection cavity 10 of the dust collection unit 5 through the through hole, and after the dust is accumulated to a certain degree, a worker can open the bin door 13 to pull out the dust collection cavity 10 for cleaning.
Preferably, the cross-sectional areas of the rectifying plate 17, the first filter plate 18, the second filter plate 19 and the third filter plate 20 are equal to the cross-sectional area of the cleaner body 1.
Preferably, a plurality of rectifying holes are uniformly formed in the rectifying plate 17, and the rectifying holes are distributed along the vertical direction. The gas entering the secondary filtering unit 3 is rectified through the rectifying plate 17, so that the filtering effect of the gas in the secondary filtering unit 3 is improved.
The utility model discloses multi-functional smoke purification treatment equipment, through degerming unit 2, secondary filter unit 3, primary filter unit 4 and dust collecting unit 5 integration dust collection processing, smog filtration processing and smog degerming processing function, the function is diversified, and the adaptability scope is wider; the utility model has the advantages of small floor area, simple structure of internal parts and low maintenance cost; by combining the filter column 15, the first filter plate 18, the second filter plate 19 and the third filter plate 20 with a quadruple filtering mode, the smoke treatment effect is good.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and variations can be made without departing from the technical principle of the present invention, and these modifications and variations should also be regarded as the protection scope of the present invention.
Claims (10)
1. The utility model provides a multi-functional smoke purification treatment equipment, which is characterized in that, includes clearing machine body (1), degerming unit (2), secondary filter unit (3), first filter unit (4) and dust collection unit (5) have down set gradually from last in clearing machine body (1), air intake (7) have been seted up to one side of first filter unit (4), intake stack (9) through second fan (8) with air intake (7) are connected, be provided with dust collection chamber (10) in dust collection unit (5), one side of dust collection unit (5) is provided with door (13), be provided with a plurality of filter column (15) in first filter unit (4), secondary filter unit (3) is from down up set gradually rectifying plate (17), first filter (18), second filter (19) and third filter (20), an air outlet (21) is formed in one side of the sterilizing unit (2), and a sterilizing device (22) is arranged at the top of the sterilizing unit (2).
2. A multifunctional smoke purifying treatment apparatus as claimed in claim 1, wherein said filter column (15) is provided with cotton gauze.
3. The multi-functional smoke purifying treatment apparatus according to claim 1, wherein said first filter plate (18) is an activated carbon filter, said second filter plate (19) is a HEPA filter, and said third filter plate (20) is a deodorizing plate, and a deodorizer is provided in said deodorizing plate.
4. A multi-functional fume cleaning and treating apparatus according to claim 1, wherein said sterilizing device (22) is an ultraviolet sterilizing lamp.
5. A multifunctional smoke purifying treatment device according to claim 1, characterized in that a first fan (6) is arranged in the sterilizing unit (2) far away from the air outlet (21), and a third fan (14) is arranged in the primary filter unit (4) far away from the air inlet (7).
6. A multi-functional smoke purifying treatment apparatus as claimed in claim 1, wherein said plurality of filter columns (15) are all fixedly arranged in the purifier body (1) through a support plate (16).
7. A multifunctional smoke purifying treatment device according to claim 1, characterized in that a metal mesh filtering layer is arranged on each of the air inlet (7) and the air outlet (21).
8. A multi-functional smoke purifying treatment apparatus according to claim 1, wherein the bottom of said purifier body (1) is provided with a first caster (11), and the bottom of said dust collecting chamber (10) is provided with a second caster (12).
9. A multi-functional smoke purifying treatment apparatus according to claim 1, wherein the cross-sectional area of said rectifying plate (17), said first filter plate (18), said second filter plate (19) and said third filter plate (20) is equal to the cross-sectional area of said purifier body (1).
10. The multifunctional fume purification treatment device according to claim 1, wherein a plurality of rectifying holes are uniformly arranged on the rectifying plate (17), and the rectifying holes are distributed along the vertical direction.
