CN211119962U - A central air conditioner cooling fan bracket - Google Patents

Abstract

The utility model discloses a support for a cooling fan of a central air conditioner, which comprises a hanger, a support assembly and a horizontal plate. A bottom frame is installed on both sides of the horizontal plate through bolts, and a connecting rod is installed on the top of the bottom frame through bolts. The top of the connecting rod is installed with a top frame through bolts, one end of the top frame is welded with a fixed plate, the top of the top frame is installed with a hanger through a fixed shaft, and the top of the bottom frame and the horizontal plate is installed with bolts, etc. A baffle is installed at the distance, and a support assembly is installed on the bottom of the chassis through bolts. In the utility model, a hanger is installed on the top of the top frame, and the hanger can increase the firmness of the device installation, improve the firmness of the device installation, so that it can generate an upward pulling force on the device, and ensure that the cooling fan is installed. The firmness of the installation makes the device not easy to loosen under the action of long-term weathering, which ensures the safety of the installation of the device.

Description

A central air conditioner cooling fan bracket

technical field

The utility model relates to the technical field of fan brackets, in particular to a central air-conditioning cooling fan bracket.

Background technique

The central air-conditioning system consists of one or more cold and heat source systems and multiple air-conditioning systems. The principle of liquid vaporization refrigeration is used to provide the required cooling capacity for the air-conditioning system to offset the heat load of the indoor environment. The heating system is The air conditioning system provides the required heat to offset the cooling and heating load of the indoor environment. During the normal operation of the central air conditioner, the heat needs to be discharged indoors through the central air conditioning cooling fan, and the central air conditioning cooling fan is installed outdoors. When installing, you need to use a bracket to fix it.

The defects of the existing central air-conditioning cooling fan bracket are:

1. The existing central air-conditioning cooling fan bracket has poor firmness when installing the cooling fan, which makes it easy to loosen under the action of long-term weathering, and there are certain safety hazards;

2. The existing central air-conditioning cooling fan bracket is prone to tilt under the influence of the gravity of the cooling fan, so that the installation position of the cooling fan is not on the horizontal line, which affects the stability of the cooling fan installation. For this reason, we propose a central air-conditioning cooling system. Fan bracket to solve the existing problem.

Utility model content

The purpose of the present utility model is to provide a central air-conditioning cooling fan support, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a central air-conditioning cooling fan support, including a hanger, a support assembly and a horizontal plate, the two sides of the horizontal plate are installed with a chassis through bolts, and the A connecting rod is installed on the top through bolts, a top frame is installed on the top of the connecting rod through bolts, a fixing plate is welded on one end of the top frame, a hanger is installed on the top of the top frame through a fixed shaft, and the bottom frame is A baffle plate is installed equidistantly from the top of the horizontal plate through bolts, and a support assembly is installed at the bottom of the bottom frame through bolts.

Preferably, a hanger is installed inside the hanger, the two ends of the hanger are installed with wire ropes through fixing rings, the top of the wire rope is installed with angle pieces through bolts, and the bottom of the wire rope is provided with a bushing .

Preferably, a support rod is installed inside the support assembly, a shaft bracket is installed on the top of the support rod through a shaft member, and a mounting shaft is installed on the bottom of the support rod through a shaft bolt.

Preferably, the interior of the transverse plate is provided with mounting holes, and the two ends of the transverse plate are welded with mounting blocks, and the interior of the mounting blocks are provided with threaded holes.

Preferably, the two ends of the baffle are welded with connecting plates, and the interior of the baffle is provided with through holes.

Preferably, a mounting groove is provided inside the bottom frame, and a mounting plate is welded on one end of the bottom frame.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The utility model obtains a hanger installed on the top of the top frame, and the hanger can increase the firmness of the device installation, improve the firmness of the device installation, so that it can generate an upward pulling force on the device, ensuring heat dissipation. The firmness of the fan during installation makes it difficult for the device to loosen under the action of long-term weathering, which ensures the safety of the device installation.

2. In the present invention, a support component is installed at the bottom of the chassis, and the support component can generate a support force for the device, improve the force coefficient of the device, and make the device less prone to tilt under the influence of the gravity of the cooling fan, ensuring that The installation of the cooling fan is kept in a horizontal position, and the stability of the installation of the cooling fan is improved.

3. The utility model is provided with an installation groove inside the chassis, and the installation groove can facilitate the installation of the device, improve the installation efficiency of the device, make it more convenient for the staff to disassemble the device, and improve the practicality of the device. sex.

4. The utility model can increase the protection structure of the device by installing the baffle plate, improve the protection safety of the device, can effectively prevent the danger of side fall of the cooling fan, and ensure the safety of the installation of the cooling fan.

Description of drawings

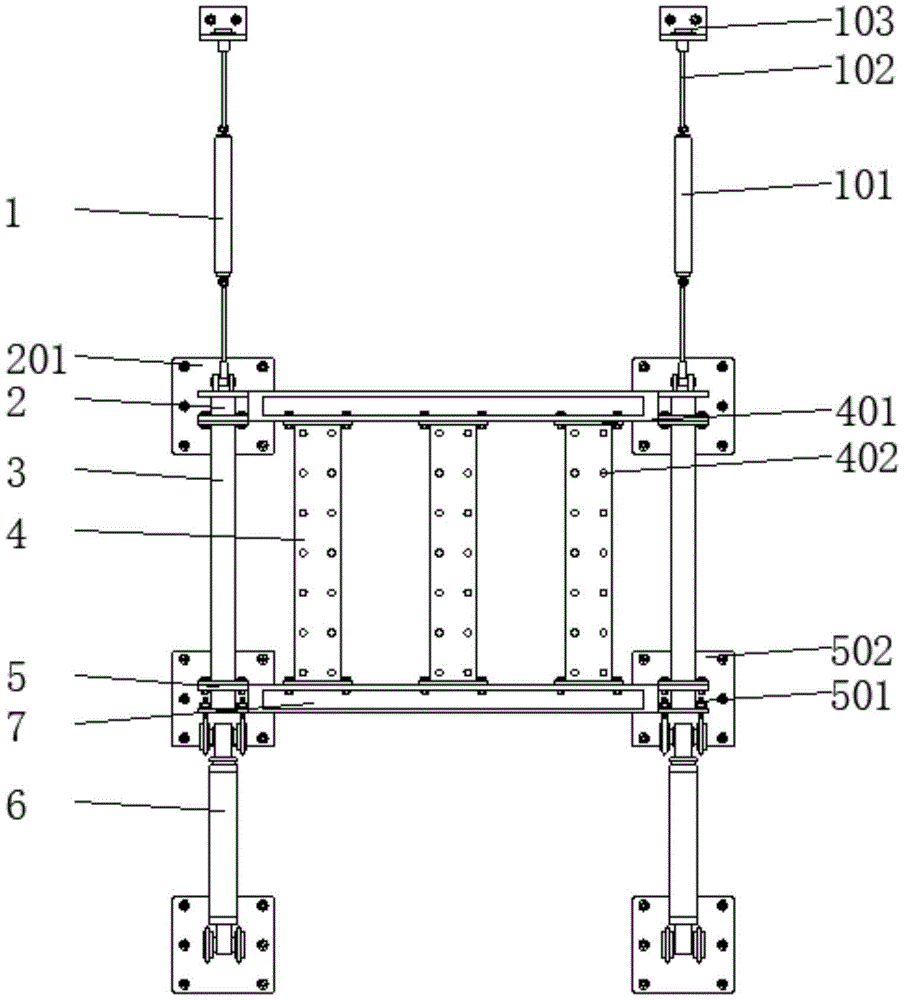

Fig. 1 is the front structure schematic diagram of the present utility model;

Fig. 2 is the side structure schematic diagram of the utility model;

3 is a schematic diagram of the partial structure of the support assembly of the present invention;

FIG. 4 is a schematic diagram of the partial structure of the horizontal plate of the present invention.

In the figure: 1, hanger; 101, boom; 102, wire rope; 103, corner piece; 2, top frame; 201, fixed plate; 3, connecting rod; 4, baffle plate; 401, connecting plate; 402 , through hole; 5, chassis; 501, installation slot; 502, installation plate; 6, support assembly; 601, support rod; 602, shaft part; 603, shaft frame; 604, installation shaft; 7, horizontal plate; 701 , mounting hole; 702, mounting block.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Figures 1-4, an embodiment provided by the present utility model: a central air-conditioning cooling fan bracket, including a hanger 1, a support assembly 6 and a horizontal plate 7, the two sides of the horizontal plate 7 are installed with a bottom frame through bolts 5. The horizontal plate 7 can provide a platform for the cooling fan, which ensures the firmness of the installation of the cooling fan. The two sets of chassis 5 can fix the position of the horizontal plate 7, which is convenient for fixing the horizontal plate 7 on the wall and ensures the horizontal plate 7. The firmness of the installation, the top of the bottom frame 5 is installed with a connecting rod 3 through bolts, and the bottom frame 5 can be connected to the top frame 2 through the connecting rod 3 to increase the firmness of the connection between the top frame 2 and the bottom frame 5. The top of the connecting rod 3 The top frame 2 is installed by bolts, and the interior of the top frame 2 is installed with a horizontal plate 7 through bolts. The horizontal plate 7 can protect the cooling fan, prevent falling objects from hitting the cooling fan, and ensure the safety of the cooling fan. The top frame 2 A fixing plate 201 is welded on one end of the upper frame. The fixing plate 201 and the bolts can firmly fix the top frame 2 on the wall, which ensures the firmness of the installation of the top frame 2. The top of the top frame 2 is installed with the hanger 1 through the fixed shaft. , through the hanger 1, the firmness of the installation of the device can be increased, and the firmness of the installation of the device can be improved, so that it can generate an upward pulling force on the device, which ensures the firmness of the cooling fan when it is installed, so that the device can be used for a long time. It is not easy to loosen under the action of weathering, which ensures the safety of the installation of the device. The top of the bottom frame 5 and the horizontal plate 7 is installed with a baffle 4 at equal distances through bolts. The baffle 4 can increase the protective structure of the device and improve the safety of the device. The safety protection can effectively prevent the risk of side fall of the cooling fan and ensure the safety of the installation of the cooling fan. The bottom of the bottom frame 5 is installed with a support component 6 through bolts, and the support component 6 can generate support for the device and improve the device The high force coefficient makes the device less prone to tilt under the influence of the gravity of the cooling fan, which ensures that the cooling fan is installed in a horizontal position and improves the stability of the cooling fan installation.

Further, a hanger 101 is installed inside the hanger 1, and the two ends of the hanger 101 are welded with fixing rings. The hanger 101 can facilitate the connection of the wire rope 102 and increase the installation efficiency of the device. The two ends of the hanger 101 are fixed by A wire rope 102 is installed on the ring, and the wire rope 102 has good toughness, which can improve the tension coefficient of the hanger 1 and ensure the firmness of the installation of the device. The top of the wire rope 102 is installed with an angle piece 103 through bolts. The corner piece 103 can be matched with the expansion screw, which is convenient to fix the hanger 1 on the wall surface and ensure the firmness of the installation of the device, and the bottom of the wire rope 102 is provided with a shaft sleeve, and the shaft sleeve can be used to fix the shaft on the top of the top frame 2 The movable connection is convenient to adjust the installation angle of the hanger 1, so that it can be adjusted according to the installation needs, and the flexibility of the installation of the device is improved.

Further, a support rod 601 is installed inside the support assembly 6, and the support rod 601 can generate a supporting force for the device to improve the stability of the installation of the device. The top of the support rod 601 is mounted with a shaft bracket 603 through a shaft member 602, and the shaft member 602 can Cooperating with the shaft frame 603, it is convenient to fix the support rod 601 on the bottom of the bottom frame 5, and it is also convenient to adjust the angle of the support rod 601, and the bottom of the support rod 601 is installed with a mounting shaft 604 through a shaft bolt, and the mounting shaft 604 can be used to The support rod 601 is fixed on the wall, which ensures the firmness of the installation of the support rod 601 .

Further, the interior of the horizontal plate 7 is provided with mounting holes 701, and the mounting holes 701 and the bolts can fix the position of the baffle 4, which facilitates the installation of the baffle 4 and improves the installation efficiency of the device, and the two ends of the horizontal plate 7 are welded with mounting holes. Block 702, the installation block 702 can cooperate with the installation groove 501 to facilitate the installation of the horizontal plate 7, which improves the installation efficiency and firmness of the horizontal plate 7, and the inside of the installation block 702 is provided with threaded holes, and the threaded holes can be matched with bolts. The cross plate 7 is firmly fixed inside the bottom frame 5 to facilitate the installation of the device.

Further, the two ends of the baffle 4 are welded with connecting plates 401, and the interior of the connecting plate 401 is provided with threaded holes to facilitate the installation of the baffle 4, which improves the firmness of the installation of the baffle 4, and the interior of the baffle 4 is provided with through holes 402, the through hole 402 is matched with the bolt to facilitate fixing the position of the cooling fan, preventing the cooling fan from shaking, and ensuring the firmness of the installation of the cooling fan.

Further, the interior of the bottom frame 5 is provided with an installation slot 501, which can improve the installation position of the installation block 702, facilitate the installation of the horizontal plate 7, improve the installation efficiency of the horizontal plate 7, and make it convenient for the staff to disassemble and assemble It is more convenient to install, which improves the practicability of the device, and one end of the bottom frame 5 is welded with a mounting plate 502, and the interior of the mounting plate 502 is provided with a penetrating expansion screw, which makes it convenient for the staff to install the device and improves the performance of the device. installation efficiency.

Working principle: Before using the device, the user should first test the device and use it after confirming that there is no problem. The hanger 1 can increase the firmness of the device installation and improve the firmness of the device installation, so that it can produce an upward movement to the device. The high lifting force ensures the firmness of the cooling fan during installation, so that the device is not easy to loosen under the action of long-term weathering, and ensures the safety of the device installation. The baffle 4 can increase the protective structure of the device and improve the The protection and safety of the device can effectively prevent the risk of side fall of the cooling fan, and ensure the safety of the installation of the cooling fan. Through the support component 6, the device can be supported, and the force coefficient of the device can be improved, so that the device is subjected to heat dissipation. Under the influence of the gravity of the fan, it is not easy to tilt, which ensures that the installation of the cooling fan remains in a horizontal position and improves the stability of the installation of the cooling fan.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A central air-conditioning cooling fan support, comprising a hanger (1), a support assembly (6) and a transverse plate (7), characterized in that: both sides of the transverse plate (7) are mounted with a chassis ( 5), a connecting rod (3) is installed on the top of the bottom frame (5) through bolts, and a top frame (2) is installed on the top of the connecting rod (3) through bolts, and one end of the top frame (2) is installed A fixed plate (201) is welded, a hanger (1) is installed on the top of the top frame (2) through a fixed shaft, and a stopper (1) is installed on the top of the bottom frame (5) and the horizontal plate (7) at equal distances through bolts A plate (4), a support assembly (6) is mounted on the bottom of the base frame (5) through bolts. 2. A central air-conditioning cooling fan support according to claim 1, characterized in that: a hanger (101) is installed inside the hanger (1), and both ends of the hanger (101) are installed by fixing rings There is a wire rope (102), the top of the wire rope (102) is installed with an angle piece (103) through bolts, and the bottom of the wire rope (102) is provided with a bushing. 3. A central air-conditioning cooling fan support according to claim 1, characterized in that: a support rod (601) is installed inside the support assembly (6), and the top of the support rod (601) passes through the shaft member (602). ) is installed with a shaft bracket (603), and a mounting shaft (604) is installed at the bottom of the support rod (601) through a shaft bolt. 4. A central air-conditioning cooling fan support according to claim 1, characterized in that: the interior of the horizontal plate (7) is provided with mounting holes (701), and both ends of the horizontal plate (7) are welded with mounting holes (701). A block (702) is provided, and the interior of the mounting block (702) is provided with a threaded hole. 5. A central air-conditioning cooling fan support according to claim 1, characterized in that: both ends of the baffle (4) are welded with connecting plates (401), and the interior of the baffle (4) is provided with a connecting plate (401). hole (402). 6. A central air-conditioning cooling fan support according to claim 1, characterized in that: a mounting groove (501) is provided inside the chassis (5), and a mounting plate is welded to one end of the chassis (5). (502).
