CN211119727U - Air conditioner external unit support frame capable of avoiding condensed water accumulation - Google Patents

Abstract

The utility model discloses a support frame for an air conditioner outdoor unit which can avoid condensation water accumulation, comprising a mounting plate, mounting bolts, a placing plate and a fixing plate. A welding block is fixedly installed at the position of the front of the mounting plate close to the two sets of mounting bolts at the bottom. The utility model is provided with a through hole, the top of the placing plate is provided with a through hole, and the condensed water generated when the air conditioner works can flow out directly through the through hole, which can effectively prevent the condensed water from accumulating on the placing plate, which can prevent the condensed water from accumulating. The outer unit support frame of the air conditioner is provided with a shaft, the shaft is fixedly connected with the bearing, and then the placing plate can be rotated freely. When needed, directly rotate the placing plate to keep it level, and then put the supporting rod at the bottom on the welding block. It can be used inside the card slot. When not in use, you can directly rotate the placement plate and the installation plate and fold it up, without disassembly and installation, and it is very convenient to use.

Description

An air conditioner outdoor unit support frame that can avoid condensation water accumulation

technical field

The utility model relates to the technical field of an air conditioner outer unit support frame, in particular to an air conditioner outer unit support frame which can avoid condensation water accumulation.

Background technique

An air conditioner is an Air Conditioner. Refers to the equipment that adjusts and controls the temperature, humidity, flow velocity and other parameters of the ambient air in buildings or structures by artificial means, generally including cold source/heat source equipment, cold and hot medium transmission and distribution systems, terminal devices, etc. Other auxiliary equipment mainly includes refrigeration host, water pump, fan and pipeline system. The terminal device is responsible for using the cold and heat from transmission and distribution, specifically processing the air state, and making the air parameters of the target environment meet the requirements. It is installed on the outdoor wall, so an air conditioner outdoor unit support frame is required.

The defects of the existing air conditioner outdoor unit support frame are:

1. The existing air conditioner external unit support frame is generally placed and installed on the outside of the air conditioner by setting a bottom plate, but the bottom plate is prone to condensation water accumulation.

2. The existing air conditioner external unit support frame needs to be assembled with many structures to be used. When not in use, in order to save the placement space, it needs to be disassembled, which is not convenient to use.

Utility model content

The purpose of the present invention is to provide a support frame for an air conditioner external unit that can avoid condensation water accumulation, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a support frame for an air conditioner outdoor unit that can avoid the accumulation of condensed water, comprising a mounting plate, mounting bolts, welding blocks, a placing plate and a fixing plate, and the front of the mounting plate is close to four Mounting bolts are fixedly installed at the corners, and welding blocks are fixedly installed at the front of the mounting plate near the two sets of mounting bolts at the bottom. A placing plate is rotatably installed at the position, two ends of the front side of the bottom of the placing plate are rotatably installed with support rods, and two sets of fixing plates are slidably installed on the top of the placing plate.

Preferably, shaft rods are fixedly installed at the rear ends of both sides of the placing plate, through holes are provided on the surface of the placing plate, and sliding grooves are provided on the front and rear sides of the top of the placing plate.

Preferably, welding plates are fixedly installed on both sides of the front side of the mounting plate, and bearings are inlaid at the positions of the welding plates close to the bottom.

Preferably, fixing bolts are fixedly installed at both ends of the fixing plate, and sliding blocks are fixedly installed at both ends of the bottom of the fixing plate.

Preferably, the top end of the support rod is fixedly installed with a sleeve, the top of the support rod is provided with a concave seat, the inside of the support rod is fixedly installed with a welding rod, and the sleeve is sleeved on the surface of the welding rod.

Preferably, a limit sleeve is fixedly installed at one end of the mounting bolt, and a rubber block is inlaid and installed at one end of the limit sleeve.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The outer unit support frame of the air conditioner, which can avoid condensation water accumulation, is provided with through holes, and the top of the placing plate is provided with through holes. The condensed water generated when the air conditioner outer unit works can flow out directly through the through holes, effectively avoiding condensation water accumulation. on the placement board.

2. The outer unit support frame of the air conditioner, which can avoid the accumulation of condensed water, is provided with a shaft, which is fixedly connected with the bearing, and then the placing plate can rotate freely. When needed, directly rotate the placing plate to keep it horizontal, and then place the The support rod at the bottom can be placed inside the slot of the welding block. When it is not needed, the placing plate and the mounting plate can be directly rotated and folded. There is no need to disassemble and install, and it is very convenient to use.

Description of drawings

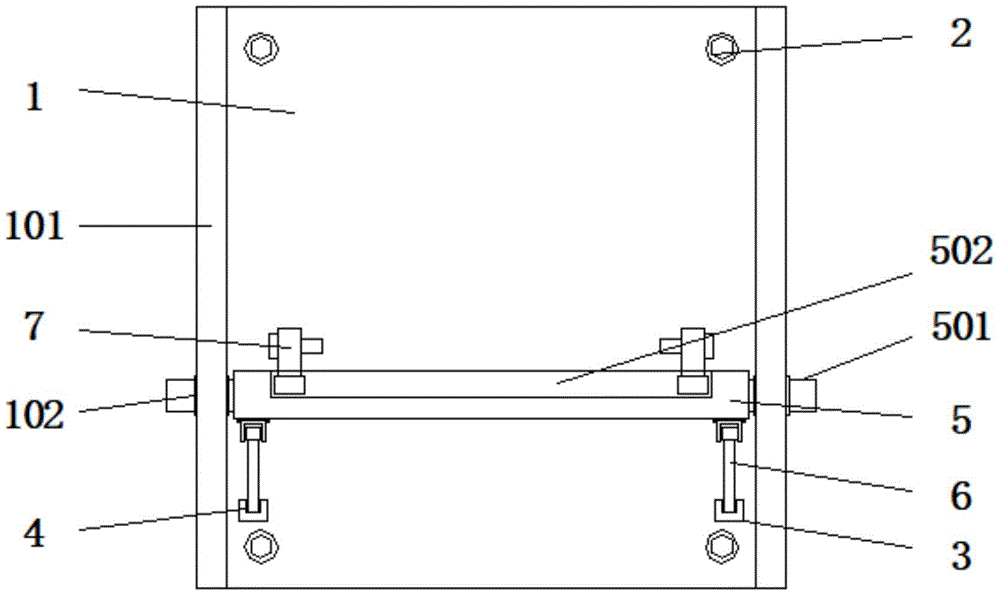

Fig. 1 is the front view structural representation of the utility model;

Fig. 2 is the top view structure schematic diagram of the utility model;

Fig. 3 is the structural schematic diagram of the support rod of the present invention;

4 is a schematic diagram of the structure of the placement plate of the present invention;

FIG. 5 is a schematic structural diagram of the fixing plate of the present invention.

In the figure: 1. Mounting plate; 101, Welding plate; 102, Bearing; 2. Mounting bolt; 201, Limit sleeve; 202, Rubber block; 3, Welding block; Shaft rod; 502, chute; 503, through hole; 6, support rod; 601, sleeve; 602, welding rod; 603, concave seat; 7, fixing plate; 701, slider; 702, fixing bolt.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to FIGS. 1-5 , an embodiment provided by the present utility model: an air conditioner outdoor unit support frame that can avoid condensation water accumulation, comprising a mounting plate 1, mounting bolts 2, welding blocks 3, placing plates 5 and fixing plates 7. Mounting bolts 2 are fixedly installed on the front of the mounting plate 1 near the four corners through the threaded structure. The mounting plate 1 is fixed on the wall by the mounting bolts 2. The front of the mounting plate 1 is close to the two sets of mounting bolts 2 at the bottom. A welding block 3 is welded. The front of the welding block 3 is provided with a slot 4, which is convenient for supporting the support rod 6. The front of the mounting plate 1 is rotated and installed at the position close to the bottom. The placement plate 5 is used for air conditioning. The outdoor unit is placed and installed. The two ends of the front side of the bottom of the placing plate 5 are rotated and installed with support rods 6. The support rods 6 support the placing plate 5 by force. The top of the placing plate 5 is slidably installed with two sets of fixing plates 7. The fixing plates 7 are used for For fixing the outdoor unit of the air conditioner.

Further, the rear ends of the two sides of the placing plate 5 are welded with shaft rods 501, the placing plate 5 is rotated and installed with the welding plate 101 through the shaft rod 501, and the surface of the placing plate 5 is provided with through holes 503, and the through holes 503 are convenient for condensed water to drip. , to prevent condensation water from accumulating on the placing plate 5 , the front and rear sides of the top of the placing plate 5 are provided with chute 502 , and the chute 502 is convenient for the installation of the slider 701 .

Further, welding plates 101 are welded on both sides of the front surface of the mounting plate 1 , and a bearing 102 is embedded in the position of the welding plate 101 near the bottom, and the bearing 102 facilitates the insertion of the shaft 501 .

Further, fixing bolts 702 are fixedly installed at both ends of the fixing plate 7 through a threaded structure, and two ends of the bottom of the fixing plate 7 are welded with sliders 701 . Fixed connection.

Further, the top of the support rod 6 is welded with a sleeve 601, the top of the support rod 6 is provided with a concave seat 603, the inside of the support rod 6 is welded with a welding rod 602, the sleeve 601 is sleeved on the surface of the welding rod 602, and the support rod 6 passes through The sleeve 601 can be rotated on the concave seat 603 to facilitate folding, and the concave seat 603 is fixedly connected to the placing plate 5 through bolts.

Further, one end of the mounting bolt 2 is welded with a limit sleeve 201 , and one end of the limit sleeve 201 is inlaid with a rubber block 202 . The rubber block 202 can effectively buffer vibration and prevent the mounting bolt 2 from loosening.

Working principle: When in use, firstly fix the support frame on the wall through the mounting bolts 2, then rotate the placing plate 5 to keep it horizontal, and then insert the bottom end of the support rod 6 into the slot 4 to fix the placing plate 5. , then put the air conditioner outdoor unit on the placing plate 5, then slide the fixing plate 7 to make the fixing plate 7 contact with both sides of the air conditioner outdoor unit, and then fix the air conditioner outdoor unit through the fixing bolts 702. For fixing, when not in use, remove the mounting bolts 2, and then turn the placement plate 5 to fold it to reduce the occupied placement space.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A support frame for an outdoor unit of an air conditioner that can avoid condensation water accumulation, comprising a mounting plate (1), mounting bolts (2), a welding block (3), a placing plate (5) and a fixing plate (7), characterized in that : Mounting bolts (2) are fixedly mounted on the front of the mounting plate (1) near the four corners, and welding blocks are fixedly mounted on the front of the mounting plate (1) near the bottom two sets of mounting bolts (2). (3), the front side of the welding block (3) is provided with a slot (4), and the front side of the mounting plate (1) is rotatably installed at a position close to the bottom with a placement plate (5), the placement plate (5) Both ends of the front side of the bottom are rotatably installed with support rods (6), and two sets of fixing plates (7) are slidably installed on the top of the placing plate (5). 2. An air conditioner outdoor unit support frame capable of avoiding condensation water accumulation according to claim 1, characterized in that: the rear ends of both sides of the placing plate (5) are fixedly installed with shaft rods (501), so The surface of the placing plate (5) is provided with through holes (503), and the front and rear sides of the top of the placing plate (5) are provided with sliding grooves (502). 3. The air conditioner outdoor unit support frame capable of avoiding condensation water accumulation according to claim 1, characterized in that: welding plates (101) are fixedly installed on both sides of the front of the mounting plate (1), and the welding plates ( 101) A bearing (102) is embedded near the bottom. 4. An air conditioner outdoor unit support frame capable of avoiding condensation water accumulation according to claim 1, characterized in that: fixing bolts (702) are fixedly installed at both ends of the fixing plate (7), and the fixing plate (7) The two ends of the bottom are fixedly installed with sliders (701). 5 . The air conditioner outdoor unit support frame according to claim 1 , wherein the top of the support rod ( 6 ) is fixedly installed with a sleeve ( 601 ), and the support rod ( 6) A concave seat (603) is arranged on the top of the support rod (6), a welding rod (602) is fixedly installed inside the support rod (6), and the sleeve (601) is sleeved on the surface of the welding rod (602). 6. An air conditioner outdoor unit support frame capable of avoiding condensation water accumulation according to claim 1, characterized in that: a limit sleeve (201) is fixedly installed at one end of the mounting bolt (2), and the limit sleeve (201) ) is inlaid and installed with a rubber block (202).
