Abstract

The utility model provides a smoke and dust purifier with a cleaning function, which belongs to the technical field of smoke and dust purifiers. The fume and dust purifier with cleaning function includes a box body, a universal vacuuming arm, a draft mechanism, a purification mechanism, a driving mechanism and a vibration mechanism. The box body includes a purification box and a dust collecting box, and a partition plate is fixedly installed at the bottom end of the purification box, the dust collecting box is arranged at the bottom end of the partition plate, and the partition plate is spaced with a first through hole. In the utility model, the rotating shaft and the fan blade are connected together by means of screw connection, which facilitates the removal of the fan blade, so as to facilitate the operator to clean the fan blade. In addition, the cam can be driven to rotate by driving the motor, and the cam is continuously pushed during rotation. The inner frame body moves repeatedly, so that the inner frame body vibrates, and then the filter cartridge vibrates. During the vibration process, the smoke and dust adsorbed on the surface of the filter cartridge will fall on the partition plate and enter the dust box through the first through hole. in order to complete the cleaning of the filter cartridge.

Description

A fume purifier with cleaning function

technical field

The utility model relates to the field of smoke and dust purifiers, in particular to a smoke and dust purifier with a cleaning function.

Background technique

The soot purifier is a high-efficiency air purifier designed for industrial waste gas smoke and dust. It is widely used in machinery, hardware, electronic appliances, optoelectronics, chemicals, tobacco, pharmaceuticals, food, biology and other industries. Dust-contaminated places.

Existing smoke and dust purifiers are mainly composed of a purification unit and a fan power unit. After a long time of use, both the purification unit and the fan power unit will adhere to a large amount of dust. However, common smoke and dust purifiers are not convenient for these dusts. Cleaning is not conducive to subsequent use.

Utility model content

In order to make up for the above deficiencies, the present invention provides a fume purifier with a cleaning function, which aims to improve the problem of inconvenient cleaning of the traditional fume purifier.

The utility model is realized in this way:

A fume and dust purifier with cleaning function includes a box body, a universal vacuuming arm, a draft mechanism, a purification mechanism, a driving mechanism and a vibration mechanism.

The box body includes a purification box and a dust collecting box, and a partition plate is fixedly installed at the bottom end of the purification box, the dust collecting box is arranged at the bottom end of the partition plate, and the partition plate is spaced with a first through hole, A dust outlet is provided on one side of the dust collecting box, and a sealing block is arranged in the dust outlet;

the universal cleaning arm is communicated with the purification box;

The air induction mechanism includes a ventilation pipe, a connecting cover, a fixing plate, a rotating shaft, a fan blade and a connecting piece. The plate is arranged in the ventilation pipe, the rotating shaft is rotatably installed on the center of the fixing plate, the connecting piece is fixedly installed on the center of the fan blade, and one end of the connecting piece is screwed on the rotating shaft;

The purification mechanism includes an outer frame body, an inner frame body, a filter cartridge and an elastic body, the outer frame body is fixedly installed on the connecting cover, the elastic body is fixedly installed inside the outer frame body, and the inner frame body is fixedly installed. The body is arranged at one end of the elastic body, the inner frame is located inside the outer frame, the filter cartridge is fixedly installed at the top of the inner frame, and the bottom ends of the outer frame and the inner frame are hollowed out ;

The driving mechanism includes a driving motor and a driving rod, the driving motor is arranged in the purification box, the driving rod is fixedly installed on the output shaft of the driving motor, and the driving rod is connected with the rotating shaft in a transmission manner, One end of the drive rod is provided with a slot;

The vibration mechanism includes a telescopic piece, a sliding block, a connecting plate, a rotating rod, a cam and an insert block. The connecting plate is fixedly installed on the sliding block, the rotating rod is rotatably installed on the connecting plate, the cam is arranged at one end of the rotating rod, and the cam is in contact with the inner wall of the inner frame, and the insertion The block is arranged at one end of the rotating rod, and the inserting block is inserted into the slot.

In an embodiment of the present invention, a deflector is installed inside the dust collecting box, and the deflector is arranged obliquely, and the lowest end of the deflector is located at the dust outlet.

In an embodiment of the present invention, the universal vacuuming arm includes a hose and a vacuuming hood, the hose is connected to the purification box, and the vacuuming hood is fixedly installed on one end of the hose .

In an embodiment of the present invention, a filter element is arranged at intervals in the dust hood, and the filter element is one of a filter screen and a filter membrane.

In an embodiment of the present invention, the outer surface of the connecting piece is provided with a screw thread, the rotating shaft is provided with a screw hole, the connecting piece is screwed into the screw hole, and the screw fixing direction of the connecting piece is It is the same as the rotation direction of the shaft.

In an embodiment of the present invention, a counterweight block is fixedly installed at the bottom end of the filter cartridge, and the cross-sectional shape of the counterweight block matches the cross-sectional shape of the filter cartridge.

In an embodiment of the present invention, a frame matching a drive motor is installed inside the purification box, and the drive motor is fixedly installed in the frame.

In an embodiment of the present invention, the connecting plate is provided with a second through hole, and a bearing is fixedly installed in the second through hole, the rotating rod key is connected to the bearing, and the fixing plate A bearing is also provided at the connection with the rotating shaft.

In an embodiment of the present invention, a through groove corresponding to a connecting plate is opened at the top of the purification box, and the connecting plate is slidably arranged in the through groove.

In an embodiment of the present invention, the cross-sectional area of the slider is larger than that of the through groove, and a sealing ring is provided on the outer surface of the slider.

The beneficial effects of the present utility model are as follows: the utility model obtains a fume purifier with a cleaning function through the above-mentioned design. When cleaning, by rotating the connecting piece, the connecting piece screwed to the rotating shaft can be removed, so that the fan blades can be removed. It is convenient for the operator to clean the fan blade, and the insert block is moved through the telescopic piece. When the insert block moves into the slot, the rotating rod and the driving rod are connected together, and when the driving motor drives the driving rod to rotate, it can be Drive the rotating rod to rotate, so that the cam at one end of the rotating rod continuously pushes the inner frame to move repeatedly, so that the inner frame vibrates, which in turn makes the filter cartridge vibrate. and enter the dust box through the first through hole, so as to complete the cleaning of the filter cartridge.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation of the scope. For those of ordinary skill in the art, other related drawings can also be obtained from these drawings without any creative effort.

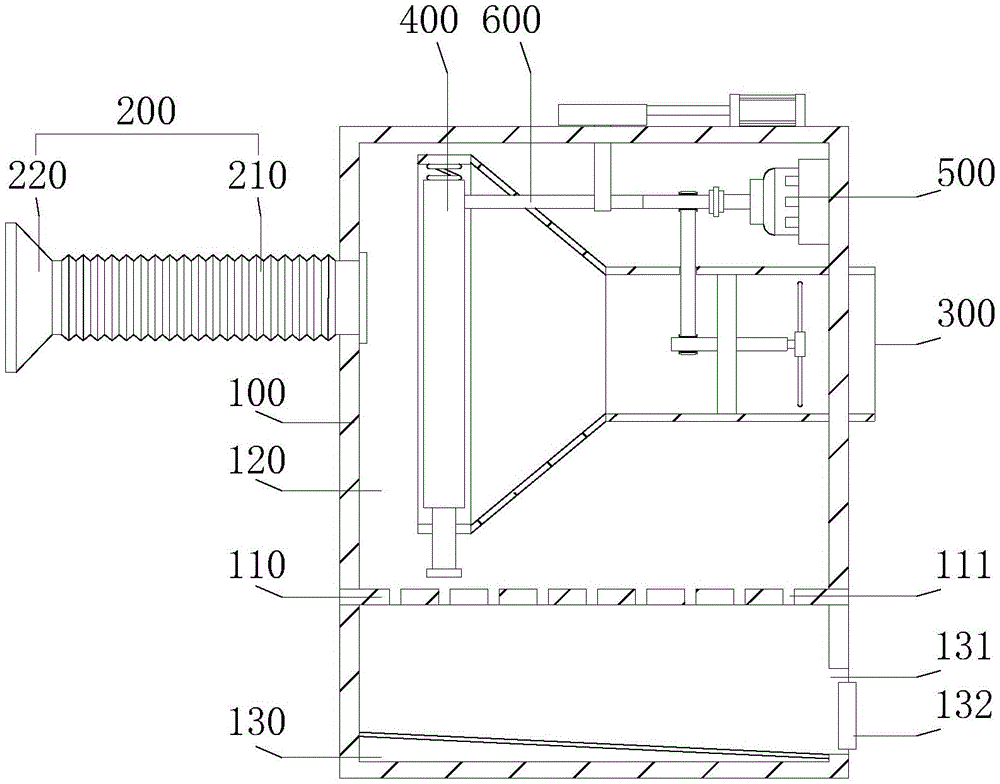

1 is a schematic structural diagram of a fume purifier with a cleaning function provided by an embodiment of the present invention;

2 is a schematic structural diagram of a universal vacuum arm provided by an embodiment of the present invention;

3 is a schematic structural diagram of an air induction mechanism provided by an embodiment of the present invention;

4 is a schematic structural diagram of a rotating shaft provided by an embodiment of the present invention;

5 is a schematic structural diagram of a purification mechanism provided by an embodiment of the present invention;

6 is a schematic structural diagram of a drive mechanism provided by an embodiment of the present invention;

7 is a schematic structural diagram of a drive rod provided by an embodiment of the present invention;

8 is a schematic structural diagram of a vibration mechanism provided by an embodiment of the present invention;

FIG. 9 is a schematic structural diagram of a connecting plate according to an embodiment of the present invention.

In the figure: 100-box body; 110-partition plate; 111-first through hole; 120-purification box; 130-dust collecting box; 131-dust outlet; 132-sealing block; 200-universal vacuuming arm; 210-Hose; 220-Dust Cover; 221-Filter; 300-Air Induction Mechanism; 310-Ventilation Pipe; 320-Connecting Cover; 330-Fixing Plate; 340-Rotating Shaft; 350-Fan Blade; 360-Connecting Piece ; 400-purification mechanism; 410-outer frame; 420-inner frame; 430-filter cartridge; 440-elastomer; 500-drive mechanism; 510-drive motor; 520-drive rod; 521-slot; 600- Vibration mechanism; 610- telescopic part; 620- slider; 630- connecting plate; 631- second through hole; 632- bearing; 640- rotating rod; 650- cam; 660- insert block.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention more clear, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described The embodiments of the present invention are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise" etc. Or the positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed in a specific orientation and operation, so it cannot be construed as a limitation to the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

In the present utility model, unless otherwise expressly specified and limited, the terms "installation", "connection", "connection", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection Connection, or integration; it can be directly connected, or indirectly connected through an intermediate medium, and it can be the internal communication between two elements or the interaction relationship between the two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In the present invention, unless otherwise expressly specified and limited, a first feature "on" or "under" a second feature may include the first and second features in direct contact, or may include the first and second features The features are not in direct contact but through additional features between them. Also, the first feature being "above", "over" and "above" the second feature includes the first feature being directly above and obliquely above the second feature, or simply means that the first feature is level higher than the second feature. The first feature is "below", "below" and "below" the second feature includes the first feature being directly below and diagonally below the second feature, or simply means that the first feature has a lower level than the second feature.

Example

1-9 , the present invention provides a fume purifier with cleaning function, including a box body 100 , a universal dust suction arm 200 , a draft mechanism 300 , a purification mechanism 400 , a drive mechanism 500 and a vibration mechanism 600 .

The universal cleaning arm 200 is connected to the box body 100, the purification mechanism 400 is arranged inside the box body 100, the universal cleaning arm 200 and the air induction mechanism 300 are used to inhale the smoke and dust from the outside into the box body 100, and the cleaning mechanism 400 is used to purify the smoke and dust, and the driving mechanism 500 is used to drive the vibration mechanism 600, so that the vibration mechanism 600 drives the purification mechanism 400 to vibrate, and during the vibration process, the dust adhered to the purification mechanism 400 is removed.

Referring to FIG. 1 , the box body 100 includes a purification box 120 and a dust collecting box 130 , and a partition 110 is fixedly installed at the bottom end of the purification box 120 . A through hole 111, the dust inside the purification box 120 will enter the dust collecting box 130 through the first through hole 111, a dust outlet 131 is opened on one side of the dust collecting box 130, and a sealing block 132 is arranged in the dust outlet 131, In the specific implementation process, the sealing block 132 is installed on the dust outlet 131 by means of plugging or clipping, which is convenient for disassembly. A deflector is installed inside the dust collecting box 130, and the deflector is arranged obliquely. The lowest end is located at the dust outlet 131 , and the deflector is used to guide the dust inside the dust box 130 to the dust outlet 131 .

Please refer to FIG. 1-2, the universal vacuuming arm 200 is connected to the purification box 120, the universal vacuuming arm 200 includes a hose 210 and a vacuuming hood 220, the hose 210 is connected to the purification box 120, and the vacuuming hood 220 is fixedly installed At one end of the hose 210, the hose 210 is easy to bend, so as to adjust the opening direction of the dust hood 220. The dust hood 220 is provided with a filter element 221 at intervals, and the filter element 221 is one of a filter screen and a filter membrane. Piece 221 is used to filter bulky objects.

Please refer to FIG. 3 and FIG. 4 , the air induction mechanism 300 includes a ventilation pipe 310 , a connecting cover 320 , a fixing plate 330 , a rotating shaft 340 , a fan blade 350 and a connecting piece 360 , the ventilation pipe 310 is disposed in the purification box 120 , and the connecting cover 320 is fixedly installed At one end of the ventilation pipe 310, the fixing plate 330 is arranged in the ventilation pipe 310, the rotating shaft 340 is rotatably installed in the center of the fixing plate 330, the connecting piece 360 is fixedly installed at the center of the fan blade 350, and one end of the connecting piece 360 is screwed to the rotating shaft 340, The outer surface of the connecting piece 360 is provided with a screw thread, the rotating shaft 340 is provided with a screw hole, and the connecting piece 360 is screwed into the screw hole. Being connected with the rotating shaft 340 , it is convenient to remove the connecting piece 360 , so as to facilitate the separation of the fan blade 350 from the rotating shaft 340 .

Please refer to FIG. 5 , the purification mechanism 400 includes an outer frame body 410 , an inner frame body 420 , a filter cartridge 430 and an elastic body 440 , the outer frame body 410 is fixedly installed on the connection cover 320 , and the outer frame body 410 and the ventilation pipe are connected by the connection cover 320 . 310 are connected together, so that the purification mechanism 400 and the air induction mechanism 300 are connected together, the degree of integration of the device is improved, and the volume of the device is reduced. The elastic body 440 is fixedly installed inside the outer frame body 410, and the inner frame body 420 One end of the elastic body 440, and the inner frame body 420 is located inside the outer frame body 410, the filter cartridge 430 is fixedly installed at the inner top of the inner frame body 420, and the bottom ends of the outer frame body 410 and the inner frame body 420 are hollowed out. , the elastic body 440 is a kind of spring and elastic rubber, the bottom end of the filter cartridge 430 is fixedly installed with a counterweight block, the cross-sectional shape of the counterweight block matches the cross-sectional shape of the filter cartridge 430, and the counterweight block is used to increase the filter The weight of the cartridge 430 keeps the filter cartridge 430 upright.

1 , 6 and 7 , the driving mechanism 500 includes a driving motor 510 and a driving rod 520 , the driving motor 510 is disposed in the purification box 120 , the driving rod 520 is fixedly installed on the output shaft of the driving motor 510 , and the driving rod 520 Drive connection with the rotating shaft 340, in the specific implementation process, the driving rod 520 is keyed with a pulley, and the rotating shaft 340 is also keyed with a pulley, the pulley and the pulley are connected by a belt drive, and the drive rod 520 and the rotating shaft 340 are connected in reverse. One end of the drive rod 520 is provided with a slot 521, and a base matching the drive motor 510 is installed inside the purification box 120. The drive motor 510 is fixedly installed in the base, so that the drive motor 510 can be installed more firmly.

1 , 8 and 9 , the vibration mechanism 600 includes a telescopic member 610 , a slider 620 , a connecting plate 630 , a rotating rod 640 , a cam 650 and a plug 660 . In the specific implementation process, the telescopic member 610 is an electrical One of a cylinder, an air cylinder and an electric push rod, the telescopic piece 610 is arranged on the top of the purification box 120, the slider 620 is installed at the output end of the telescopic piece 610, the connecting plate 630 is fixedly installed on the slider 620, and the rotating rod 640 is rotatably installed on the The connecting plate 630 and the cam 650 are arranged at one end of the rotating rod 640, and the cam 650 is in contact with the inner wall of the inner frame 420. The plug 660 is set at one end of the rotating rod 640, and the plug 660 is inserted into the slot of the slot 521. In the implementation process, the shape of the insert block 660 matches the shape of the slot 521, and both are regular polygons. The connecting plate 630 is provided with a second through hole 631, and the second through hole 631 is fixedly installed with the bearing 632 inside, and the rotating rod. The 640 key is connected to the bearing 632, and the connection between the fixing plate 330 and the rotating shaft 340 is also provided with a bearing 632. The fixing plate 330 is used to fix the rotating shaft 340 to make the rotating shaft 340 more stable, and the bearing 632 is used to make the rotating shaft 340 rotate more smoothly , the top end of the purification box 120 is provided with a through groove corresponding to the connecting plate 630, and the connecting plate 630 is slidably arranged in the through groove, so that the movement of the connecting plate 630 can be made smoother, and the cross-sectional area of the slider 620 is larger than that of the through groove. The outer surface of the slider 620 is provided with a sealing ring, so as to improve the sealing performance of the purification box 120 .

Specifically, the working principle of the dust purifier with cleaning function: when in use, the driving motor 510 in the driving mechanism 500 drives the driving rod 520 to rotate, so that the driving rod 520 drives the rotating shaft 340 to rotate, so that the fan blade 350 rotates, and the fan blade rotates. The 350 will drive the wind to flow during the rotation process, and the smoke and dust from the outside will enter the purification box 120 through the universal cleaning arm 200, and the filter cartridge 430 in the purification mechanism 400 will absorb the smoke and dust, thereby completing the essence of the gas; after cleaning the device When the connecting member 360 is rotated, the connecting member 360 screwed to the rotating shaft 340 can be removed, thereby removing the fan blade 350 and the rotating shaft 340, so as to facilitate the operator to clean the fan blade 350, and then make the telescopic member 610 in the vibration mechanism 600. shrinks, thereby driving the slider 620 to move. When the slider 620 moves, it will drive the connecting plate 630 and the rotating rod 640 to move, so that the plug 660 fixedly installed at one end of the rotating rod 640 is inserted into the slot 521, so that the rotating rod 640 is inserted into the slot 521. It is connected with the driving rod 520. When the driving motor 510 drives the driving rod 520 to rotate again, the rotating rod 640 can be rotated, and the cam 650 at the end of the rotating rod 640 will rotate, so that the inner frame body in contact with the cam 650 420 vibrates, which in turn causes the filter cartridge 430 to vibrate. During the vibration process, the smoke and dust adsorbed on the surface of the filter cartridge 430 will fall on the partition 110 and enter the dust collecting box 130 through the first through hole 111, thereby completing the filtering process. Cleaning of the cartridge 430.

It should be noted that the specific models and specifications of the drive motor 510 and the telescopic element 610 need to be selected and determined according to the actual specifications of the device.

The power supply of the driving motor 510 and the telescopic element 610 and the principles thereof are clear to those skilled in the art, and will not be described in detail here.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (10)

1. A smoke dust purifier with a cleaning function is characterized by comprising

The box body (100) comprises a purification box (120) and a dust collection box (130), a partition plate (110) is fixedly mounted at the bottom end of the purification box (120), the dust collection box (130) is arranged at the bottom end of the partition plate (110), first through holes (111) are formed in the partition plate (110) at intervals, a dust outlet (131) is formed in one side of the dust collection box (130), and a sealing block (132) is arranged in the dust outlet (131);

the universal dust collection arm (200), the universal dust collection arm (200) is communicated with the purification box (120);

the air inducing mechanism (300) comprises a ventilation pipe (310), a connecting cover (320), a fixing plate (330), a rotating shaft (340), fan blades (350) and a connecting piece (360), wherein the ventilation pipe (310) is arranged on the purification box (120), the connecting cover (320) is fixedly arranged at one end of the ventilation pipe (310), the fixing plate (330) is arranged in the ventilation pipe (310), the rotating shaft (340) is rotatably arranged at the center of the fixing plate (330), the connecting piece (360) is fixedly arranged at the center of the fan blades (350), and one end of the connecting piece (360) is in threaded connection with the rotating shaft (340);

the purification device (400) comprises an outer frame body (410), an inner frame body (420), a filter cartridge (430) and an elastic body (440), wherein the outer frame body (410) is fixedly installed on the connecting cover (320), the elastic body (440) is fixedly installed inside the outer frame body (410), the inner frame body (420) is arranged at one end of the elastic body (440), the inner frame body (420) is located inside the outer frame body (410), the filter cartridge (430) is fixedly installed at the top end inside the inner frame body (420), and the bottom ends of the outer frame body (410) and the inner frame body (420) are both hollowed out;

the driving mechanism (500) comprises a driving motor (510) and a driving rod (520), the driving motor (510) is arranged in the purification box (120), the driving rod (520) is fixedly installed on an output shaft of the driving motor (510), the driving rod (520) is in transmission connection with the rotating shaft (340), and one end of the driving rod (520) is provided with an insertion groove (521);

vibration mechanism (600), vibration mechanism (600) include extensible member (610), slider (620), connecting plate (630), bull stick (640), cam (650) and inserted block (660), extensible member (610) set up in purifying box (120) top, slider (620) are installed the output of extensible member (610), connecting plate (630) fixed mounting in slider (620), bull stick (640) rotate install in connecting plate (630), set up of cam (650) in bull stick (640) one end, just cam (650) with interior framework (420) inner wall contact, inserted block (660) set up in bull stick (640) one end, just inserted block (660) peg graft in slot (521) inslot.

2. The soot cleaner with cleaning function as claimed in claim 1, wherein a deflector is installed inside said dust collection box (130), and said deflector is disposed obliquely, and the lowest end of said deflector is located at said dust outlet (131).

3. The soot cleaner with cleaning function as claimed in claim 1, wherein said universal dust suction arm (200) comprises a hose (210) and a dust suction hood (220), said hose (210) is connected to said cleaning box (120), and said dust suction hood (220) is fixedly installed at one end of said hose (210).

4. A soot cleaning device as claimed in claim 3, characterized in that said dust hood (220) is internally spaced with a filter member (221), said filter member (221) is one of a filter net and a filter membrane.

5. The soot cleaner with cleaning function as claimed in claim 1, wherein said connecting member (360) has threads on its outer side, said rotating shaft (340) has a threaded hole, said connecting member (360) is threaded into said threaded hole, and the screwing direction of said connecting member (360) is the same as the rotating direction of said rotating shaft (340).

6. The soot cleaner as claimed in claim 1, wherein a weight block is fixedly installed at a bottom end of said filter cartridge (430), and a cross-sectional shape of said weight block matches a cross-sectional shape of said filter cartridge (430).

7. The soot cleaner with cleaning function as claimed in claim 1, wherein said cleaning box (120) is internally installed with a base matched with a driving motor (510), said driving motor (510) is fixedly installed in said base.

8. The soot cleaner with cleaning function as claimed in claim 1, wherein said connecting plate (630) is opened with a second through hole (631), and a bearing (632) is fixedly installed inside said second through hole (631), said rotating rod (640) is connected to said bearing (632) by key, and a bearing (632) is also installed at the connection position of said fixed plate (330) and said rotating shaft (340).

9. The soot cleaner with cleaning function as claimed in claim 1, wherein a through slot corresponding to the connecting plate (630) is opened at the top end of the cleaning box (120), and the connecting plate (630) is slidably disposed in the through slot.

10. The soot cleaner with cleaning function as claimed in claim 9, wherein said slider (620) has a larger cross-sectional area than said through groove, and a sealing ring is disposed on the outer side of said slider (620).
